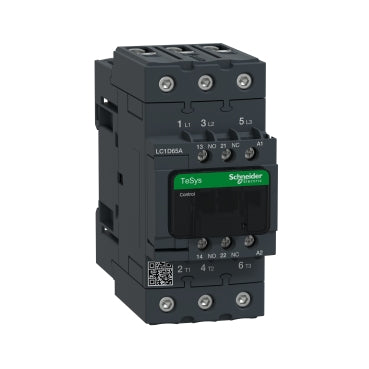

The Schneider Electric LC1D09–LC1D150 is a TeSys D 3-pole power contactor rated 9–150 A in AC-3 (≈4–75 kW / 5.5–100 HP motors at 400 V), available with coil options 24 V AC, 48 V AC, 110 V AC, 220 V AC, 380 V AC. It switches three-phase motors, heaters, lighting and other loads remotely from push buttons, PLCs, float switches, pressure switches or timers, and combines with TeSys overload relays and motor circuit breakers to form complete motor starters.
Key features
- 9–150 A AC-3 ratings for motors from about 4 kW up to 75 kW at 400 V
- Coil options 24 V AC, 48 V AC, 110 V AC, 220 V AC, 380 V AC
- Long electrical and mechanical life for frequent switching
- Accepts add-on auxiliary contact blocks, time-delay blocks and surge suppressors
- Direct mounting with matching thermal overload relays
- DIN-rail or panel mounting
Technical specifications
| Brand | Schneider Electric |
|---|---|
| Part number range | LC1D09–LC1D150 |
| Product range | TeSys D |
| Device type | Power contactor (3-pole) |
| Rated current AC-3 (≤440 V) | 9–150 A |
| Motor power AC-3 at 400 V | 4–75 kW (5.5–100 HP) |
| Coil voltage | coil options 24 V AC, 48 V AC, 110 V AC, 220 V AC, 380 V AC |
| Available coil codes | LC1D09M7, LC1D09B7, LC1D09E7, LC1D09F7, LC1D09Q7, LC1D12M7, LC1D12B7, LC1D12E7, LC1D12F7, LC1D12Q7, LC1D18M7, LC1D18B7, LC1D18E7, LC1D18F7, LC1D18Q7, LC1D25M7, LC1D25B7, LC1D25E7, LC1D25F7, LC1D25Q7, LC1D32M7, LC1D32B7, LC1D32E7, LC1D32F7, LC1D32Q7, LC1D40AM7, LC1D40AB7, LC1D40AE7, LC1D40AF7, LC1D40AQ7, LC1D50AM7, LC1D50AB7, LC1D50AE7, LC1D50AF7, LC1D50AQ7, LC1D65AM7, LC1D65AB7, LC1D65AE7, LC1D65AF7, LC1D65AQ7, LC1D80AM7, LC1D80AB7, LC1D80AE7, LC1D80AF7, LC1D80AQ7, LC1D95M7, LC1D95B7, LC1D95E7, LC1D95F7, LC1D95Q7, LC1D115M7, LC1D115B7, LC1D115E7, LC1D115F7, LC1D115Q7, LC1D150M7, LC1D150B7, LC1D150E7, LC1D150F7, LC1D150Q7 |
| Auxiliary contacts | 1NO+1NC |
| Poles | 3 NO main poles |
| Standard | IEC/EN 60947-4-1 |
Typical applications
- Water pumps, booster pumps and sewage pumps
- Star-delta and DOL motor starters
- HVAC compressors, fans and cooling towers
- Lighting and heater control
- Industrial machines, cranes and conveyors
- Capacitor banks and changeover (ATS) panels
Selection guide
Select the contactor by the motor full-load current in AC-3 (not the motor kW alone), choose the coil voltage to match your control circuit (220 V AC is the most common in Egypt), and pair it with an overload relay whose range covers the motor current.
Frequently asked questions
What motor size can the LC1D09–LC1D150 control?
In AC-3 duty at 400 V it is rated 9–150 A, which corresponds to about 4–75 kW three-phase motors.
Which overload relay fits this contactor?
Use the TeSys thermal overload relay of the same frame (LRD / LRE / LR9 families) with a setting range that includes the motor nameplate current.
What does the coil code mean?
The suffix of the reference shows the coil voltage: M7 = 220 V AC, B7 = 24 V AC, E7 = 48 V AC, F7 = 110 V AC, Q7 = 380 V AC, BD = 24 V DC.
Buy Schneider LC1D09–LC1D150 in Egypt
Spark Egypt supplies the original Schneider Electric LC1D09–LC1D150 contactor with a VAT tax invoice for electrical contractors, panel builders, factories, consultants and facility-maintenance teams. Delivery is available to Cairo, Giza, New Cairo, 6th of October, Sheikh Zayed, the New Administrative Capital, Alexandria, the Delta, the Canal cities and Upper Egypt. Our technical team can confirm ratings, compatible accessories and equivalent references before you order, and project quantities are quoted on request.
