Schneider Electric APC Easy UPS External Battery Packs
External battery packs for the explicitly compatible Easy UPS model and DC voltage. A battery pack is not a standalone UPS. Match the battery connector, voltage and approved UPS reference before connection.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|
| SRV120RLBP2-9A | UPS | APC Easy UPS On-Line SRV 120V RM Battery Pack for 15/20kVA Rack Extended Runtime Model | Current: 9A; Voltage: 120V; Power: 20kVA |

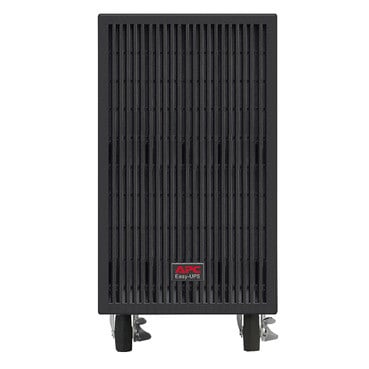

| SRV240BP-9A | UPS | APC Easy UPS On-Line SRV Battery Pack for 6/10kVA Extended runtime model, 240V | Current: 9A; Voltage: 240V; Power: 10kVA |

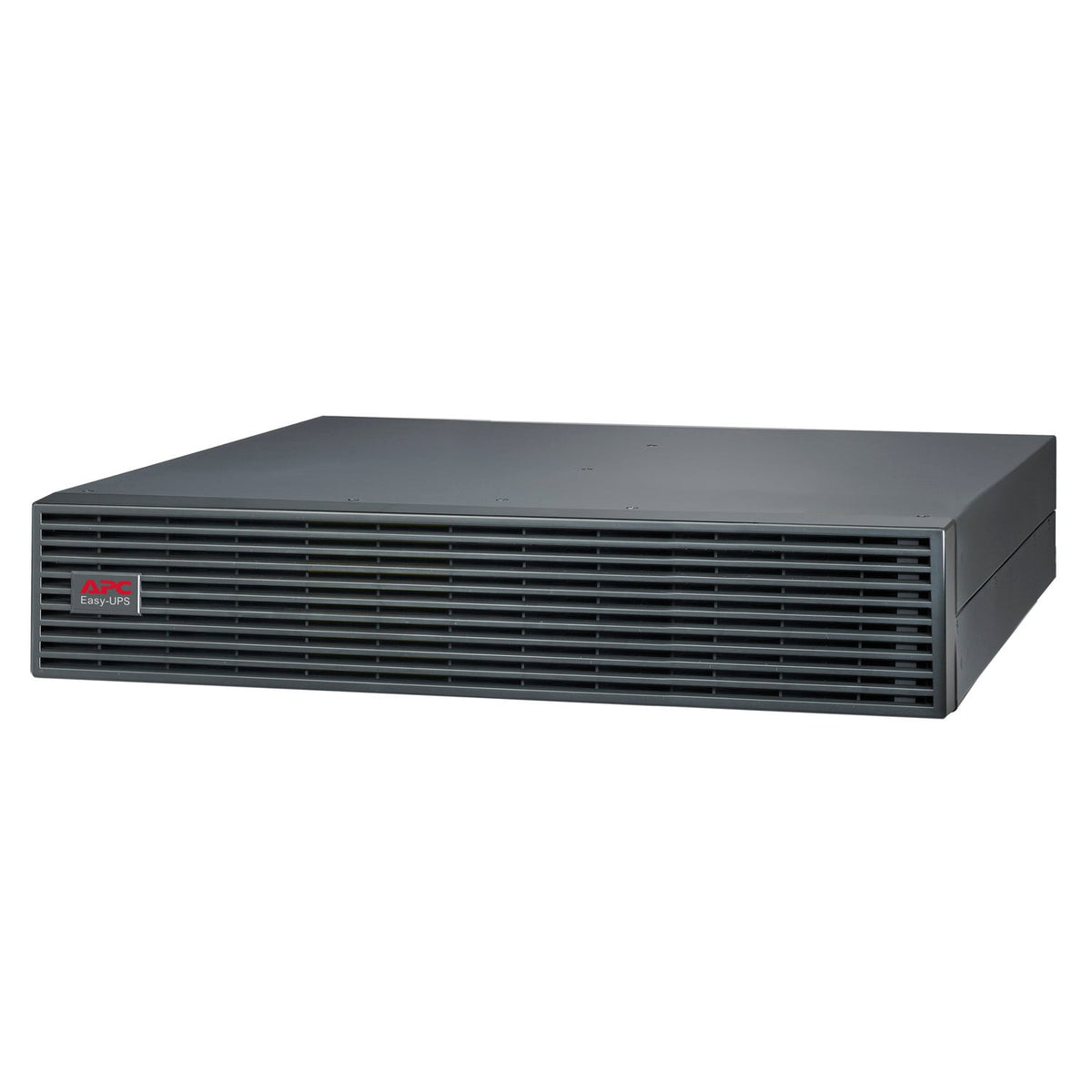

| SRV72RLBP-9A | APC Easy UPS On-Line SRV 72V RM Battery Pack for 2/3 kVA Extended Runtime Model | Current: 9A; Voltage: 72V; Power: 3 kVA |

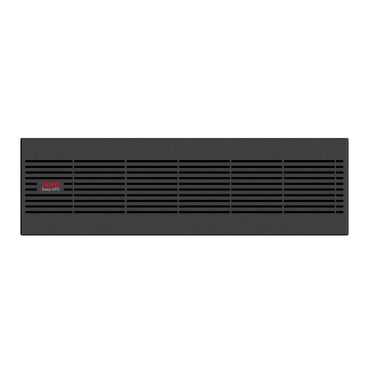

| SRV240RLBP-9A | UPS | APC Easy UPS On-Line SRV Battery Pack (6/10kVA) for Extended Runtime Model 240V, 2160VAh, rackmount with kit, 3U | Current: 9A; Voltage: 240V; Power: 10kVA |

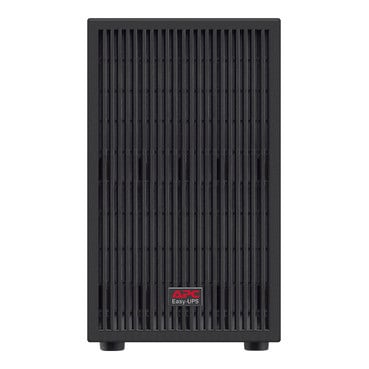

| SRV72BP-9A | UPS | APC Easy UPS On-Line SRV Battery Pack for 2/3kVA Extended runtime model, 72V | Current: 9A; Voltage: 72V; Power: 3kVA |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
