Schneider Electric LC1F115M7 TeSys F Contactor 3P 115A AC-3 55kW 220V AC Coil
Schneider Electric LC1F115M7 TeSys F Contactor 3P 115A AC-3 55kW 220V AC Coil
Couldn't load pickup availability

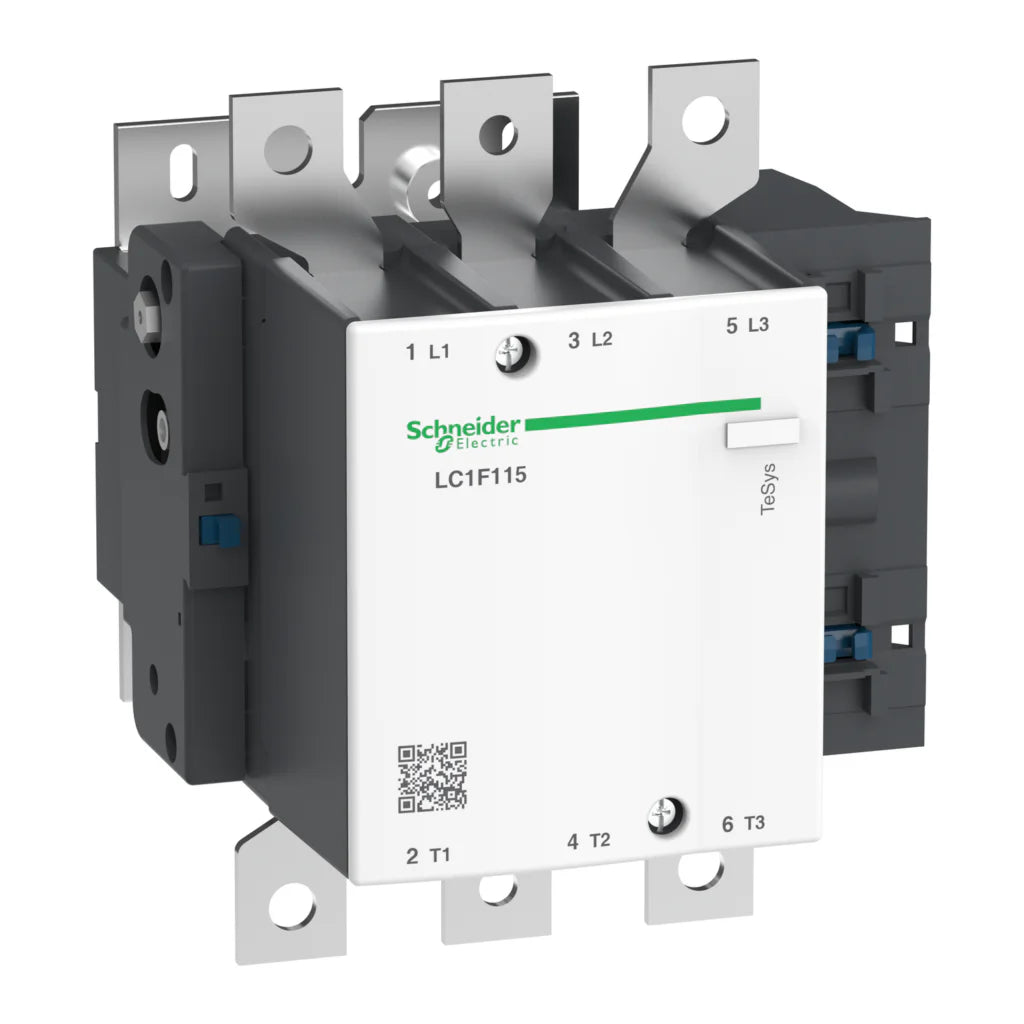

The Schneider Electric LC1F115M7 is a TeSys F 3-pole power contactor rated 115 A in AC-3 (≈55 kW / 75 HP motors at 400 V) with a 220 V AC control coil. It switches three-phase motors, heaters, lighting and other loads remotely from push buttons, PLCs, float switches, pressure switches or timers, and combines with TeSys overload relays and motor circuit breakers to form complete motor starters.
Key features
- 115 A AC-3 rating for motors up to about 55 kW at 400 V
- 220 V AC coil
- Long electrical and mechanical life for frequent switching
- Heavy-duty design for high-power motor feeders
- Direct mounting with matching thermal overload relays
- Panel mounting with power terminals for lugs/busbars
Technical specifications
| Brand | Schneider Electric |
|---|---|
| Part number (SKU) | LC1F115M7 |
| Product range | TeSys F |
| Device type | Power contactor (3-pole) |
| Rated current AC-3 (≤440 V) | 115 A |
| Motor power AC-3 at 400 V | 55 kW (75 HP) |
| Coil voltage | 220 V AC |
| Poles | 3 NO main poles |
| Standard | IEC/EN 60947-4-1 |
Typical applications
- Water pumps, booster pumps and sewage pumps
- Star-delta and DOL motor starters
- HVAC compressors, fans and cooling towers
- Lighting and heater control
- Industrial machines, cranes and conveyors
- Capacitor banks and changeover (ATS) panels
Selection guide
Select the contactor by the motor full-load current in AC-3 (not the motor kW alone), choose the coil voltage to match your control circuit (220 V AC is the most common in Egypt), and pair it with an overload relay whose range covers the motor current.
Frequently asked questions
What motor size can the LC1F115M7 control?
In AC-3 duty at 400 V it is rated 115 A, which corresponds to about 55 kW three-phase motors.
Which overload relay fits this contactor?
Use the TeSys thermal overload relay of the same frame (LRD / LRE / LR9 families) with a setting range that includes the motor nameplate current.
What does the coil code mean?
The suffix of the reference shows the coil voltage: M7 = 220 V AC, B7 = 24 V AC, E7 = 48 V AC, F7 = 110 V AC, Q7 = 380 V AC, BD = 24 V DC.
Buy Schneider LC1F115M7 in Egypt
Order the Schneider Electric LC1F115M7 from Spark Egypt and receive an original contactor with an official tax invoice. We deliver to Cairo, Giza, New Cairo, 6th of October, Sheikh Zayed, the New Administrative Capital, Alexandria, the Delta, the Canal cities and Upper Egypt, and our engineers help contractors, panel builders and maintenance teams check ratings, accessories and cross-references before purchase. Request a project quotation for bulk quantities.
