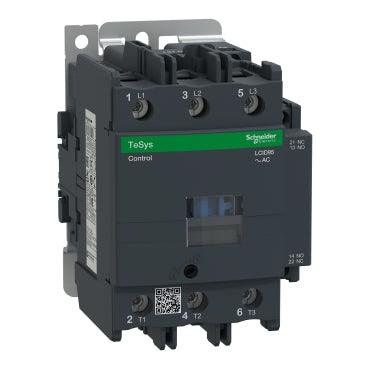

Schneider Electric TeSys D LC1D95 Contactor | LC1D95M7, 3-Pole, 95A AC-3, 220V AC Coil

LC1D95M7 is part of the Schneider Electric TeSys D LC1D range of 3-pole AC-3 motor contactors for dependable switching and control of three-phase motors. The LC1D95 frame is rated 95A for AC-3 motor duty, with the LC1D95M7 220V AC coil option for common Egyptian control-panel supplies.

TECHNICAL SPECIFICATIONS
Brand: Schneider Electric
Series: TeSys D / LC1D
Reference: LC1D95M7; frame: LC1D95
Utilization category: AC-3 motor control
Rated operational voltage: up to 440V AC for AC-3 duty
Rated current: 95A
Motor reference: up to 45kW at 400V, subject to duty and installation conditions
Main contacts: 3 poles, 3 normally-open power contacts

VARIANT GUIDE
Part number / SKU | Coil voltage | Current | Main contacts | Typical motor duty
LC1D95M7 | 220V AC | 95A | 3P, 3 NO | AC-3 up to 45kW at 400V
LC1D95B7 | 24V AC | 95A | 3P, 3 NO | AC-3 up to 45kW at 400V
LC1D95E7 | 48V AC | 95A | 3P, 3 NO | AC-3 up to 45kW at 400V
LC1D95F7 | 110V AC | 95A | 3P, 3 NO | AC-3 up to 45kW at 400V
LC1D95Q7 | 380V AC | 95A | 3P, 3 NO | AC-3 up to 45kW at 400V

Choose LC1D95M7 when your control circuit uses 220-240V AC. Other LC1D95 coil variants are available for 24V AC, 48V AC, 110V AC, 380V AC or 24V DC control systems. Confirm coil voltage, motor current, short-circuit protection and overload relay coordination before installation.

Buy genuine Schneider Electric TeSys D LC1D95 contactors from Spark for electrical panels, industrial motor starters, pump and HVAC control, and electrical spare-parts requirements across Egypt.
