Schneider Electric ATS22 Soft Starters

Limit starting stress with a soft starter selected for the motor current, supply voltage and starting duty. A soft starter is not a variable-speed drive. Confirm the required bypass arrangement and upstream protective coordination.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings

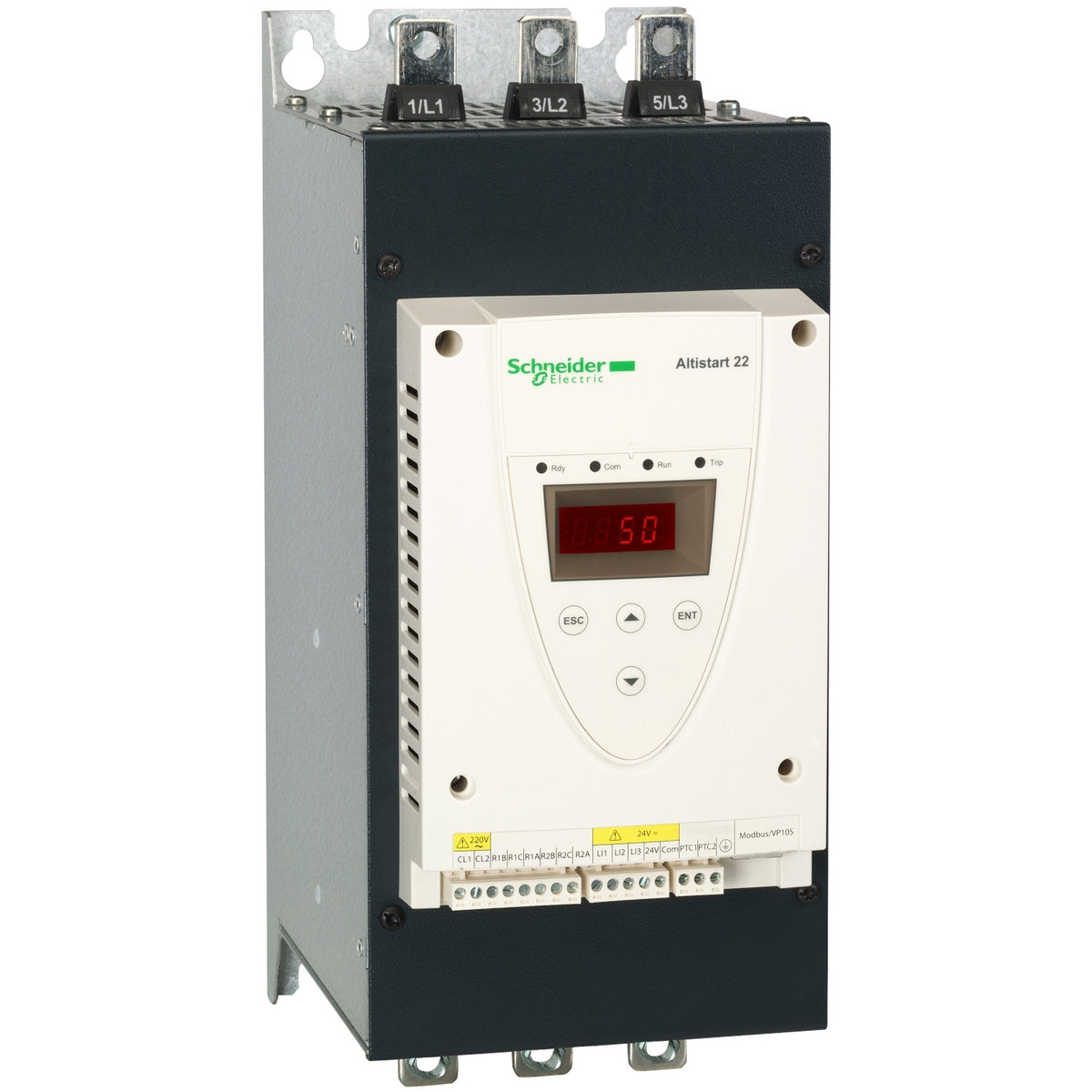

ATS22C11Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 39 to 55kW	Voltage: 230V, 440V; Power: 55kW
ATS22C21Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 55 to 110kW	Voltage: 230V, 440V; Power: 110kW
ATS22C32Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 90 to 160kW	Voltage: 230V, 440V; Power: 160kW

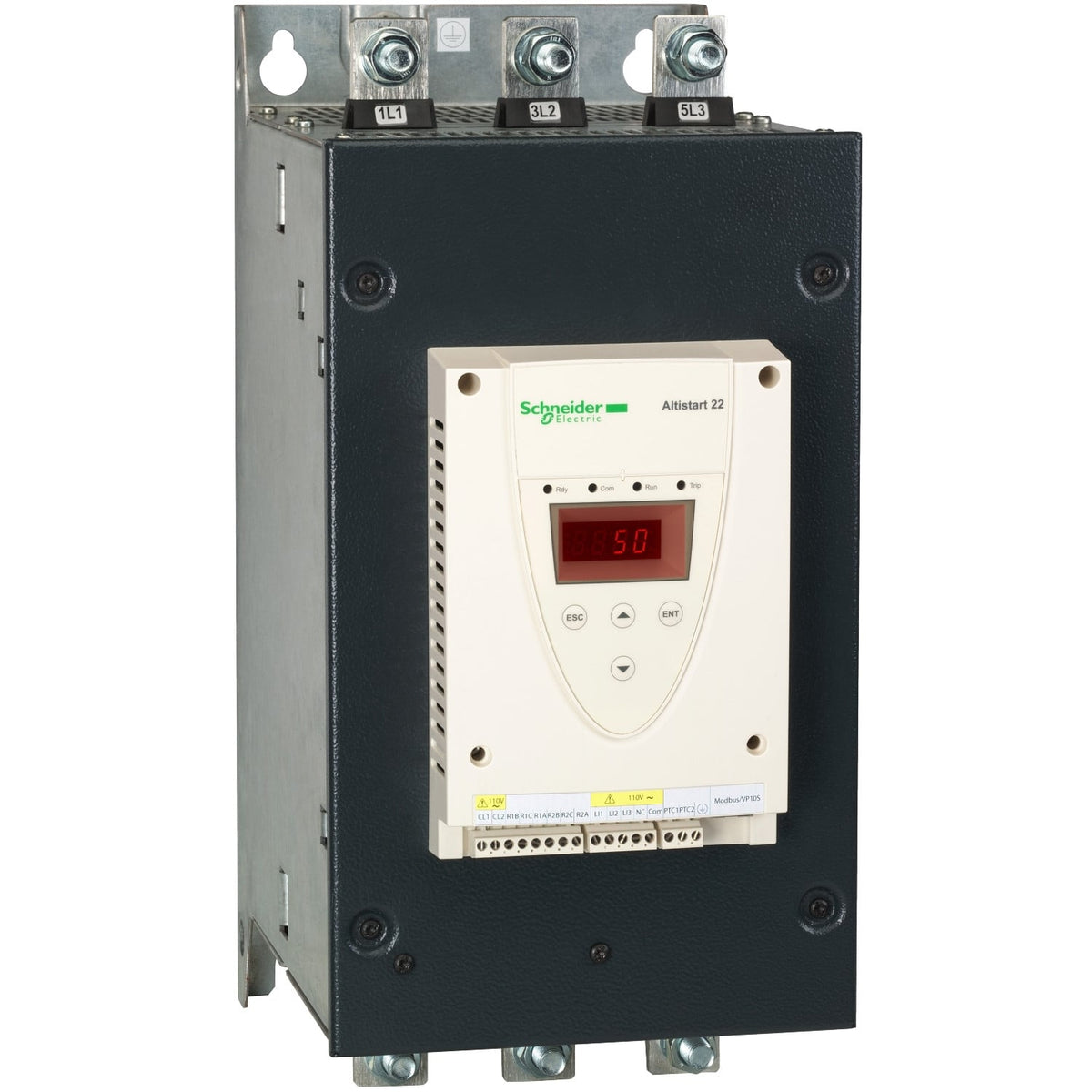

ATS22C41Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 110 to 220kW	Voltage: 230V, 440V; Power: 220kW

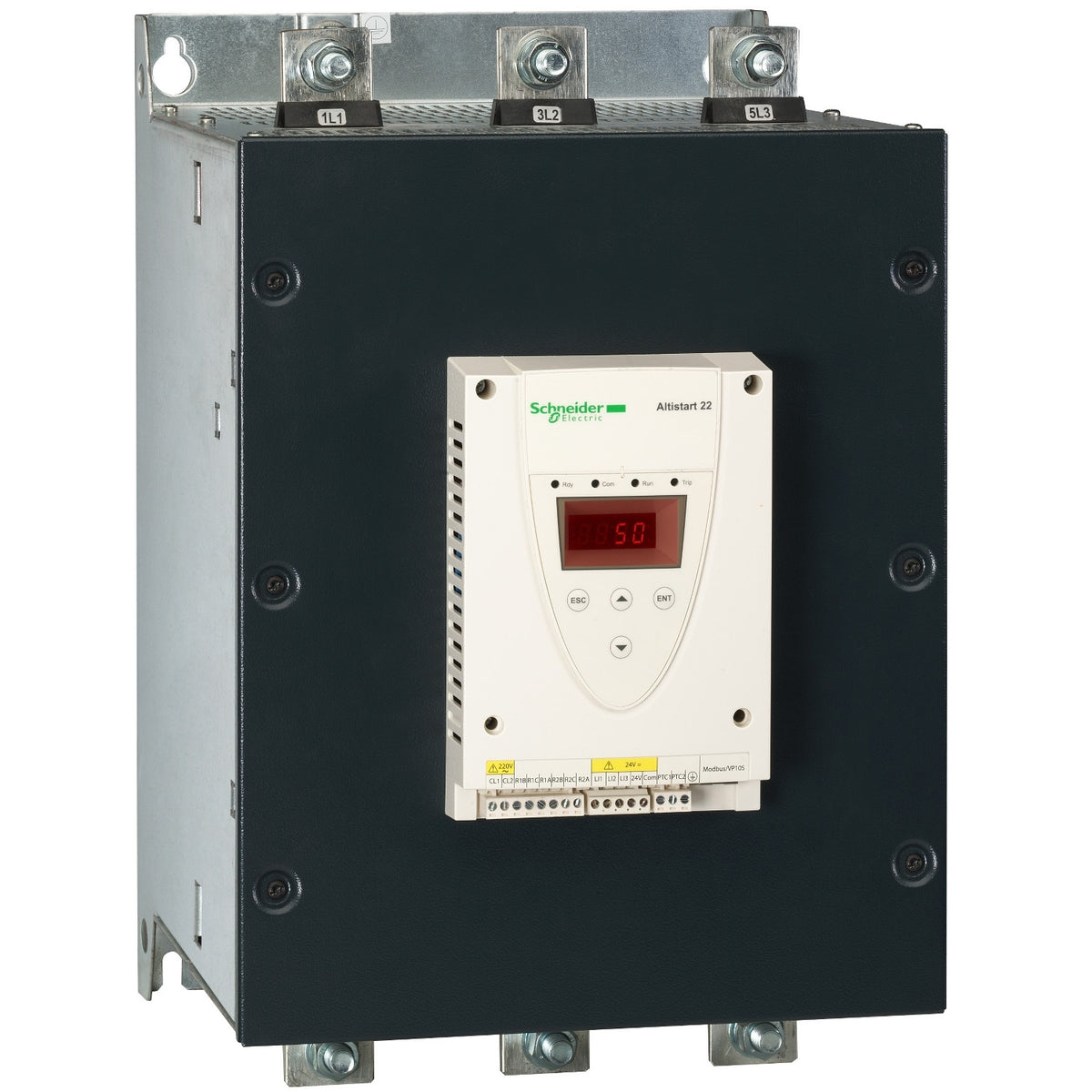

ATS22C48Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 132 to 250kW	Voltage: 230V, 440V; Power: 250kW
ATS22C59Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 160 to 355kW	Voltage: 230V, 440V; Power: 355kW

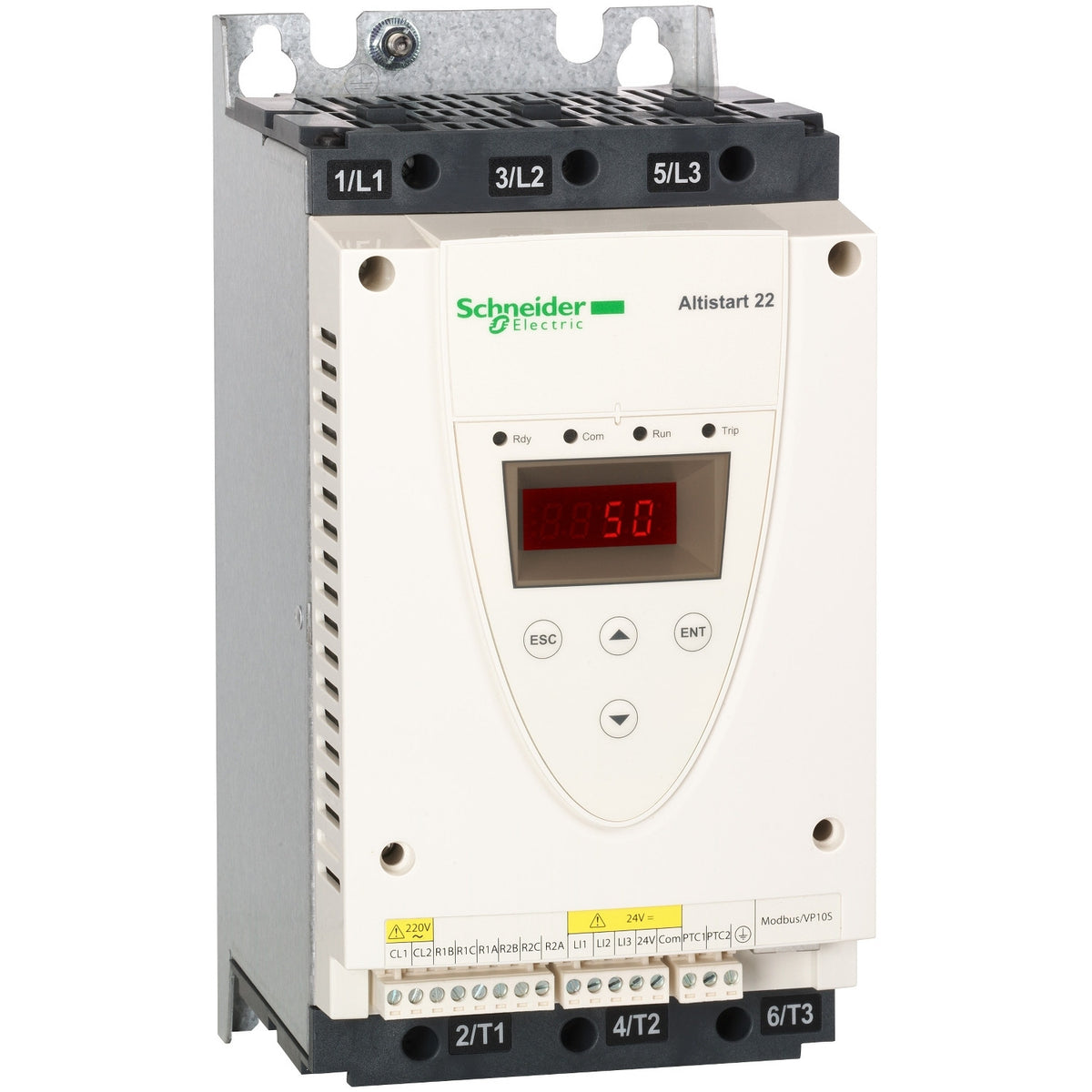

ATS22D32Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 7.5 to 15kW	Voltage: 230V, 440V; Power: 15kW

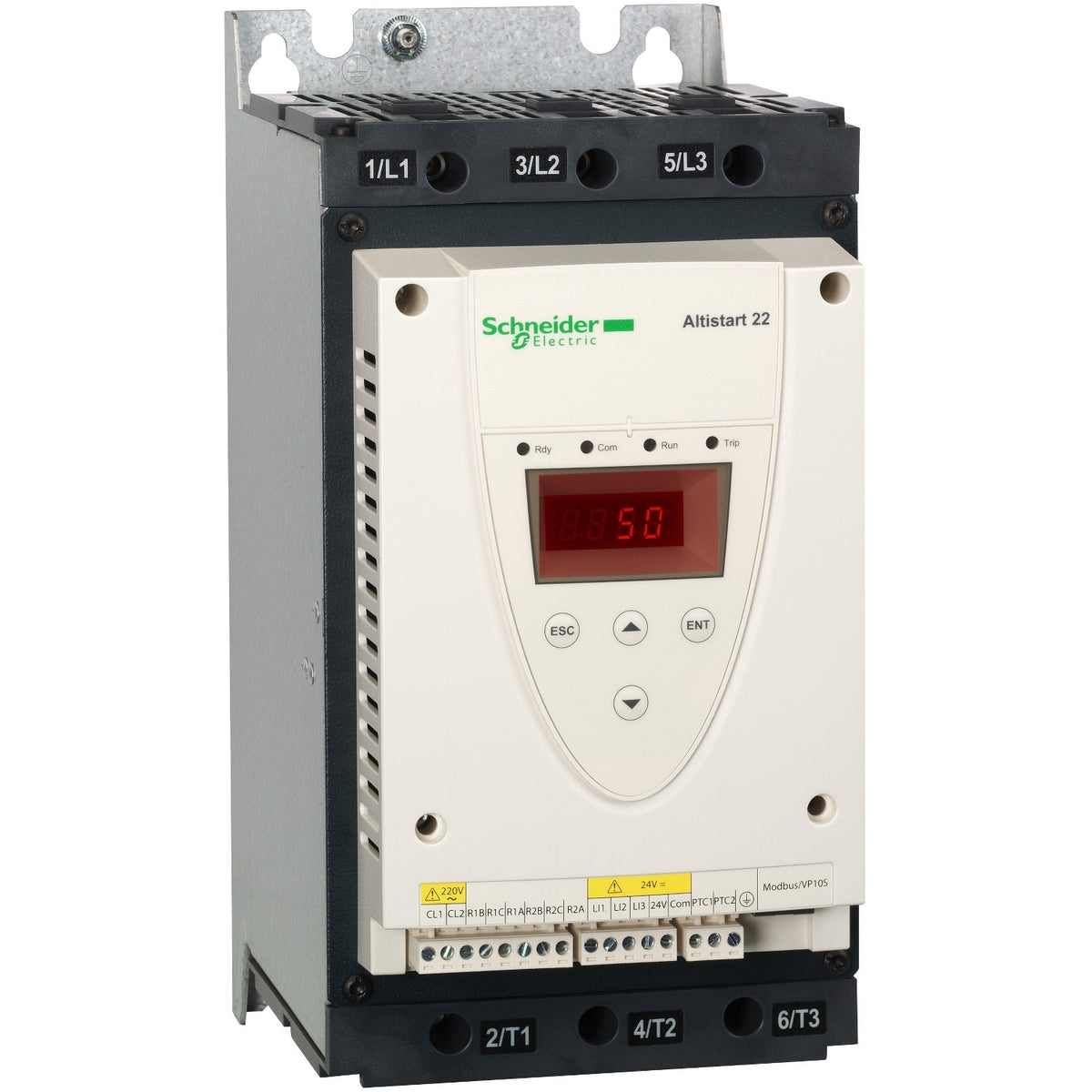

ATS22D62Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 15 to 30kW	Voltage: 230V, 440V; Power: 30kW
ATS22D88Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 22 to 45kW	Voltage: 230V, 440V; Power: 45kW
ATS22C25Q	Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 75 to 132kW	Voltage: 230V, 440V; Power: 132kW

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
