Schneider Electric Industrial Automation and Control Push Buttons, Selector Switches & Pilot Lights
Build a clear machine-control interface with the specified operator or indication device. Match mounting diameter, return action, contact configuration and lamp voltage. A head, contact block and complete assembly are different supply formats.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

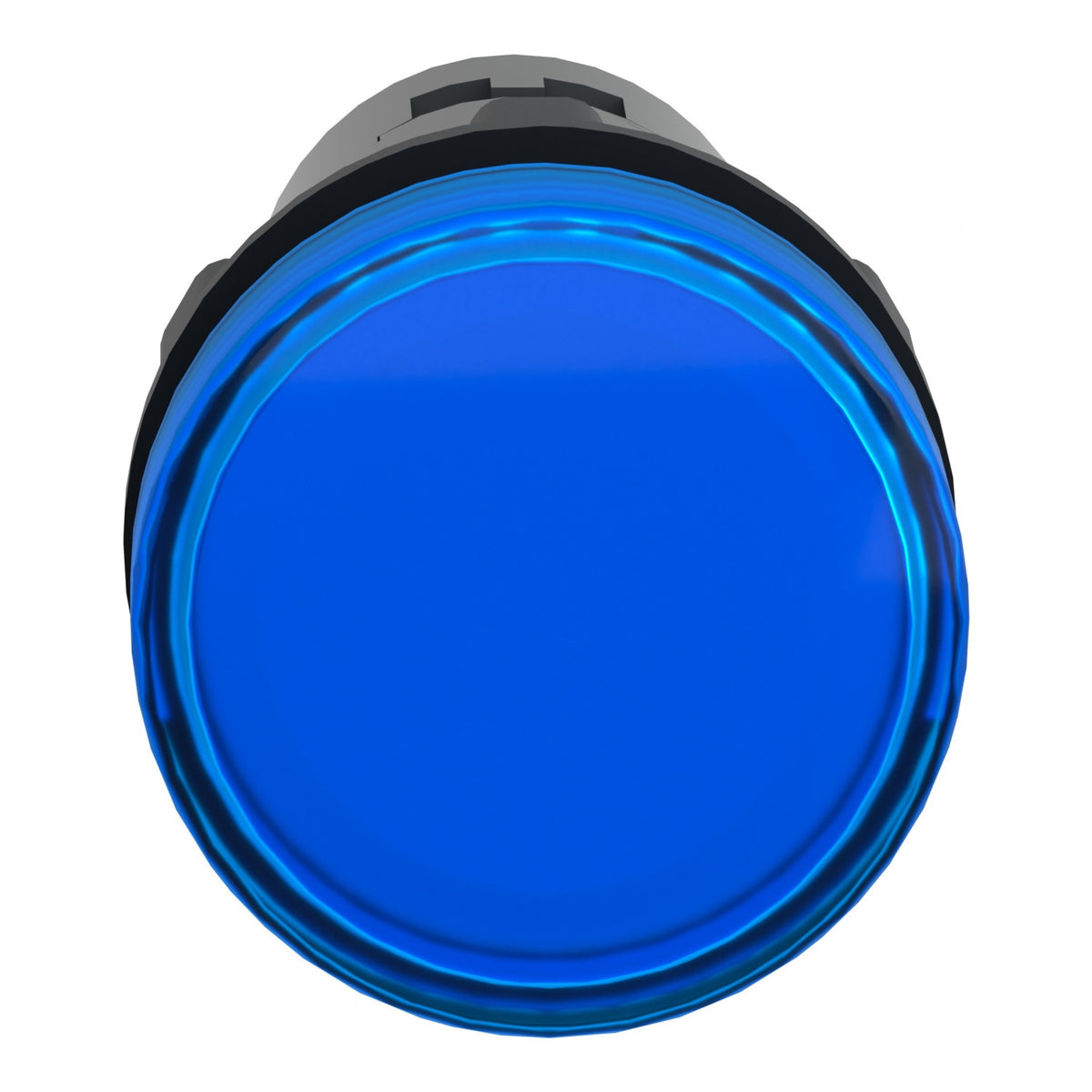

| XA2EVB6LC | Pilot light, plastic, blue, Ø 22 mm, with integral LED, 24 V AC/DC | Voltage: 24 V AC/DC |

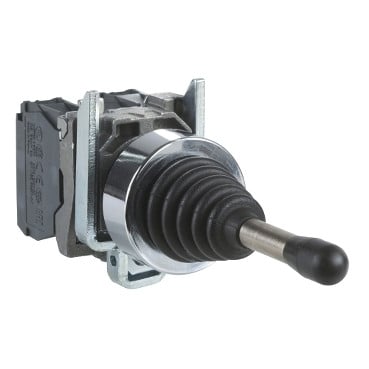

| XD4PA22 | Joystick controller plastic, Ø22, 2 directions, spring return, 1 NO | Contacts: 1 NO |

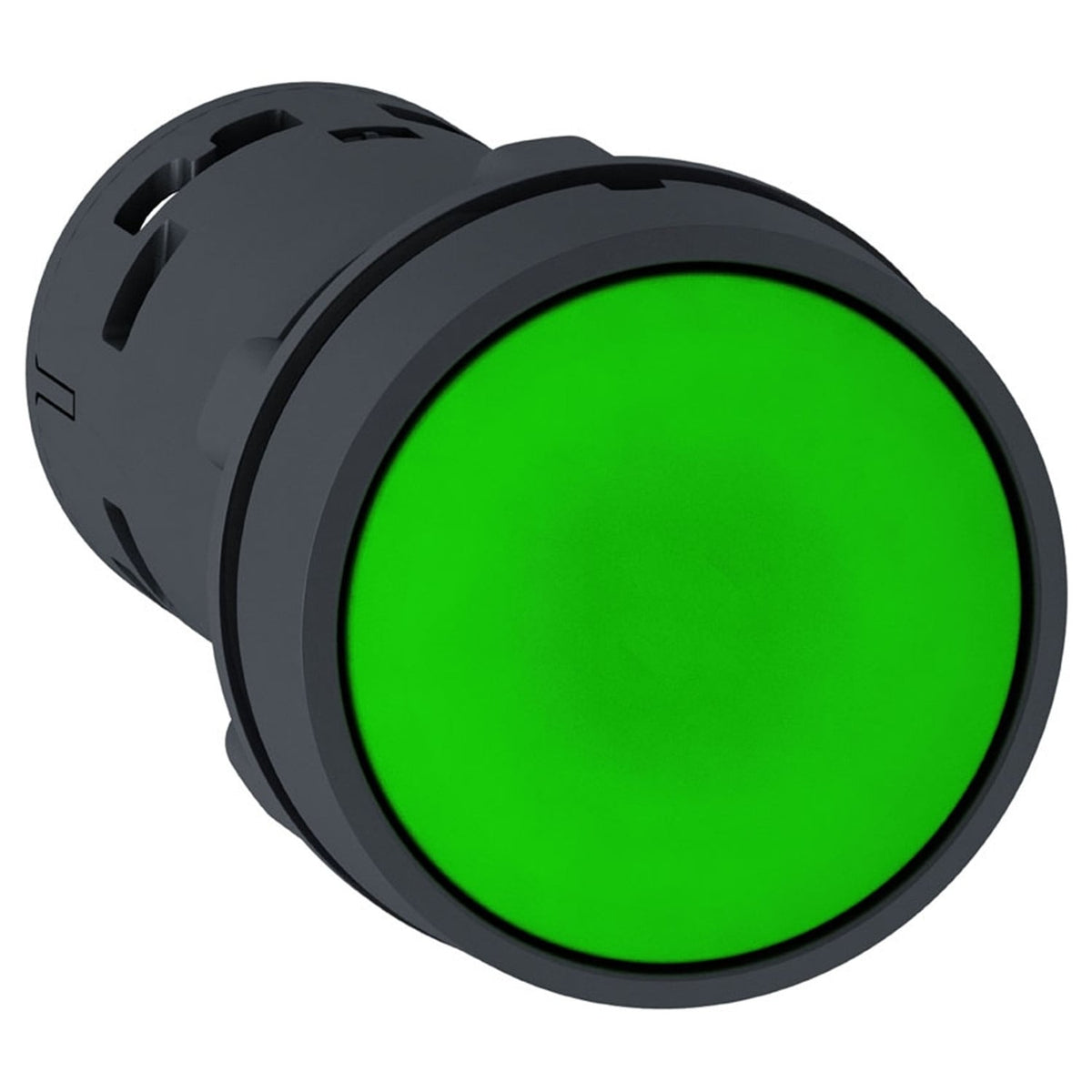

| XB7NH31 | Monolithic push button, plastic, green, Ø22, push and push to release, unmarked, 1 NO | Contacts: 1 NO |

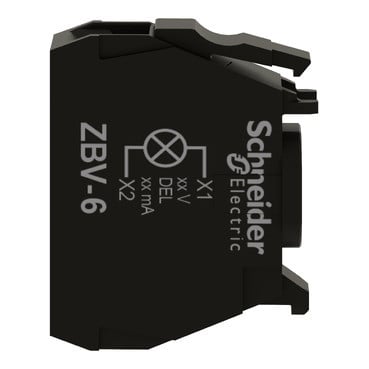

| ZBV6 | Light block for head Ø22, for BA9s bulb,250V, screw clamp terminal | Voltage: 250V |

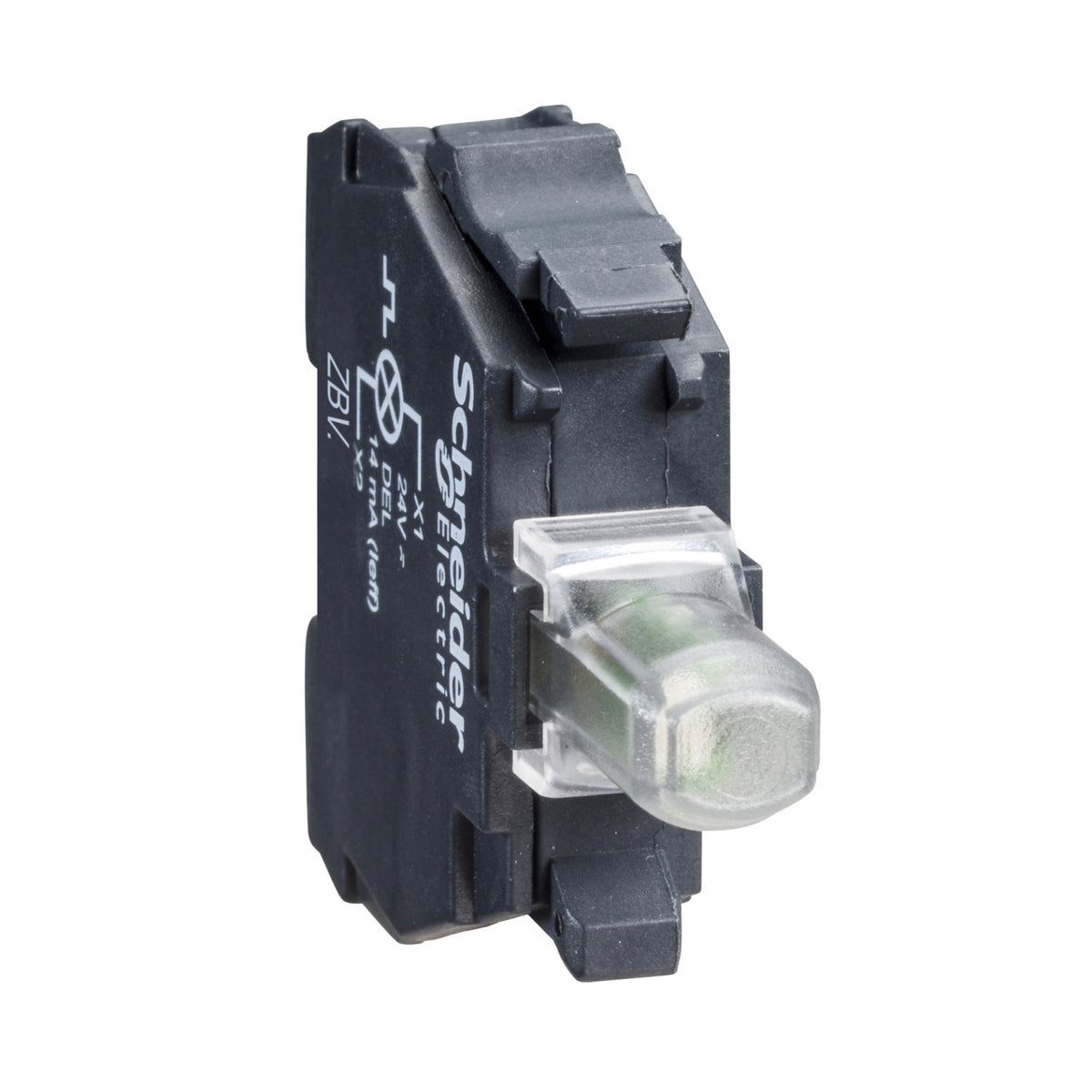

| ZBVG4 | Light block for head Ø22, red, integral LED, 110…120 V AC | Voltage: 110..120 V AC |
| ZBVM5 | orange light block for head Ø22 integral LED 230…240V screw clamp terminals | Voltage: 230..240V |

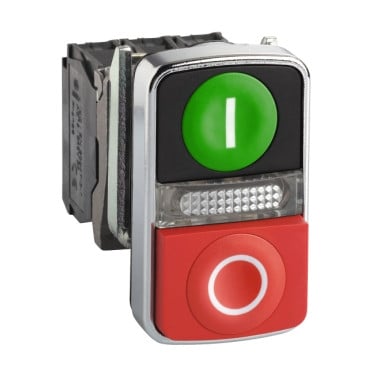

| XB4BW73731B5 | Harmony | Illuminated double-headed push button, metal, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O, 1 NO + 1 NC | Contacts: 1 NO + 1 NC |

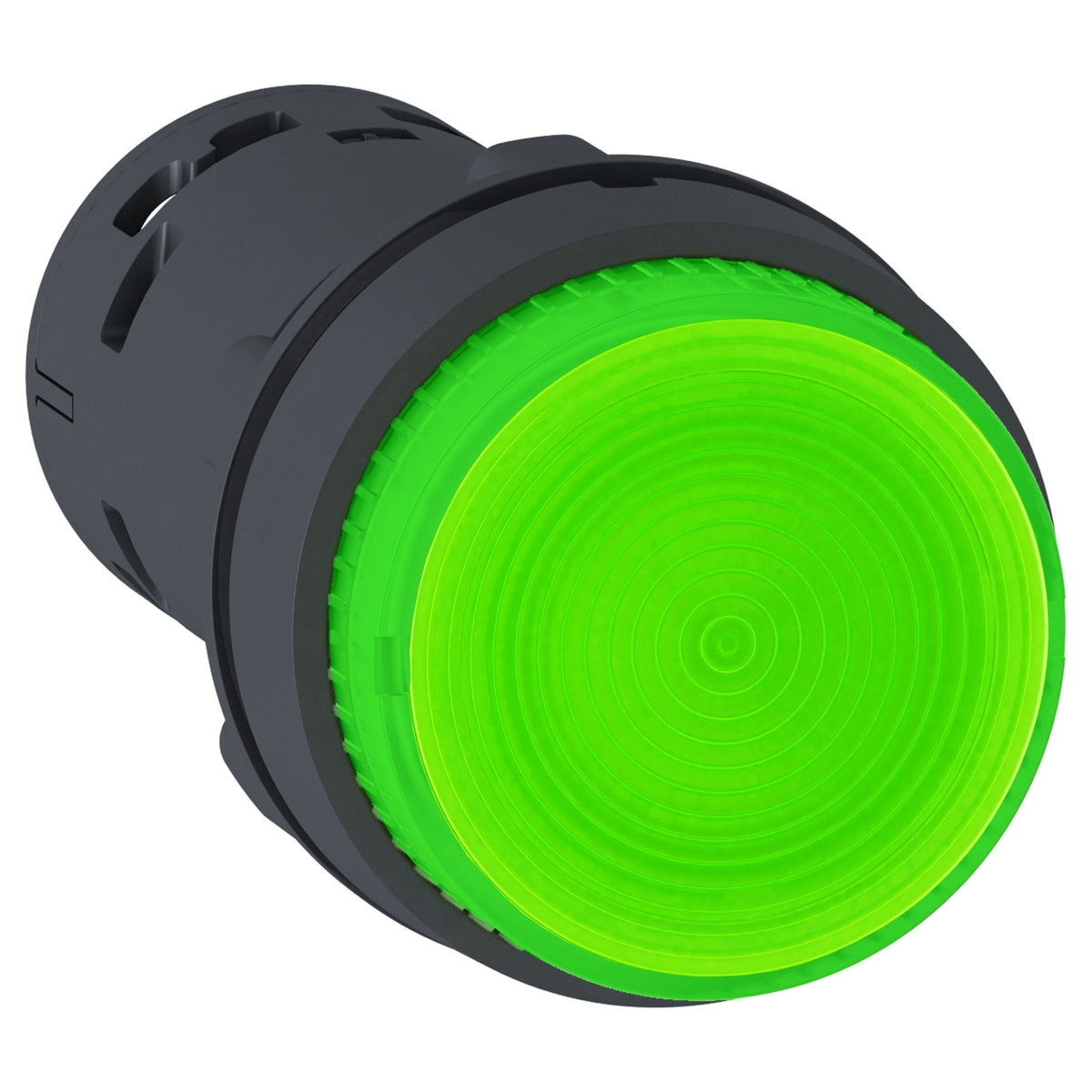

| XB7NW3361 | ILLUM. P.B – Bulb – Spring Rtn -1NO – Green – 230v | Voltage: 230v; Contacts: 1NO |

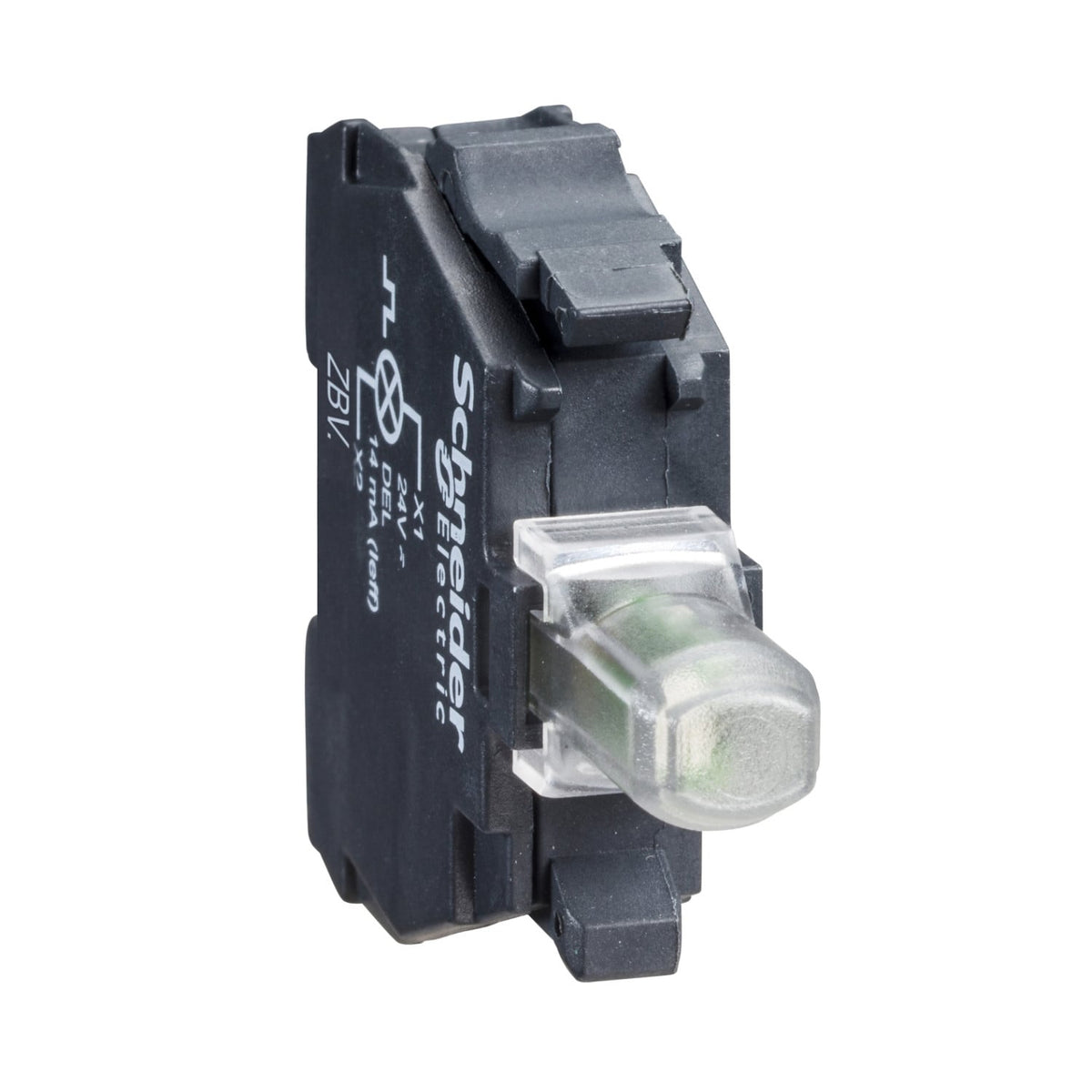

| ZBVB6 | Light block for head Ø22, blue, integral LED, 24 V AC/DC | Voltage: 24 V AC/DC |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
