Build a clear machine-control interface with the specified operator or indication device. Match mounting diameter, return action, contact configuration and lamp voltage. A head, contact block and complete assembly are different supply formats.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings
XB5FVB3	Pilot light, Harmony XB5, antimicrobial, grey plastic, green flush mounted, 30mm, universal LED, plain lens, 24V AC DC	Voltage: 24V AC

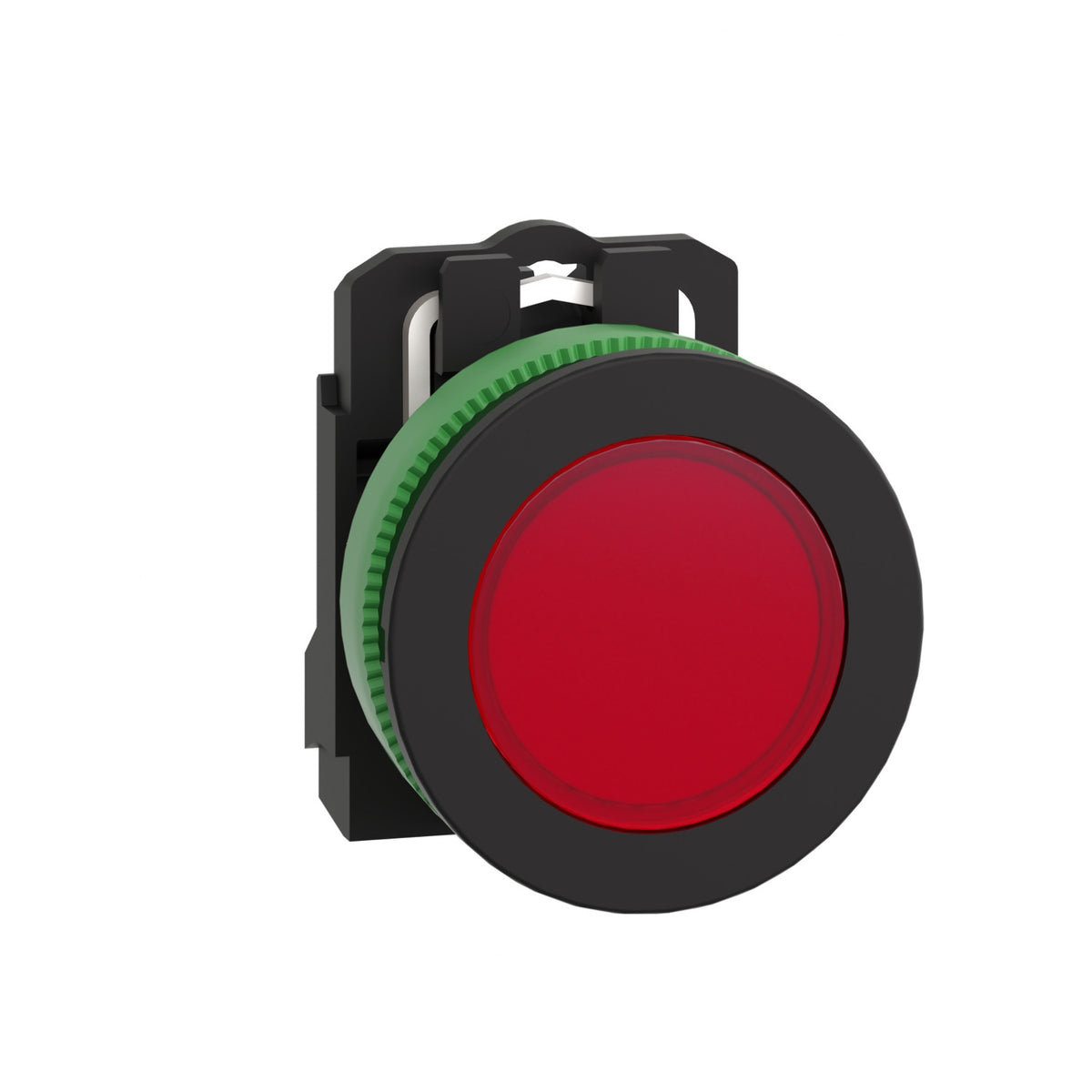

XB5FVB4	Pilot light, Harmony XB5, antimicrobial, grey plastic, red flush mounted, 30mm, universal LED, plain lens, 24V AC DC	Voltage: 24V AC

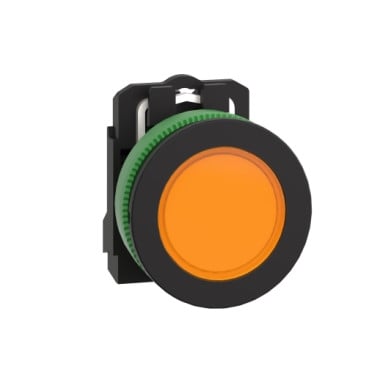

XB5FVB5	Pilot light, Harmony XB5, antimicrobial, grey plastic, orange flush mounted, 30mm, universal LED, plain lens, 24V AC DC	Voltage: 24V AC

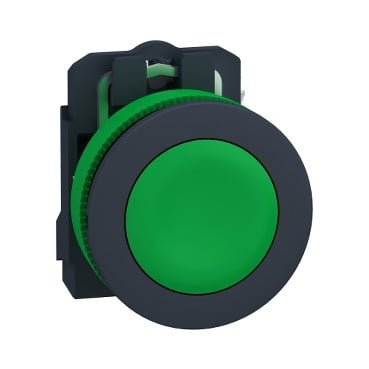

XB5FA31	Push button flush mounted, plastic, green, Ø30, spring return, unmarked, 1 NO	Contacts: 1 NO

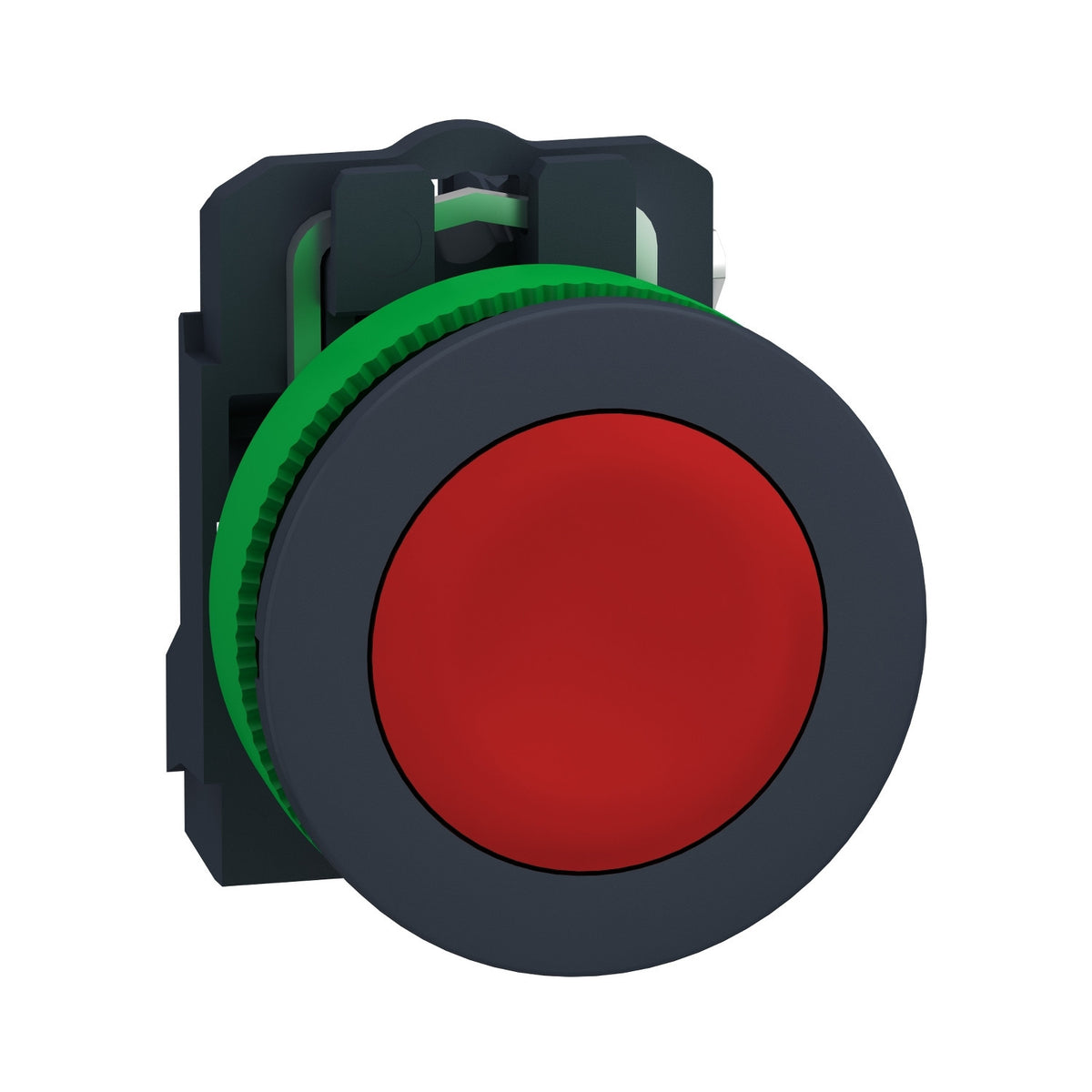

XB5FA42	Push button flush mounted, plastic, red, Ø30, spring return, unmarked, 1NC	Contacts: 1NC

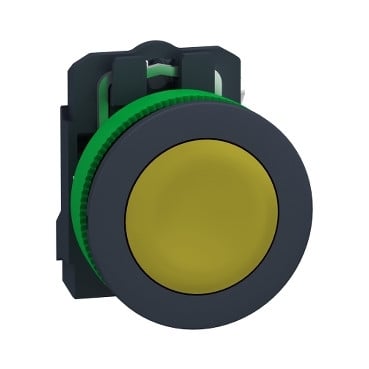

XB5FA51	Antimicrobial Push button flush mounted, Harmony XB5, plastic, yellow, 30mm, spring return, unmarked, 1NO	Contacts: 1NO

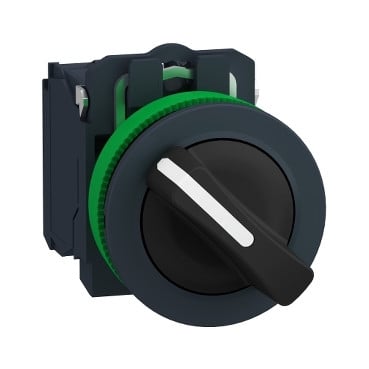

XB5FD21	Antimicrobial Selector switch flush mounted, Harmony XB5, plastic, black, 30mm, 2 positions, stay put, 1NO	Contacts: 1NO

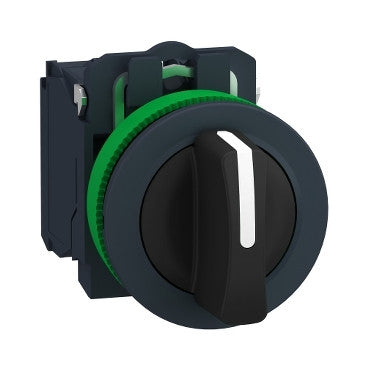

XB5FD33	Selector switch flush mounted, plastic, black, Ø30, 3 positions, stay put, 2 NO	Contacts: 2 NO
XB5FD53	Selector switch flush mounted, plastic, black, Ø30, 3 positions, spring return to center, 2NO	Contacts: 2NO

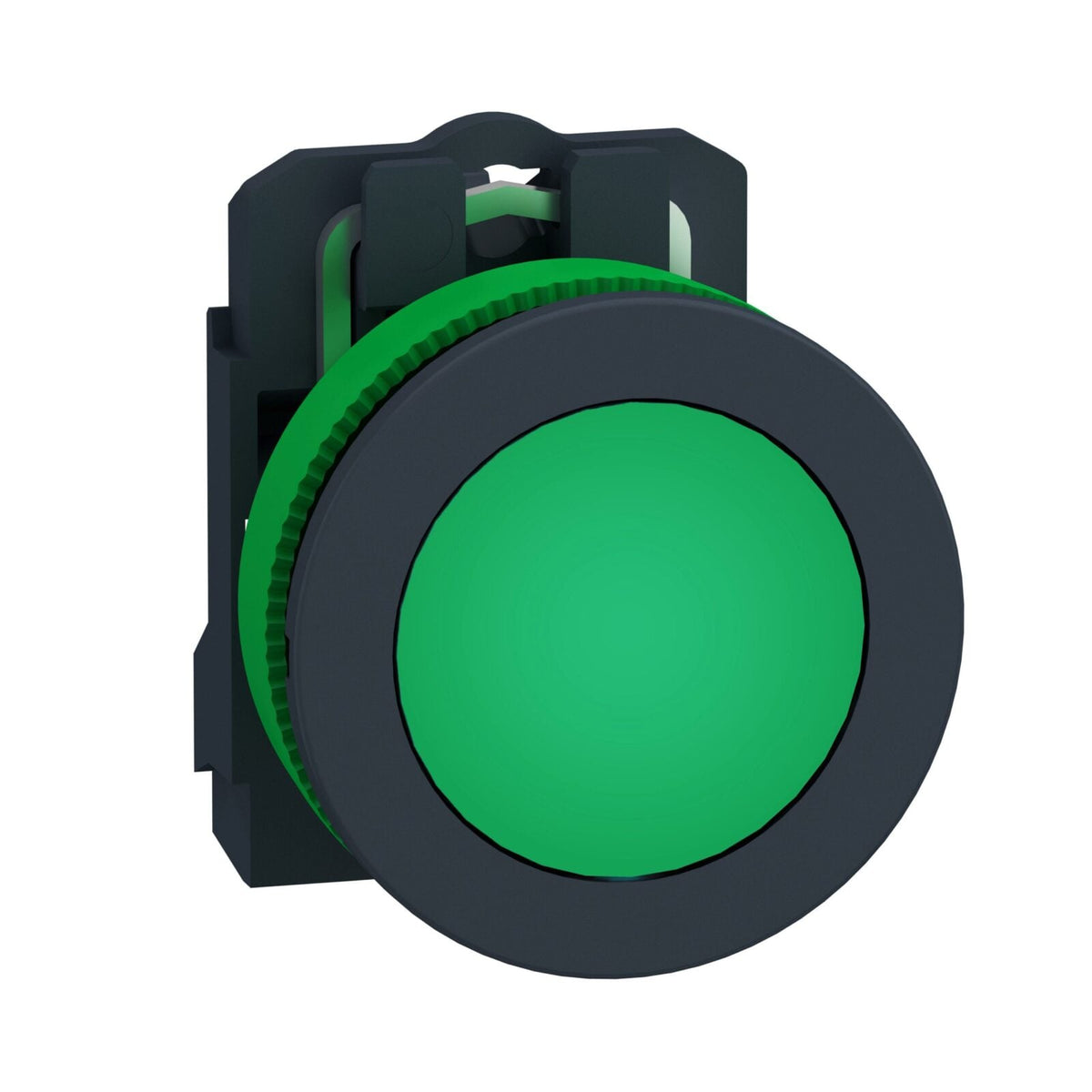

XB5FVM3	Pilot light flush mounted, plastic, green, Ø30, plain lens with integral LED, 230…240 V AC	Voltage: 230..240 V AC
XB5FVM4	Pilot light flush mounted, plastic, red, Ø30, plain lens with integral LED, 230…240 V AC	Voltage: 230..240 V AC

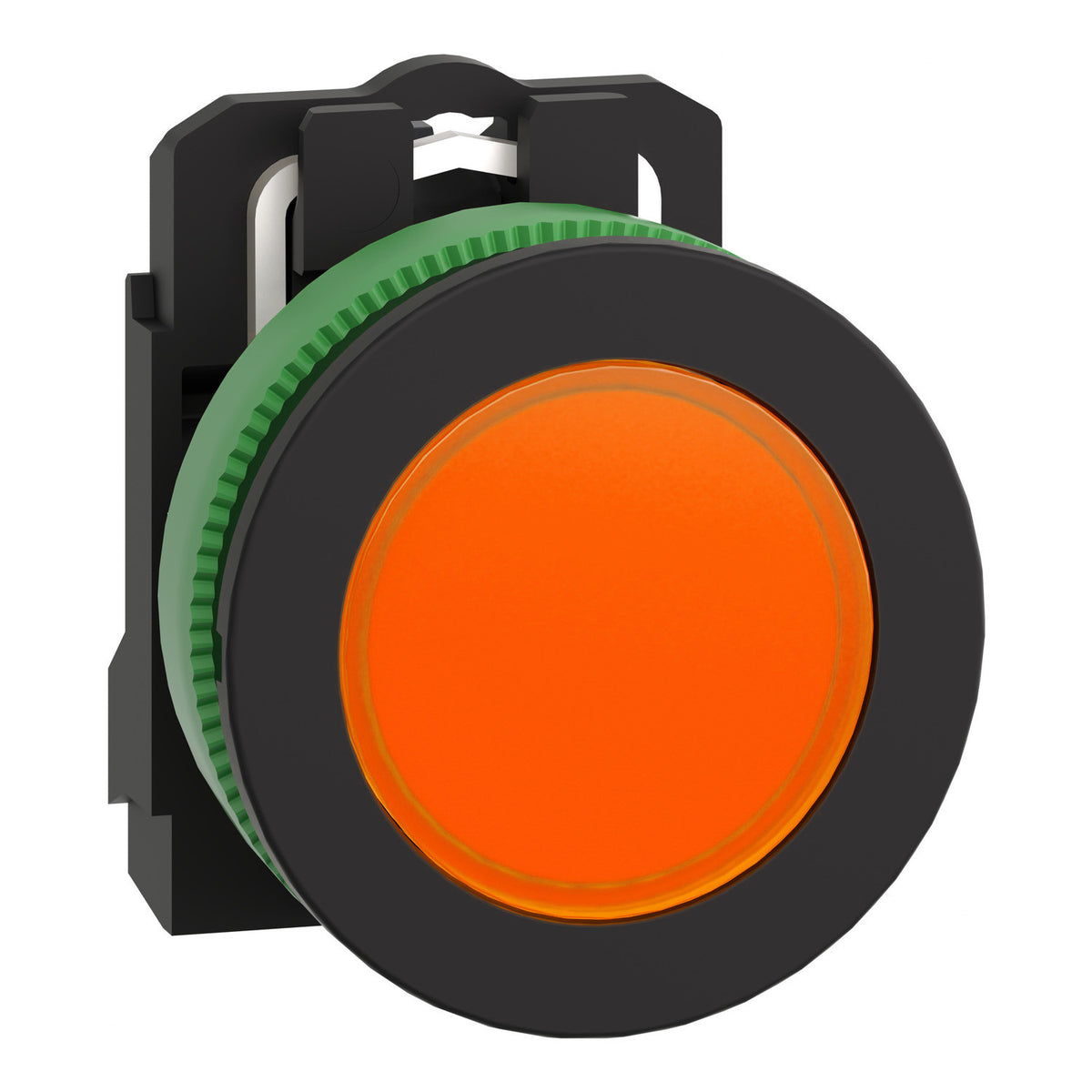

XB5FVM5	Pilot light flush mounted, plastic, orange, Ø30, plain lens with integral LED, 230…240 V AC	Voltage: 230..240 V AC
XB5FW33B5	Illuminated push button flush mounted, plastic, green, Ø30, integral LED, 24 V AC/DC, 1 NO + 1 NC	Voltage: 24 V AC/DC; Contacts: 1 NO + 1 NC
XB5FW33M5	Harmony \| Illuminated push button, Harmony XB5, antimicrobial, plastic, green, 30mm, universal LED, 1NO + 1NC, 230…240V AC	Voltage: 230..240V AC; Contacts: 1NO + 1NC

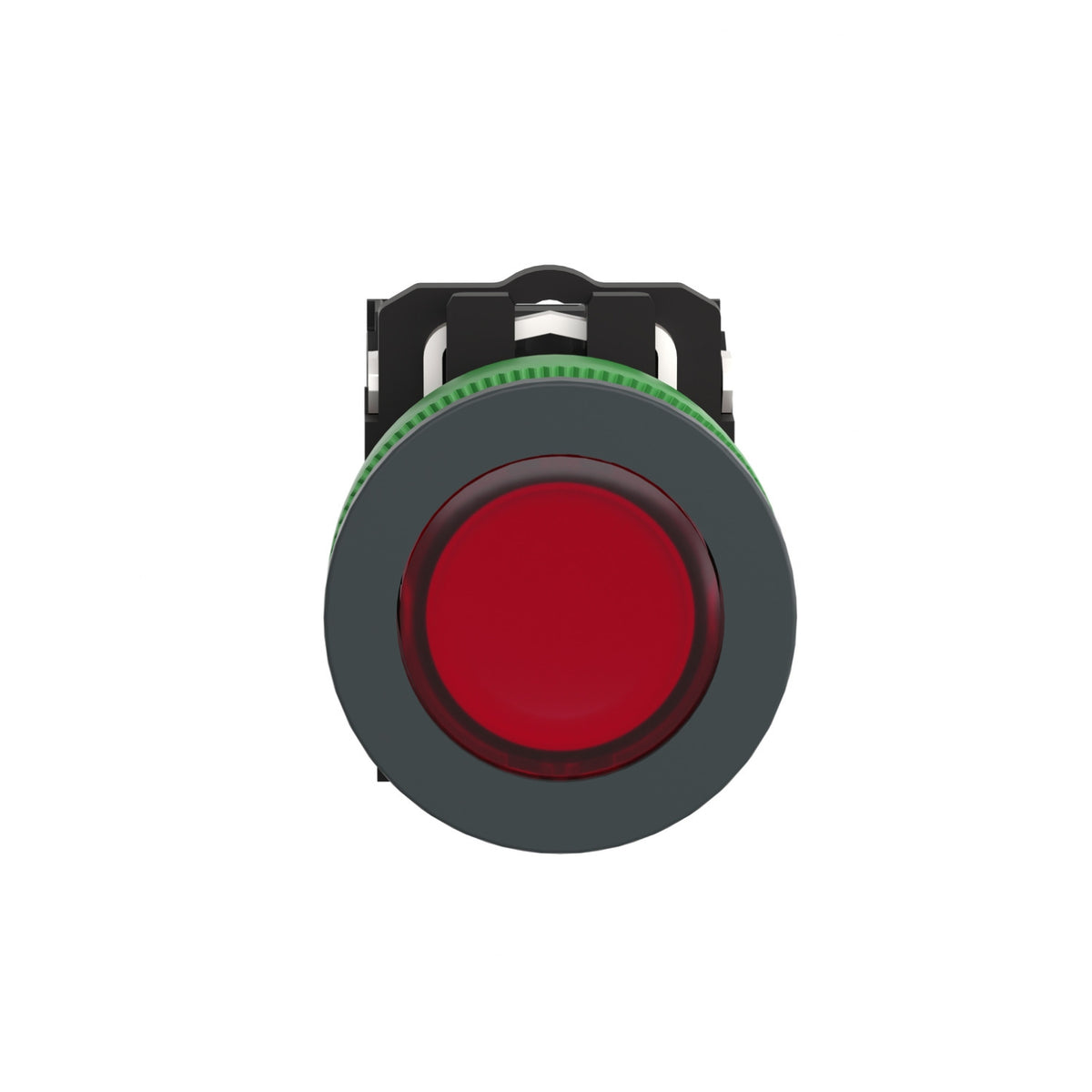

XB5FW34B5	Harmony \| Illuminated push button, Harmony XB5, antimicrobial, plastic, red, 30mm, universal LED, 1NO + 1NC, 24V AC DC	Voltage: 24V AC; Contacts: 1NO + 1NC

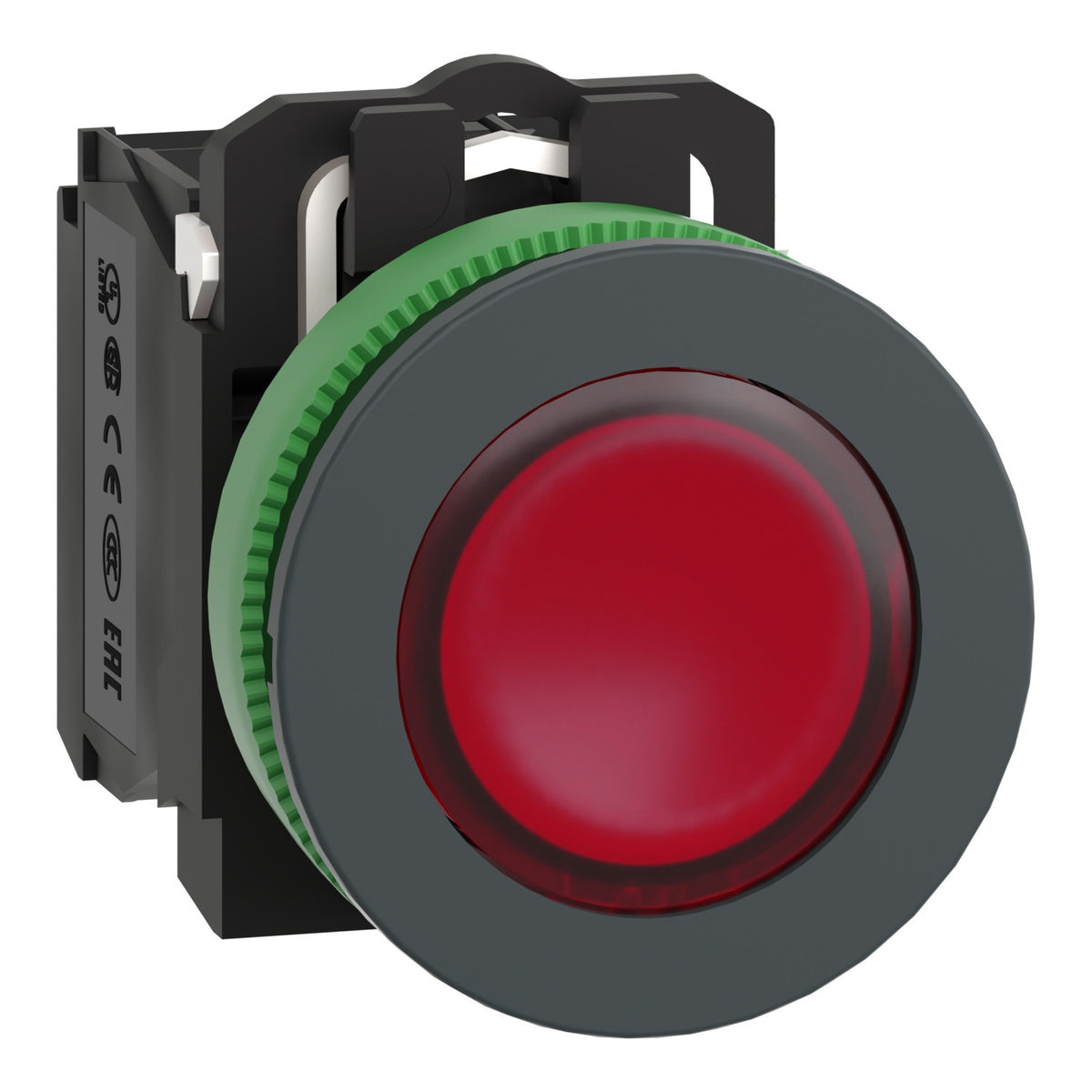

XB5FW34M5	Illuminated push button, Harmony XB5, antimicrobial, plastic, red, 30mm, universal LED, 1NO + 1NC, 230…240V AC	Voltage: 230..240V AC; Contacts: 1NO + 1NC

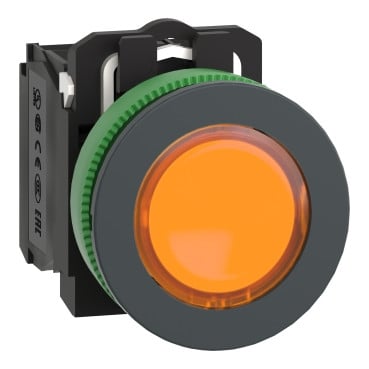

XB5FW35M5	Illuminated push button, Harmony XB5, antimicrobial, plastic, orange, 30mm, universal LED, 1NO + 1NC, 230…240V AC	Voltage: 230..240V AC; Contacts: 1NO + 1NC

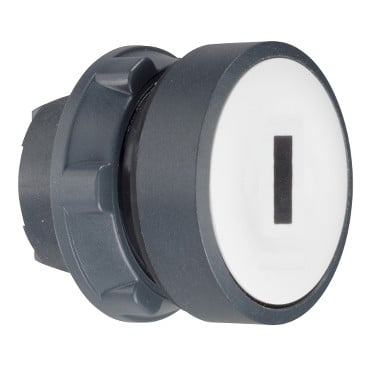

ZB5AA131	Push button head, plastic, flush, white, Ø22, spring return, marked I	See model designation

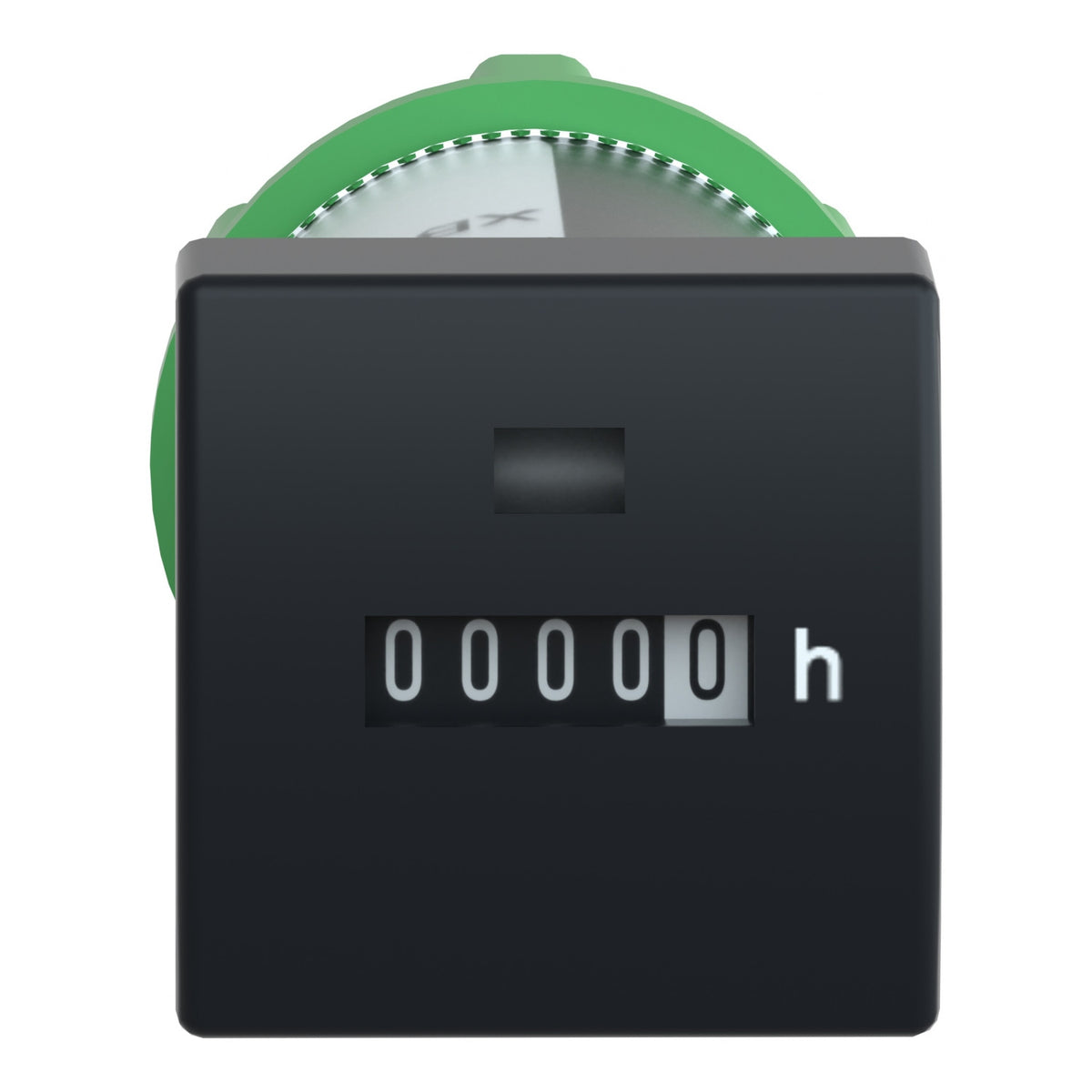

XB5DSM	Hour counter, Harmony XB5, plastic, 22mm, mechanical 5 digit display, 230..240V AC	Voltage: 230..240V AC

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
