Schneider Electric Harmony XA2E Push Buttons, Selector Switches & Pilot Lights
Build a clear machine-control interface with the specified operator or indication device. Match mounting diameter, return action, contact configuration and lamp voltage. A head, contact block and complete assembly are different supply formats.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|
| XA2EVB5LC | Harmony | Easy Harmony XA2E, Monolithic pilot light, plastic, amber, Ø22, integral LED, screw clamp terminals, 24 V AC/DC | Voltage: 24 V AC/DC |

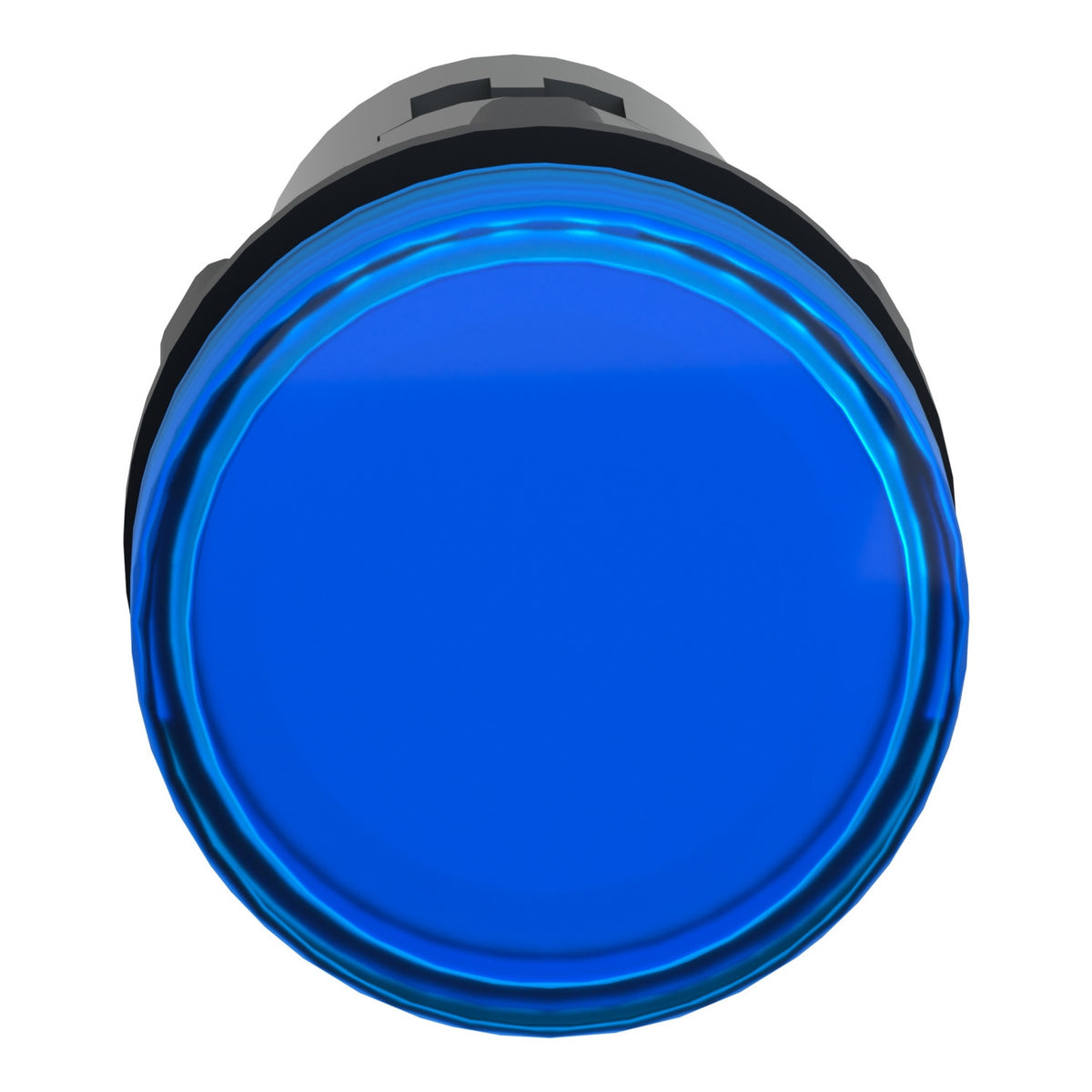

| XA2EVF6LC | Monolithic pilot light, Easy Harmony XA2E, plastic, blue, 22mm, integral LED, screw clamp terminals, 110V AC DC, anti interference | Voltage: 110V AC |

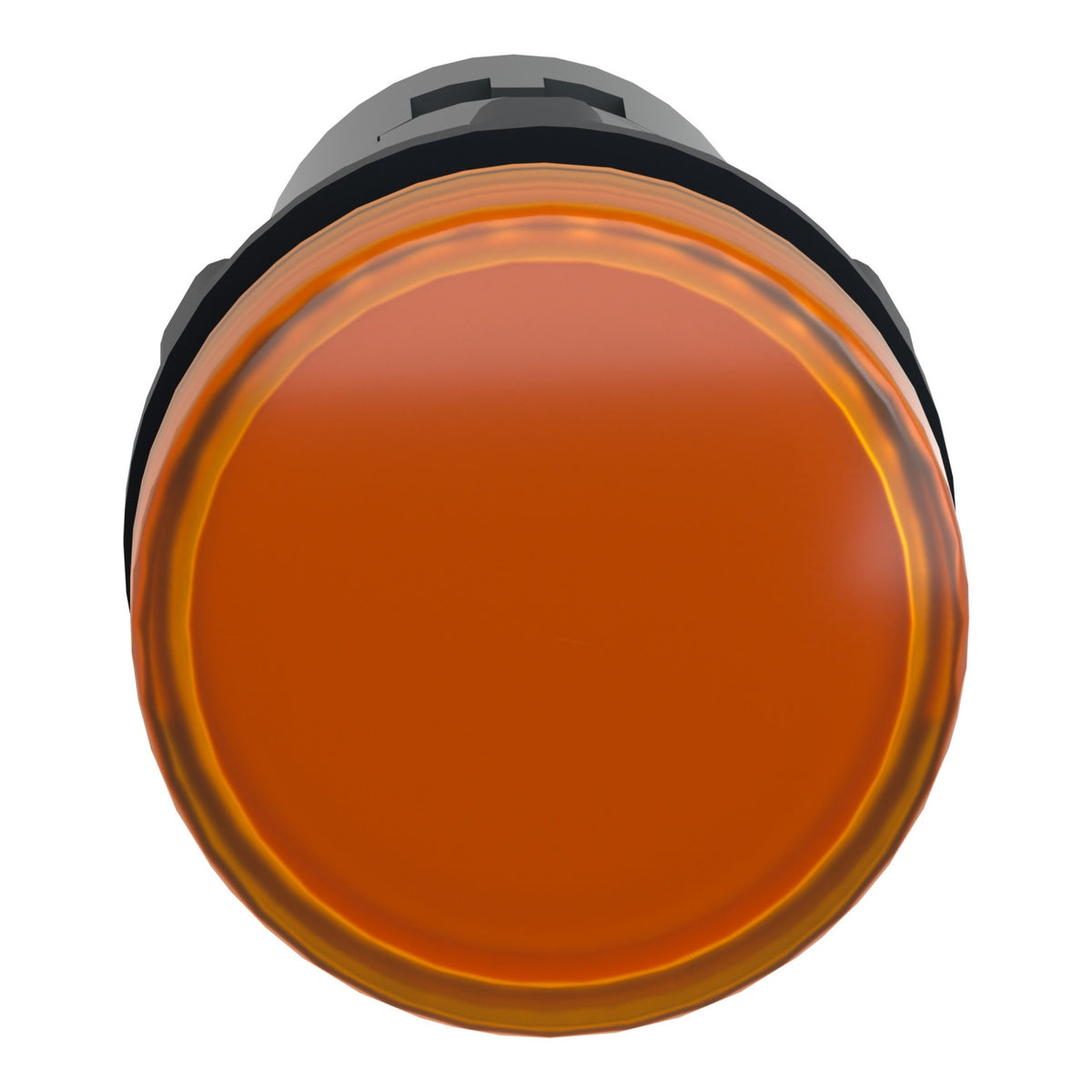

| XA2EVMD5LC | Harmony | Easy Harmony XA2E, Monolithic pilot light, plastic, amber, Ø22, integral LED, screw clamp terminals, 220 V DC | Voltage: 220 V DC |

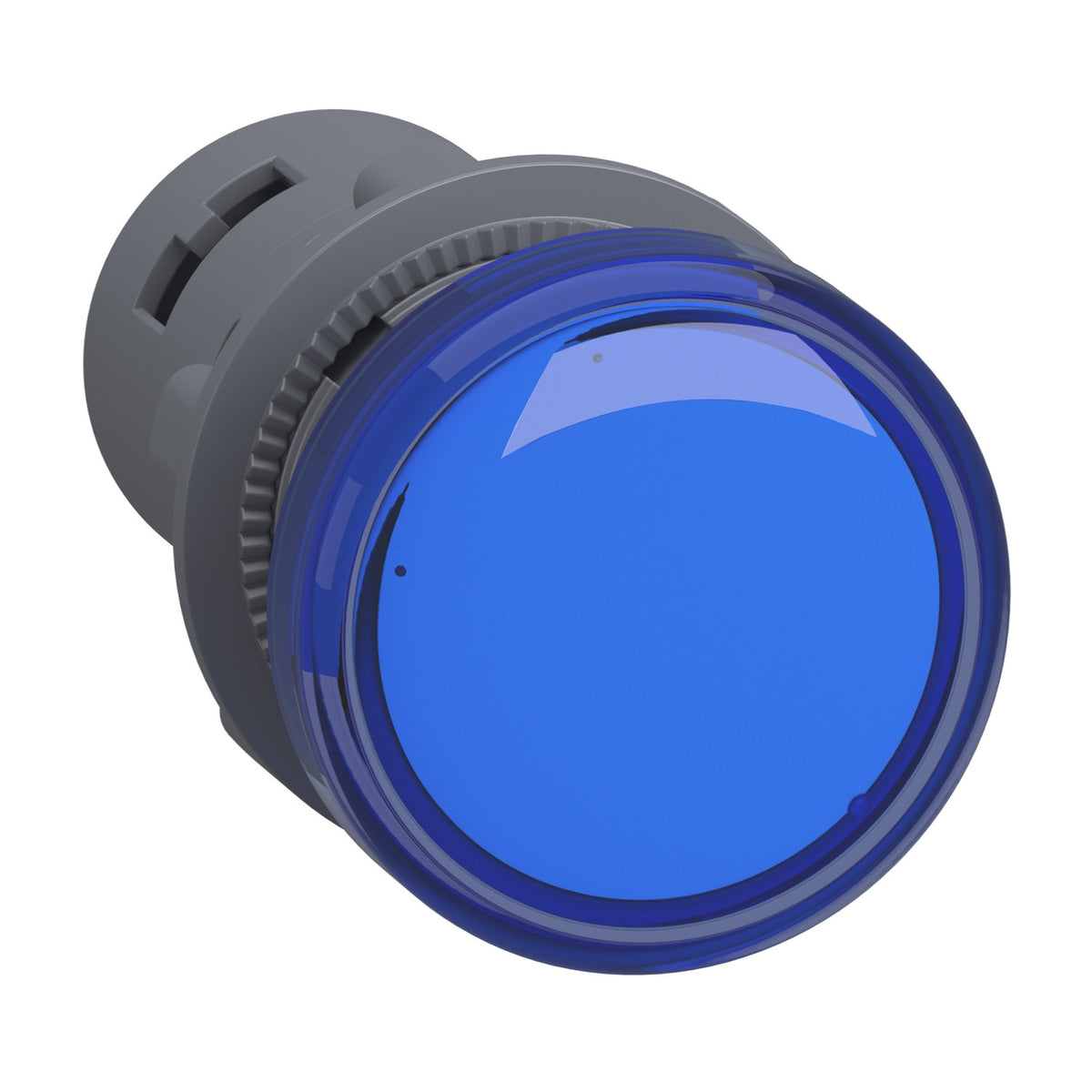

| XA2EVMD6LC | Harmony | Easy Harmony XA2E, Monolithic pilot light, plastic, blue, Ø22, integral LED, screw clamp terminals, 220 V DC | Voltage: 220 V DC |

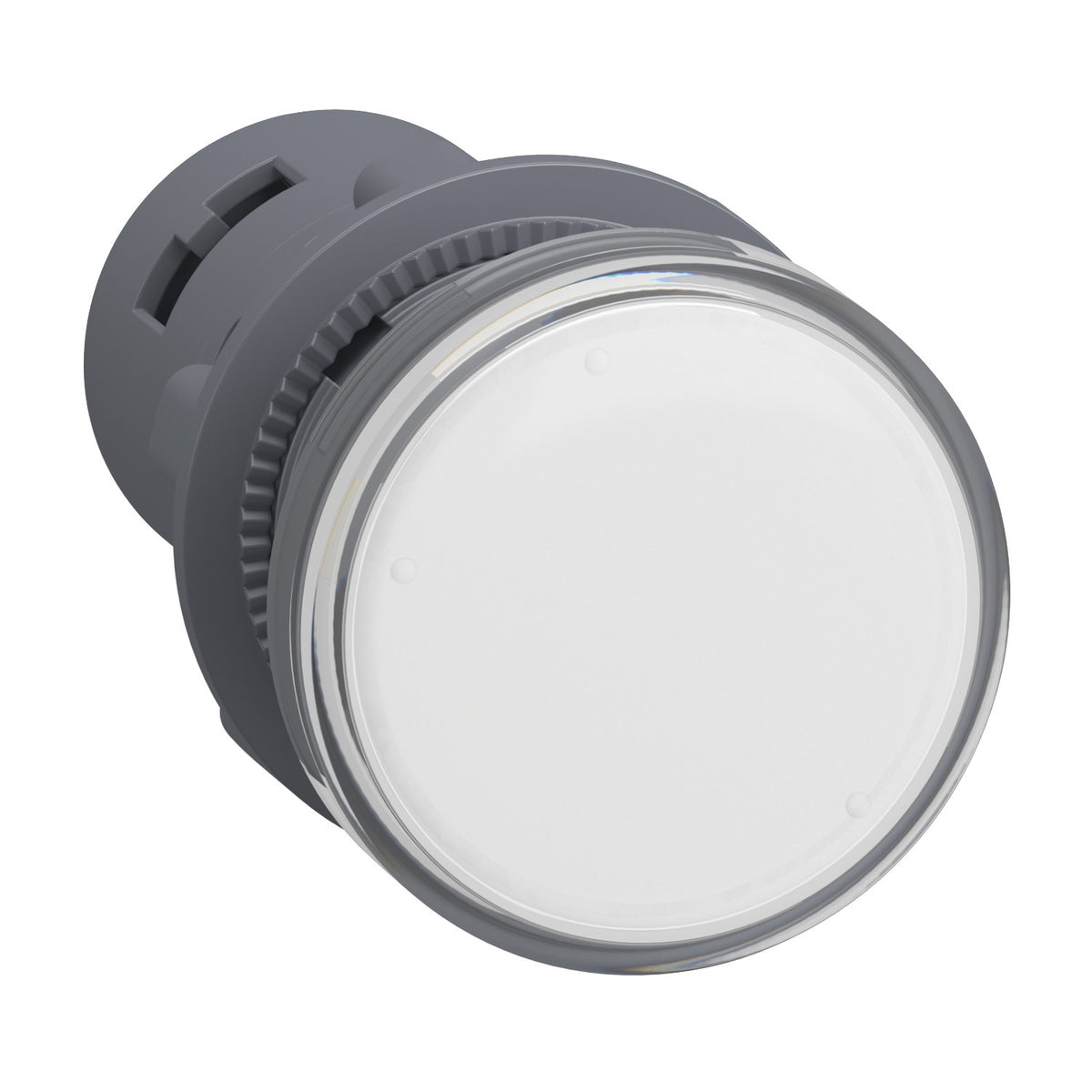

| XA2EVMD1LC | Harmony | Easy Harmony XA2E, Monolithic pilot light, plastic, white, Ø22, integral LED, screw clamp terminals, 220 V DC | Voltage: 220 V DC |
| XA2EVQ5LC | Easy Harmony XA2E, Monolithic pilot light, plastic, amber, Ø22, integral LED, screw clamp terminals, 380…400 V AC, anti interference | Voltage: 380..400 V AC |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
