Schneider Electric Control Stations and Enclosures Push Buttons, Selector Switches & Pilot Lights
Build a clear machine-control interface with the specified operator or indication device. Match mounting diameter, return action, contact configuration and lamp voltage. A head, contact block and complete assembly are different supply formats.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

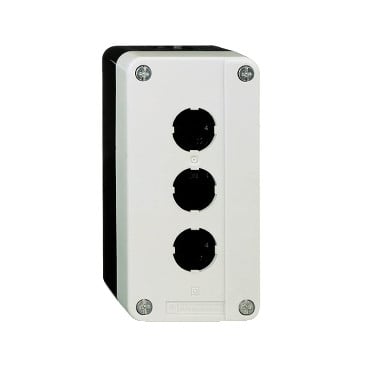

| XALB03C | empty control station – xal-b – plastic – 3 horizontal openings | See model designation |

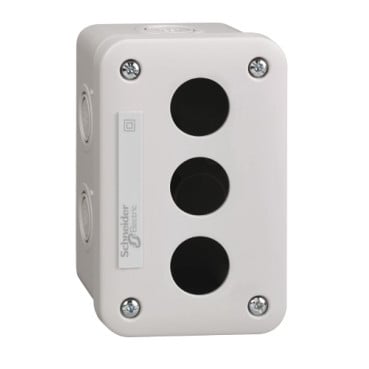

| XALE3 | Empty control station, plastic, light grey, 3 cut-outs, for XB7 | See model designation |

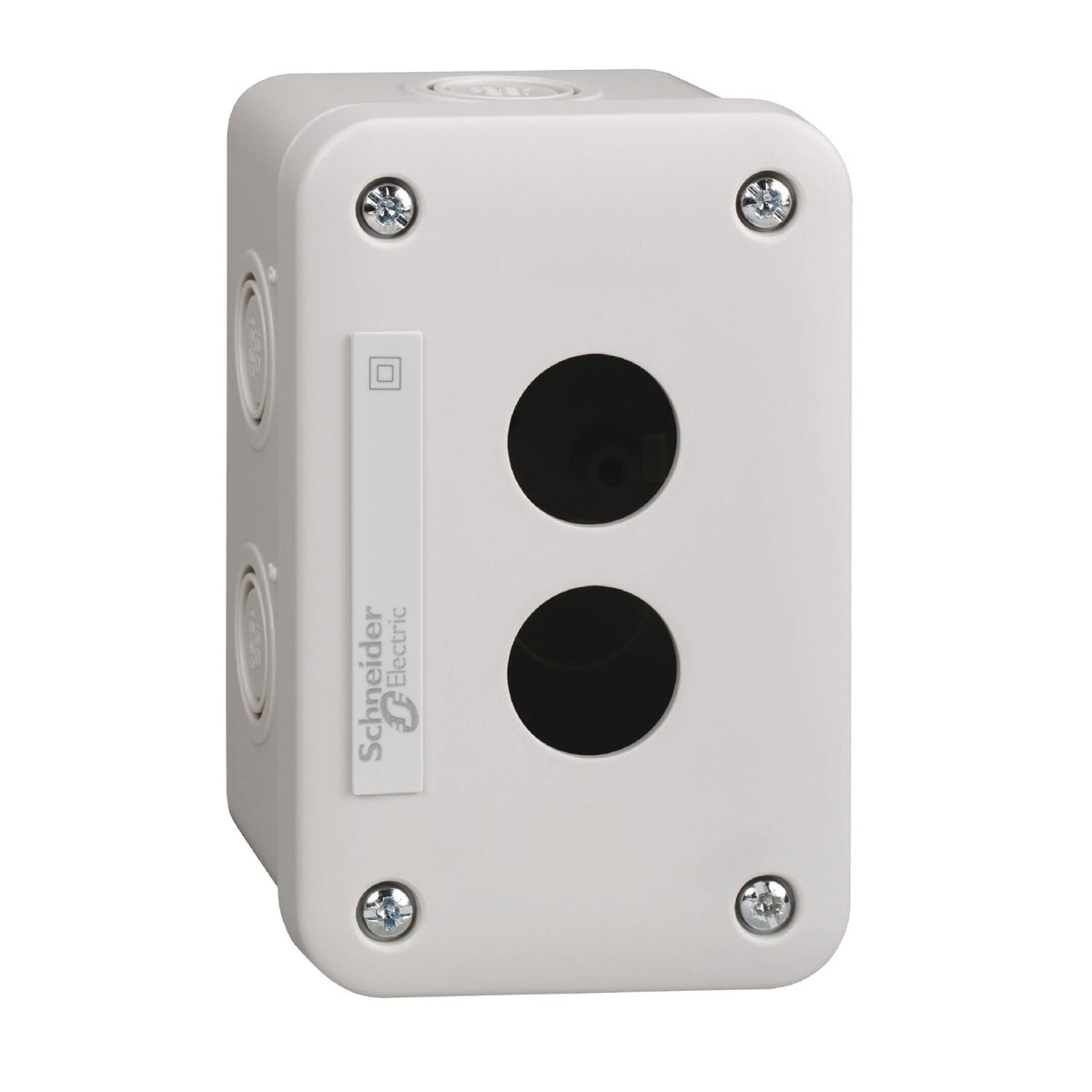

| XALE2 | Empty control station, plastic, light grey, 2 cut-outs, for XB7 | See model designation |

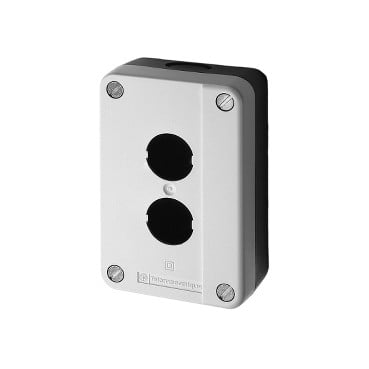

| xalb02c | PUSHBUTTON ENCLOSURE 30MM XAL +OPTIONS | See model designation |

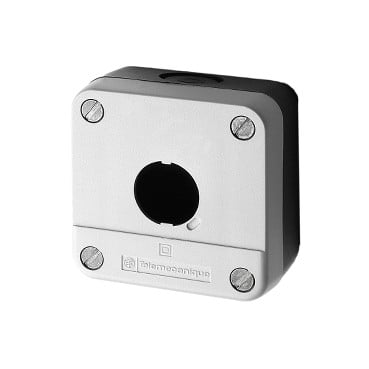

| XALB01C | empty control station – xal-b – plastic – 1 opening | See model designation |

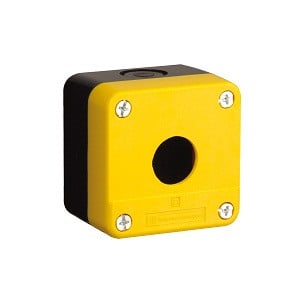

| XALB01YC | Empty plastic push button Ø22mm for line XA2, yellow, 1 hole | See model designation |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
