Schneider Electric

Schneider Electric GoPact MCCB 125 Molded Case Circuit Breakers MCCB

LE 4,189.68 EGP

Sale Sold out

Taxes included.

Schneider Electric GoPact MCCB 125 Molded Case Circuit Breakers MCCB

Select a molded case circuit breaker for the main incomer, outgoing feeder or distribution panel. The frame, rated current, number of protected poles, trip unit and breaking capacity must all suit the installation.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings
G12E3F100	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 100A rating, TMD trip unit, fixed thermal protection	Current: 100A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3F40	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection	Current: 40A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3F50	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection	Current: 50A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3F80	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 80A rating, TMD trip unit, fixed thermal protection	Current: 80A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12F3F50	Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 50A rating, TMD trip unit, fixed thermal protection	Current: 50A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 30kA
G12T3F32	GoPact \| Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection	Current: 32A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3F40	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 40A rating, TMD trip unit, fixed thermal protection	Current: 40A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12E3A125	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection	Current: 125A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3A16	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection	Current: 16A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3A20	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection	Current: 20A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3A32	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection	Current: 32A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3A80	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 32A rating, TMD trip unit, fixed thermal protection	Current: 32A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3F16	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 16A rating, TMD trip unit, fixed thermal protection	Current: 16A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3F63	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection	Current: 63A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12F3A16	Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection	Current: 16A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 30kA
G12F3A20	Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection	Current: 20A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 30kA

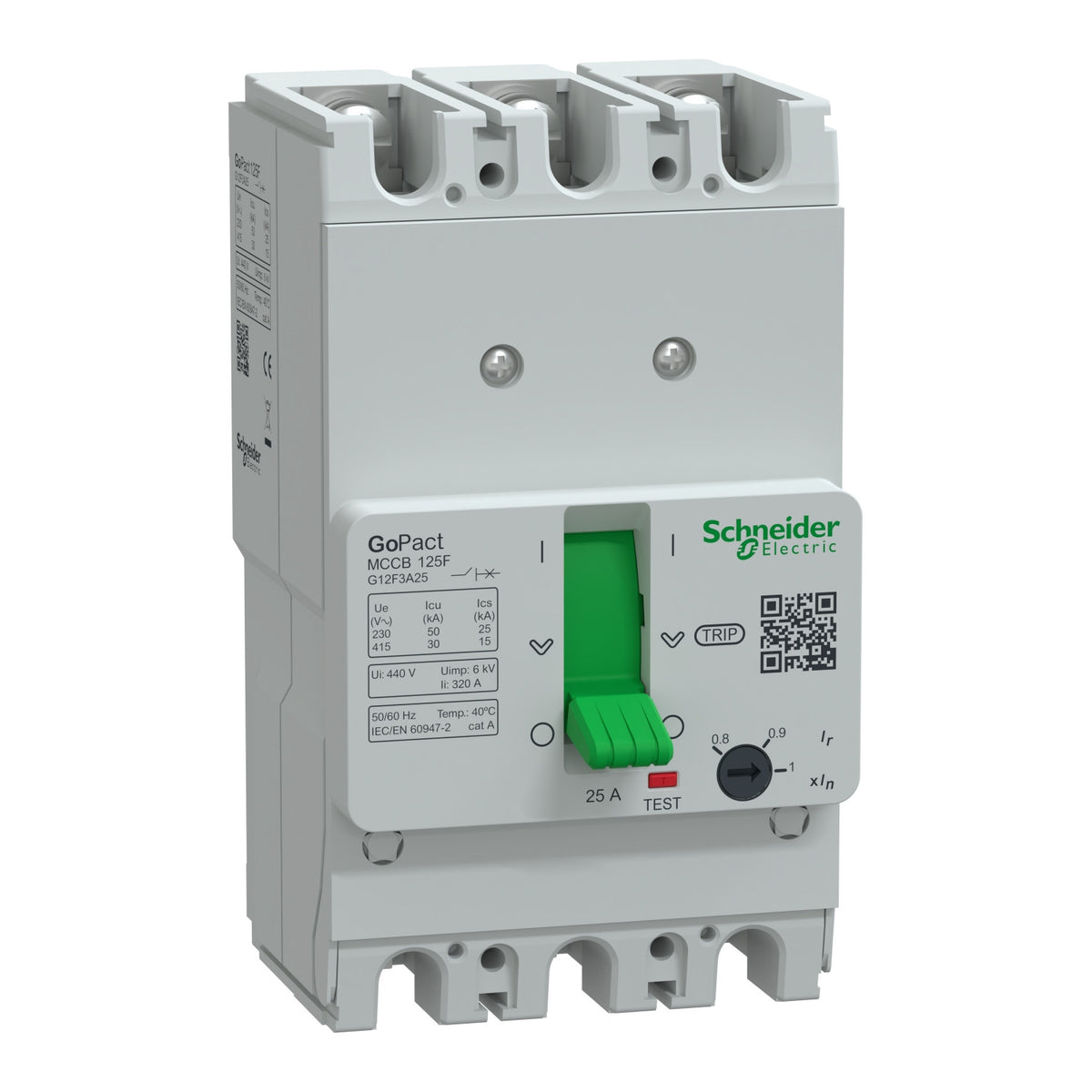

G12F3A25	Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection	Current: 25A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 30kA
G12F3A32	Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection	Current: 32A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 30kA
G12F3A40	Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection	Current: 40A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 30kA
G12T3A100	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection	Current: 100A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A125	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 125A rating, TMD trip unit, adjustable thermal protection	Current: 125A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A16	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 16A rating, TMD trip unit, adjustable thermal protection	Current: 16A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A20	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 20A rating, TMD trip unit, adjustable thermal protection	Current: 20A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A32	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 32A rating, TMD trip unit, adjustable thermal protection	Current: 32A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A40	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection	Current: 40A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A50	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection	Current: 50A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12T3A63	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 63A rating, TMD trip unit, adjustable thermal protection	Current: 63A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA
G12E3A40	Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 40A rating, TMD trip unit, adjustable thermal protection	Current: 40A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12E3A50	GoPact \| Circuit breaker, GoPact MCCB 125, 3 poles, 15kA at 415VAC, 50A rating, TMD trip unit, adjustable thermal protection	Current: 50A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 15kA
G12T3A25	Circuit breaker, GoPact MCCB 125, 3 poles, 10kA at 415VAC, 25A rating, TMD trip unit, adjustable thermal protection	Current: 25A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 10kA

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
