Schneider Electric ComPacT NSX160B Molded Case Circuit Breakers MCCB

LE 18,909.20 EGP

Sale Sold out

Taxes included.

Schneider Electric ComPacT NSX160B Molded Case Circuit Breakers MCCB

Select a molded case circuit breaker for the main incomer, outgoing feeder or distribution panel. The frame, rated current, number of protected poles, trip unit and breaking capacity must all suit the installation.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings
C16B6TM125	Compact \| Circuit breaker ComPacT NSX160B, 25kA at 415VAC, TMD trip unit 125A, 4 poles 3d	Current: 125A; Voltage: 415VAC; Poles: 4 poles; Breaking capacity: 25kA
C16B6TM160	ComPacT \| Product picture Schneider Electric 1 videos Circuit breaker, ComPacT NSX160B, 25kA/415VAC, 4 poles 3D	Voltage: 415VAC; Poles: 4 poles; Breaking capacity: 25kA
LV430320	circuit breaker ComPact NSX160B, 25 kA at 415 VAC, TMD trip unit 160 A, 4 poles 3d	Current: 160 A; Voltage: 415 VAC; Poles: 4 poles; Breaking capacity: 25 kA
C16B32D100	Circuit breaker, ComPacT NSX160B, 25kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 100A	Current: 100A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 25kA

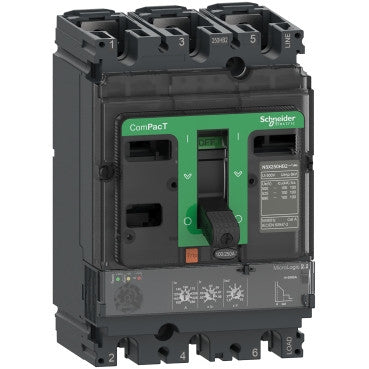

C16B32D160	Compact \| Circuit breaker, ComPacT NSX160B, 25kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 160A	Current: 160A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 25kA

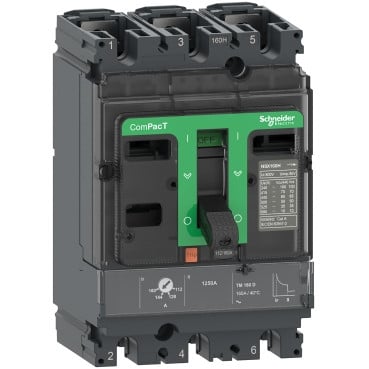

C16B3TM080	Circuit breaker ComPacT NSX160B, 25kA at 415VAC, TMD trip unit 80A, 3 poles 3d	Current: 80A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 25kA

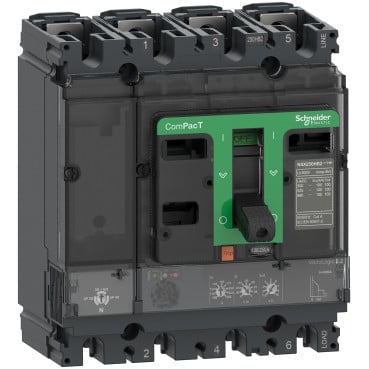

C16B42D160	Circuit breaker, ComPacT NSX160B, 25kA/415VAC, 4 poles, MicroLogic 2.2 trip unit 160A	Current: 160A; Voltage: 415VAC; Poles: 4 poles; Breaking capacity: 25kA
C16B6TM080	Molded case circuit breaker, ComPacT NSX160B, 25kA/415VAC, 4 poles 3D (neutral not protected), TMD trip unit 80A	Current: 80A; Voltage: 415VAC; Poles: 4 poles; Breaking capacity: 25kA

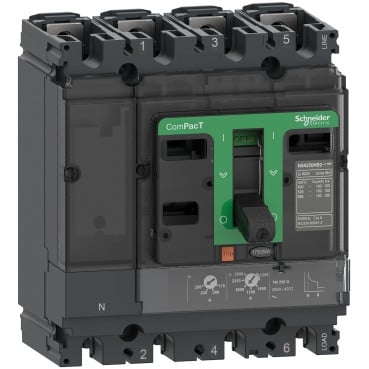

C16B6TM100	Circuit breaker ComPacT NSX160B. 25kA at 415VAC. TMD trip unit 100A. 4 poles 3d	Current: 100A; Voltage: 415VAC; Poles: 4 poles; Breaking capacity: 25kA

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
