Schneider Electric C120H Miniature Circuit Breakers MCB
Protect final distribution circuits against overload and short circuit. Match the pole configuration, rated current, tripping curve and breaking capacity to the circuit design.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

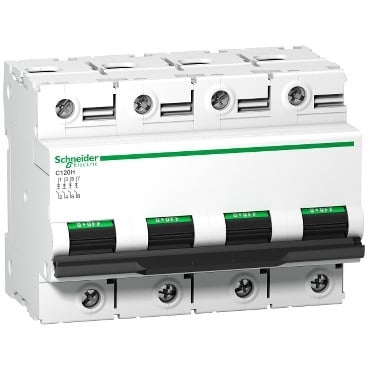

| A9N18481 | Miniature circuit-breaker, Acti9 C120H, 4P, 125 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) | Current: 125 A; Poles: 4P; Breaking capacity: 15 kA; Curve: C curve |
| A9N18446 | Miniature circuit-breaker, Acti9 C120H, 1P, 80 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) | Current: 80 A; Poles: 1P; Breaking capacity: 15 kA; Curve: C curve |

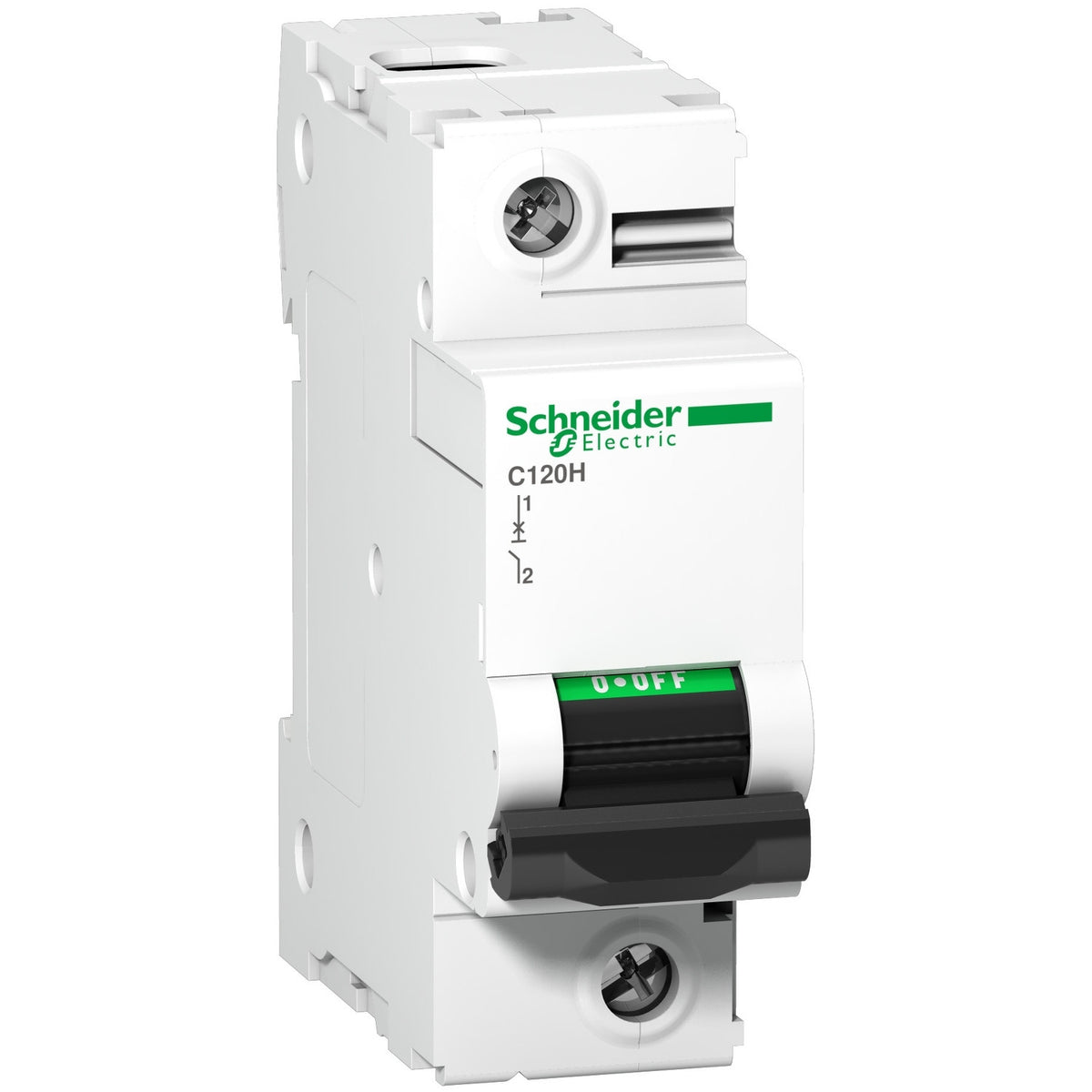

| A9N18447 | Miniature circuit-breaker, Acti9 C120H, 1P, 100 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) | Current: 100 A; Poles: 1P; Breaking capacity: 15 kA; Curve: C curve |
| A9N18448 | Miniature circuit-breaker, Acti9 C120H, 1P, 125 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) | Current: 125 A; Poles: 1P; Breaking capacity: 15 kA; Curve: C curve |

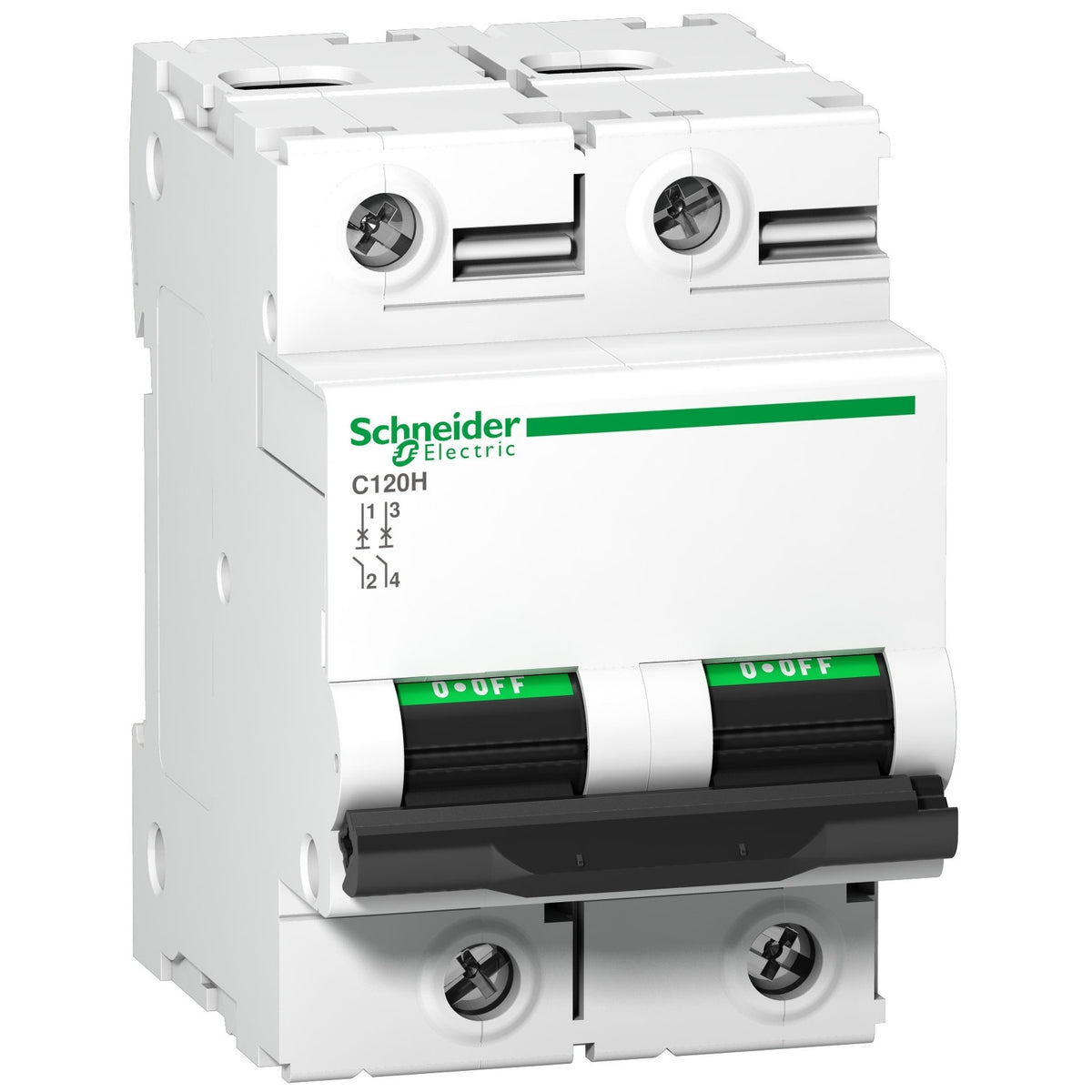

| A9N18459 | Miniature circuit breaker (MCB), Acti9 C120H, 2P, 125A, C curve, 15000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2) | Current: 125A; Poles: 2P; Breaking capacity: 15kA; Curve: C curve |

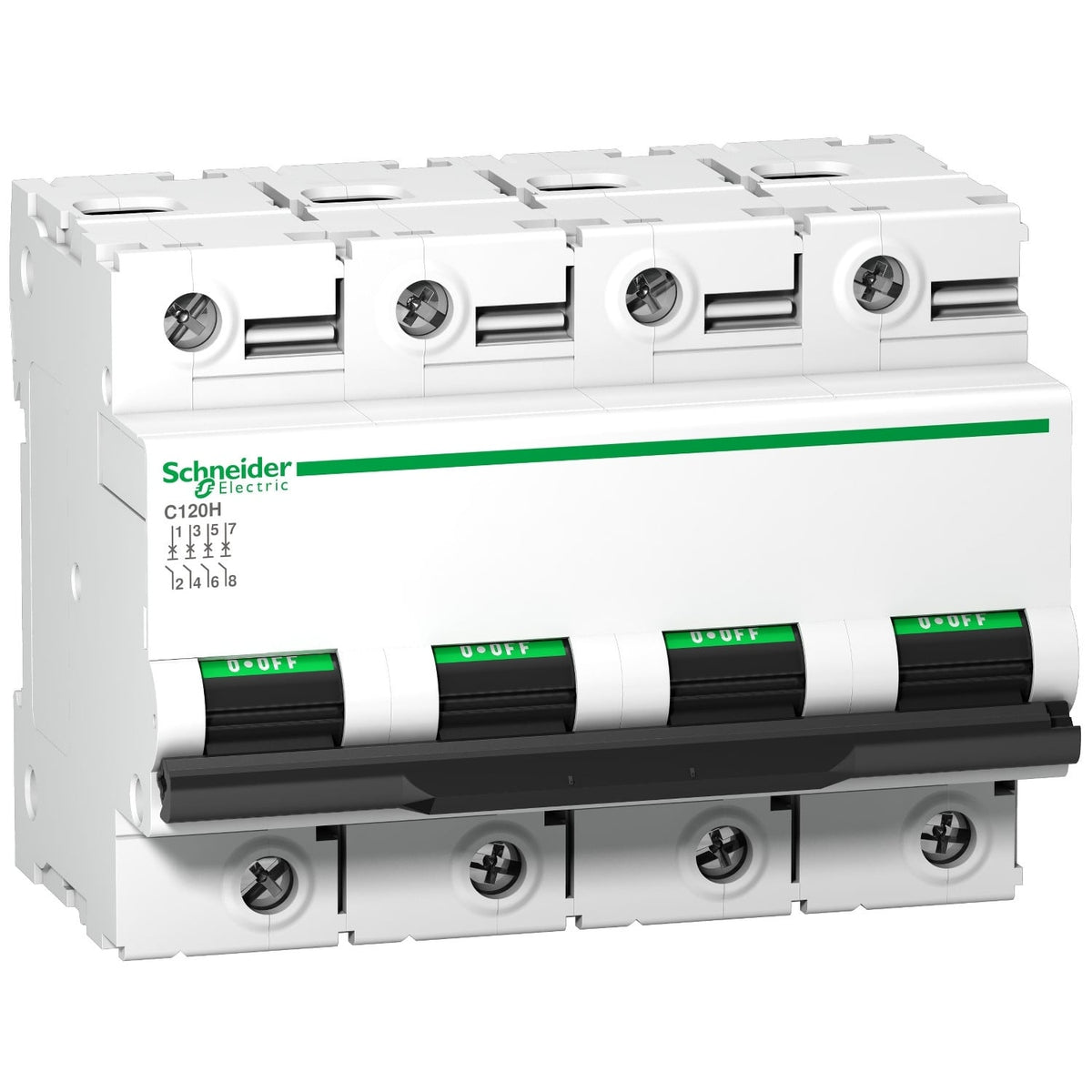

| A9N18479 | Miniature circuit-breaker, Acti9 C120H, 4P, 80 A, C curve, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2) | Current: 80 A; Poles: 4P; Breaking capacity: 15 kA; Curve: C curve |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
