Schneider Electric Spacial SM Electrical Enclosures & Distribution Boards

House compatible electrical devices in an enclosure chosen for the required mounting method, usable capacity and protection rating. Check the listed dimensions and included components; the enclosure alone does not imply that breakers or busbars are supplied.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings
NSYSM18860	PanelSeT SM compact enclosure without mounting plate – 1800x800x600 mm	See model designation
NSYSM14640	PanelSeT SM compact enclosure without mounting plate – 1400x600x400 mm	See model designation

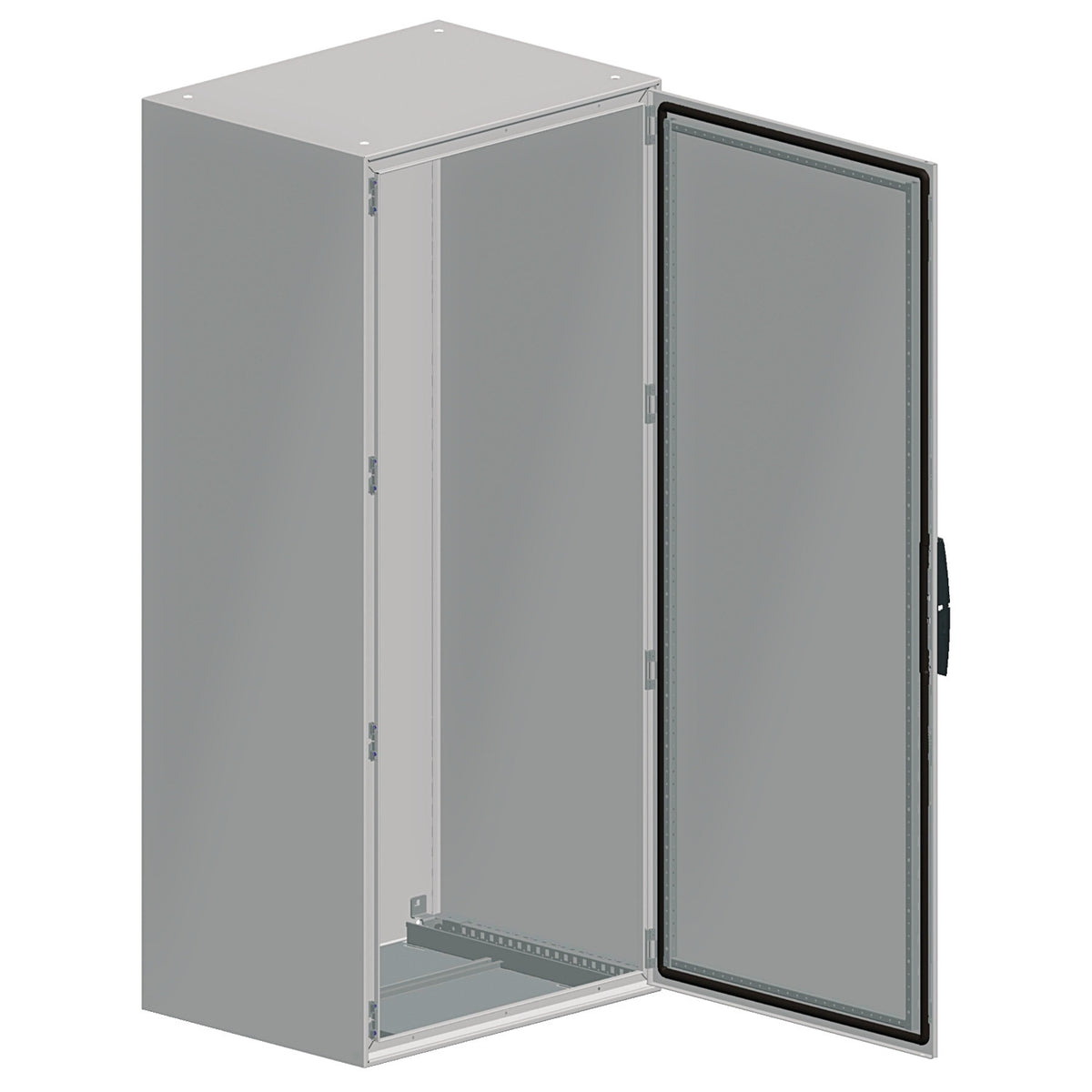

NSYSM14840	PanelSeT SM compact enclosure without mounting plate – 1400x800x400 mm	See model designation
NSYSM1610402D	Spacial SM compact enclosure without mounting plate – 1600x1000x400 mm	See model designation
NSYSM16640	Spacial SM compact enclosure without mounting plate – 1600x600x400 mm	See model designation
NSYSM16840	Spacial SM compact enclosure without mounting plate – 1600x800x400 mm	See model designation
NSYSM18840	Spacial SM compact enclosure without mounting plate – 1800x800x400 mm	See model designation
NSYSM2016602D	PanelSeT SM compact enclosure without mounting plate – 2000x1600x600 mm	See model designation
NSYSM20640	PanelSeT SM compact enclosure without mounting plate – 2000x600x400 mm	See model designation
NSYSM20860	PanelSeT SM compact enclosure without mounting plate – 2000x800x600 mm	See model designation

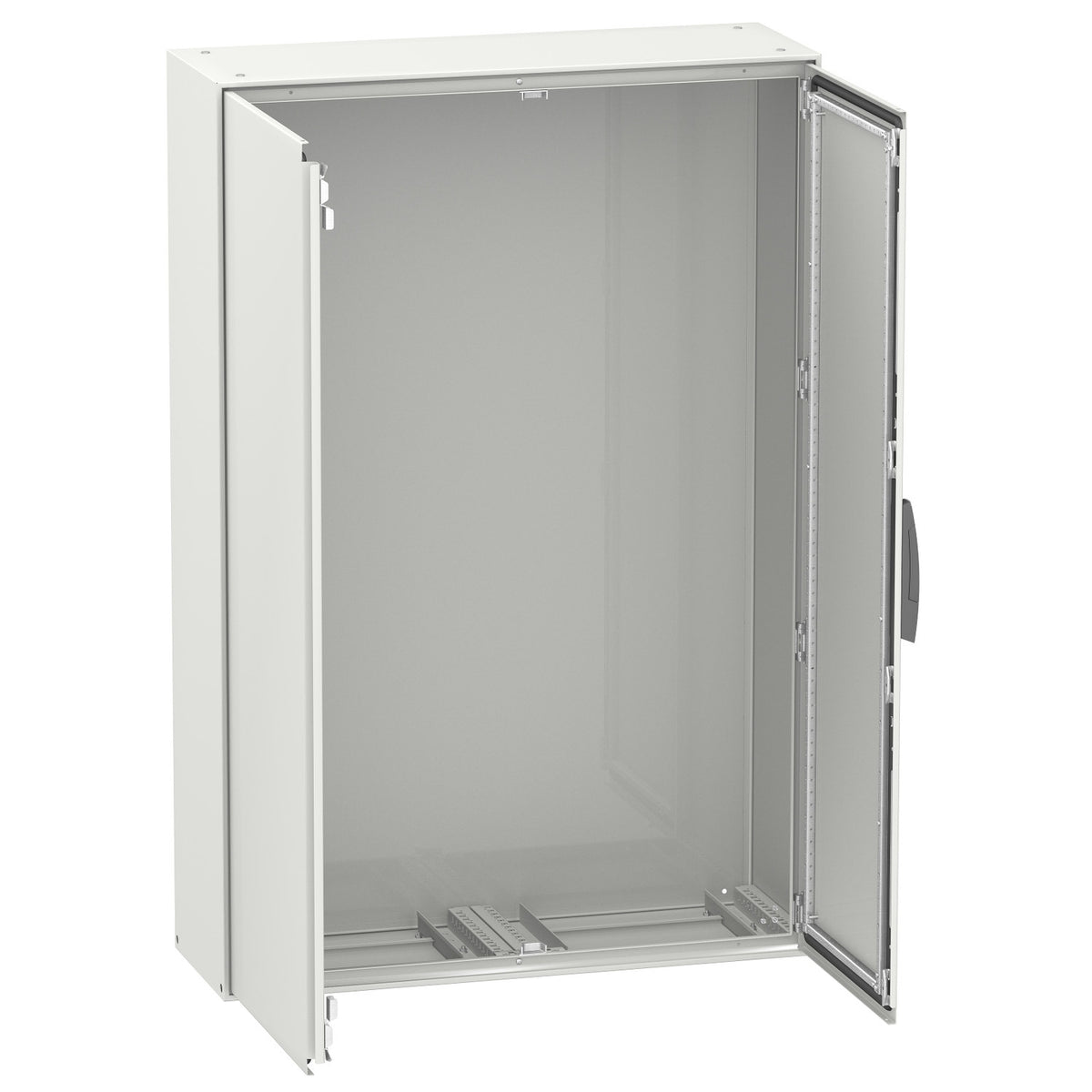

NSYSM1410402D	Spacial SM compact enclosure without mounting plate – 1400x1000x400 mm	See model designation
NSYSM14830	Spacial SM compact enclosure without mounting plate – 1400x800x300 mm	See model designation
NSYSM1612402D	PanelSeT SM compact enclosure without mounting plate – 1600x1200x400 mm	See model designation
NSYSM1810402D	PanelSeT SM compact enclosure without mounting plate – 1800x1000x400 mm	See model designation
NSYSM2010402D	Spacial SM compact enclosure without mounting plate – 2000x1000x400 mm	See model designation
NSYSM2012402D	Spacial SM compact enclosure without mounting plate – 2000x1200x400 mm	See model designation

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
