Schneider Electric ComPact INS/INV Switch Disconnectors
Provide switching and isolation with a switch disconnector rated for the circuit. Confirm the utilization category, number of poles, handle arrangement and upstream overcurrent protection; an isolator is not a circuit breaker.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

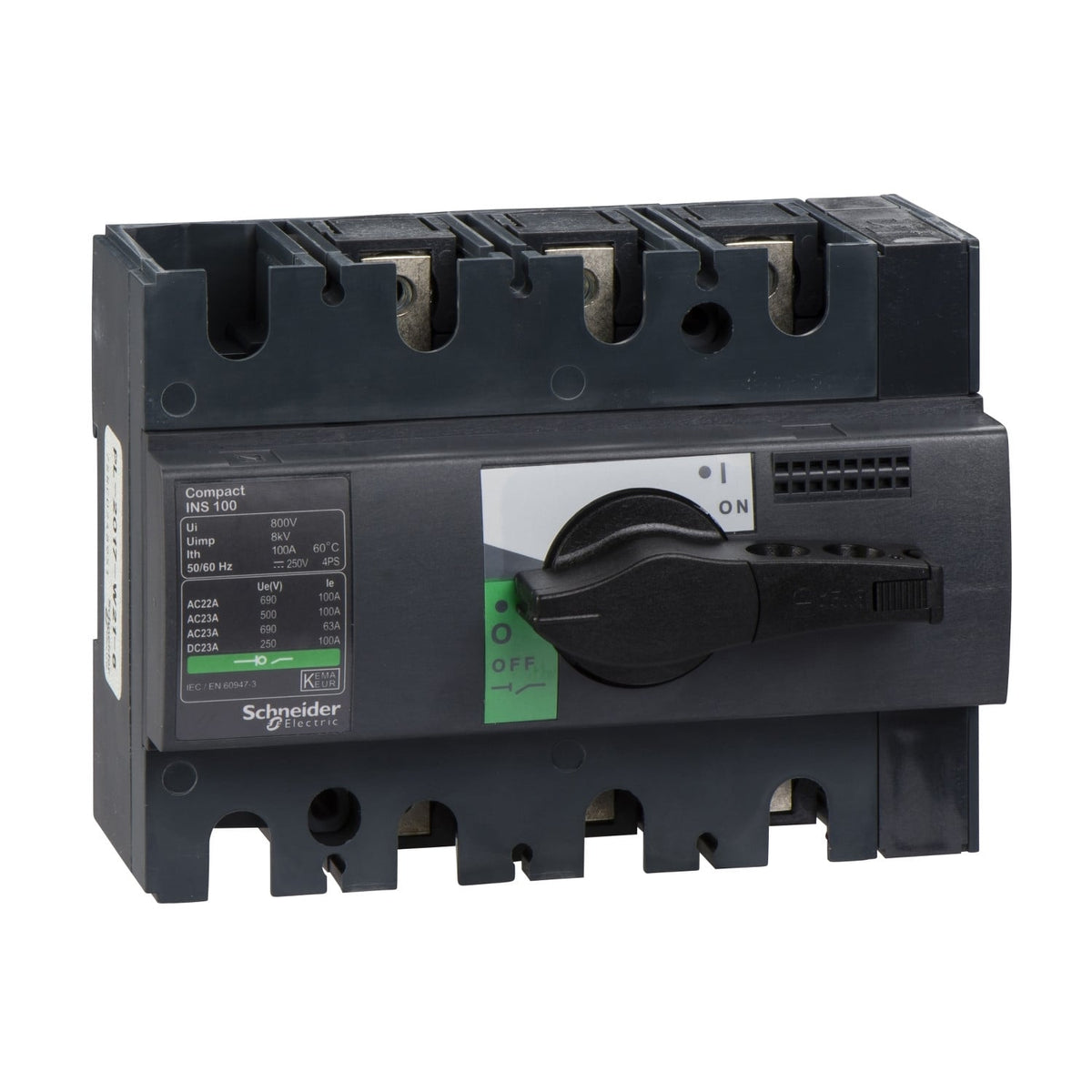

| 28908 | switch-disconnector Compact INS100 – 3 poles – 100 A | Current: 100 A; Poles: 3 poles |
| 28910 | switch disconnector, Compact INS125 , 125 A, standard version with black rotary handle, 3 poles | Current: 125 A; Poles: 3 poles |

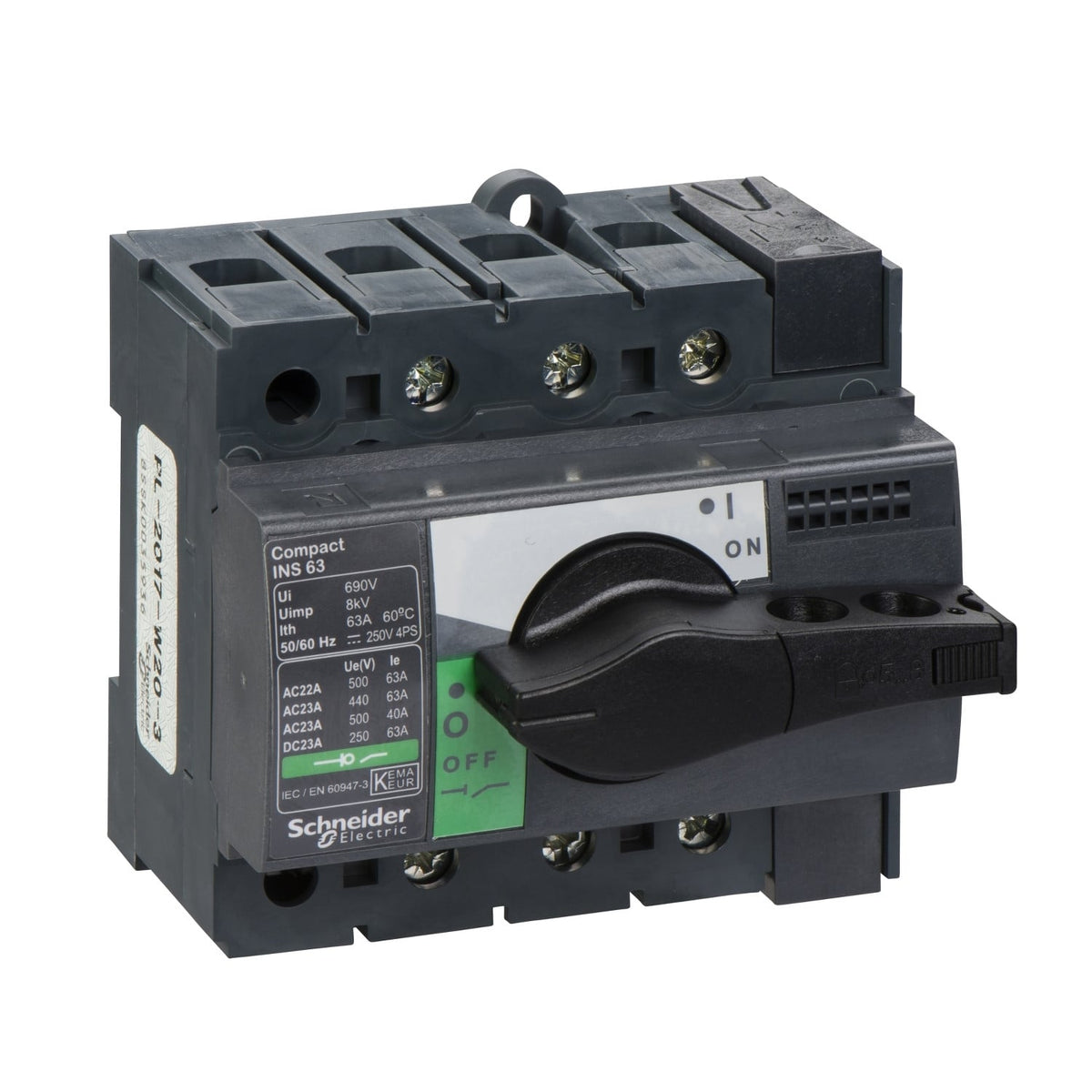

| 28902 | switch-disconnector Compact INS63 – 3 poles – 63 A | Current: 63 A; Poles: 3 poles |
| 28912 | switch disconnector, Compact INS160 , 160 A, standard version with black rotary handle, 3 poles | Current: 160 A; Poles: 3 poles |

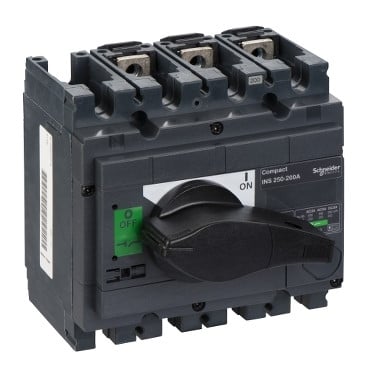

| 31102 | switch disconnector, Compact INS250-200 , 160 A, standard version with black rotary handle, 3 poles | Current: 160 A; Poles: 3 poles |

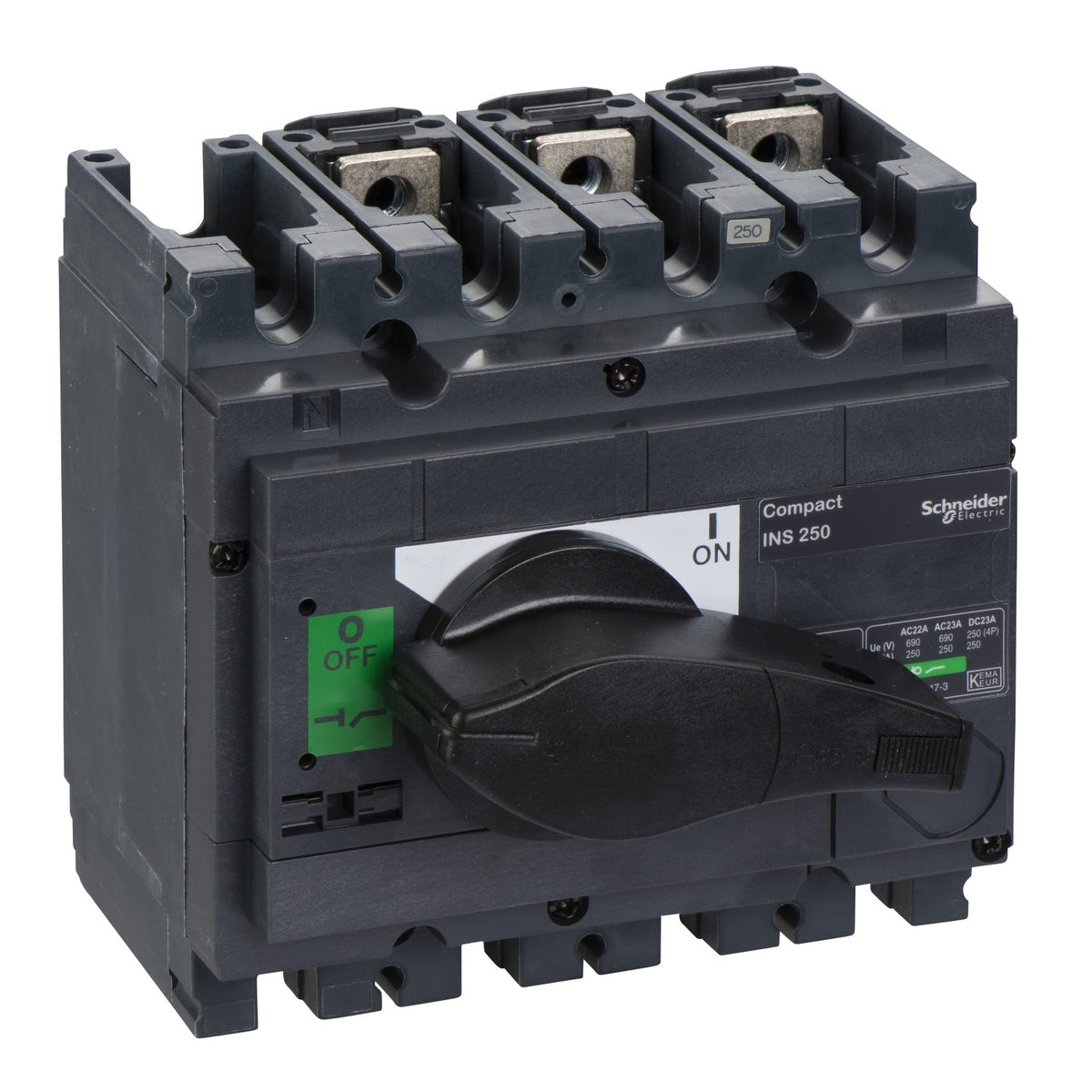

| 31106 | switch-disconnector Compact INS250 – 250 A – 3 poles | Current: 250 A; Poles: 3 poles |
| 31110 | switch-disconnector Compact INS400 – 400 A – 3 poles | Current: 400 A; Poles: 3 poles |

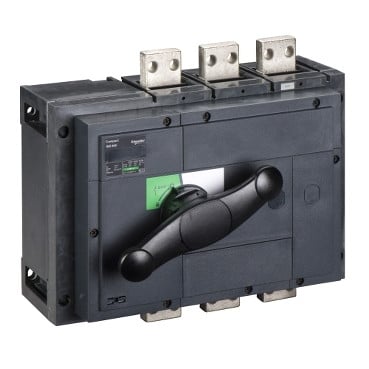

| 31330 | switch disconnector, Compact INS800 , 800 A, standard version with black rotary handle, 3 poles | Current: 800 A; Poles: 3 poles |

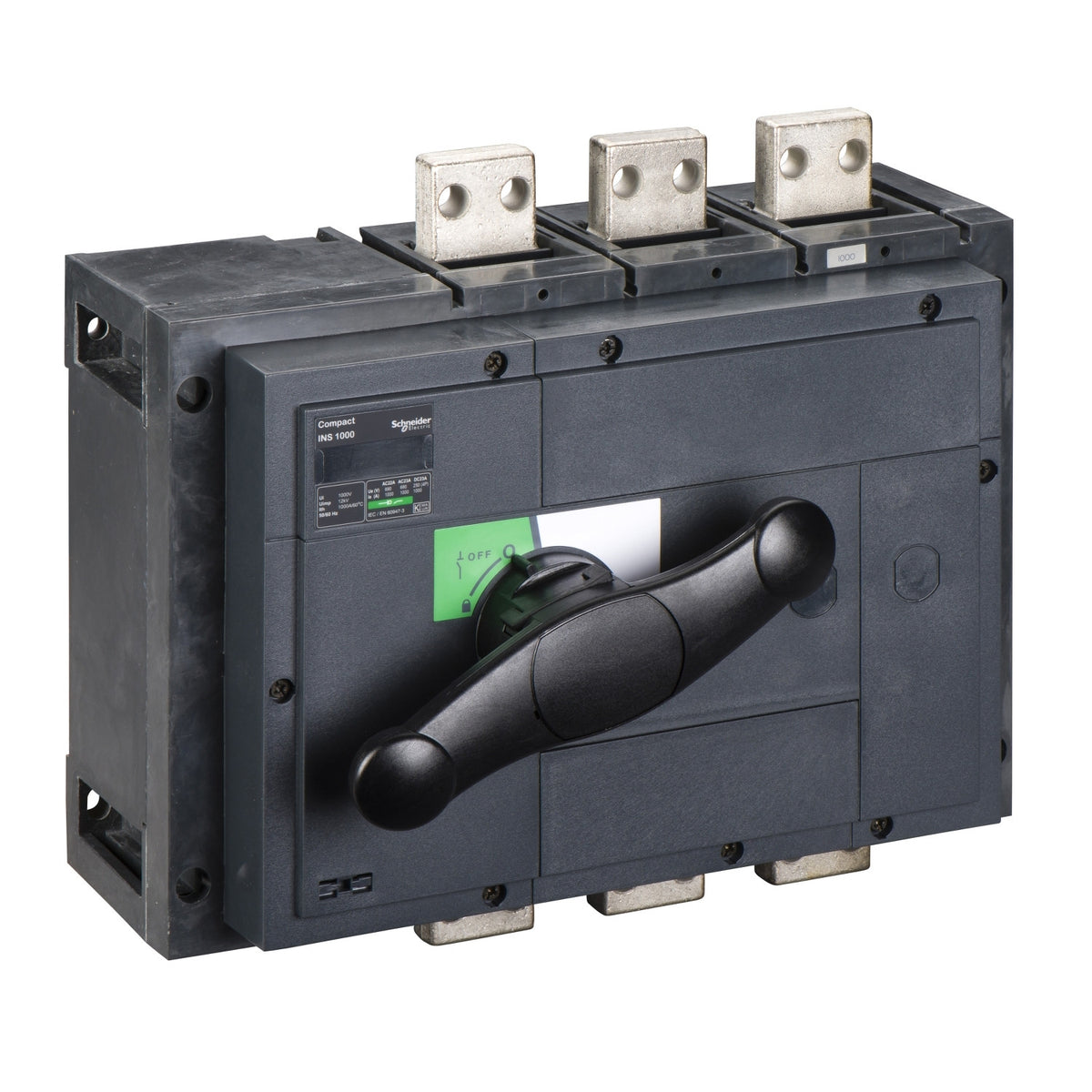

| 31332 | switch disconnector, Compact INS1000 , 1000 A, standard version with black rotary handle, 3 poles | Current: 1000 A; Poles: 3 poles |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
