Schneider Electric EasyPact TVS contactors Motor Contactors

Switch motor or power circuits using the model with the correct utilization category, rated current and coil supply. AC-1, AC-3 and AC-3e ratings are not interchangeable; use the rating for the actual load.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings
LC1E3210M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,32A,220V AC coil,50Hz,1NO auxiliary contact	Current: 32A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO

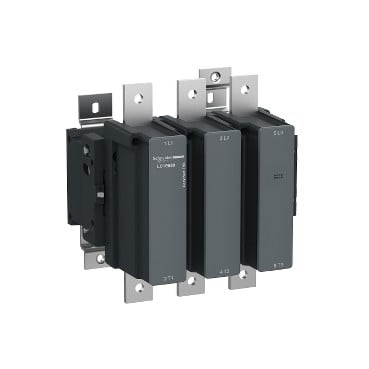

LC1E630M7	EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 630A – 220 V AC coil	Current: 630A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO

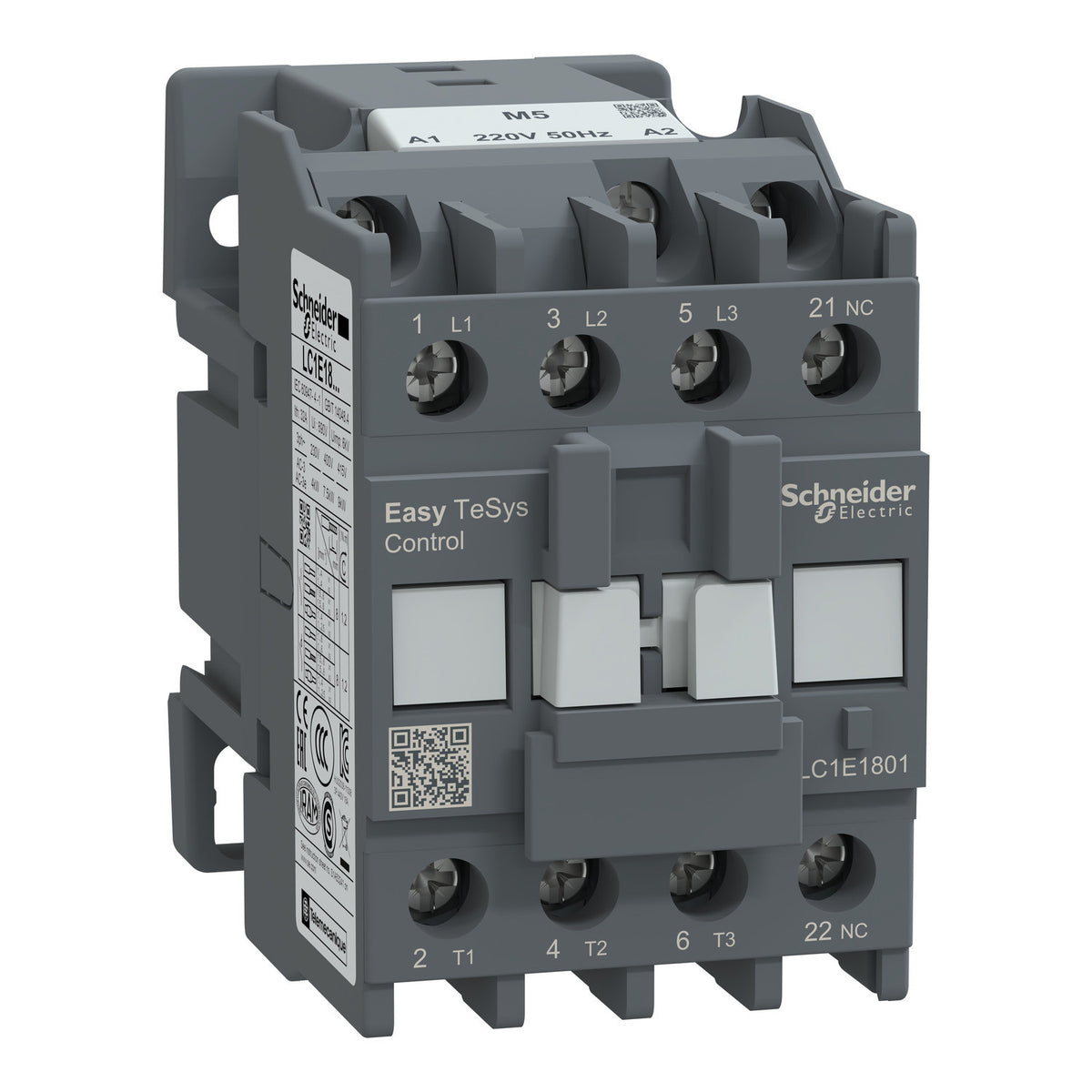

LC1E1801M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,18A,220V AC coil,50Hz,1NC auxiliary contact	Current: 18A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC

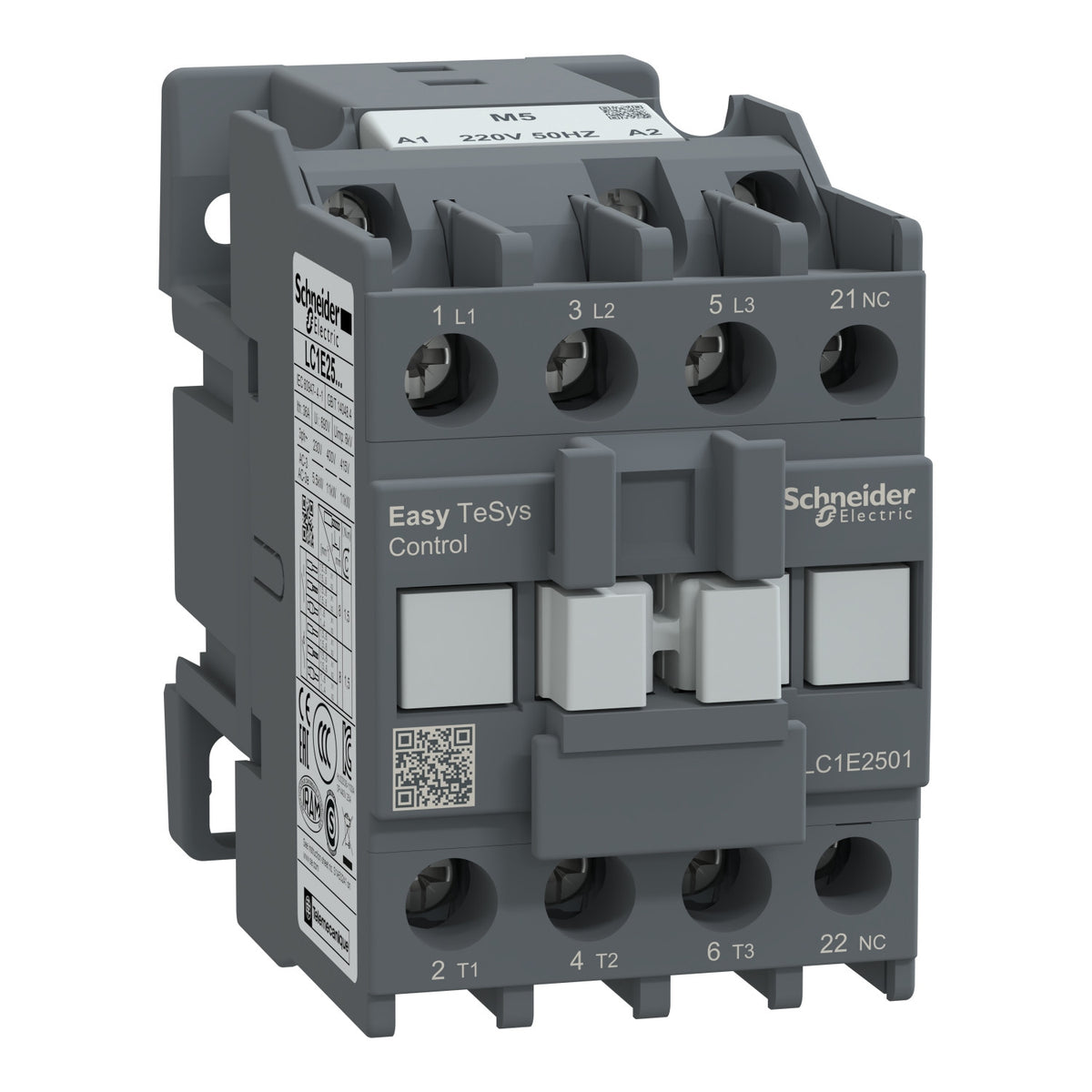

LC1E2501M5	EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 25A – 220 V AC coil	Current: 25A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO
LC1E3201M5	EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 32A – 220 V AC coil	Current: 32A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO

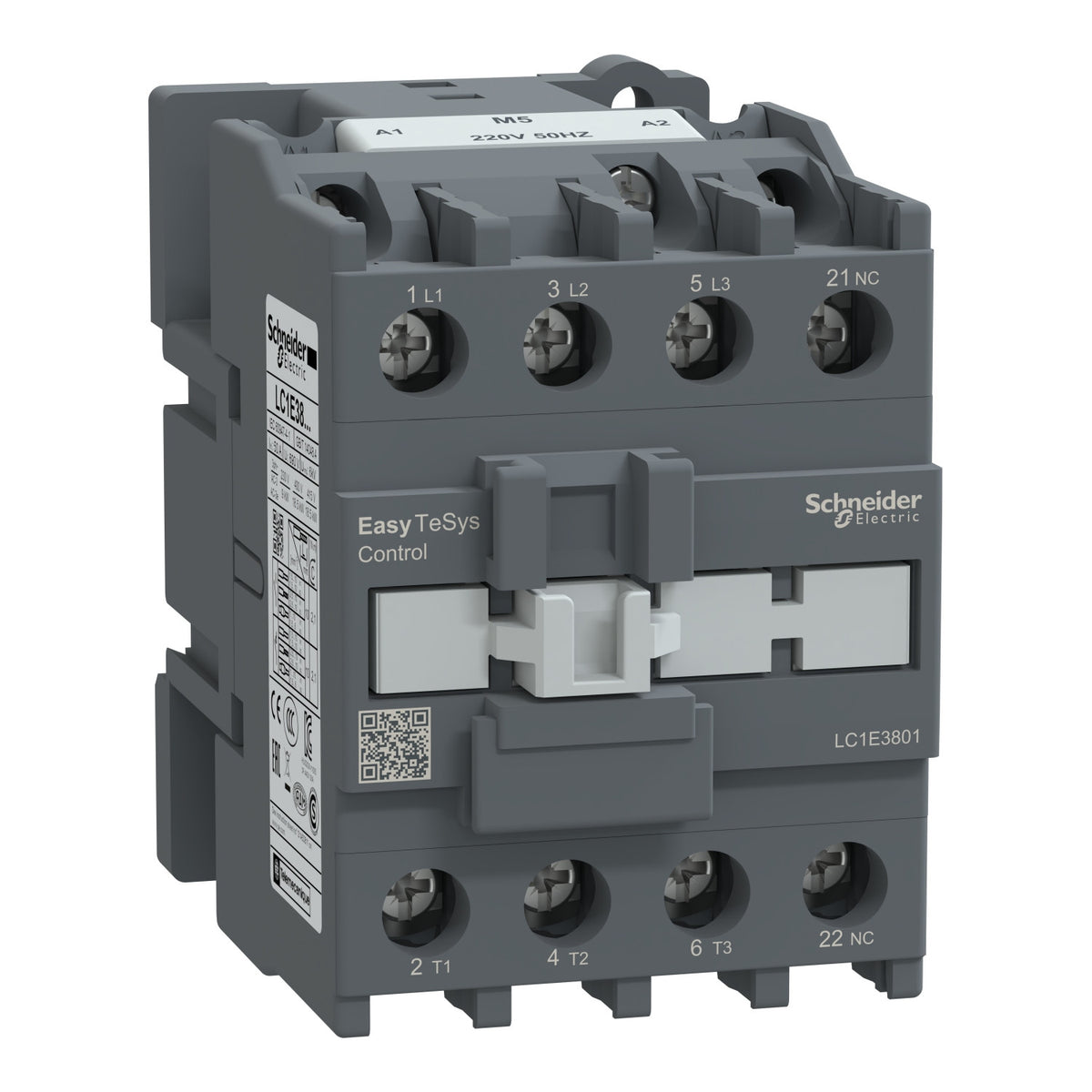

LC1E3801M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,38A,220V AC coil,50Hz,1NC auxiliary contact	Current: 38A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC

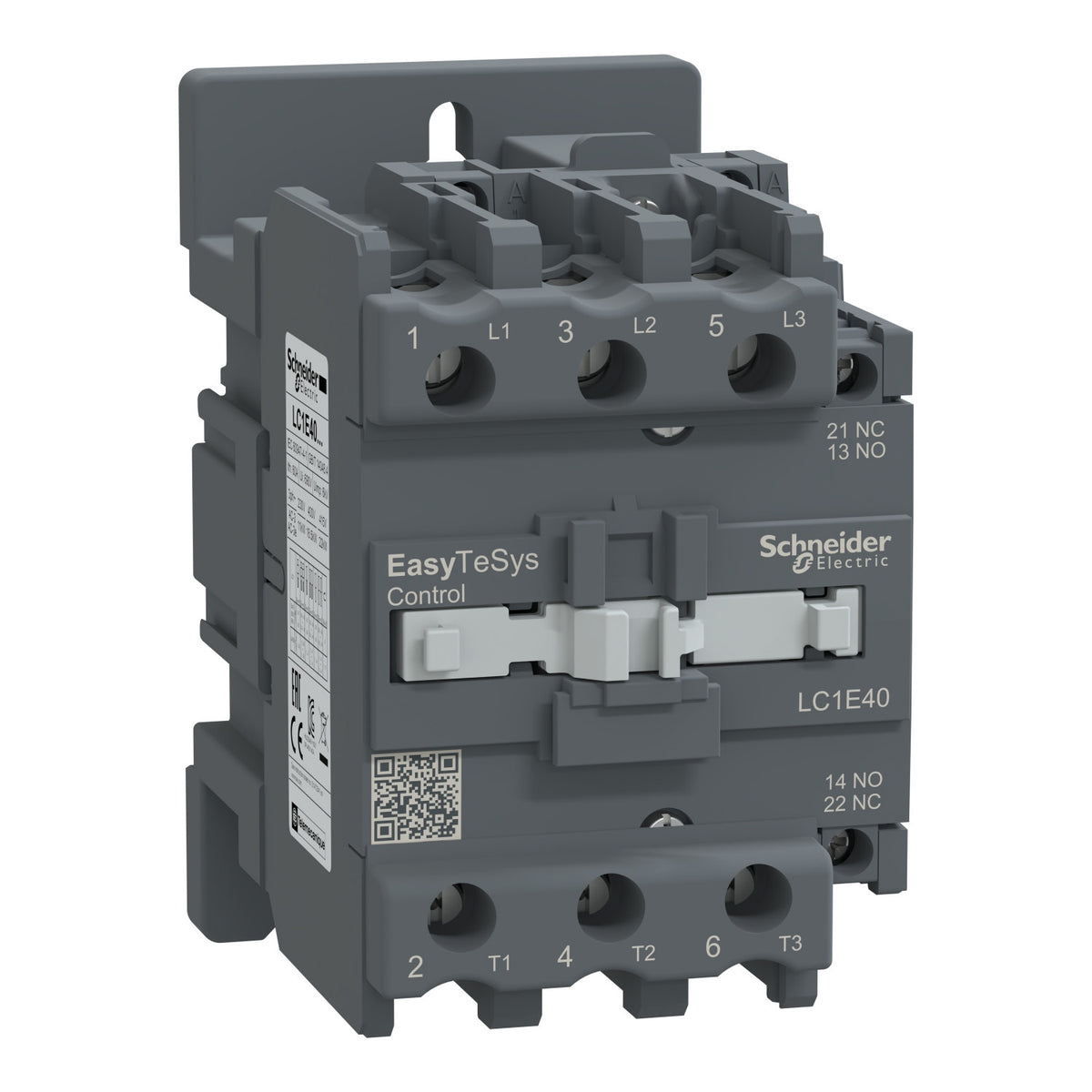

LC1E40M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,40A,220V AC coil,50Hz	Current: 40A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO
LC1E50M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,50A,220V AC coil,50Hz	Current: 50A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO
LC1E65M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,65A,220V AC coil,50Hz	Current: 65A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO

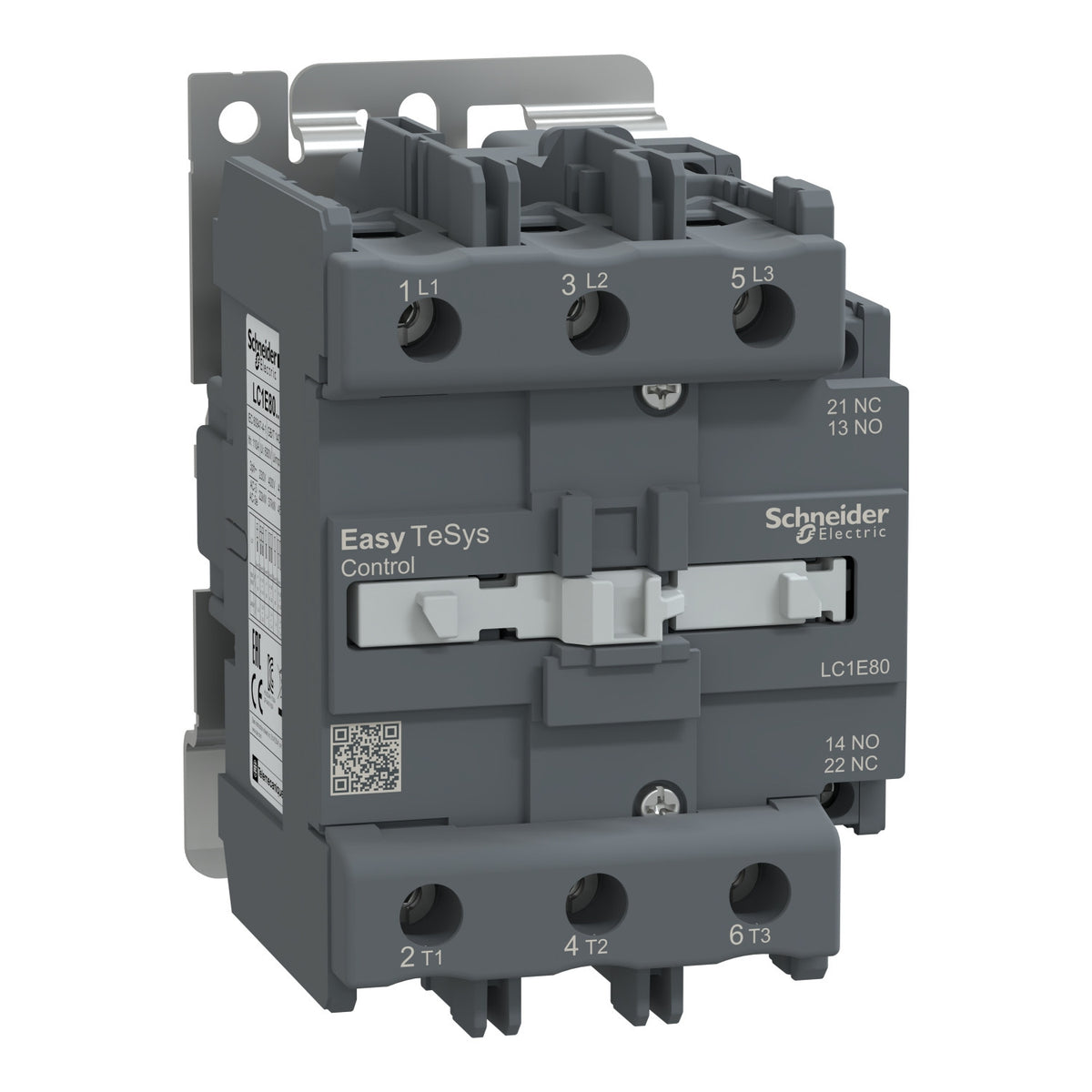

LC1E80M5	Contactor,EasyPact TVS,3P(3NO),AC-3,<=440V,80A,220V AC coil,50Hz	Current: 80A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
