Schneider Electric TeSys D Electrical Auxiliary Contacts & Accessories

Select the exact accessory for the compatible device family. Check mounting side, contact function, operating voltage where applicable and the manufacturer compatibility reference before fitting.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings

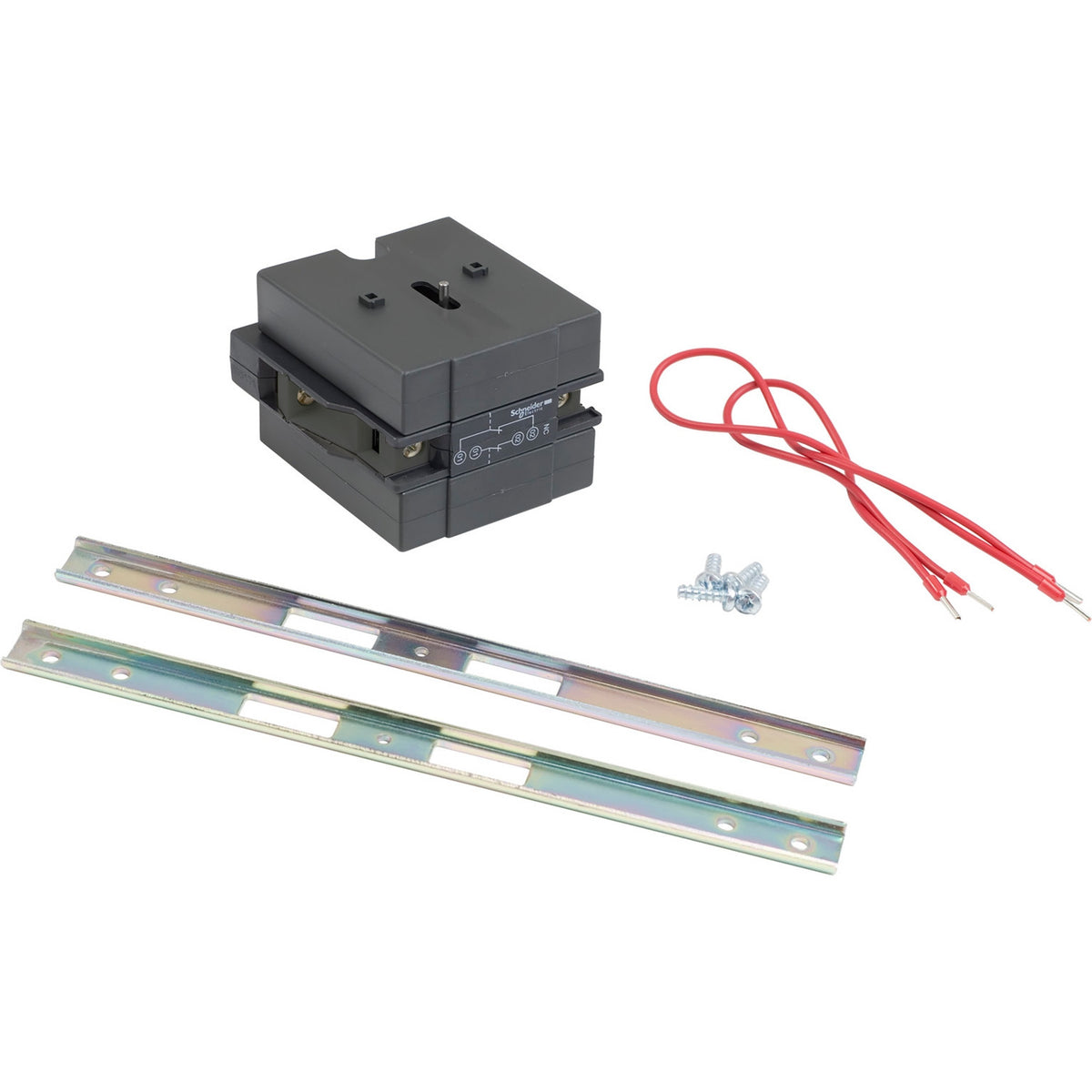

LA9D11502	TeSys \| Mechanical and electrical interlock, TeSys D reversing & changeover, 2 contactors LC1D115-D150	See model designation

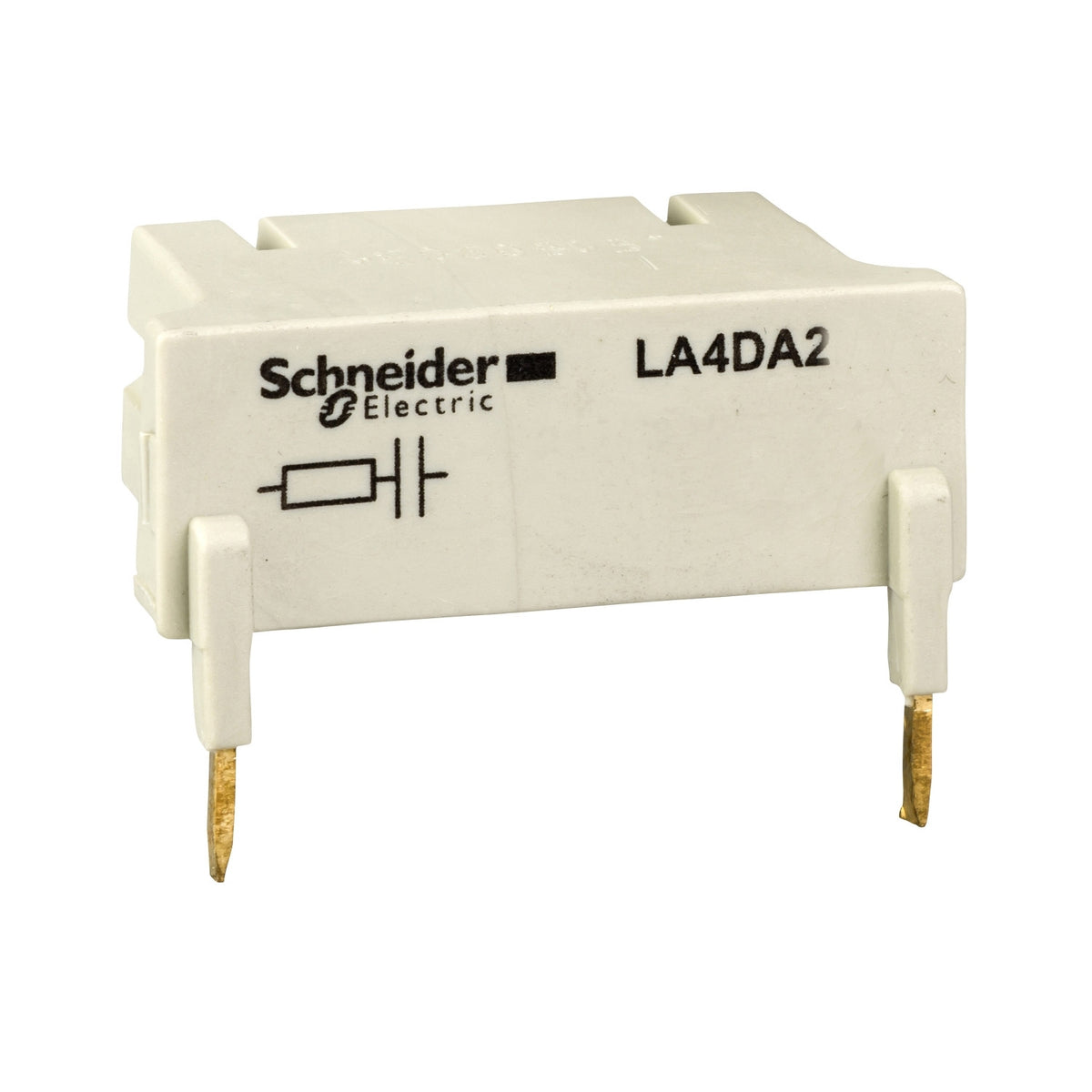

LA4DA2U	TeSys \| TeSys D – suppressor module – RC circuit – 110…240 V AC	Voltage: 110..240 V AC

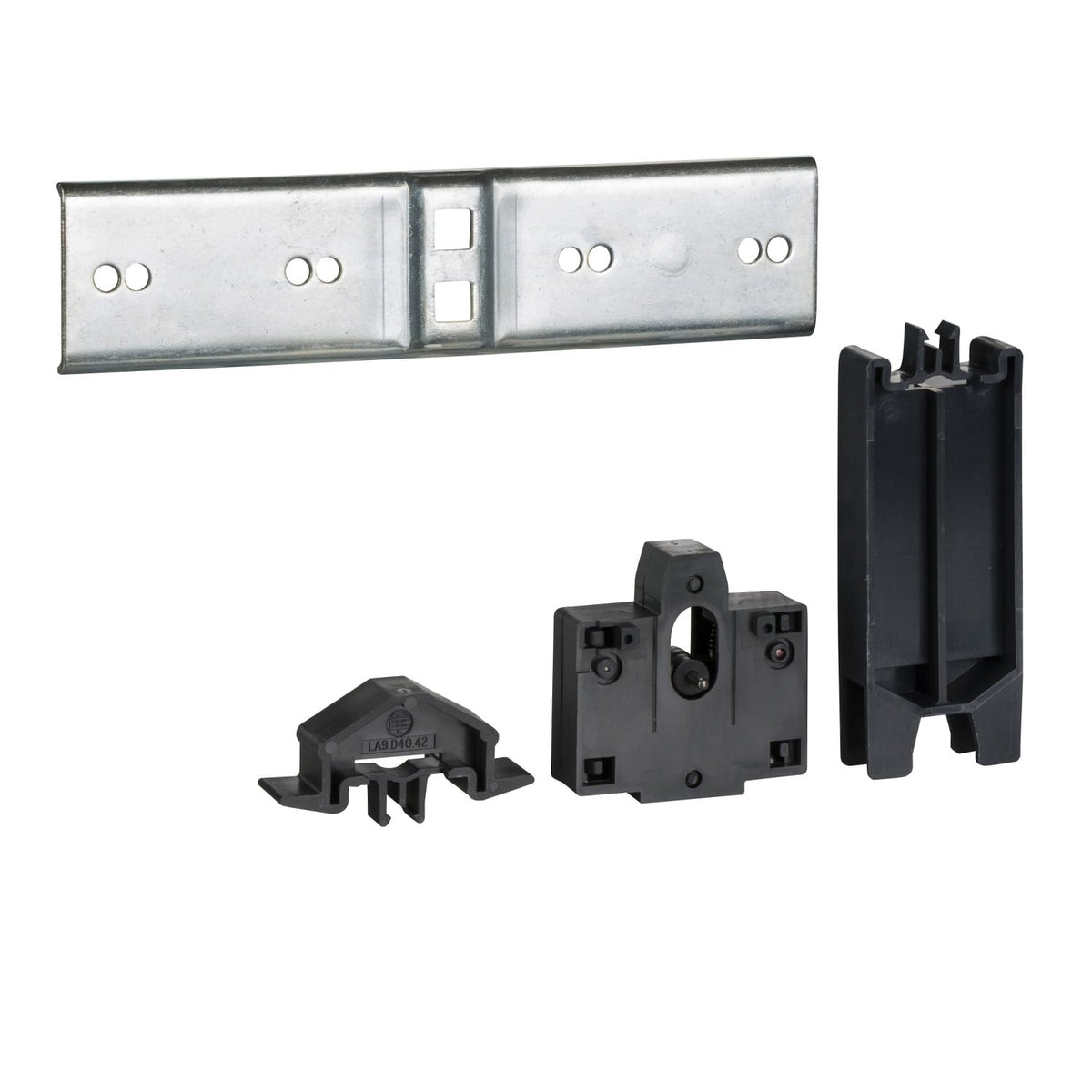

LA9D80978	TeSys \| Mechanical interlock, TeSys D contactors LC1D80-D95 DC coil	See model designation

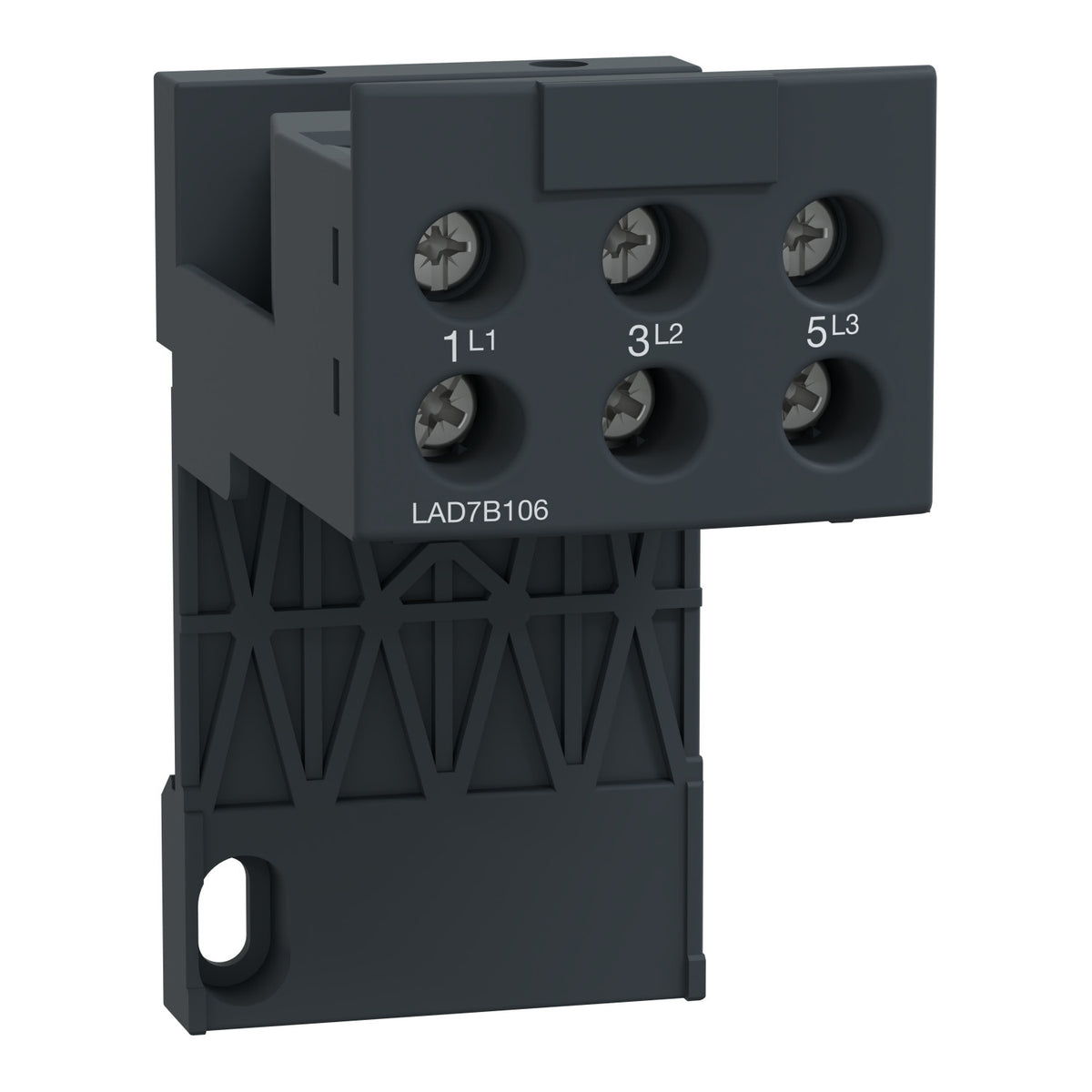

LAD7B106	Adapter terminal block, TeSys LRD, for separate mounting of LRD01-D35 LR3D01-D35	See model designation
LAD96560	Everlink Size 3 Power Termination Block	See model designation

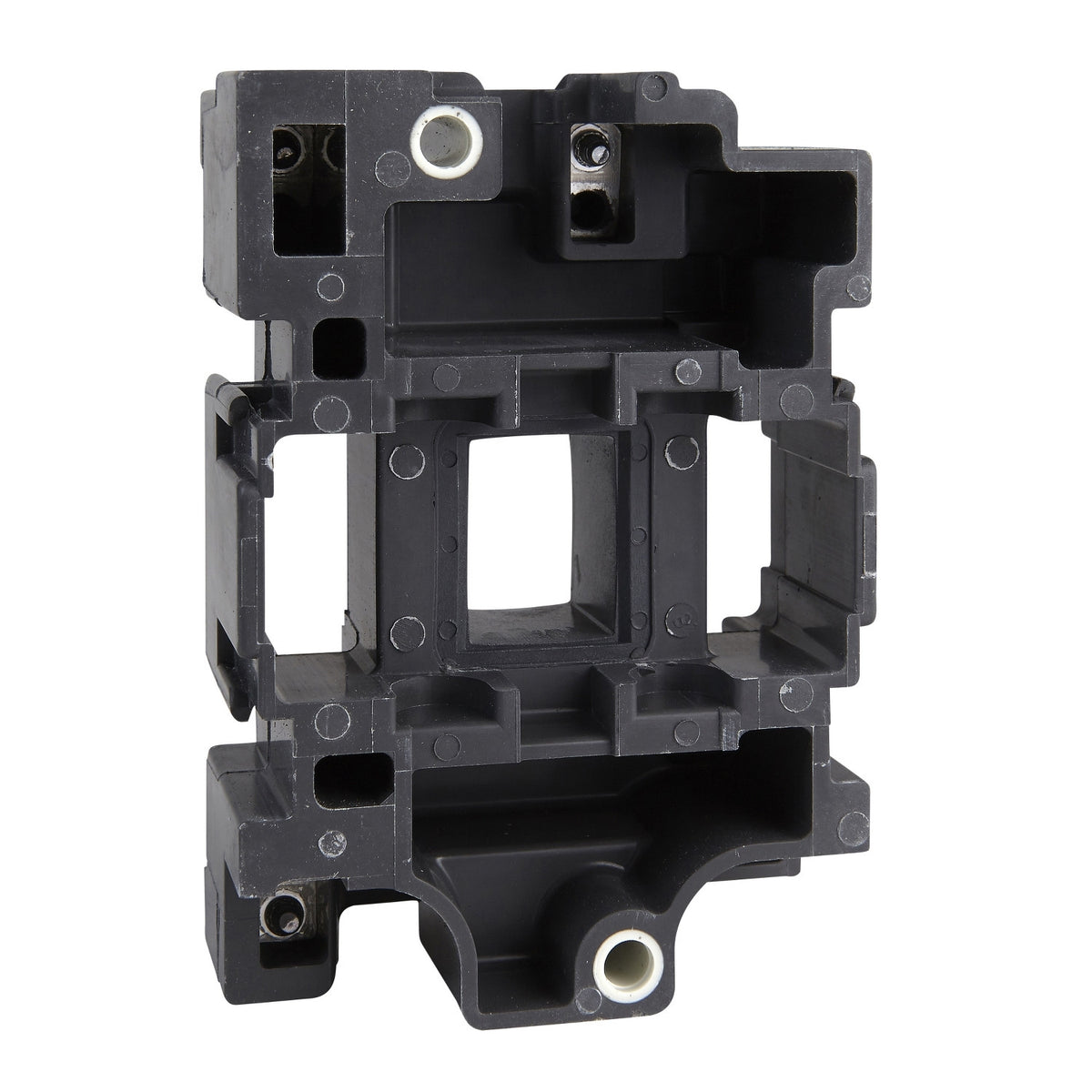

LX1D6M7	TeSys D – contactor coil – LX1D6 – 220 V AC 50/60 Hz for 80 & 95 A contactor	Current: 95 A; Voltage: 220 V AC
LX1D8B7	TeSys D – contactor coil – LX1D8 – 24 V AC 50/60 Hz for 115 & 150 A contactor	Current: 150 A; Voltage: 24 V AC
LX1D8Q7	TeSys D – contactor coil – LX1D8 – 380 V AC 50/60 Hz for 115 & 150 A contactor	Current: 150 A; Voltage: 380 V AC

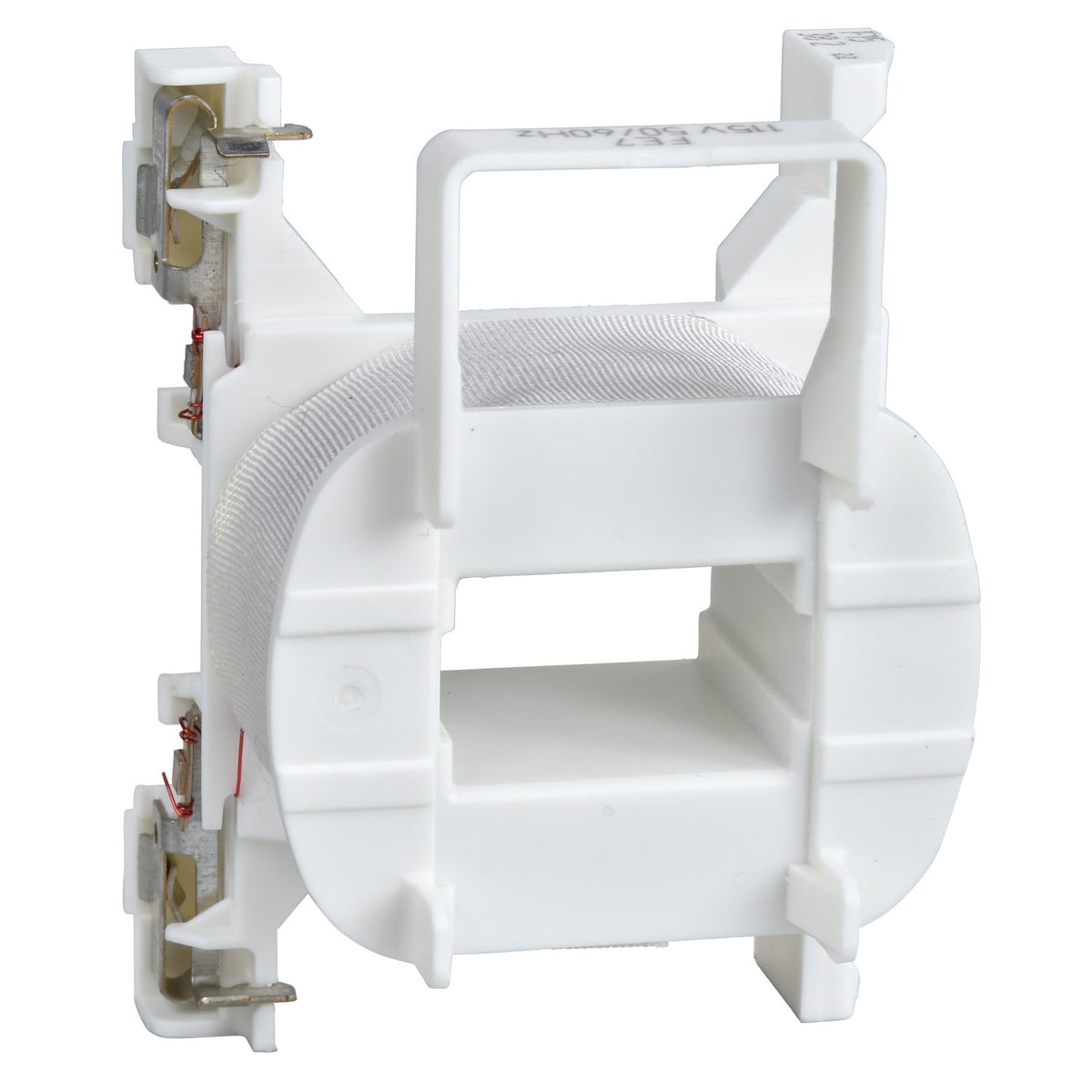

LXD1Q7	TeSys D – contactor coil – LXD1 – 380 V AC 50/60 Hz for 9… 38 A contactor	Current: 9.. 38 A; Voltage: 380 V AC

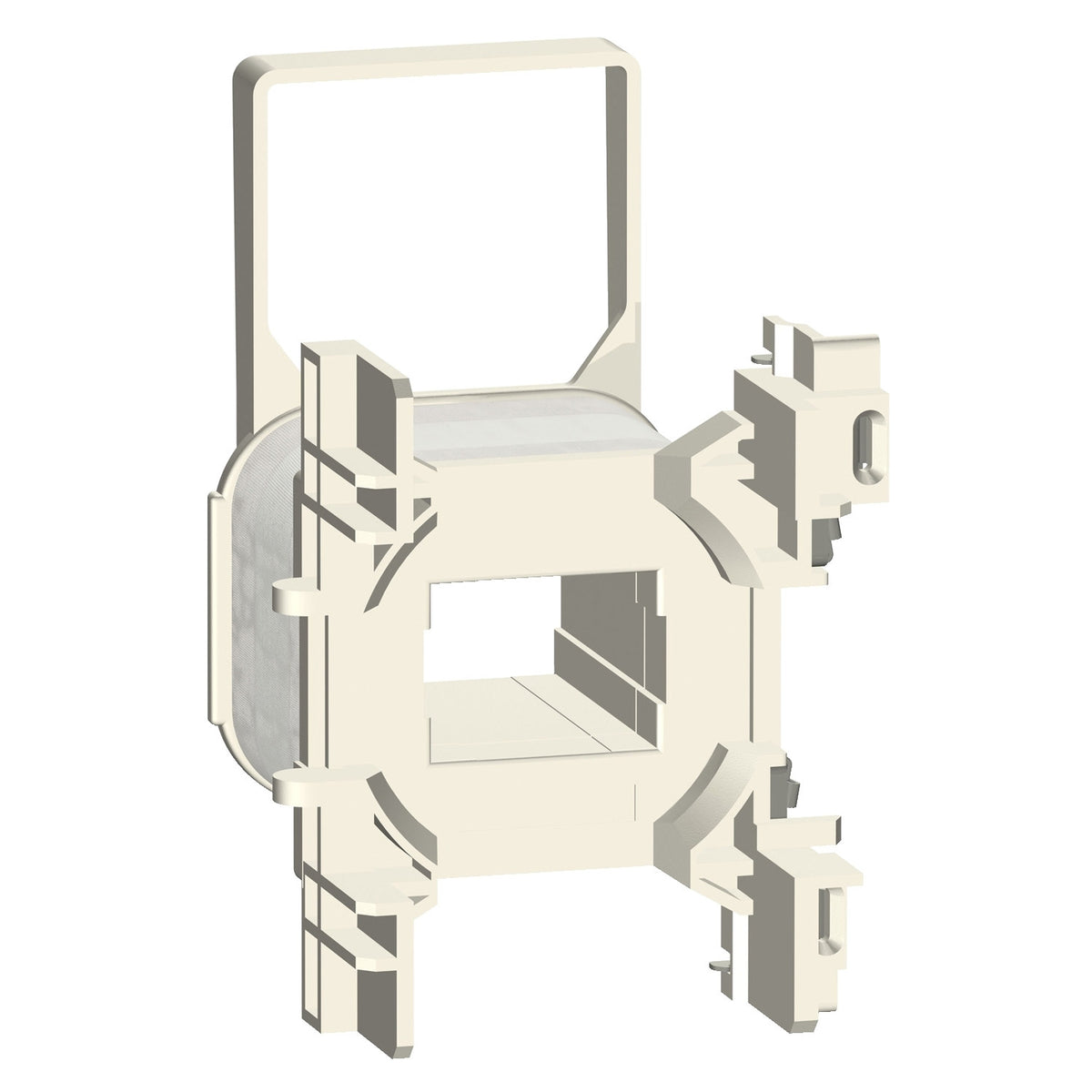

LXD3B7	TeSys D – contactor coil – LXD3 – 24 V AC 50/60 Hz for 40… 65 A contactor	Current: 40.. 65 A; Voltage: 24 V AC
LXD3E7	TeSys D – contactor coil – LXD3 – 48 V AC 50/60 Hz for 40… 65 A contactor	Current: 40.. 65 A; Voltage: 48 V AC
LXD3F7	TeSys D – contactor coil – LXD3 – 110 V AC 50/60 Hz for 40… 65 A contactor	Current: 40.. 65 A; Voltage: 110 V AC
LXD3M7	TeSys D – contactor coil – LXD3 – 220 V AC 50/60 Hz for 40… 65 A contactor	Current: 40.. 65 A; Voltage: 220 V AC
LXD3Q7	TeSys D – contactor coil – LXD3 – 380 V AC 50/60 Hz for 40… 65 A contactor	Current: 40.. 65 A; Voltage: 380 V AC
LX1D6B7	TeSys D – contactor coil – LX1D6 – 24 V AC 50/60 Hz for 80 & 95 A contactor	Current: 95 A; Voltage: 24 V AC
LX1D6E7	TeSys D – contactor coil – LX1D6 – 48 V AC 50/60 Hz for 80 & 95 A contactor	Current: 95 A; Voltage: 48 V AC
LX1D6F7	TeSys D – contactor coil – LX1D6 – 110 V AC 50/60 Hz for 80 & 95 A contactor	Current: 95 A; Voltage: 110 V AC
LX1D6Q7	TeSys D – contactor coil – LX1D6 – 380 V AC 50/60 Hz for 80 & 95 A contactor	Current: 95 A; Voltage: 380 V AC

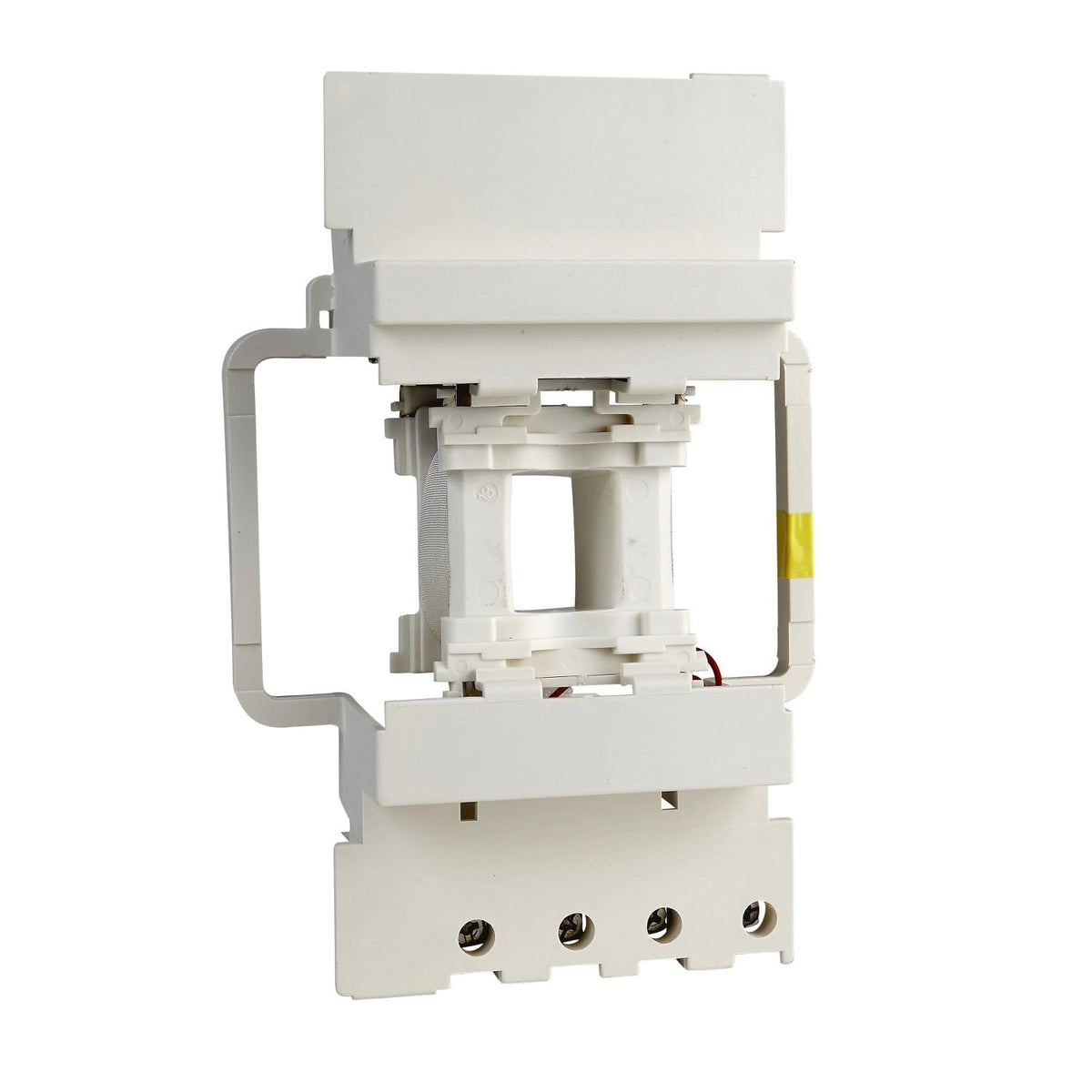

LX1D8M7	TeSys D – contactor coil – LX1D8 – 220 V AC 50/60 Hz for 115 & 150 A contactor	Current: 150 A; Voltage: 220 V AC
LXD1P7	TeSys D – contactor coil – LXD1 – 230 V AC 50/60 Hz for 9… 38 A contactor	Current: 9.. 38 A; Voltage: 230 V AC

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
