Schneider Electric High Current Air Circuit Breakers Electrical Auxiliary Contacts & Accessories
Select the exact accessory for the compatible device family. Check mounting side, contact function, operating voltage where applicable and the manufacturer compatibility reference before fitting.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

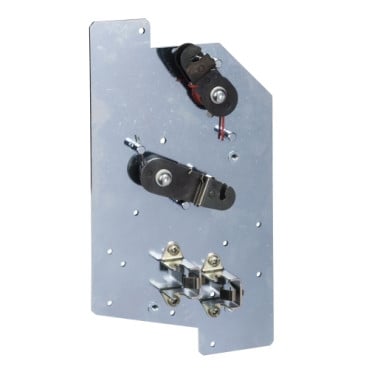

| 47926 | cable interlocking adaptation fixture – for Masterpact NW fixed or drawout | See model designation |

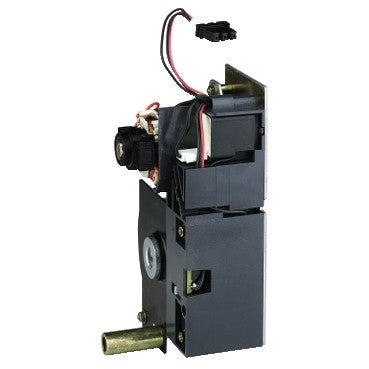

| 48212 | motor mechanism MCH, Masterpact NW08 to Masterpact NW63 fixed circuit breakers, 200 VAC to 240 V AC 50/60 Hz | Voltage: 200 VAC, 240 V AC |

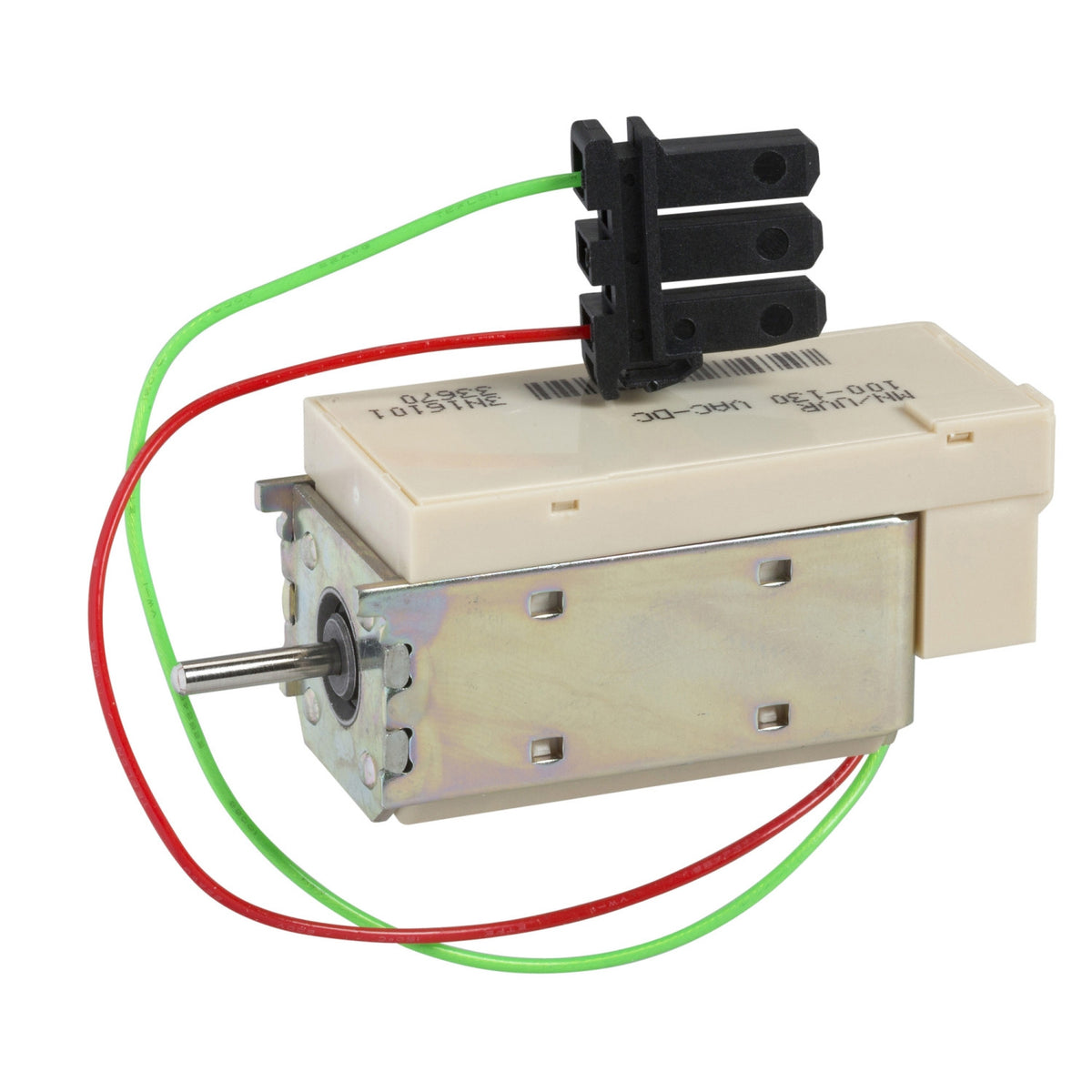

| 47353K | voltage release XF – 200..250 V DC/AC 50/60 Hz | Voltage: 200..250 V DC |

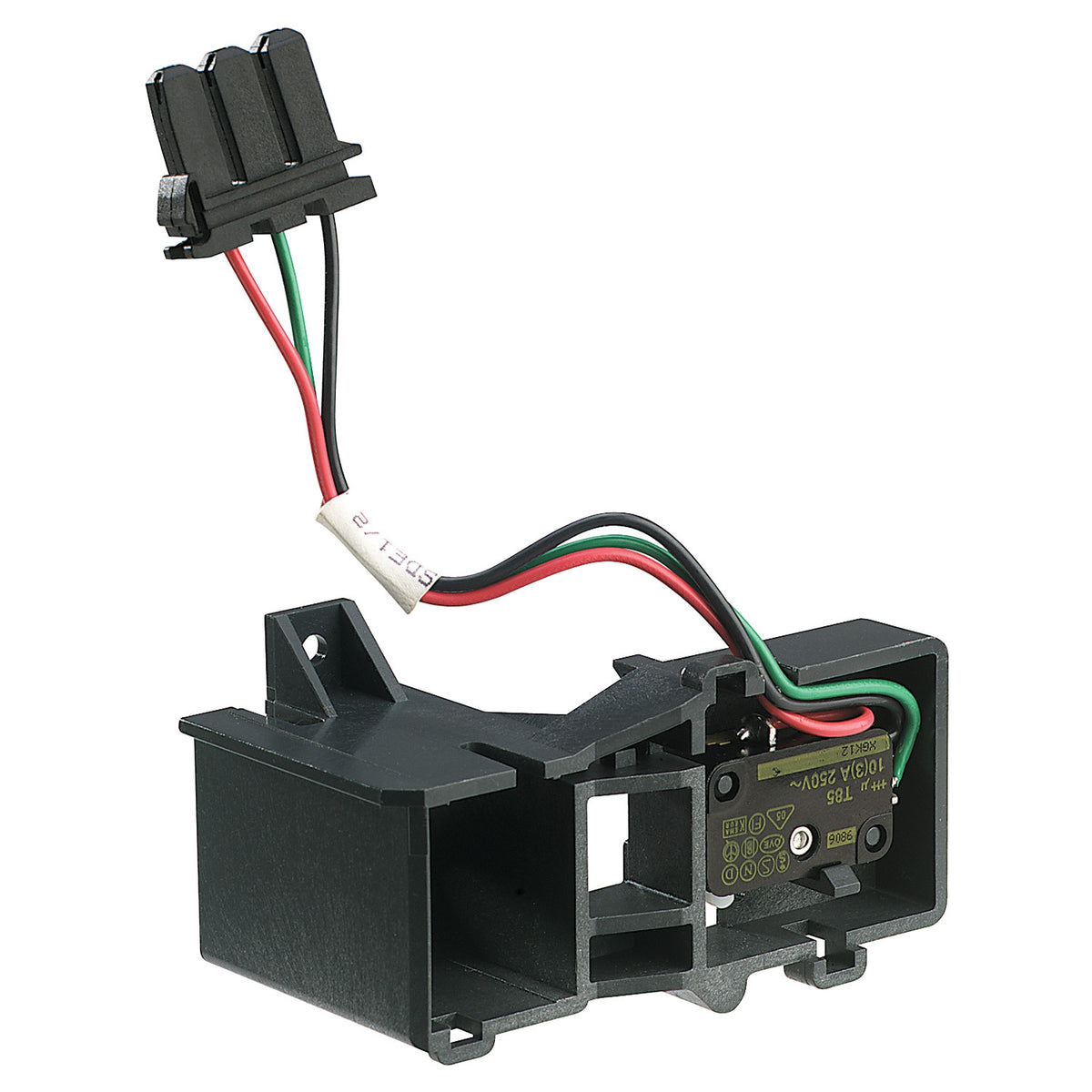

| 47915 | auxiliary contact SDE – 6 A – 1 NO/NC – for Masterpact NW | Current: 6 A; Contacts: 1 NO |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
