MEAN WELL HDR-150-24 24V 6.25A DIN Rail Power Supply

MEAN WELL HDR-150-24 — 24V din rail power supply

The MEAN WELL HDR-150-24 provides 24 V DC at a rated 6.25 A, with 150 W output. This HDR-150 model is designed for 24V PLC inputs, sensors, relays and control-panel electronics. Compare this exact part number at Spark Egypt when selecting a replacement or specifying a new installation.

Technical specifications

Applications and selection

Use this model for 24V PLC inputs, sensors, relays and control-panel electronics, after checking the equipment input specification. Its DIN rail format suits organised control cabinets and panel-building projects.

Size the supply from the total running load, starting current and cable voltage drop. Allow suitable capacity margin and apply the manufacturer’s temperature and input-voltage derating curves.

Installation notes

• At 115 VAC input, rated output is 5.31A / 127.4W.
• Installation, mains wiring and protective earthing must follow the manufacturer’s instructions. Check the mechanical drawing and terminal arrangement before replacing an existing unit.

Common questions

Can I replace another 24V supply with this model? Match the output type, voltage, load current, mounting space and connections; a similar wattage or series name alone does not establish compatibility.

Can it power LED strips? Only use strips designed for 24V DC, within the available current and power after derating. Never connect a mains-voltage strip to the DC output.

Official MEAN WELL HDR-150 datasheet · MEAN WELL power supplies at Spark Egypt

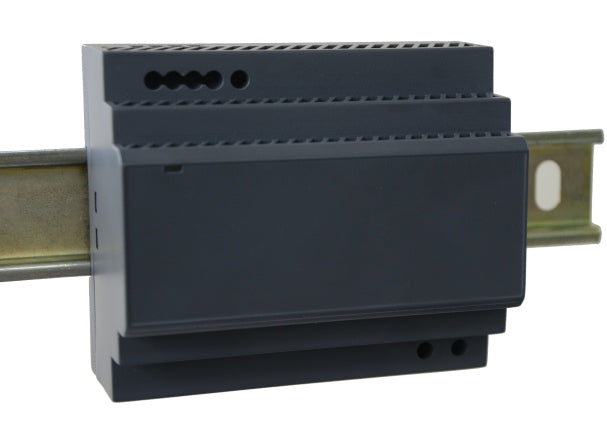

Official manufacturer image for the HDR-150 product family; the printed output or option label may differ from this part number.
