Lovato CN Silent Modular Contactors | 20-63A, 2P & 4P, 220-230V

LE 1,845.45 EGP

Sale Sold out

Taxes included.

Model CN2011220 CN2020220 CN3211220 CN3220220 CN2510220 CN3210220 CN4010220 CN6310220

Lovato CN silent modular contactors switch lighting, heating and other suitable AC-1 loads in residential and commercial distribution boards. The range includes different contact arrangements, from 1NO+1NC to multi-pole normally open configurations. Select current and contact arrangement together; the AC-1 rating is not an AC-3 motor rating.

Features and applications

Silent modular operation
220-230V AC control supply
20A to 63A listed AC-1 ratings
Contact arrangement and pole count vary by model

Models and specifications

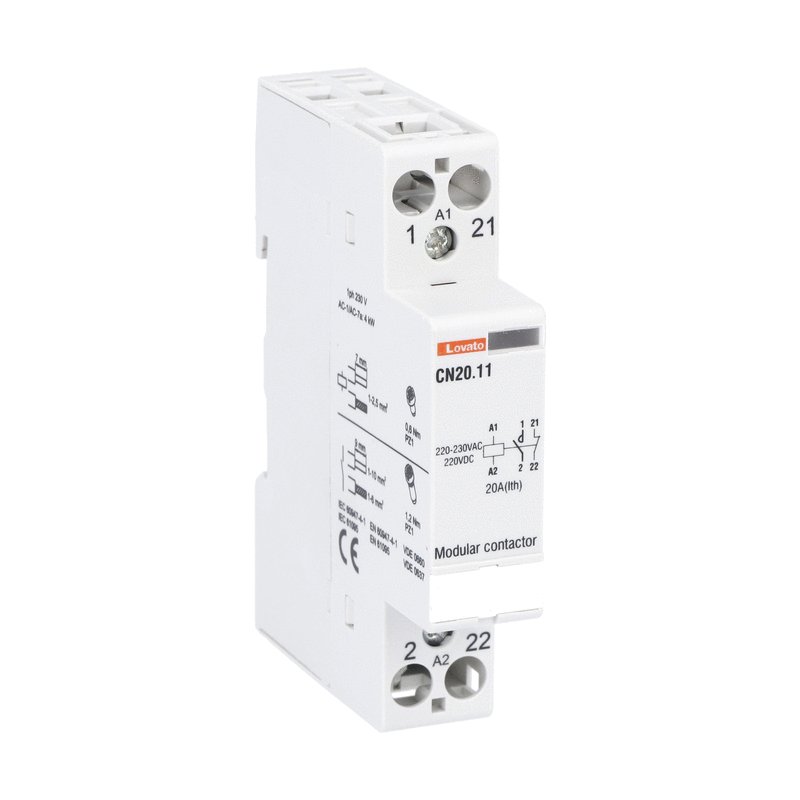

CN2011220

Type of product: Contactors
Number of DIN modules: 1
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 20
Type of contacts: 1NO+1NC

Manufacturer data for CN2011220

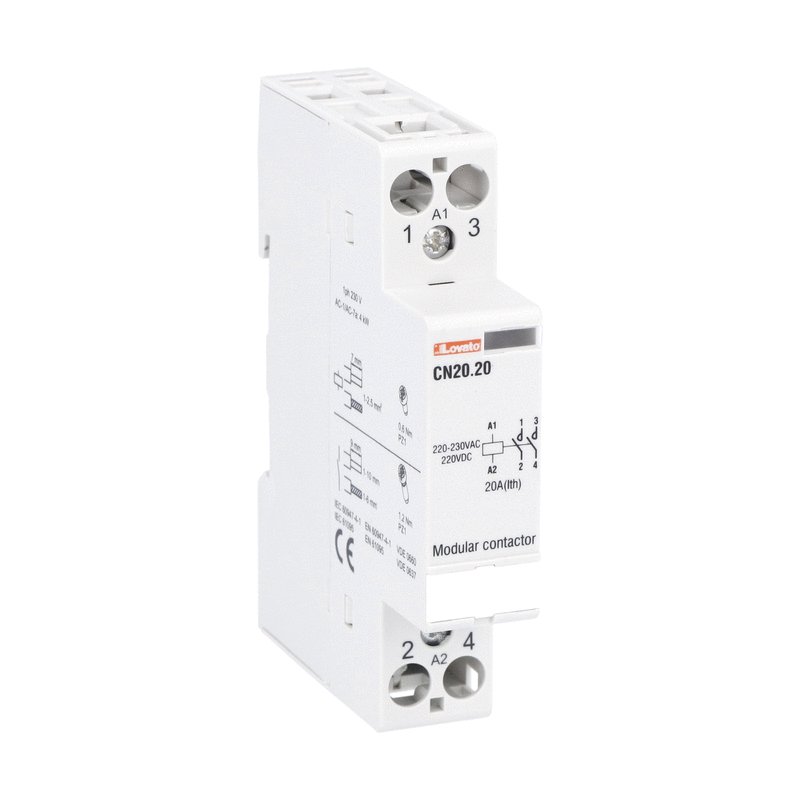

CN2020220

Type of product: Contactors
Number of DIN modules: 1
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 20
Type of contacts: 2NO

Manufacturer data for CN2020220

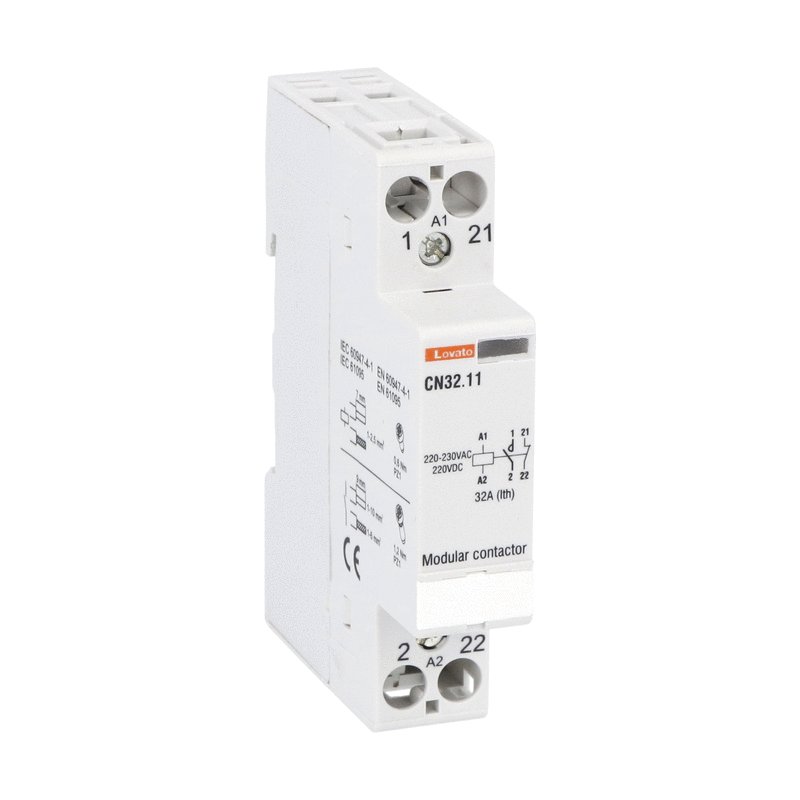

CN3211220

Type of product: Contactors
Number of DIN modules: 1
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 32
Type of contacts: 1NO+1NC

Manufacturer data for CN3211220

CN3220220

Type of product: Contactors
Number of DIN modules: 1
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 32
Type of contacts: 2NO

Manufacturer data for CN3220220

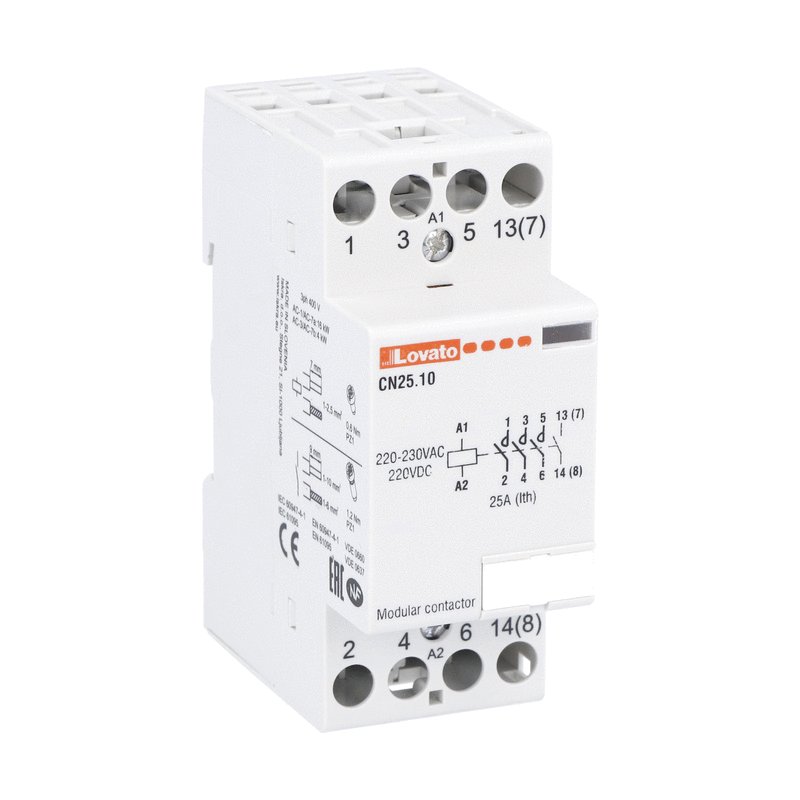

CN2510220

Type of product: Contactors
Number of DIN modules: 2
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 25
Type of contacts: 4NO

Manufacturer data for CN2510220

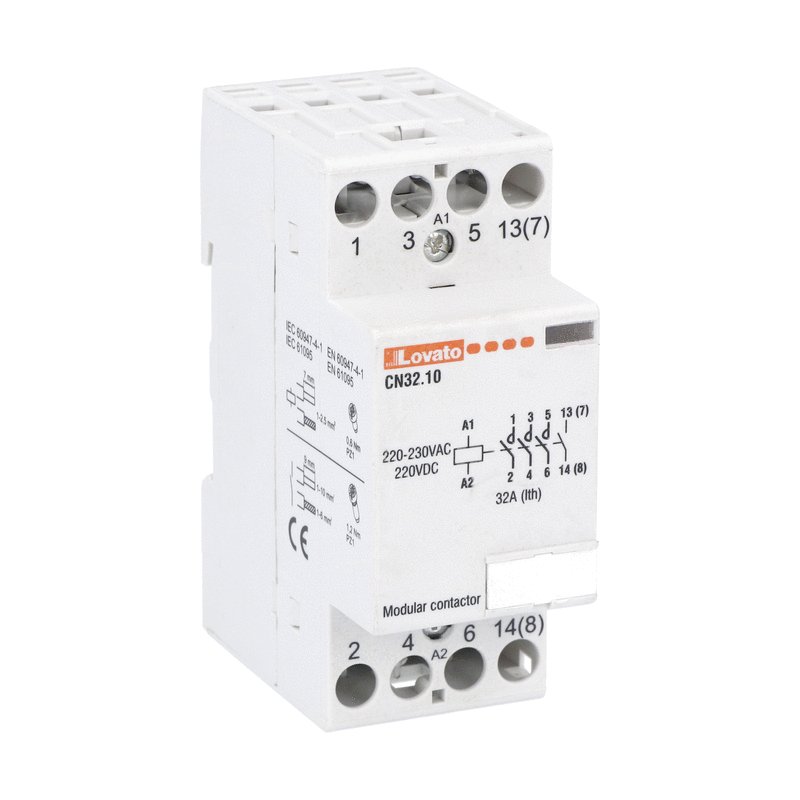

CN3210220

Type of product: Contactors
Number of DIN modules: 2
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 32
Type of contacts: 4NO

Manufacturer data for CN3210220

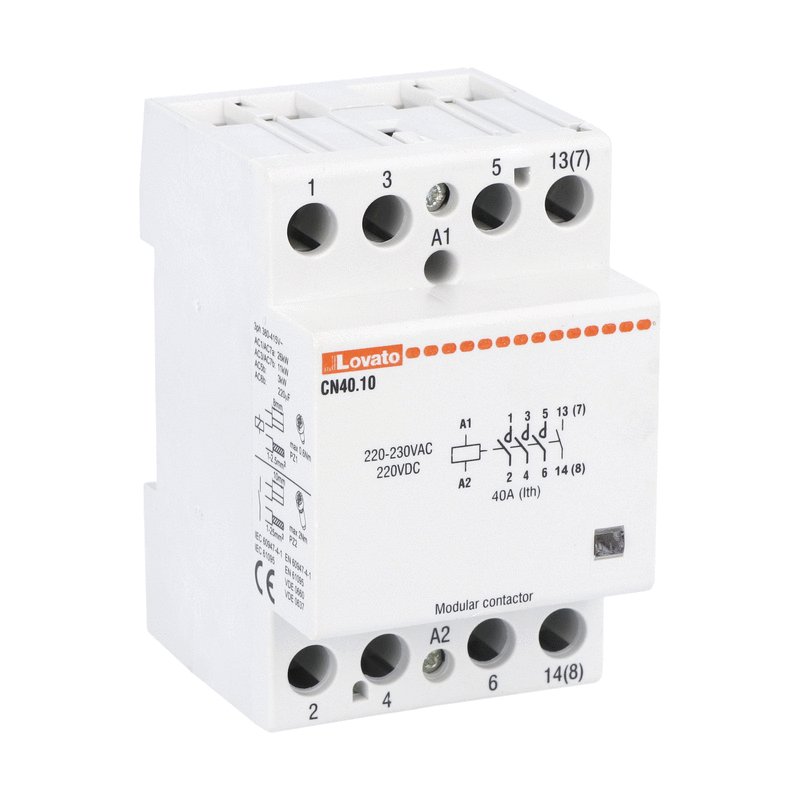

CN4010220

Type of product: Contactors
Number of DIN modules: 3
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 40
Type of contacts: 4NO

Manufacturer data for CN4010220

CN6310220

Type of product: Contactors
Number of DIN modules: 3
Rated supply voltage: 220VAC/VDC
IEC Conventional free air thermal current Ith [A]: 63
Type of contacts: 4NO

Manufacturer data for CN6310220

Selection and installation

Match the load category, switching current and required NO/NC configuration.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
