Lovato HR Relay Sockets | Screw-Terminal Bases for HR602, HR604 & HR703

Lovato HR screw-terminal sockets provide the wiring interface for compatible plug-in relays. HR6XS21, HR6XS41 and HR7XS2 support different relay footprints. Select the socket from the relay family and pin diagram, not only the number of terminals.

Features and applications

• Family-specific relay connection
• Screw-terminal wiring
• Separate bases for the listed HR relay families
• Socket and relay ordered individually

Models and specifications

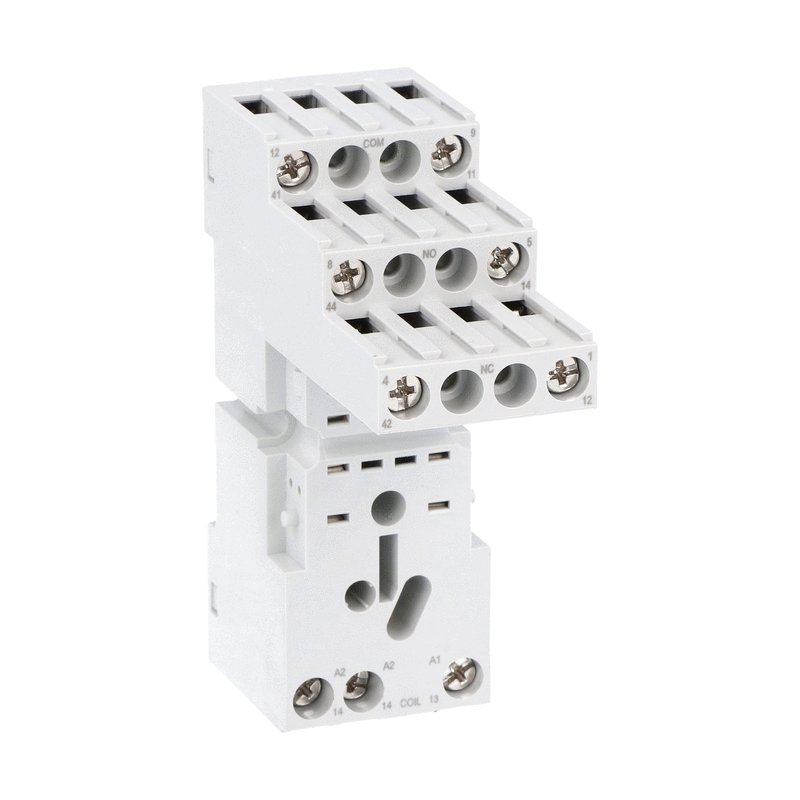

HR6XS21

HR6XS21

Type of product

Socket

Type of socket

Screw terminals

Accessories for

HR602C…

Manufacturer data for HR6XS21

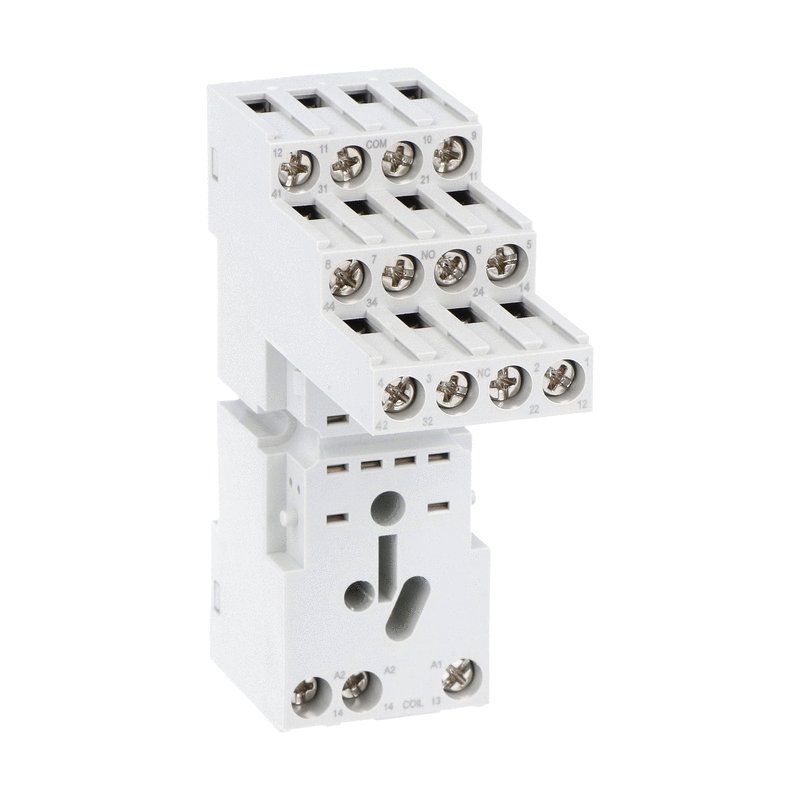

HR6XS41

HR6XS41

Type of product

Socket

Type of socket

Screw terminals

Accessories for

HR604C…

Manufacturer data for HR6XS41

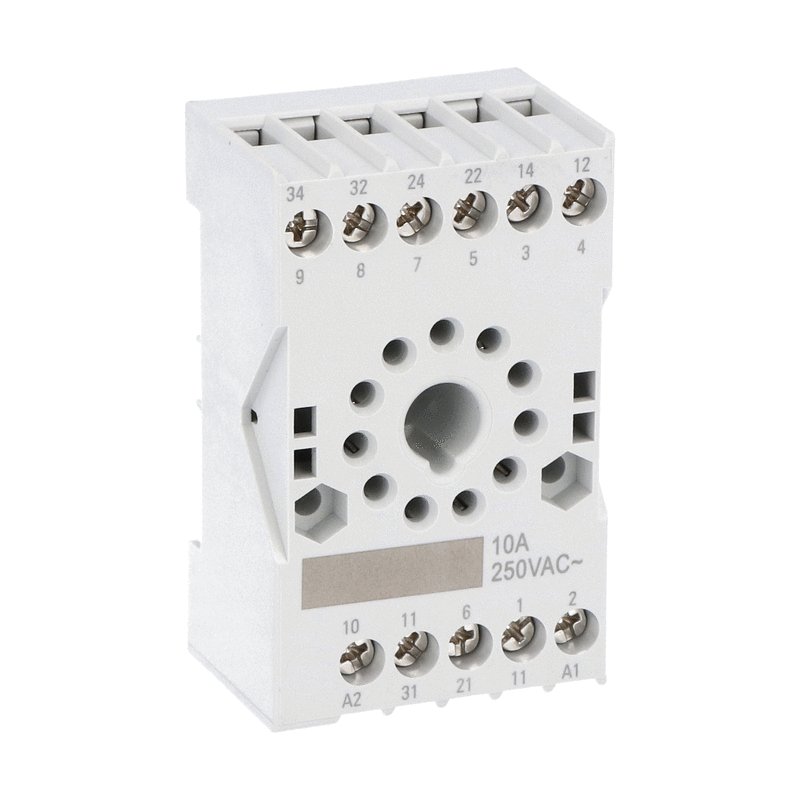

HR7XS2

HR7XS2

Type of product

Socket

Type of socket

Screw terminals

Manufacturer data for HR7XS2

Selection and installation

Verify the socket-to-relay pairing and contact current before wiring.
