Lovato BF, BG & B 3-Pole Motor Contactors | AC & AC/DC Coil Options

Lovato BF, BG and B three-pole power contactors switch three-phase motors, pumps, compressors and industrial loads. This range brings together miniature, standard and high-current models, with each order code identifying its operating current, coil supply and auxiliary-contact arrangement. The compact BG mini-contactor and larger B310 are distinct frame families; choose the exact code for the intended panel layout.

Features and applications

• Motor switching rated by AC-3 current; AC-1 ratings refer to a different load duty
• 230V AC coils on A230 models; E230 models use a wide AC/DC control supply
• Built-in auxiliary contacts vary by order code
• Pair with a correctly matched motor overload and upstream short-circuit protection

Models and specifications

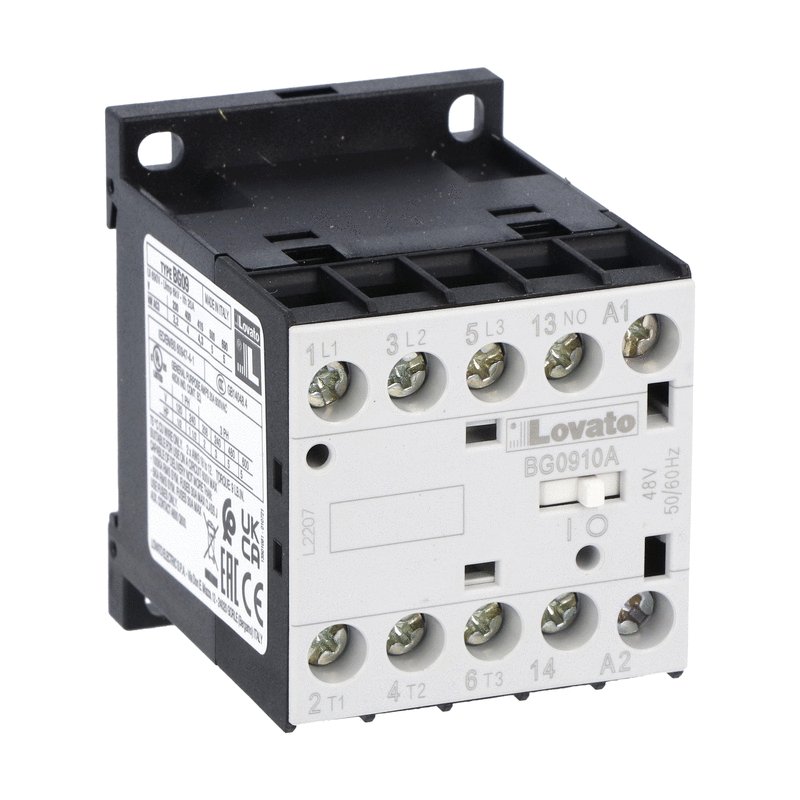

11BG0910A230

9A / 11BG0910A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

20

IEC operating current and power Ie (AC3) 400V [A/Kw]

9A / 4.0Kw

UL/CSA horsepower ratings 480V [HP]

5

Type of built-in auxiliary contacts

1NO

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for 11BG0910A230

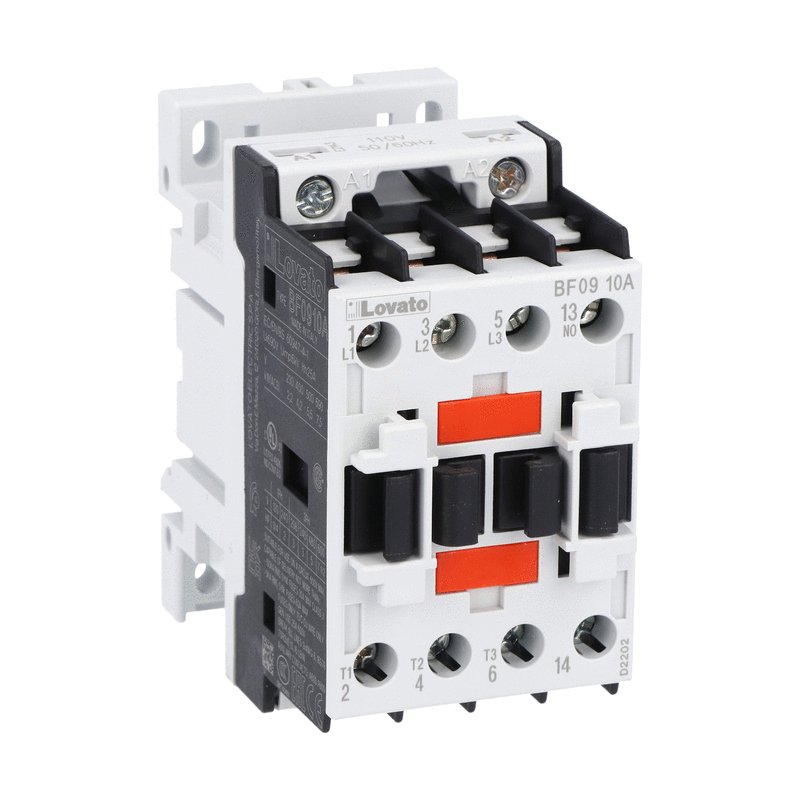

BF0910A230

9A / BF0910A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

25

IEC operating current and power Ie (AC3) 400V [A/Kw]

9A / 4.2Kw

UL/CSA horsepower ratings 480V [HP]

5

Type of built-in auxiliary contacts

1NO

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF0910A230

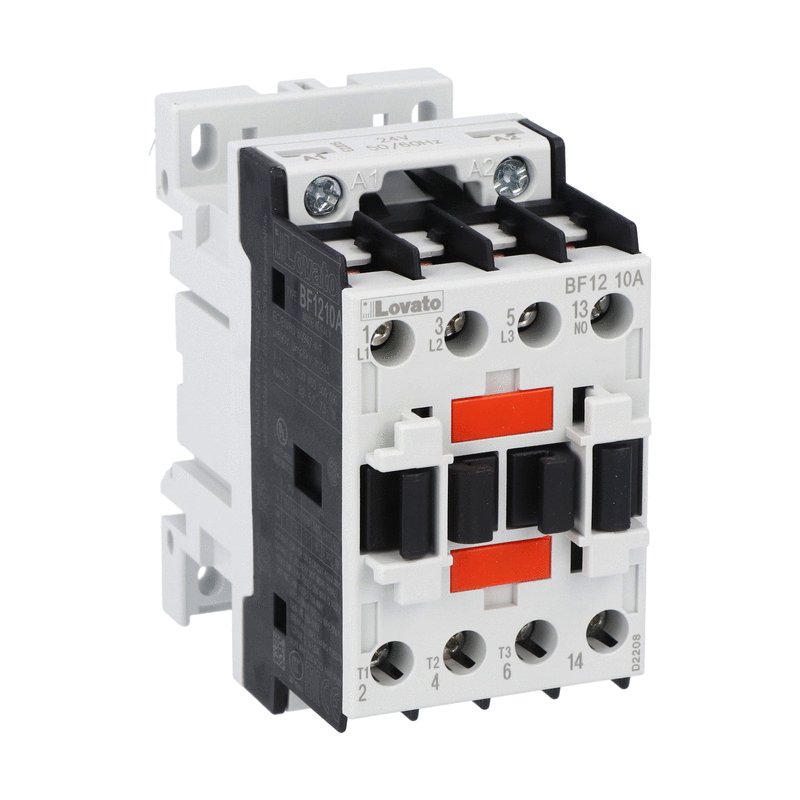

BF1210A230

12A / BF1210A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

28

IEC operating current and power Ie (AC3) 400V [A/Kw]

12A / 5.7Kw

UL/CSA horsepower ratings 480V [HP]

7.5

Type of built-in auxiliary contacts

1NO

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF1210A230

BF1810A230

18A / BF1810A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

32

IEC operating current and power Ie (AC3) 400V [A/Kw]

18A / 7.5Kw

UL/CSA horsepower ratings 480V [HP]

10

Type of built-in auxiliary contacts

1NO

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF1810A230

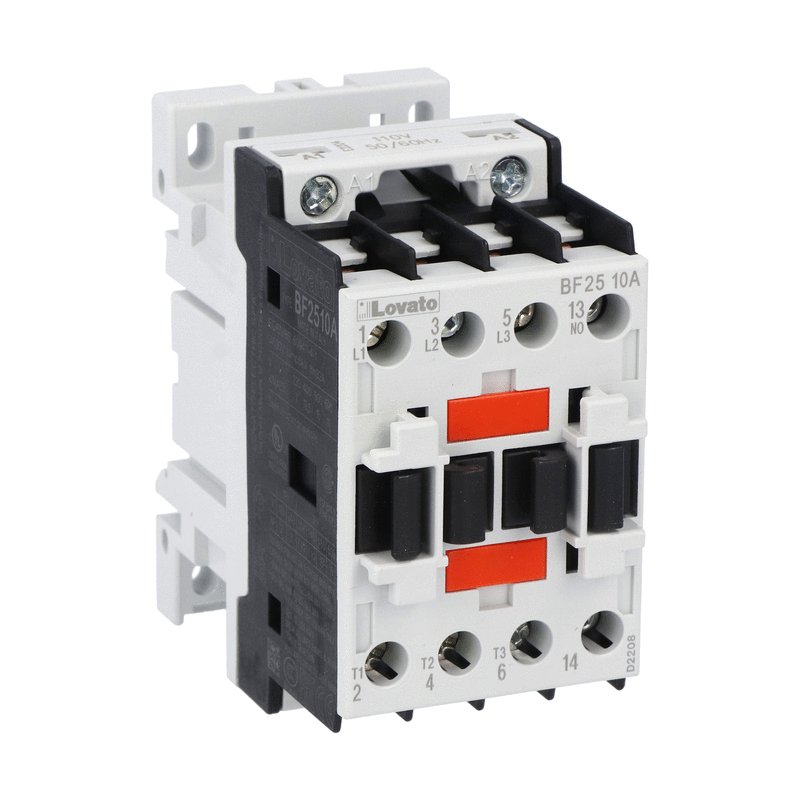

BF2510A230

25A / BF2510A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

32

IEC operating current and power Ie (AC3) 400V [A/Kw]

25A / 12.5Kw

UL/CSA horsepower ratings 480V [HP]

15

Type of built-in auxiliary contacts

1NO

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF2510A230

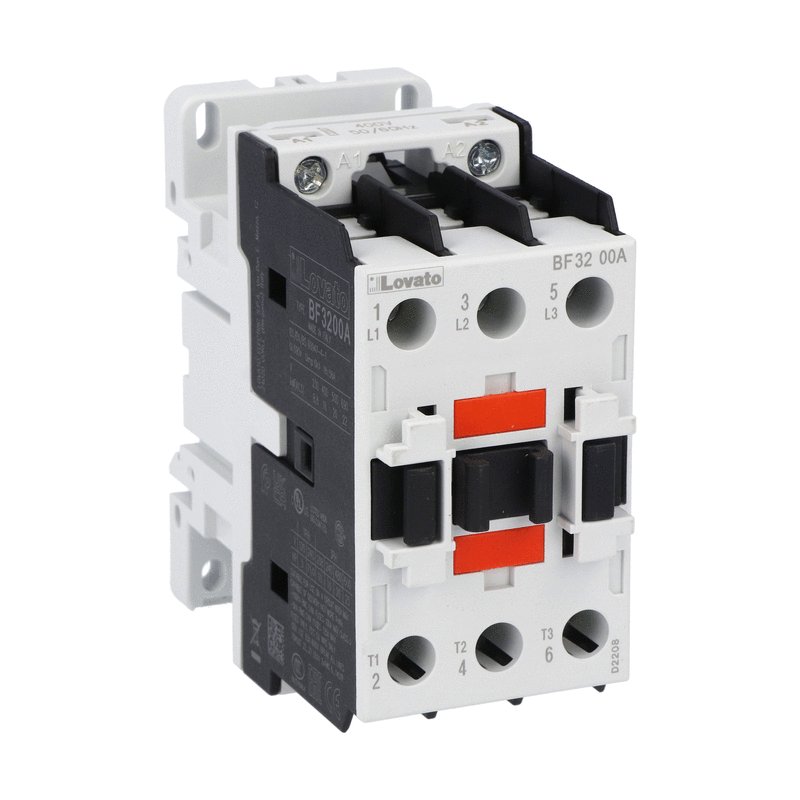

BF3200A230

32A / BF3200A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

56

IEC operating current and power Ie (AC3) 400V [A/Kw]

32A / 16Kw

UL/CSA horsepower ratings 480V [HP]

20

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF3200A230

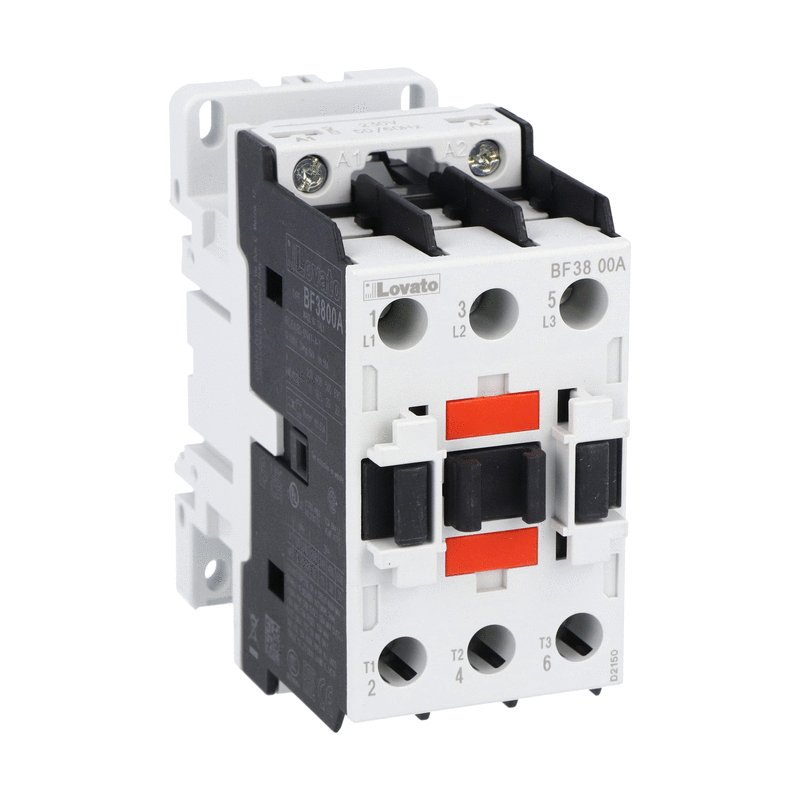

BF3800A230

38A / BF3800A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

56

IEC operating current and power Ie (AC3) 400V [A/Kw]

38A / 18.5Kw

UL/CSA horsepower ratings 480V [HP]

30

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF3800A230

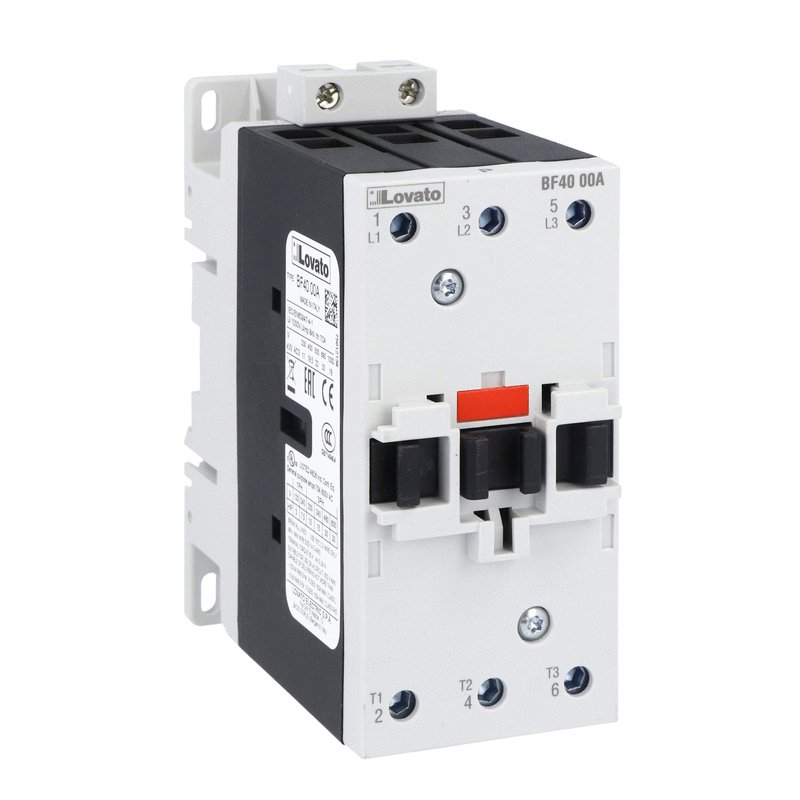

BF4000A230

40A / BF4000A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

70

IEC operating current and power Ie (AC3) 400V [A/Kw]

40A / 18.5Kw

UL/CSA horsepower ratings 480V [HP]

30

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF4000A230

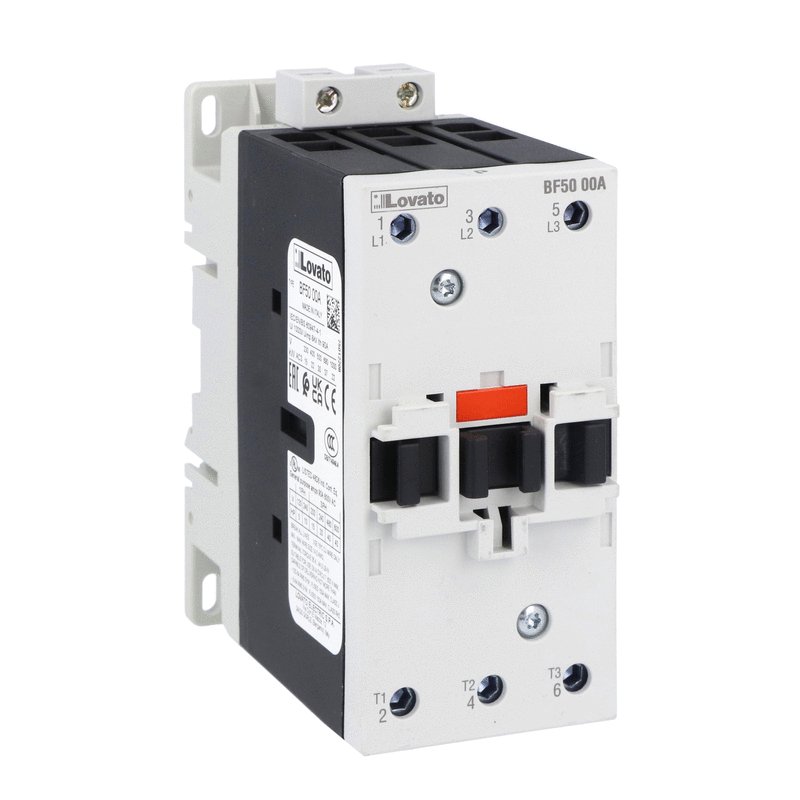

BF5000A230

50A / BF5000A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

90

IEC operating current and power Ie (AC3) 400V [A/Kw]

50A / 22Kw

UL/CSA horsepower ratings 480V [HP]

40

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF5000A230

BF6500A230

65A / BF6500A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

100

IEC operating current and power Ie (AC3) 400V [A/Kw]

65A / 30Kw

UL/CSA horsepower ratings 480V [HP]

50

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF6500A230

BF8000A230

80A / BF8000A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

115

IEC operating current and power Ie (AC3) 400V [A/Kw]

80A / 45Kw

UL/CSA horsepower ratings 480V [HP]

60

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF8000A230

BF9500A230

95A / BF9500A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

140

IEC operating current and power Ie (AC3) 400V [A/Kw]

95A / 55Kw

UL/CSA horsepower ratings 480V [HP]

60

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF9500A230

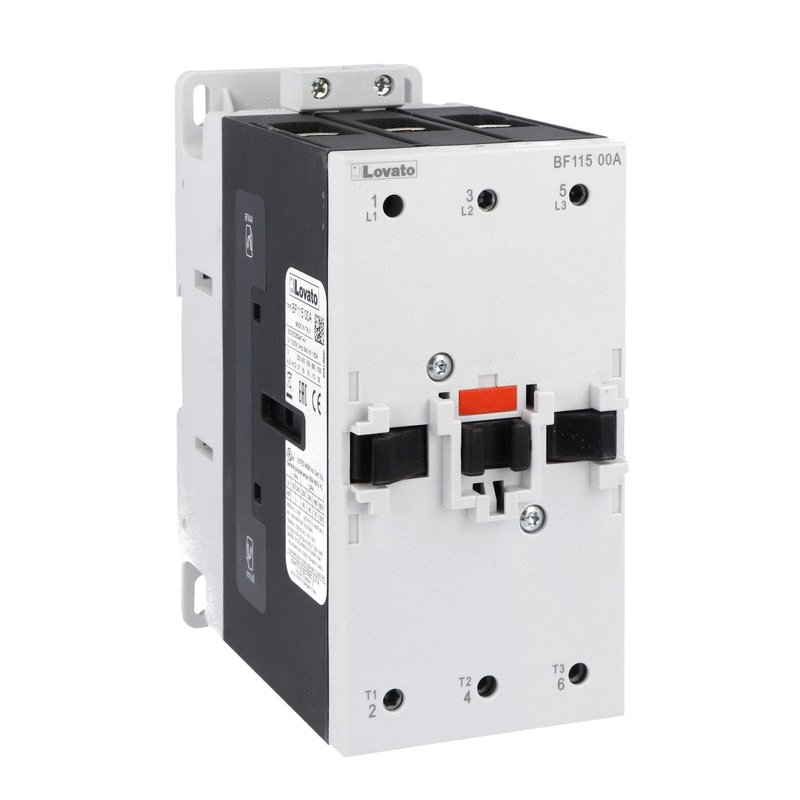

BF11500A230

115A / BF11500A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

160

IEC operating current and power Ie (AC3) 400V [A/Kw]

115A / 55Kw

UL/CSA horsepower ratings 480V [HP]

75

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF11500A230

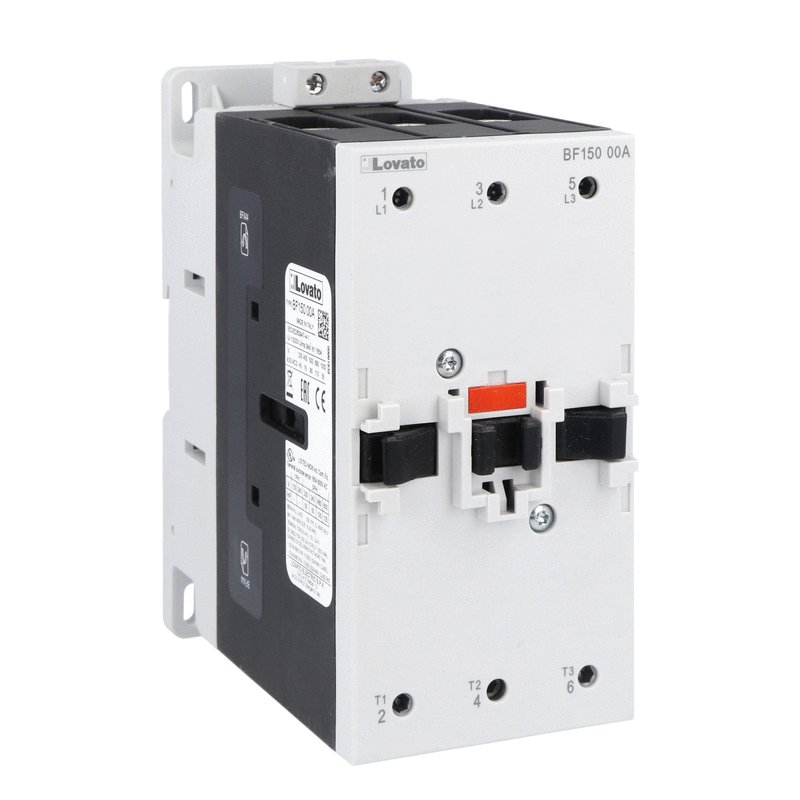

BF15000A230

150A / BF15000A230

Type of product

Contactors

Number of poles

3

Type of coil

AC coil 50/60Hz

Rated coil voltage [V]

230

IEC operating current Ith (AC1) [A]

165

IEC operating current and power Ie (AC3) 400V [A/Kw]

150A / 75Kw

UL/CSA horsepower ratings 480V [HP]

100

Type of mounting

Screw / DIN rail 35mm

Manufacturer data for BF15000A230

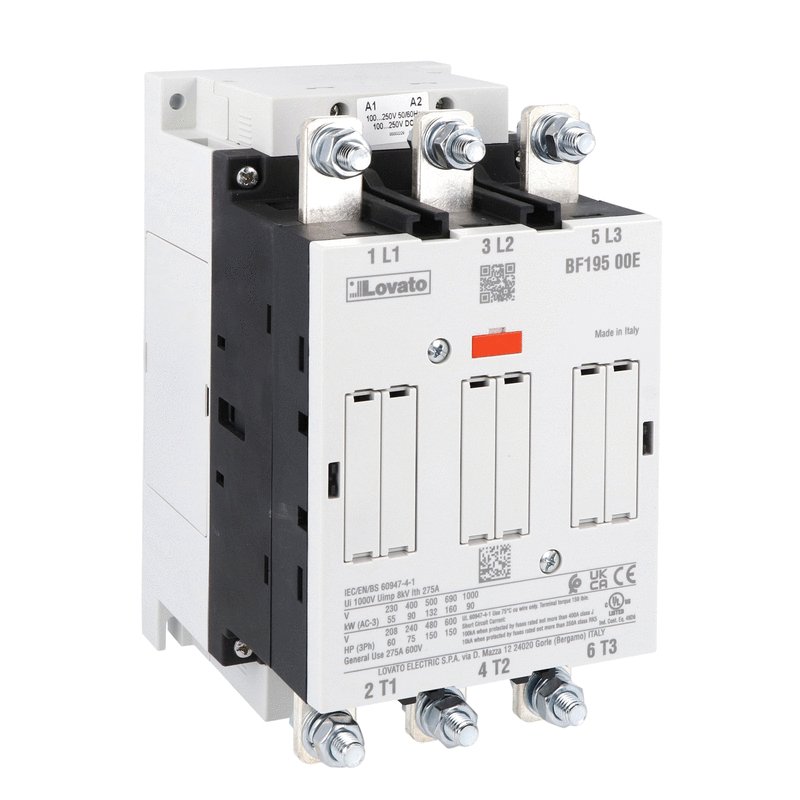

BF19500E230

195A / BF19500E230

Type of product

Contactors

Number of poles

3

Type of coil

AC/DC coil

Rated coil voltage [V]

100…250

IEC operating current Ith (AC1) [A]

275

IEC operating current and power Ie (AC3) 400V [A/Kw]

195A / 90Kw

UL/CSA horsepower ratings 480V [HP]

150

Type of mounting

Screw

Manufacturer data for BF19500E230

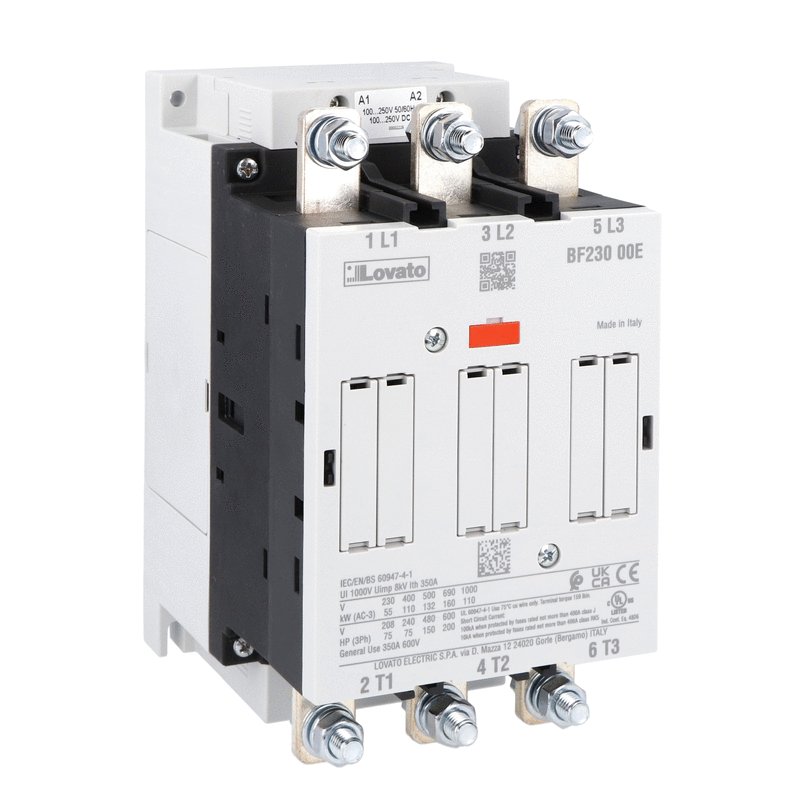

BF23000E230

230A / BF23000E230

Type of product

Contactors

Number of poles

3

Type of coil

AC/DC coil

Rated coil voltage [V]

100…250

IEC operating current Ith (AC1) [A]

350

IEC operating current and power Ie (AC3) 400V [A/Kw]

230A /110Kw

UL/CSA horsepower ratings 480V [HP]

150

Type of mounting

Screw

Manufacturer data for BF23000E230

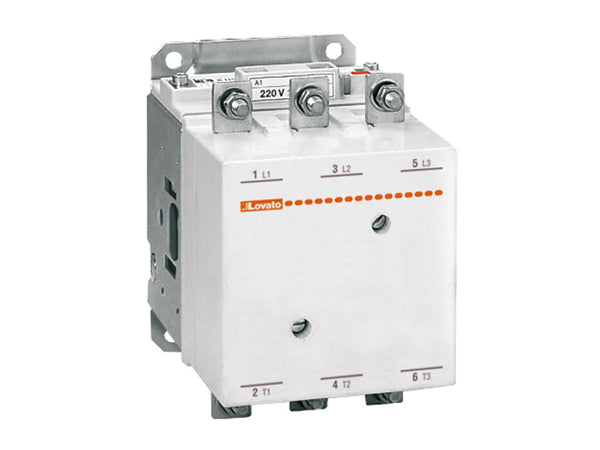

11B31000220

320A / 11B31000220

Type of product

Contactors

Number of poles

3

Type of coil

AC/DC coil

Rated coil voltage [V]

220...240

IEC operating current Ith (AC1) [A]

450

IEC operating current and power Ie (AC3) 400V [A/Kw]

320A / 170Kw

UL/CSA horsepower ratings 480V [HP]

250

Type of mounting

Screw

Manufacturer data for 11B31000220

Selection and installation

Match the motor nameplate current, utilization category and coil voltage. A similar current rating from another brand does not establish mechanical compatibility with Lovato accessories.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
