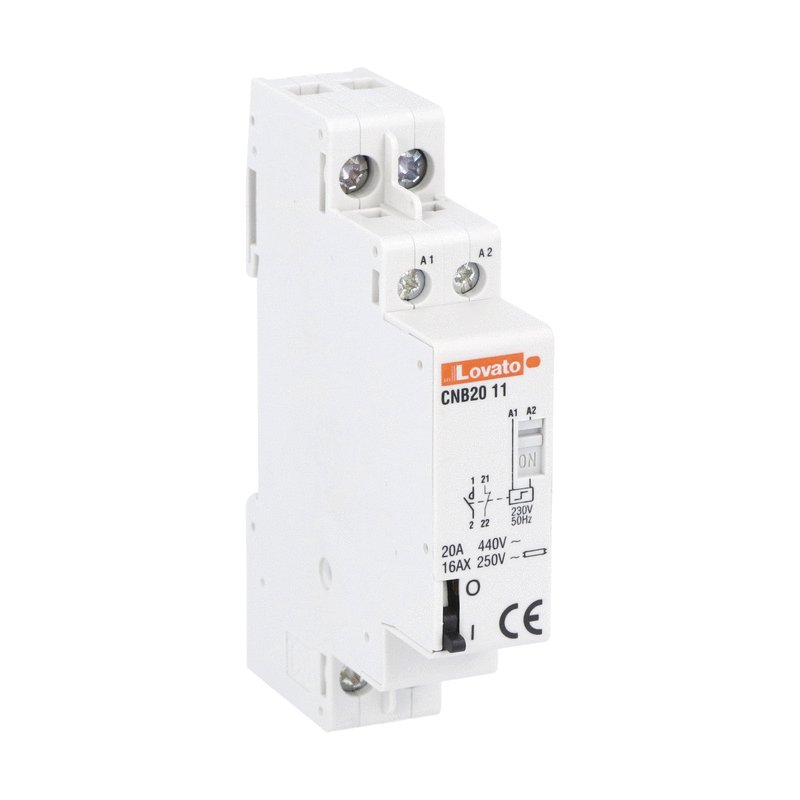

Lovato CNB2011230 Impulse Latching Relay | 20A, 1NO+1NC, 230V

The Lovato CNB2011230 latching relay changes its switching state in response to a control impulse. It is used in suitable lighting and control circuits that require a retained switching state rather than a continuously energized contactor coil. This version has a 20A AC-1 rating and a 230V coil.

Features and applications

• Impulse-operated switching
• 1NO+1NC contacts
• 20A AC-1 rating
• 230V control coil

Models and specifications

CNB2011230

CNB2011230

Type of product

Latching relays

Number of DIN modules

1

Rated supply voltage

230VAC

IEC Conventional free air thermal current Ith [A]

20

Type of contacts

1NO+1NC

Manufacturer data for CNB2011230

Selection and installation

Check the control pulse and contact duty for the circuit design.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
