Lovato FB01F Fuse Holders | 10x38 mm, 32A, 1P & 3P DIN Rail

Lovato FB01F fuse holders accept compatible 10x38 mm cylindrical fuse links in modular electrical panels. Choose the single-pole or three-pole assembly to match the protected circuit. The holder rating and fuse-link rating are separate selection criteria; the fuse link must be specified for the required protection duty.

Features and applications

• 10x38 mm cylindrical fuse format
• 32A listed holder rating
• 1P or 3P versions
• DIN-rail panel installation

Models and specifications

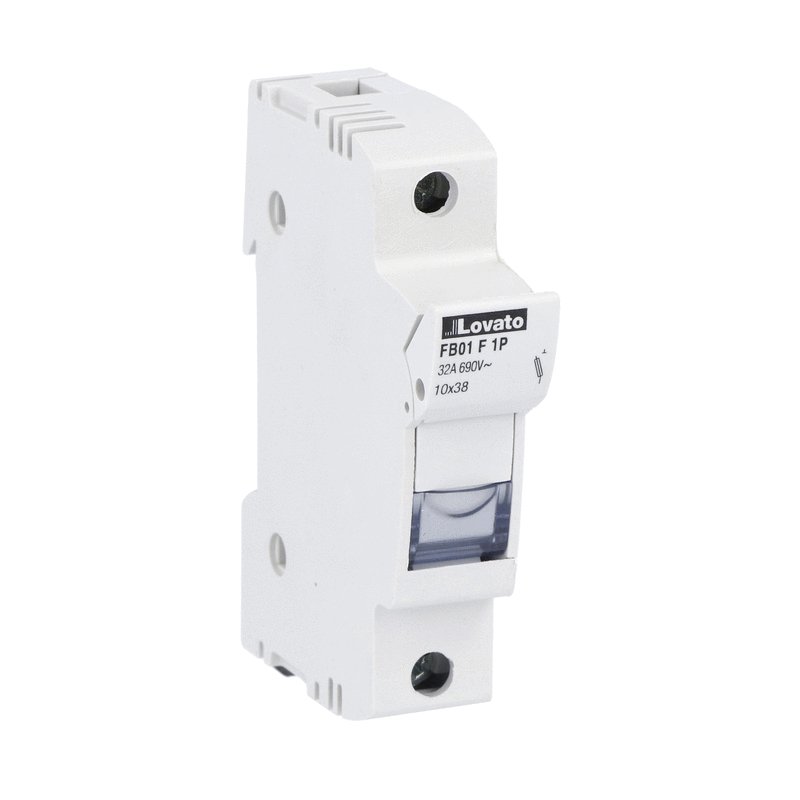

FB01F1P

FB01F1P

Type of product

Fuse holders - 10x38mm

Number of poles

1P

Type of operating voltage

AC

IEC maximum rated voltage Un [V]

690

IEC maximum rated current In [A]

32

Light indicator

No

Compliance

IEC / UL recognized and CSA certified

Manufacturer data for FB01F1P

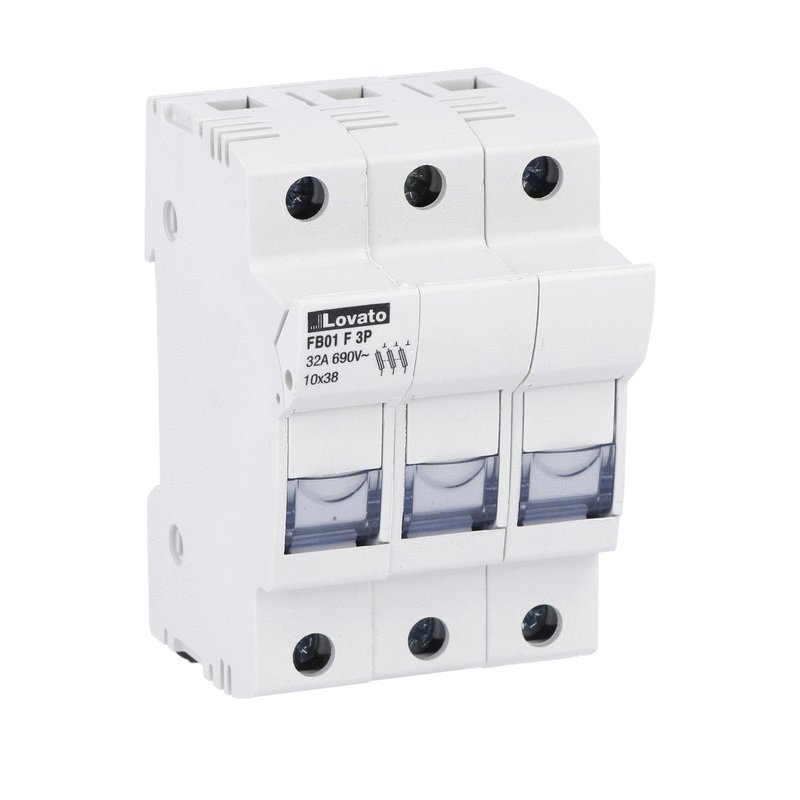

FB01F3P

FB01F3P

Type of product

Fuse holders - 10x38mm

Number of poles

3P

Type of operating voltage

AC

IEC maximum rated voltage Un [V]

690

IEC maximum rated current In [A]

32

Light indicator

No

Compliance

IEC / UL recognized and CSA certified

Manufacturer data for FB01F3P

Selection and installation

Specify the compatible fuse link separately and verify voltage and protection requirements.
