Lovato M1P & M2P Enclosed DOL Motor Starters | IP65, 230V AC Coil
Lovato M1P & M2P Enclosed DOL Motor Starters | IP65, 230V AC Coil
Couldn't load pickup availability
Lovato enclosed direct-on-line starters provide a compact contactor-based motor control assembly for pumps, fans and machinery. The listed M1P and M2P versions use a 230V AC control coil and an IP65 enclosure. These order codes are supplied without an overload relay; choose the correctly matched relay separately for the motor current.
Features and applications
- 9A, 18A, 25A and 32A listed variants
- 230V AC control supply
- IP65 enclosure
- Thermal overload relay selected separately
Models and specifications
M1P00910230
M1P00910230
- Type of product
- Direct-on-line-starters
- UL/CSA horsepower ratings 480V [HP]
- 5
- Type
- Enclosed without thermal overload relay
- Type of coil
- AC coil
- Type of pushbutton
- With Start-Stop/Reset buttons
- Contactor coil voltage
- 230VAC 50/60HZ
Manufacturer data for M1P00910230

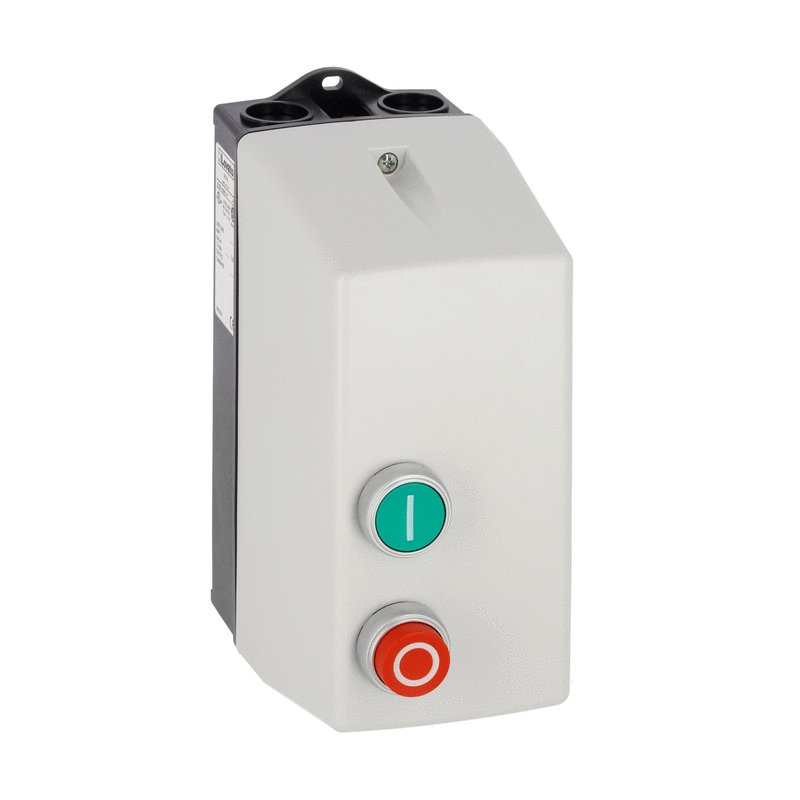

M1P01810230
M1P01810230
- Type of product
- Direct-on-line-starters
- UL/CSA horsepower ratings 480V [HP]
- 10
- Type
- Enclosed without thermal overload relay
- Type of coil
- AC coil
- Type of pushbutton
- With Start-Stop/Reset buttons
- Contactor coil voltage
- 230VAC 50/60HZ
Manufacturer data for M1P01810230
M2P02510230
M2P02510230
- Type of product
- Direct-on-line-starters
- UL/CSA horsepower ratings 480V [HP]
- 15
- Type
- Enclosed without thermal overload relay
- Type of coil
- AC coil
- Type of pushbutton
- With Start-Stop/Reset buttons
- Contactor coil voltage
- 230VAC 50/60HZ
Manufacturer data for M2P02510230

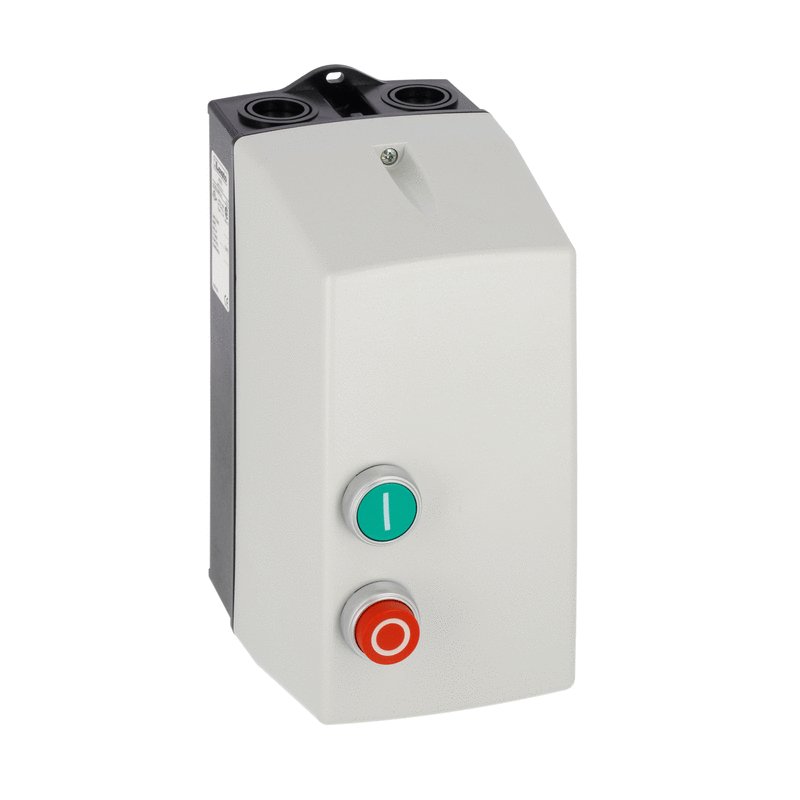

M2P03210230
M2P03210230
- Type of product
- Direct-on-line-starters
- UL/CSA horsepower ratings 480V [HP]
- 20
- Type
- Enclosed without thermal overload relay
- Type of coil
- AC coil
- Type of pushbutton
- With Start-Stop/Reset buttons
- Contactor coil voltage
- 230VAC 50/60HZ
Manufacturer data for M2P03210230
Selection and installation
Check motor current, starting method and the matching overload before commissioning.
Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
