Lovato Contactor Accessories

Lovato auxiliary contact blocks, mechanical interlocks and pneumatic delay blocks extend the control functions of compatible contactors. Select the accessory model for the contactor frame, NO/NC contact arrangement and mounting position. Front and side accessories serve different panel layouts and cannot be exchanged solely on the basis of contact count.

Features and applications

NO and NC contact combinations are identified per accessory
Frame-specific front or side mounting
Mechanical interlocks support coordinated reversing assemblies
ON-delay and OFF-delay blocks have different timing behavior

Models and specifications

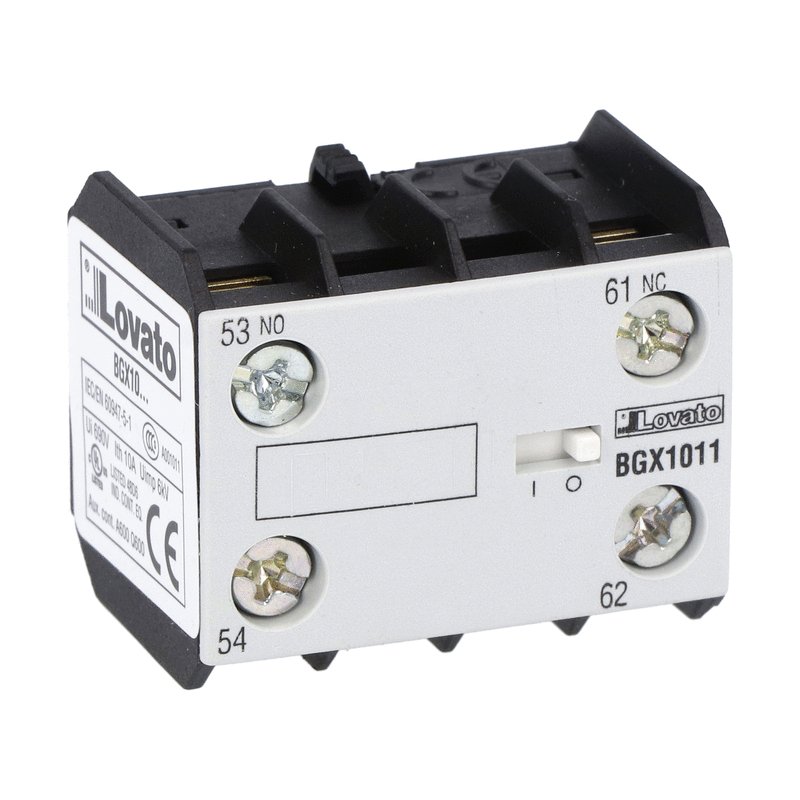

11BGX1011

Type of product: Accessories
Number of poles: 2
Type of built-in auxiliary contacts: 1NO+1NC
Type of accessories: Auxiliary contacts
Type of mounting: Front centre mounting
Type of terminals: Screw
Accessories for: 11BG…

Manufacturer data for 11BGX1011

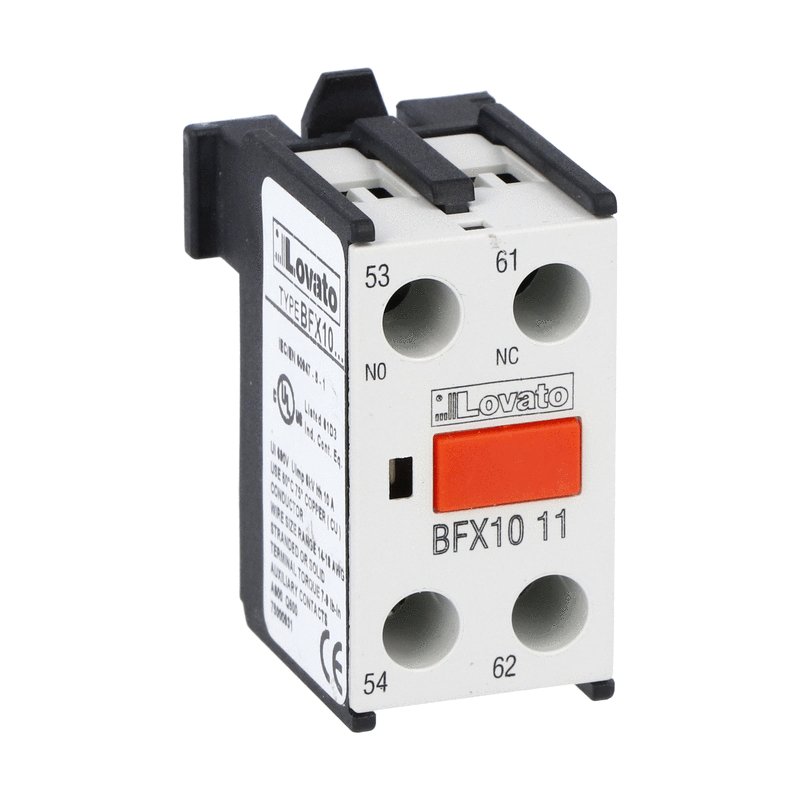

BFX1011

Type of product: Accessories
Number of poles: 2
Type of built-in auxiliary contacts: 1NO+1NC
For photovoltaic application: Yes
Type of accessories: Auxiliary contacts
Type of mounting: Front centre mounting
Type of terminals: Screw
Accessories for: BF00…; BF09…; BF150…

Manufacturer data for BFX1011

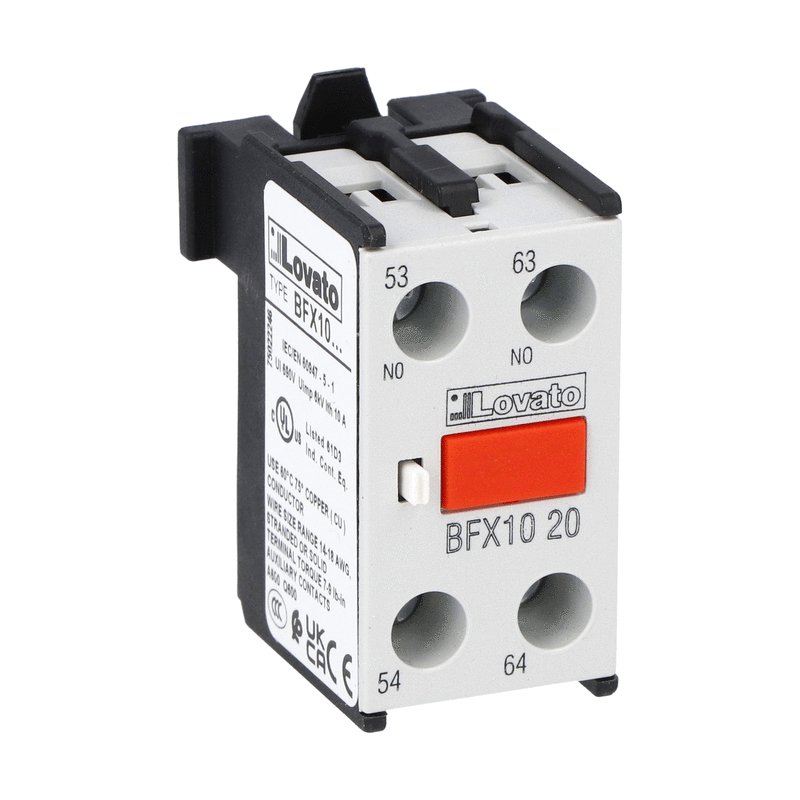

BFX1020

Type of product: Accessories
Number of poles: 2
Type of built-in auxiliary contacts: 2NO
Type of accessories: Auxiliary contacts
Type of mounting: Front centre mounting
Type of terminals: Screw
Accessories for: BF00…; BF09…; BF150…

Manufacturer data for BFX1020

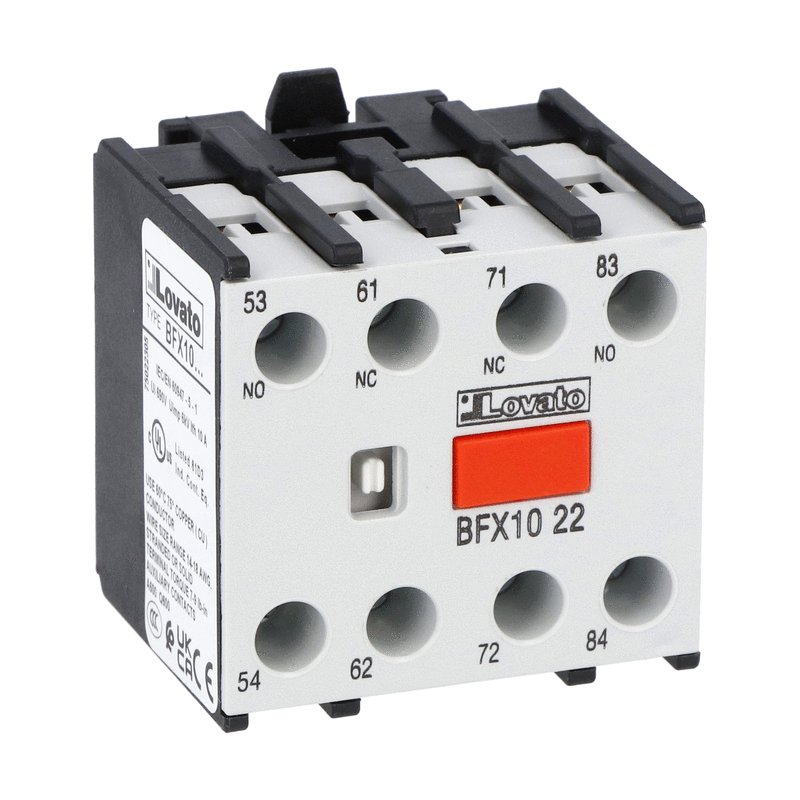

BFX1022

Type of product: Accessories
Number of poles: 4
Type of built-in auxiliary contacts: 2NO+2NC
Type of accessories: Auxiliary contacts
Type of mounting: Front centre mounting
Type of terminals: Screw
Accessories for: BF00…; BF09…; BF150…

Manufacturer data for BFX1022

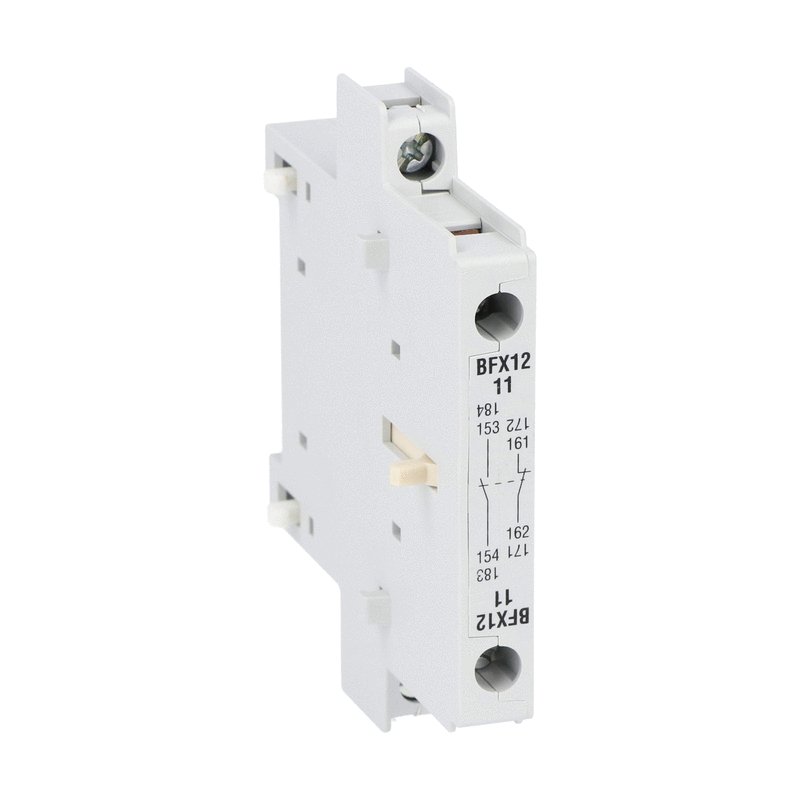

BFX1211

Type of product: Accessories
Number of poles: 2
Type of built-in auxiliary contacts: 1NO+1NC
For photovoltaic application: Yes
Type of accessories: Auxiliary contacts
Type of mounting: Side mounting
Type of terminals: Screw
Accessories for: BF00…; BF09…; BF150…

Manufacturer data for BFX1211

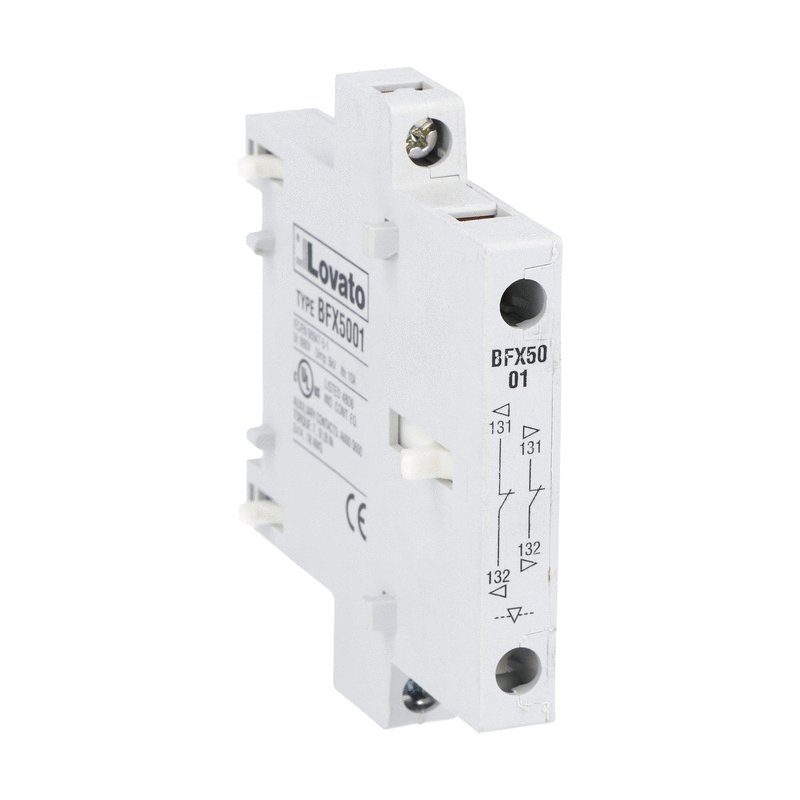

BFX5001

Type of product: Accessories
Type of accessories: Mechanical interlock
Accessories for: BF00…; BF09…; BF38…

Manufacturer data for BFX5001

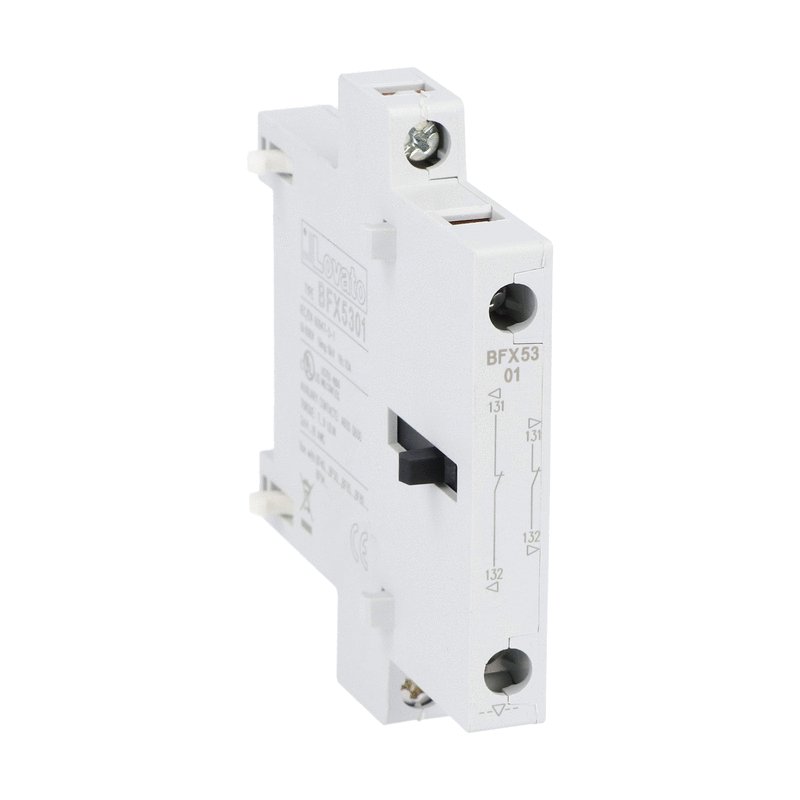

BFX5301

Type of product: Accessories
Type of accessories: Mechanical interlock
Accessories for: BF40…; BF50…; BF65…; BF80…; BF94…

Manufacturer data for BFX5301

11G48530

Type of product: Accessories
Type of accessories: Delayed auxiliary contacts on energisation
Type of mounting: Front centre mounting
Type of terminals: Screw terminals
Accessories for: BF…

Manufacturer data for 11G48530

11G48630

Type of product: Accessories
Type of accessories: Delayed auxiliary contacts on de-energisation
Type of mounting: Front centre mounting
Type of terminals: Screw terminals
Accessories for: BF…

Manufacturer data for 11G48630

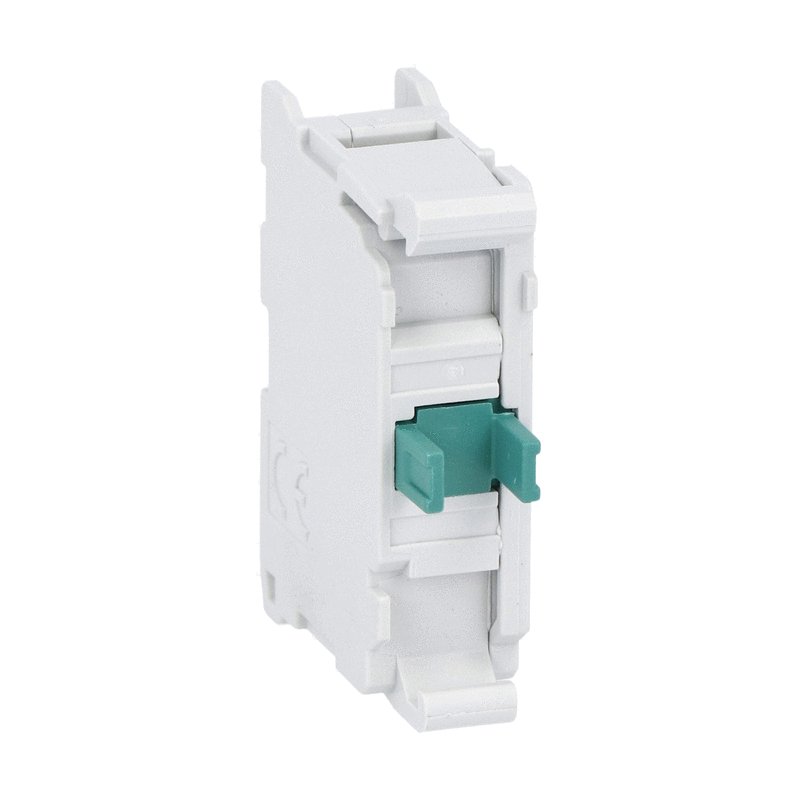

BFX10C10

Type of product: Accessories
Number of poles: 1
Type of accessories: Auxiliary contacts
Type of mounting: Front mounting
Type of terminals: Screw
Accessories for: BF160…; BF195…; BF230…

Manufacturer data for BFX10C10

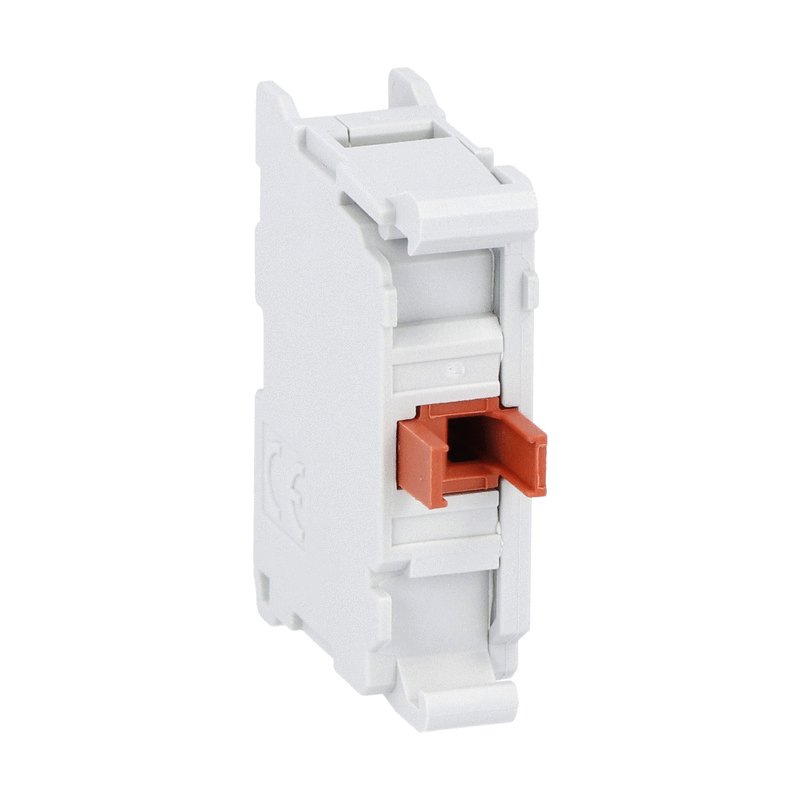

BFX10C01

Type of product: Accessories
Number of poles: 1
Type of accessories: Auxiliary contacts
Type of mounting: Front mounting
Type of terminals: Screw
Accessories for: BF160…; BF195…; BF230…

Manufacturer data for BFX10C01

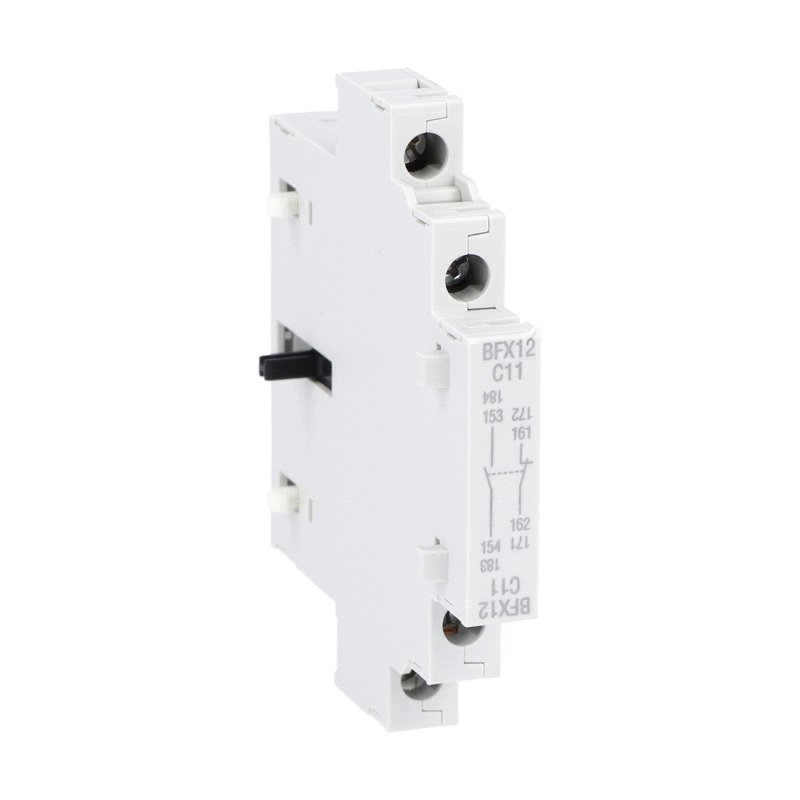

BFX12C11

Type of product: Accessories
Number of poles: 2
For photovoltaic application: Yes
Type of accessories: Auxiliary contacts
Type of mounting: Side mounting
Type of terminals: Screw
Accessories for: BF160…; BF195…; BF230…

Manufacturer data for BFX12C11

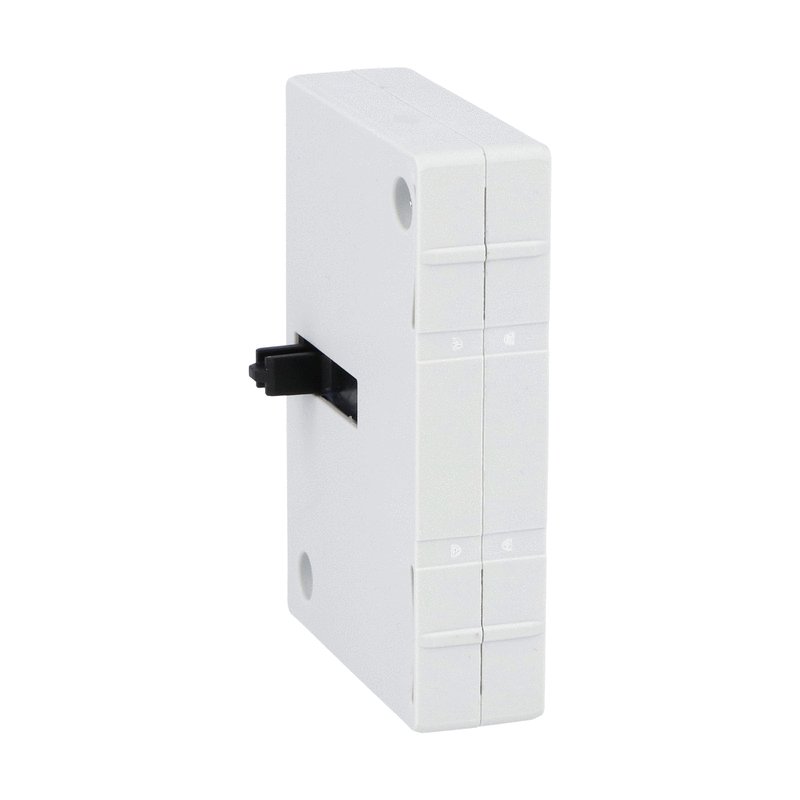

BFX5500

Type of product: Accessories

Manufacturer data for BFX5500

Selection and installation

Check the official compatibility list for the exact host contactor. These are accessories, supplied separately from the contactor.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
