Hager Golf Plastic Distribution Boards (PVC-Free) | Surface & Flush, 8-54 Ways

The Hager Golf plastic distribution board range combines Hager VS surface-mounted enclosures and Hager VF flush-mounted enclosures in one selection. Choose the mounting type and the required 8, 12, 18, 24, 36, 48 or 54-way layout for residential and light-commercial electrical distribution.

Every enclosure uses a transparent single door for quick visual inspection of the installed protective devices. The white RAL 9010 housing accepts modular DIN-rail equipment and is designed for indoor final-distribution applications such as apartment electrical panels, villas, offices, shops, lighting circuits and socket circuits.

Hager Golf distribution board specifications

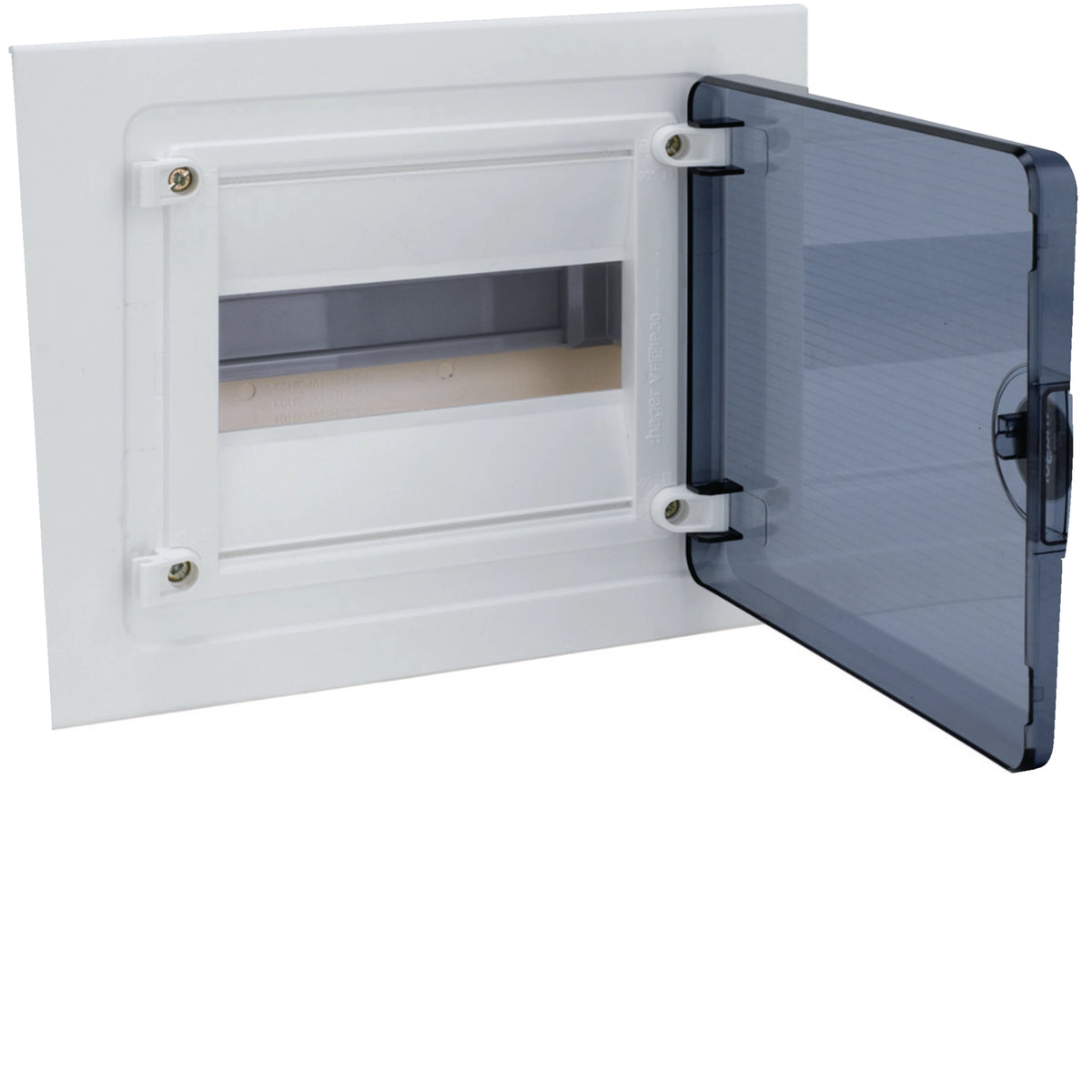

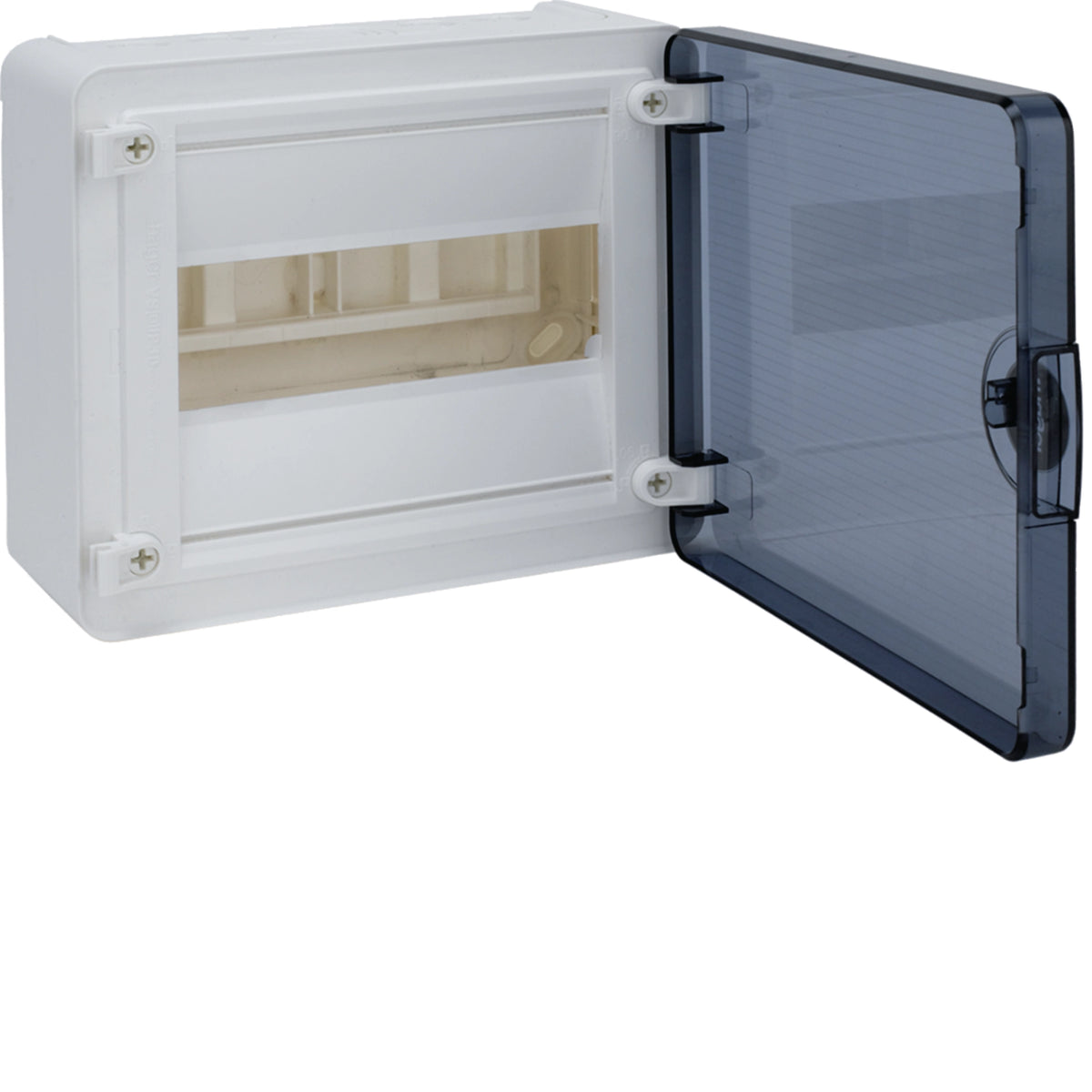

• Mounting options: VS surface mounted or VF flush mounted
• Capacity: 8 to 54 ways across one, two, three or four rows
• Rated current: up to 63A
• Rated voltage: 400V AC
• Door: transparent, reversible single door
• Protection: IP40 with door and IK07 mechanical impact resistance
• Electrical protection class: Class II insulated enclosure
• Material: Hager PVC-free engineering plastic, commonly searched in Egypt as a PVC distribution board
• Colour: pure white, RAL 9010
• Glow-wire resistance: 650 degrees C
• Installation: indoor use; not intended for continuous outdoor UV exposure

Available Hager VS and VF references

How to choose the correct enclosure

Select Surface Mounted when the enclosure will be fixed on the finished wall, or Flush Mounted when the enclosure body will be recessed inside the wall. The two 36-way choices use different internal layouts: 2 x 18 ways or 3 x 12 ways. Confirm the available wall space, cable-entry route and row arrangement before ordering.

Installation notes

This product is the distribution-board enclosure. MCBs, RCBOs, RCCBs, isolators, surge protection devices, terminals, comb busbars and wiring accessories are selected separately unless stated otherwise. A qualified electrician must verify load calculations, conductor sizes, protective-device ratings, short-circuit suitability, neutral and earth arrangements, enclosure capacity and local electrical requirements before installation.
