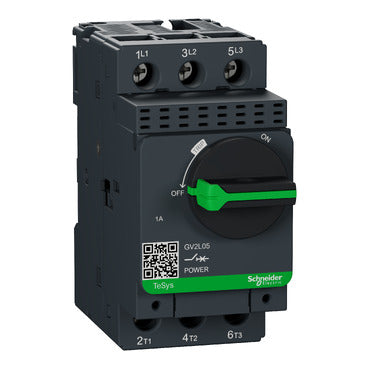

Schneider Electric GV2L05 TeSys GV2 Motor Circuit Breaker 3P 1 A Magnetic | MPCB
Schneider Electric GV2L05 TeSys GV2 Motor Circuit Breaker 3P 1 A Magnetic | MPCB
Couldn't load pickup availability
The Schneider Electric GV2L05 is a TeSys GV2 magnetic-only motor circuit breaker with a setting range of 1 A. It provides magnetic short-circuit protection and isolation and is typically combined with a TeSys contactor and thermal overload relay.
Key features
- Magnetic trip for fast short-circuit protection
- Ideal for motor-starter combinations with separate overload relays
- Clear ON/OFF/TRIP indication and lockable handle for safe maintenance
- Direct mounting with TeSys contactors to build compact starters
- Accepts auxiliary contacts, fault signalling contacts and undervoltage releases
- DIN-rail or panel mounting
Technical specifications
| Brand | Schneider Electric |
|---|---|
| Part number (SKU) | GV2L05 |
| Product range | TeSys GV2 |
| Device type | Motor circuit breaker / manual motor starter (MPCB) |
| Protection | magnetic-only (short-circuit only – use with a thermal overload relay) |
| Setting / rated current | 1 A |
| Poles | 3P |
| Control | Rotary handle |
| Mounting | 35 mm DIN rail or panel |
| Standard | IEC/EN 60947-2, IEC/EN 60947-4-1 |
Typical applications
- Water pumps, booster sets and fire pumps
- Fans, blowers, compressors and conveyors
- HVAC, chiller and cooling-tower motors
- Machine control panels and MCCs
- Direct-on-line motor starters
Selection guide
Select the range so that the motor full-load current (from the nameplate) falls inside the setting range, then set the dial exactly to the nameplate current. For example, a 7.5 kW 400 V motor draws about 15 A, so a 13–18 A range is appropriate.
Frequently asked questions
What motor size suits the GV2L05?
With a 1 A setting range it suits three-phase motors whose full-load current lies within that range.
Do I need an overload relay with this breaker?
No for thermal-magnetic GV2ME/GV2P/GV3P/GZ1E types, which include overload protection. Yes for magnetic-only GV2L types, which must be combined with a thermal overload relay.
Buy Schneider GV2L05 in Egypt
Order the Schneider Electric GV2L05 from Spark Egypt and receive an original motor circuit breaker (MPCB) with an official tax invoice. We deliver to Cairo, Giza, New Cairo, 6th of October, Sheikh Zayed, the New Administrative Capital, Alexandria, the Delta, the Canal cities and Upper Egypt, and our engineers help contractors, panel builders and maintenance teams check ratings, accessories and cross-references before purchase. Request a project quotation for bulk quantities.
