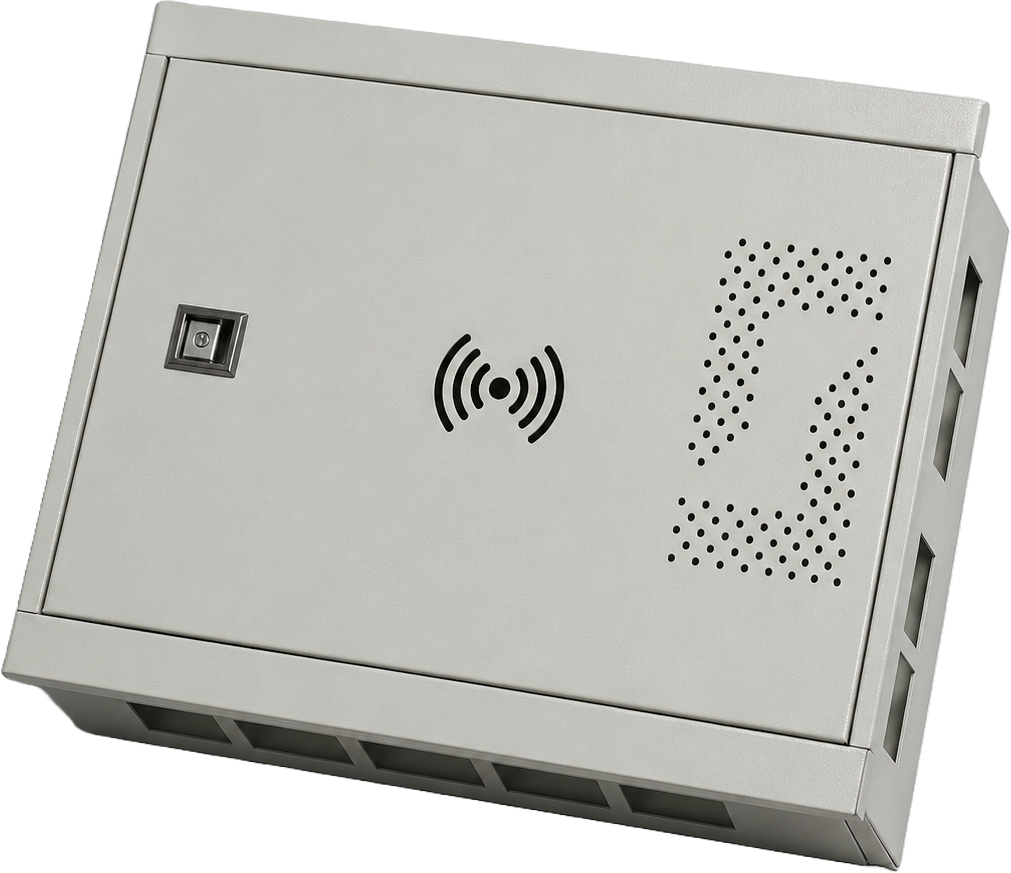

El Sewedy Electric Communication Enclosure | Flush Mounted, 1.00mm Steel, IP4X Light Current Box
El Sewedy Electric Communication Enclosure | Flush Mounted, 1.00mm Steel, IP4X Light Current Box
El Sewedy Electric Light Current Communication Enclosure is a premium, high-integrity structural housing engineered specifically to centralize and safeguard low-voltage networking systems in modern infrastructure. Fabricated from high-quality 1.00mm thick steel sheet and finished with an advanced RAL 7032 electrostatic powder coating, this heavy-duty box combines structural durability with long-term resistance to environmental wear. Featuring an IP4X ingress protection rating, it delivers reliable defense against solid foreign objects, making it the definitive choice for premium indoor applications.
Designed to seamlessly accommodate standard power sockets and network routers, the enclosure features a highly efficient ventilation matrix built directly into the front faceplate to ensure constant heat dissipation and prevent hardware overheating. The advanced enclosure ergonomics include a 120-degree opening reversible door that allows maximum flexibility for field technicians during cable dressing and low-voltage terminations. With dedicated top and bottom cable entries, clean flush-mounted wall aesthetics, and precise manufacturing tolerances, this El Sewedy enclosure stands as the consulting standard for smart residential compounds and commercial administrative projects throughout Egypt.
Key Enclosure Dimensions & Physical Attributes:
-
Overall Faceplate Dimensions: 330mm(H) x 425mm(W) x 102mm(D).
-
Wall Cut-Out Back Box Dimensions: 300mm(h1) x 400mm (w1) x 100mm (d1).
-
Cable Management: Built-in dual-routing top and bottom cable entries for clean low-voltage conduit distribution.
Key Technical Advantages:
High-Grade Steel Construction: Formed from cold-rolled 1.00mm steel sheet for robust structural shielding.
Advanced Passive Ventilation: Precision slotted front grid layout allows heat generated by active electronics to escape seamlessly.
Reversible 120° Hinge Door: Simplifies space planning by allowing the door to be mounted to swing left or right based on site limitations.
IP4X Ingress Compliance: Prevents particle contamination, protecting internal patch panels and smart controllers.
