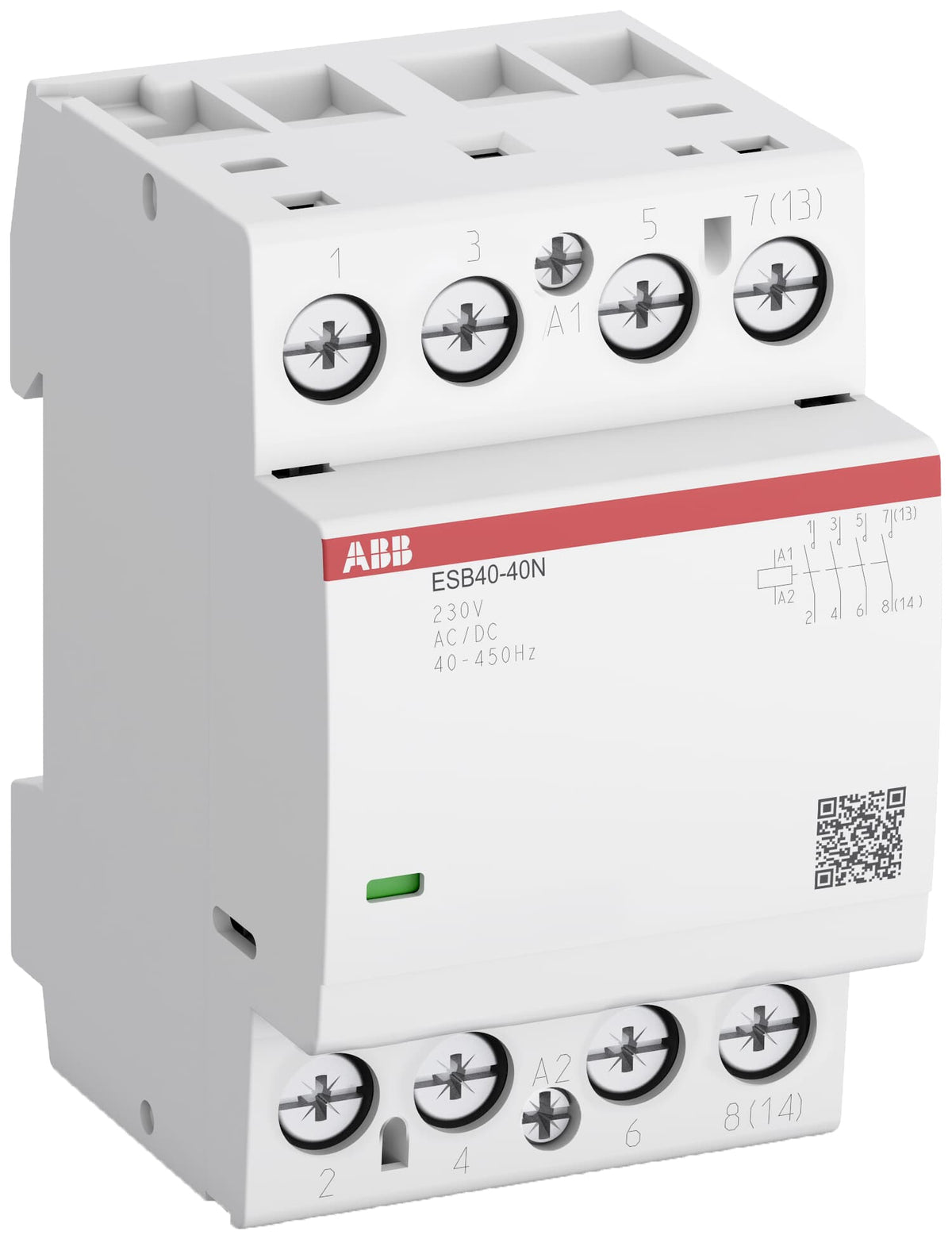

ABB ESB40-40N-06 Silent Modular Contactor 4P 40A 4NO 230V AC/DC | 1SAE341111R0640
ABB ESB40-40N-06 Silent Modular Contactor 4P 40A 4NO 230V AC/DC | 1SAE341111R0640
Couldn't load pickup availability
The ABB ESB40-40N-06 (1SAE341111R0640) is a 4-pole 40 A modular installation contactor with 4NO main contacts and a universal 230 V AC/DC coil. It fits in any distribution board next to your MCBs and switches single-phase and three-phase loads such as water heaters, lighting circuits, heating and ventilation from a time switch, thermostat, photocell or smart-home controller.
Unlike a conventional magnetic contactor, the ESB..N range runs completely hum-free, draws very little coil power and has integrated overvoltage protection on the coil, so it is the right choice for flats, villas, offices, hotels and hospitals where a quiet panel matters.
Key features
- Silent, hum-free operation – ideal for residential and office boards
- Universal 230 V AC/DC coil with low power consumption
- Integrated overvoltage protection on the coil
- Compact 3 modules (54 mm) modular width, same profile as MCBs
- 4NO contacts rated 40 A (AC-1)
- Suitable for household and industrial installations
- Wide choice of ABB ESB accessories and contact combinations
Technical specifications
| Brand | ABB |
|---|---|
| Model | ESB40-40N-06 |
| ABB order code | 1SAE341111R0640 |
| Range | ESB..N installation contactors |
| Device type | Modular installation contactor (hum-free) |
| Rated operational current (AC-1) | 40 A |
| Poles / contacts | 4 poles – 4NO |
| Coil voltage | 230 V AC/DC (50/60 Hz) |
| Loads | Single-phase and three-phase loads |
| Width | 3 modules (54 mm) |
| Dimensions (W × H × D) | 54 mm × 85 mm × 65 mm |
| Weight | 0.405 kg |
| Mounting | 35 mm DIN rail (EN 60715) |
| Standard | IEC/EN 61095 |
Typical applications
- Water heaters, heating elements and underfloor heating up to 40 A
- Three-phase lighting circuits for buildings, corridors and car parks
- Switching loads from time switches, thermostats and photocells
- Building automation (BMS) and smart-home distribution boards
Frequently asked questions
What is the ABB ESB40-40N-06 used for?
It switches single-phase and three-phase resistive and lighting loads up to 40 A per pole, usually controlled by a time switch, thermostat, push button or smart-home relay – for example a water heater on a daily timer or a building lighting circuit.
Does the ESB contactor make noise?
No. The ESB..N installation contactors are designed for hum-free operation, so they can be installed in residential distribution boards and living areas without the buzzing of standard contactors.
Which coil voltage does it need?
The -06 version has a 230 V coil that works on both AC and DC (50/60 Hz), so it connects directly to a standard 220/230 V supply in Egypt.
How much space does it take in the board?
The ESB40-40N-06 is 3 modules (54 mm) wide on a 35 mm DIN rail.
Buy ABB ESB40-40N-06 in Egypt
Spark Egypt supplies the original ABB ESB40-40N-06 (1SAE341111R0640) modular contactor with a VAT tax invoice for electrical contractors, panel builders, consultants, facility managers and home owners. Delivery is available to Cairo, Giza, New Cairo, 6th of October, Sheikh Zayed, the New Administrative Capital, Alexandria, the Delta, the Canal cities and Upper Egypt. Our technical team can help you choose the right rating, compatible time switches and accessories, and quote project quantities.
