ABB AF16-30-10-13 Contactor 3P 16 A AC-3 100-250 V AC/DC Coil | 1SBL177001R1310
ABB AF16-30-10-13 Contactor 3P 16 A AC-3 100-250 V AC/DC Coil | 1SBL177001R1310
Couldn't load pickup availability

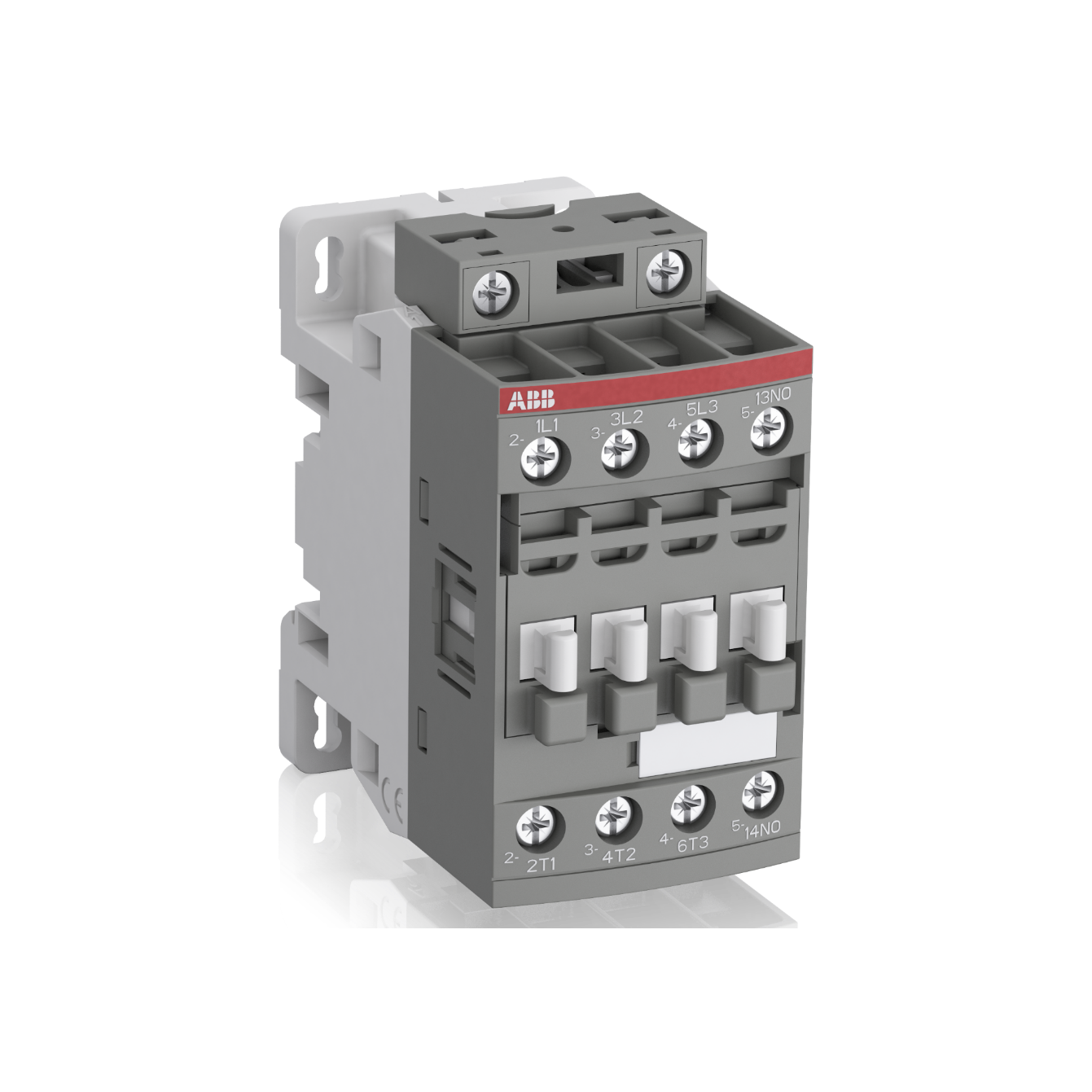

The ABB AF16-30-10-13 (1SBL177001R1310) is a 3-pole power contactor rated 16 A in AC-3 with a 100-250 V AC/DC coil. It switches three-phase motors, heaters, lighting groups and capacitor steps remotely from push buttons, PLCs, float switches, pressure switches or timers, and combines with a thermal overload relay or MPCB to form a complete motor starter.
Key features
- 16 A AC-3 rating
- Coil 100-250 V AC/DC
- Long electrical and mechanical life for frequent switching
- Add-on auxiliary contacts, timers, surge suppressors and mechanical interlocks
- Direct mounting of matching thermal overload relays
- DIN-rail or screw mounting (frame dependent)
Technical specifications
| Brand | ABB |
|---|---|
| Part number / model | AF16-30-10-13 |
| Product range | AF contactors |
| ABB order code | 1SBL177001R1310 |
| Device type | Power contactor (3-pole) |
| Rated operational current AC-3 | 16 A |
| Coil voltage | 100-250 V AC/DC |
| Auxiliary contacts | 1 NO Aux |
| Poles | 3 NO main poles |
| Standard | IEC/EN 60947-4-1 |
Typical applications
- Water pumps, booster and sewage pumps
- DOL, star-delta and reversing starters
- HVAC compressors, fans and cooling towers
- Heater and lighting control
- Capacitor banks, cranes and conveyors
Selection and installation tips
Select the contactor by the motor full-load current in AC-3 rather than kW alone, choose the coil voltage to match the control circuit (220–230 V AC is the most common in Egypt), and add a thermal overload relay whose setting range covers the motor current.
Frequently asked questions
What motor size can the ABB AF16-30-10-13 control?
It is rated 16 A in AC-3 duty at 400 V, suitable for three-phase motors whose full-load current does not exceed this rating.
What is AC-3?
AC-3 is the IEC utilisation category for starting and stopping squirrel-cage motors – the standard rating used to select motor contactors.
Do I need an overload relay with the contactor?
Yes. A contactor only switches the motor; protection against overload must be provided by a thermal overload relay or a motor protection circuit breaker.
Buy ABB AF16-30-10-13 in Egypt
Spark Egypt is a trusted source for original ABB products such as the AF16-30-10-13 magnetic contactor, serving contractors, OEMs, panel builders, facility managers and home owners with tax invoices and fast delivery to Cairo, Giza, New Cairo, 6th of October, Sheikh Zayed, the New Administrative Capital, Alexandria, the Delta, the Canal cities and Upper Egypt. Contact our sales team to confirm selection, compatible accessories and project pricing.
