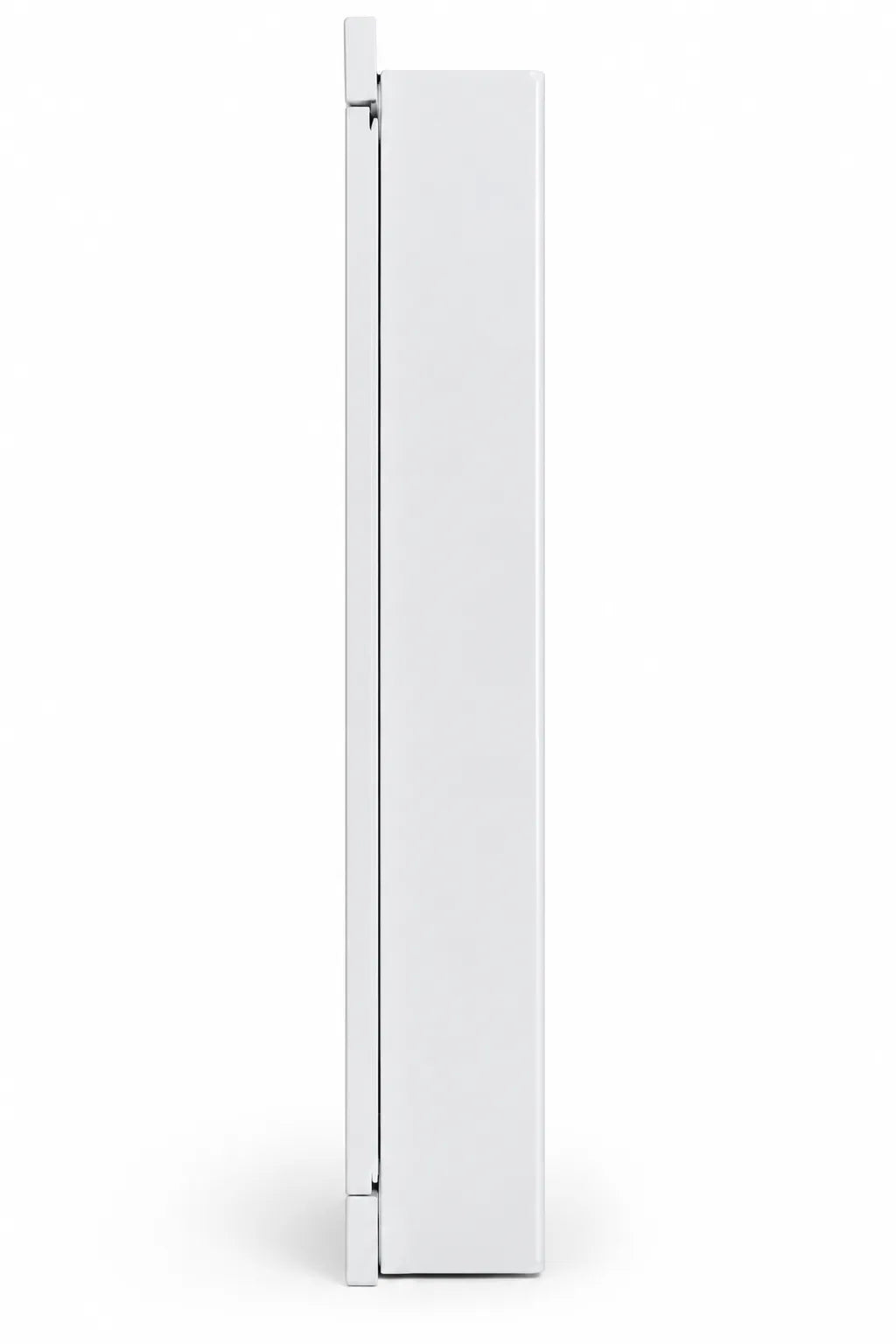

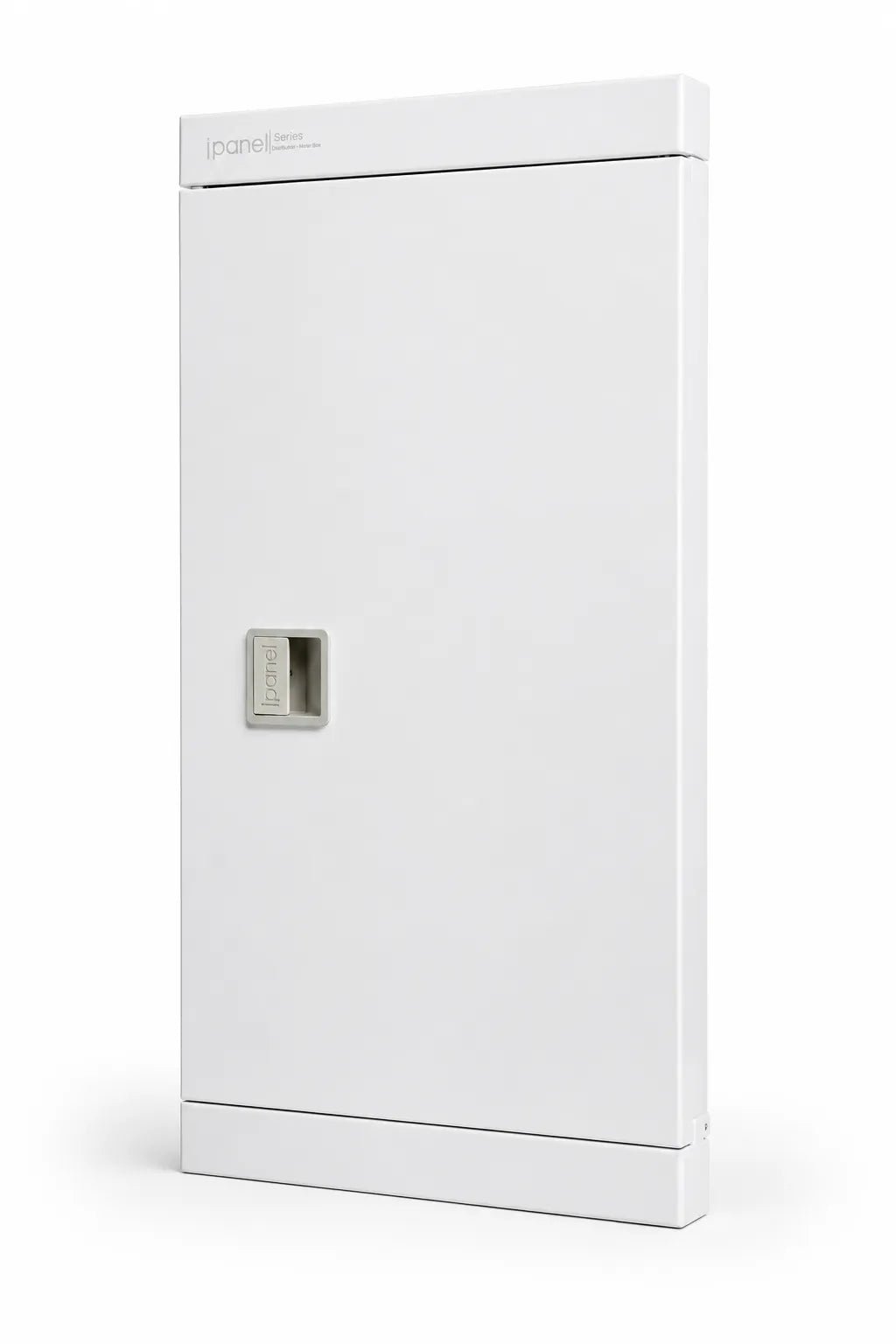

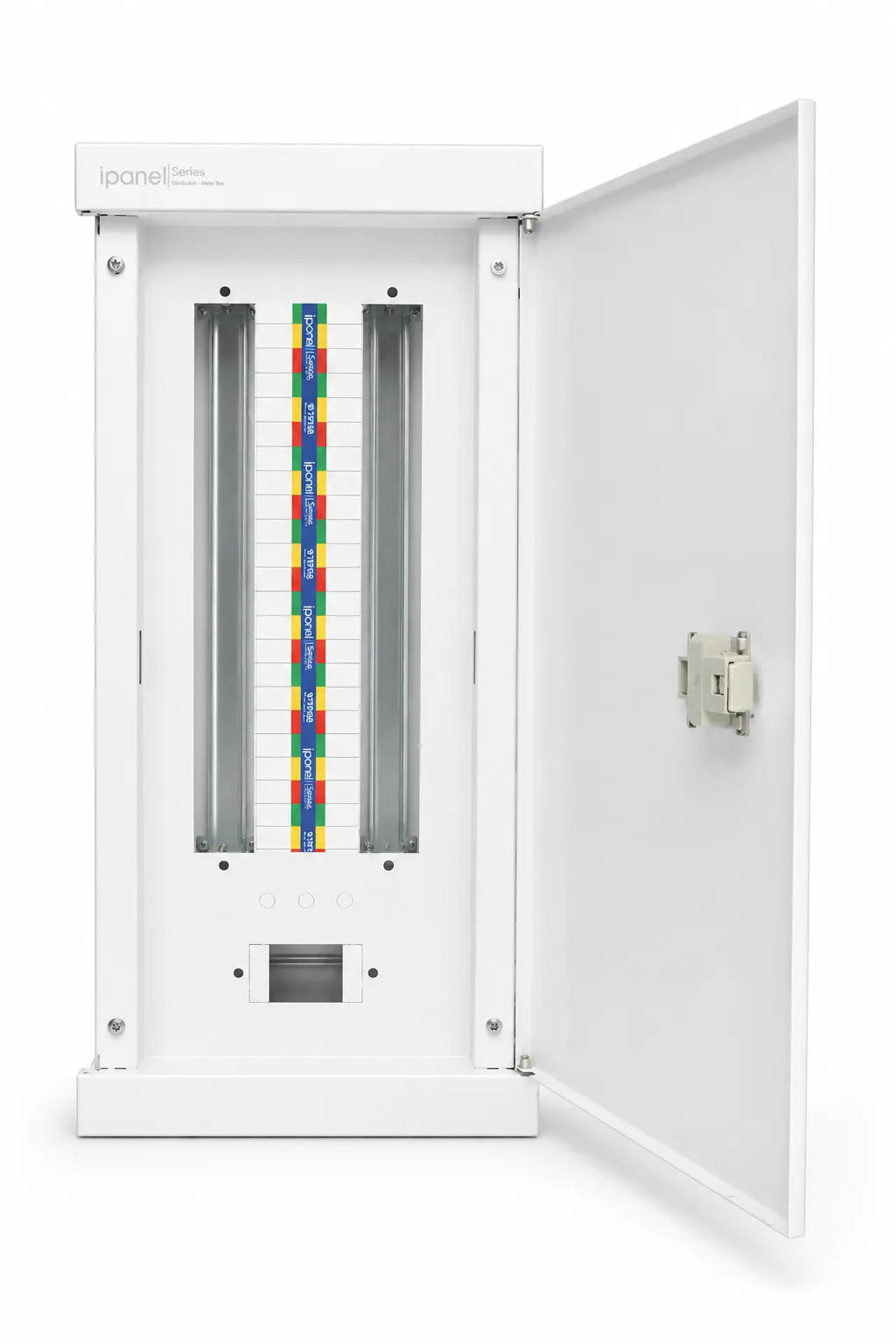

The Star Trans iPanel L48FM is a 48-line flush-mount electrical distribution board for organized low-voltage circuit protection and larger indoor wiring projects. The Steel 37 enclosure has a white RAL 9116 powder-coated finish and provides a practical service layout for DIN-rail devices, neutral connections and earth connections.
The IP23 panel includes a door, lock, hinges and wall-mounting hardware. Its larger 48-line capacity suits residential, commercial and control-panel installations that require additional outgoing circuits in a clean flush-mounted enclosure.
Technical specifications: - Model: iPanel L48FM - Capacity: 48 lines - Material: Steel 37 - Finish: RAL 9116 powder coating - Protection: IP23 - Dimensions: 340 x 105 x 735 mm; inner height 695 mm - Weight: 25 kg - Brand: Star Trans
Mounting plates and selected internal accessories are ordered separately.
