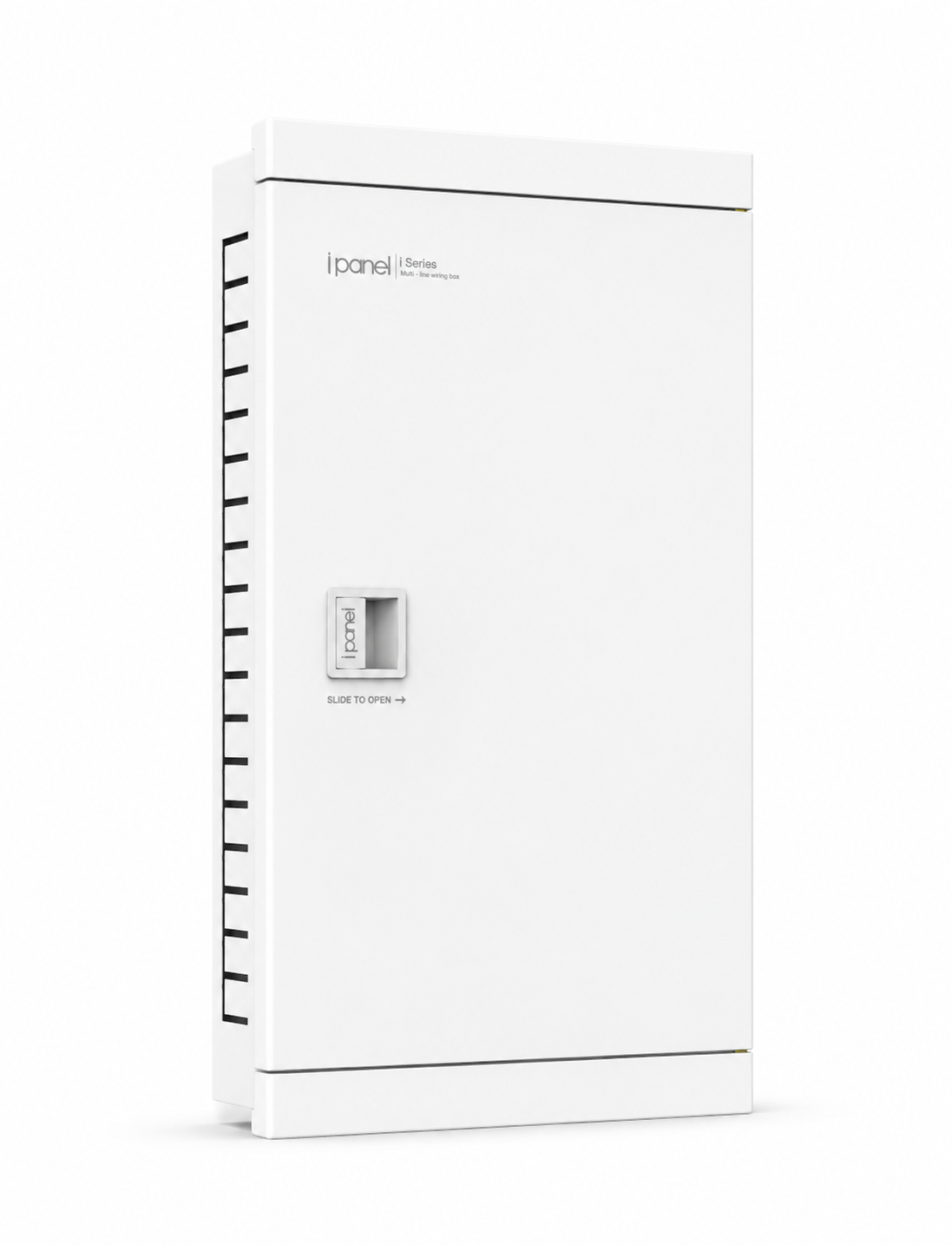

Star Trans iPanel L36FM | 36-Line Flush-Mount Electrical Distribution Board, IP23

The Star Trans iPanel L36FM is a 36-line flush-mount electrical distribution board for structured low-voltage distribution in residential, commercial and control installations. Its Steel 37 construction, white RAL 9116 powder-coated finish and IP23 protection provide a durable and clean indoor panel solution.

The enclosure is prepared for an organized DIN-rail layout with neutral and earth bars, and includes the door, lock, hinges and wall-mounting hardware. It supports accessible installation and maintenance for larger circuit groups.

Technical specifications:
- Model: iPanel L36FM
- Capacity: 36 lines
- Material: Steel 37
- Finish: RAL 9116 powder coating
- Protection: IP23
- Dimensions: 340 x 105 x 630 mm; inner height 590 mm
- Weight: 16 kg
- Brand: Star Trans

Mounting plates and selected internal accessories are ordered separately.
