Schneider Electric Easy UPS Uninterruptible Power Supplies UPS
Schneider Electric Easy UPS Uninterruptible Power Supplies UPS
Regular price
LE 32,576.44 EGP
Regular price
Sale price
LE 32,576.44 EGP
Taxes included.
Quantity
Couldn't load pickup availability
Schneider Electric Easy UPS Uninterruptible Power Supplies UPS
Select backup power by the VA and watt ratings, topology, input/output voltage and connection type. Battery packs and network accessories are not complete UPS units. Runtime depends on the connected load and battery configuration.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

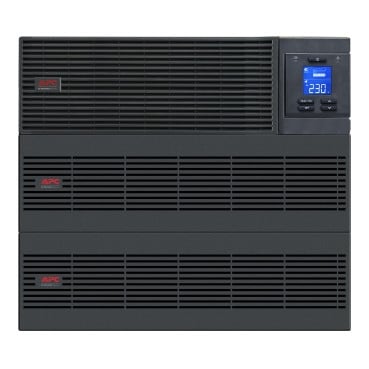

| SRV15KRILRK | UPS | APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit | Voltage: 230V; Poles: 1P+N; Power: 15kVA, 15kW |

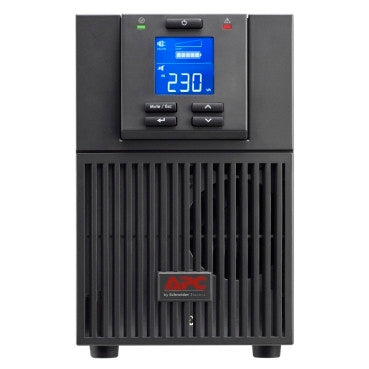

| SRV2KI | UPS | 2000VA/1600W, 230V, 4x IEC C13 outlets, APC Easy UPS On-Line, Intelligent Card Slot, LCD, Tower – Pure Sine wave | Voltage: 230V; Power: 2000VA, 1600W |

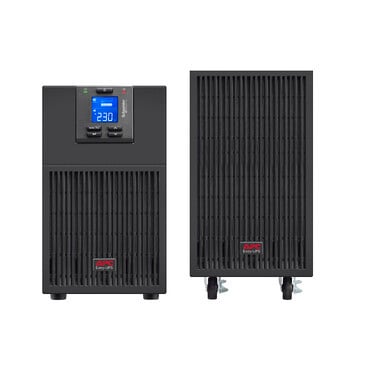

| SRV6KIL | UPS | APC Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime | Voltage: 230V; Poles: 1P+N; Power: 6kVA, 6kW |
| SRVS10KRI | UPS | Easy UPS 1 Ph On-Line, 10kVA/10kW, Rackmount 4U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/O rail kit | Voltage: 230V; Poles: 1P+N; Power: 10kVA, 10kW |
| SRVS2KRI | UPS | Easy UPS 1 Ph On-Line, 2000VA, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit | Voltage: 230V; Power: 2000VA |

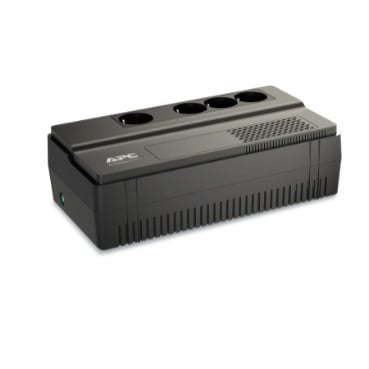

| BV1000I-GR | APC Easy UPS, 1000VA, Floor/Wall Mount, 230V, 4x CEE 7/3 Schuko outlets, AVR | Voltage: 230V; Power: 1000VA |
| E3SUPS10KHB1 | Easy UPS 3S 10kVA 400V 3:3 UPS, 1 internal 7Ah modular battery string, expandable to 3 | Voltage: 400V; Power: 10kVA |

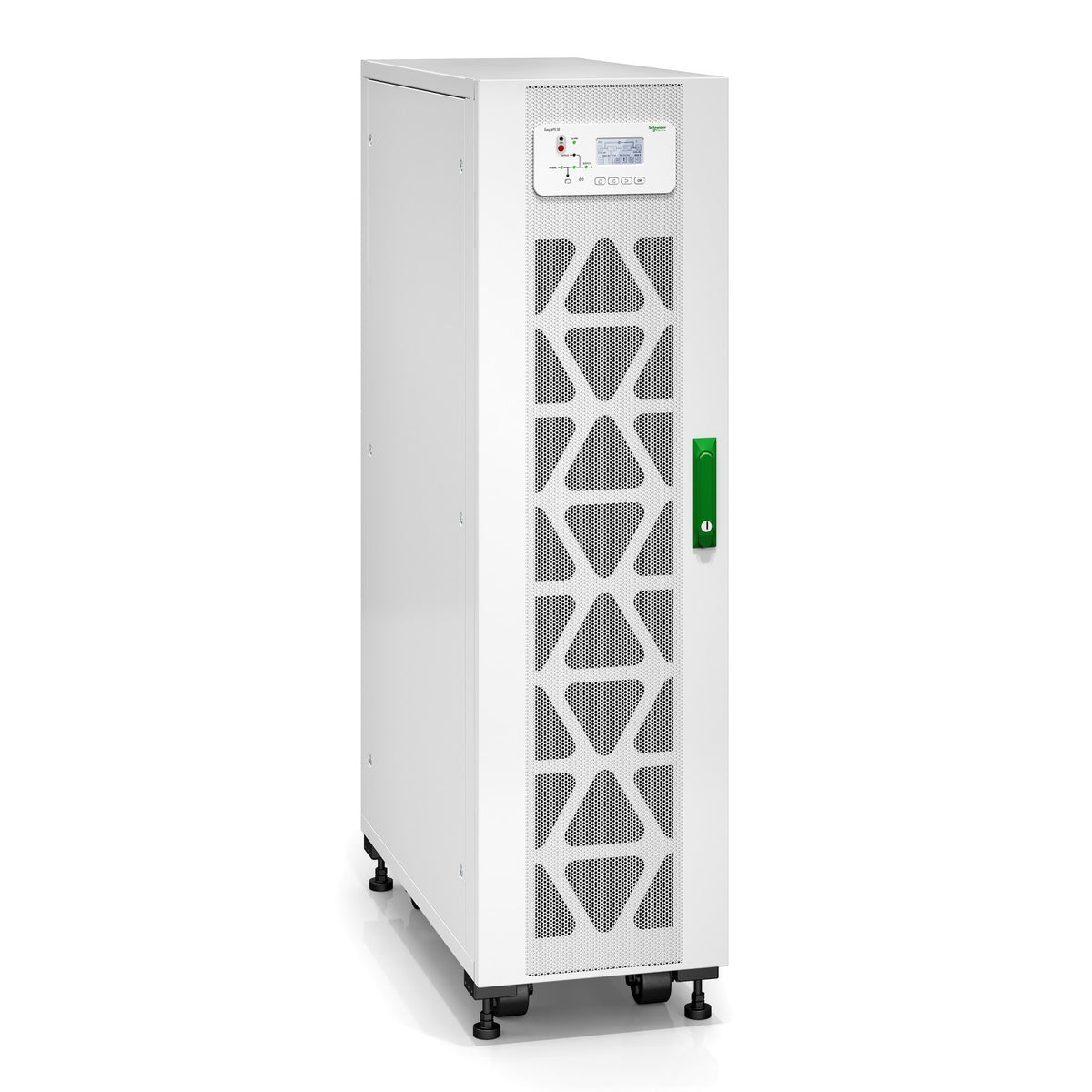

| E3SUPS10KHB2 | Easy UPS 3S 10kVA 400V 3:3 UPS, 2 internal 7Ah modular battery strings, | Voltage: 400V; Power: 10kVA |
| E3SUPS30KHB1 | UPS | Easy UPS 3S 30kVA 400V 3:3 UPS, 2 internal 7Ah modular battery strings, expandable to 4 | Voltage: 400V; Power: 30kVA |

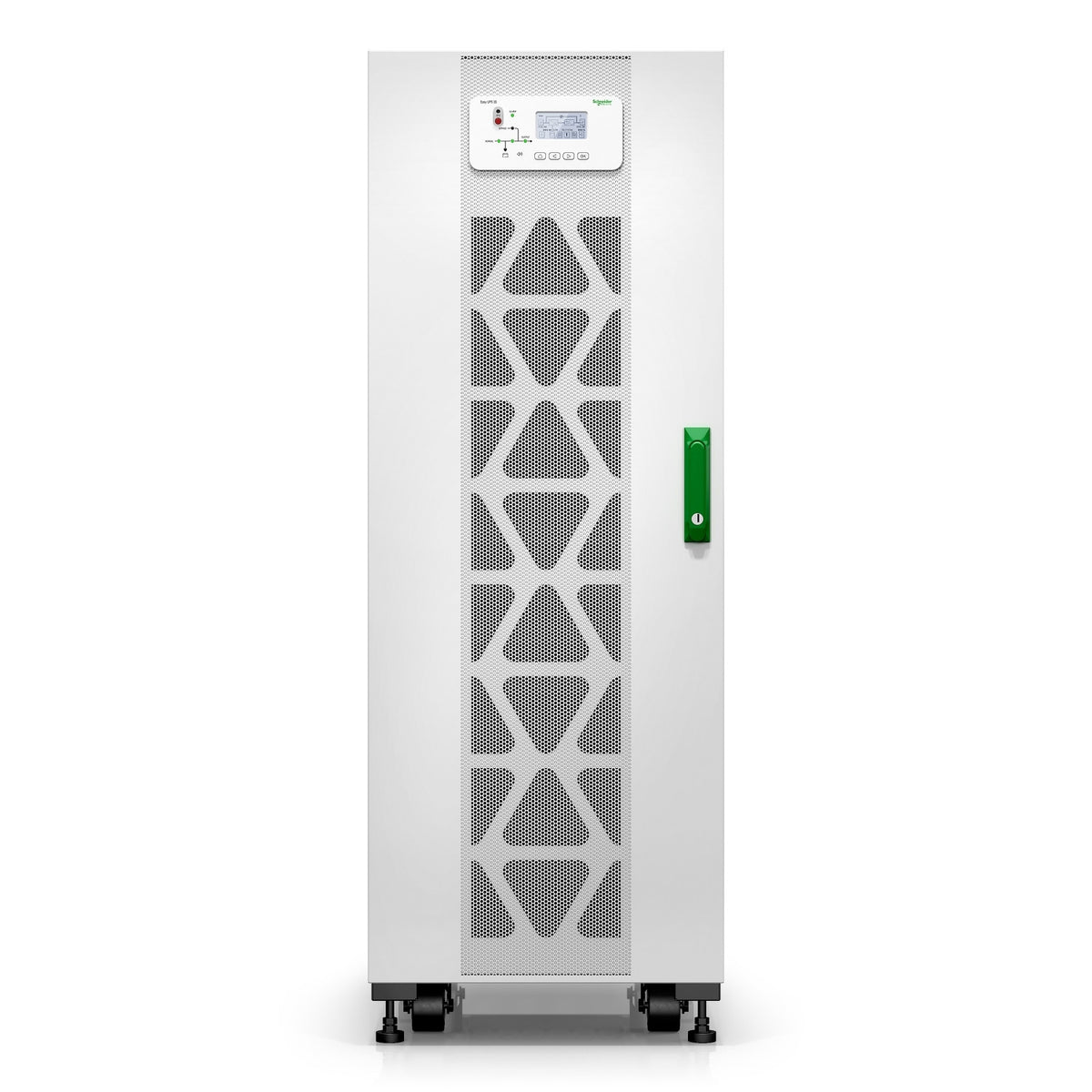

| E3SUPS30KHB2 | UPS | Easy UPS 3S 30kVA 400V 3:3 UPS, 4 internal 7Ah modular battery strings | Voltage: 400V; Power: 30kVA |

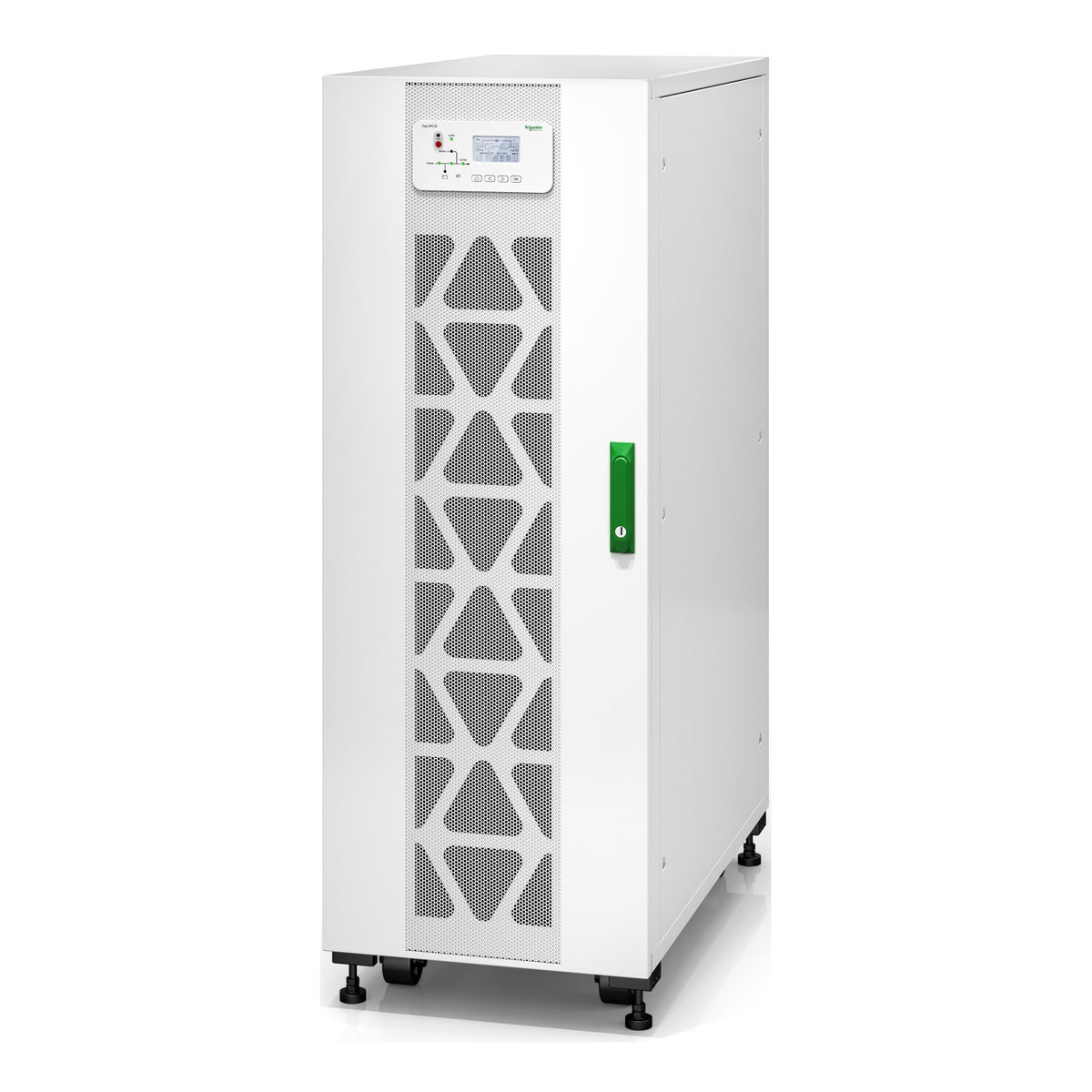

| E3SUPS40KHB1 | UPS | Easy UPS 3S 40 kVA 400V 3:3 UPS, 3 internal 7Ah modular battery strings, expandable to 4 | Voltage: 400V; Power: 40 kVA |
| E3SUPS40KHB2 | UPS | Easy UPS 3S 40kVA 400V 3:3 UPS, 4 internal 7Ah modular battery strings | Voltage: 400V; Power: 40kVA |
| SMV1000I-GR | APC Easy UPS 1 Ph Line Interactive, 1000VA, Tower, 230V, 4 Schuko CEE 7 outlets, AVR, LCD | Voltage: 230V; Power: 1000VA |

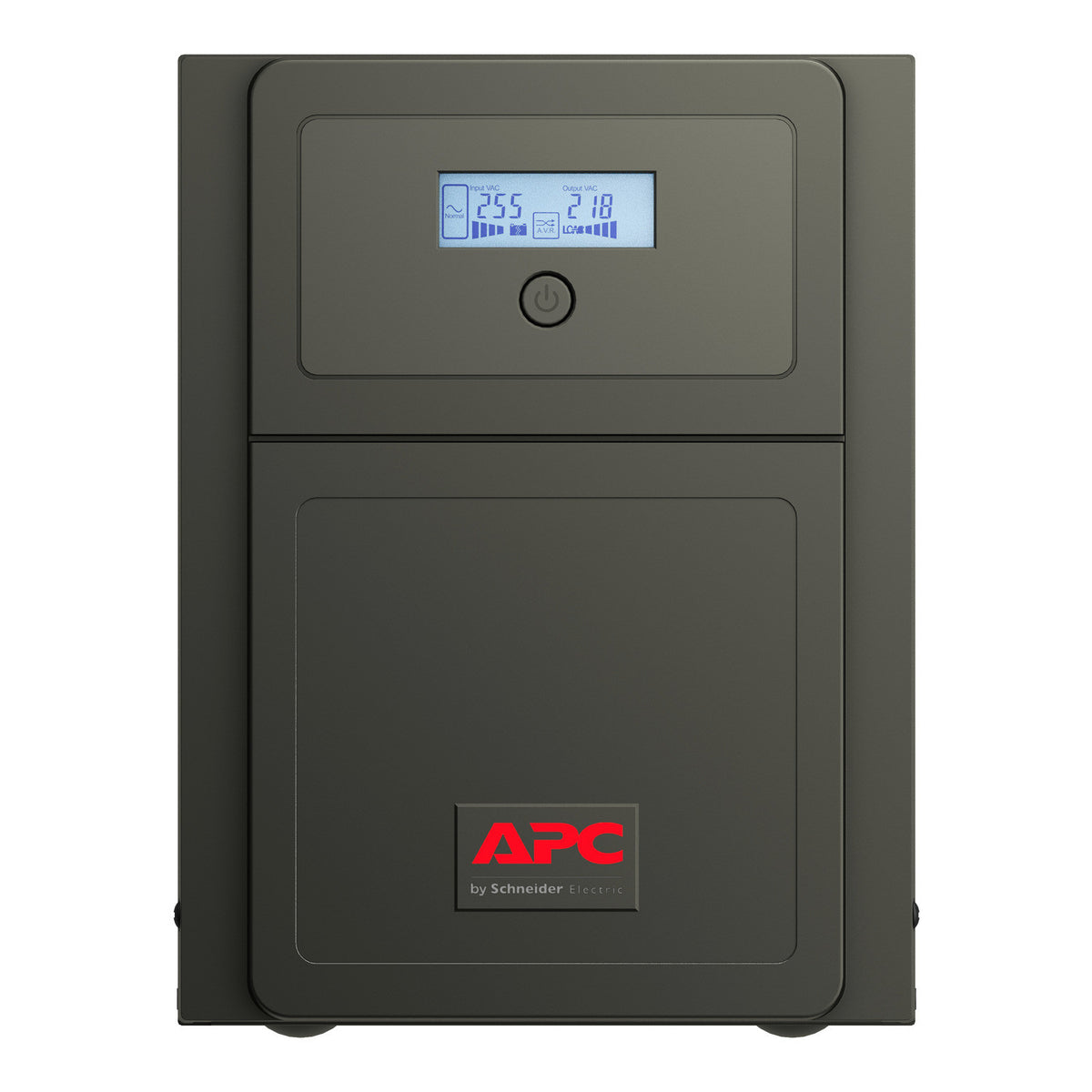

| SMV1500AI-GR | APC Easy UPS 1 Ph Line Interactive, 1500VA, Tower, 230V, 4 Schuko CEE 7 outlets, AVR, LCD | Voltage: 230V; Power: 1500VA |
| SMV2000AI-GR | APC Easy UPS 1 Ph Line Interactive, 2000VA, Tower, 230V, 4 Schuko CEE 7 outlets, AVR, LCD – Pure Sine wave | Voltage: 230V; Power: 2000VA |

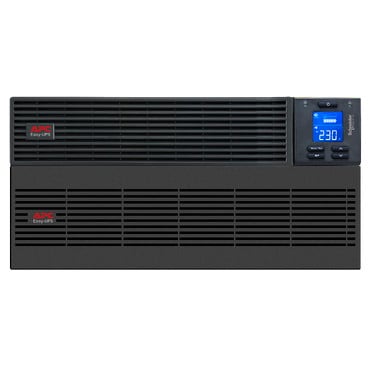

| SRV10KRILRK | UPS | APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit | Voltage: 230V; Poles: 1P+N; Power: 10kVA, 10kW |

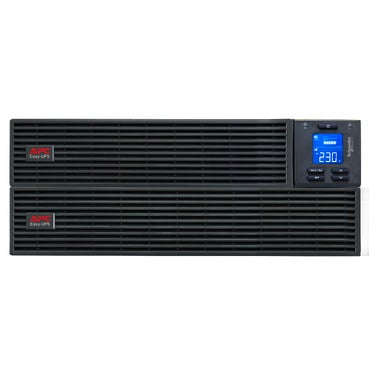

| SRV1KRILRK | UPS | APC Easy UPS On-Line, 1000VA/800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit | Voltage: 230V; Power: 1000VA, 800W |
| SRV20KRILRK | UPS | APC Easy UPS On-Line, 20kVA/20kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit | Voltage: 230V; Poles: 1P+N; Power: 20kVA, 20kW |

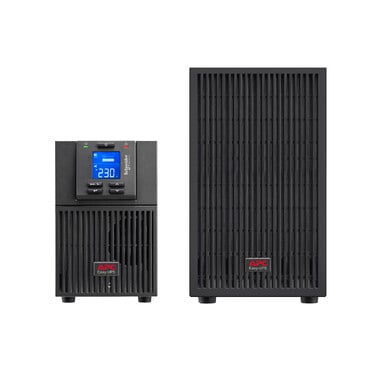

| SRV2KIL | UPS | APC Easy UPS On-Line, 2000VA/1600W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime | Voltage: 230V; Power: 2000VA, 1600W |
| SRV2KRILRK | UPS | APC Easy UPS On-Line, 2000VA/1600W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit | Voltage: 230V; Power: 2000VA, 1600W |
| SRV3KIL | UPS | APC Easy UPS On-Line, 3kVA/2400W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended runtime | Voltage: 230V; Power: 3kVA, 2400W |

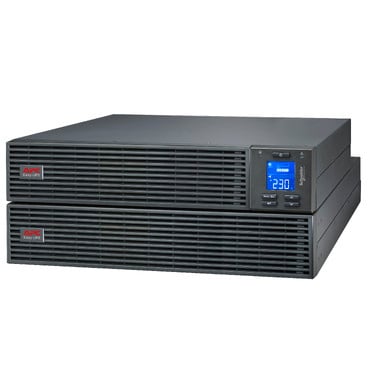

| SRV3KRILRK | UPS | APC Easy UPS On-Line, 3kVA/2400W, Rackmount 4U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit | Voltage: 230V; Power: 3kVA, 2400W |

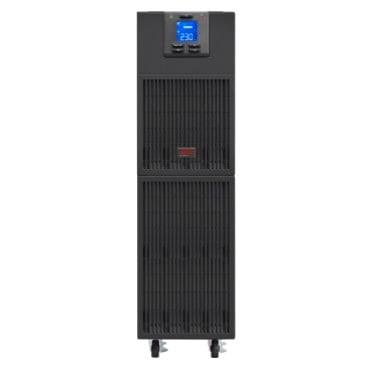

| SRV6KI | UPS | 230V, 6kVA/6kW, APC Easy UPS On-Line, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Tower – Pure Sine wave | Voltage: 230V; Poles: 1P+N; Power: 6kVA, 6kW |

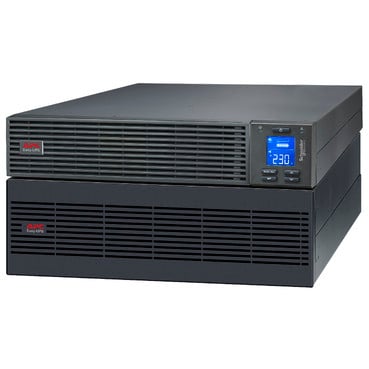

| SRV6KRILRK | UPS | APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit | Voltage: 230V; Power: 6kVA, 6kW |

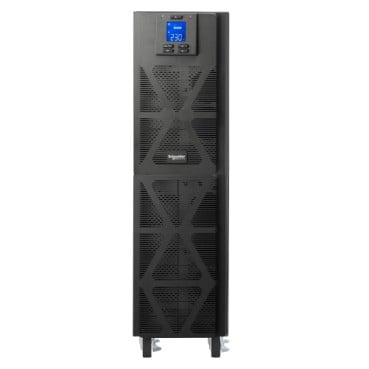

| SRVS10KI | UPS | Easy UPS 1 Ph On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD | Voltage: 230V; Poles: 1P+N; Power: 10kVA, 10kW |

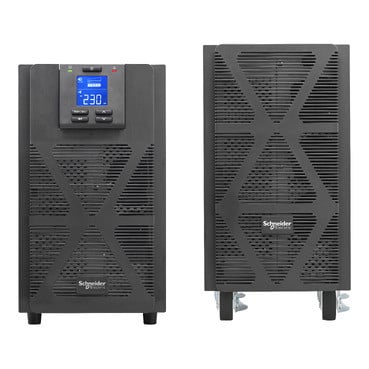

| SRVS10KIL | UPS | Easy UPS 1 Ph On-Line, 10kVA/10kW, Tower, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime | Voltage: 230V; Poles: 1P+N; Power: 10kVA, 10kW |

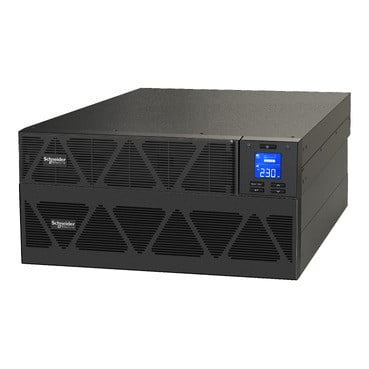

| SRVS10KRILRK | UPS | Easy UPS 1 Ph On-Line, 10kVA/10kW, Rackmount 5U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit | Voltage: 230V; Poles: 1P+N; Power: 10kVA, 10kW |

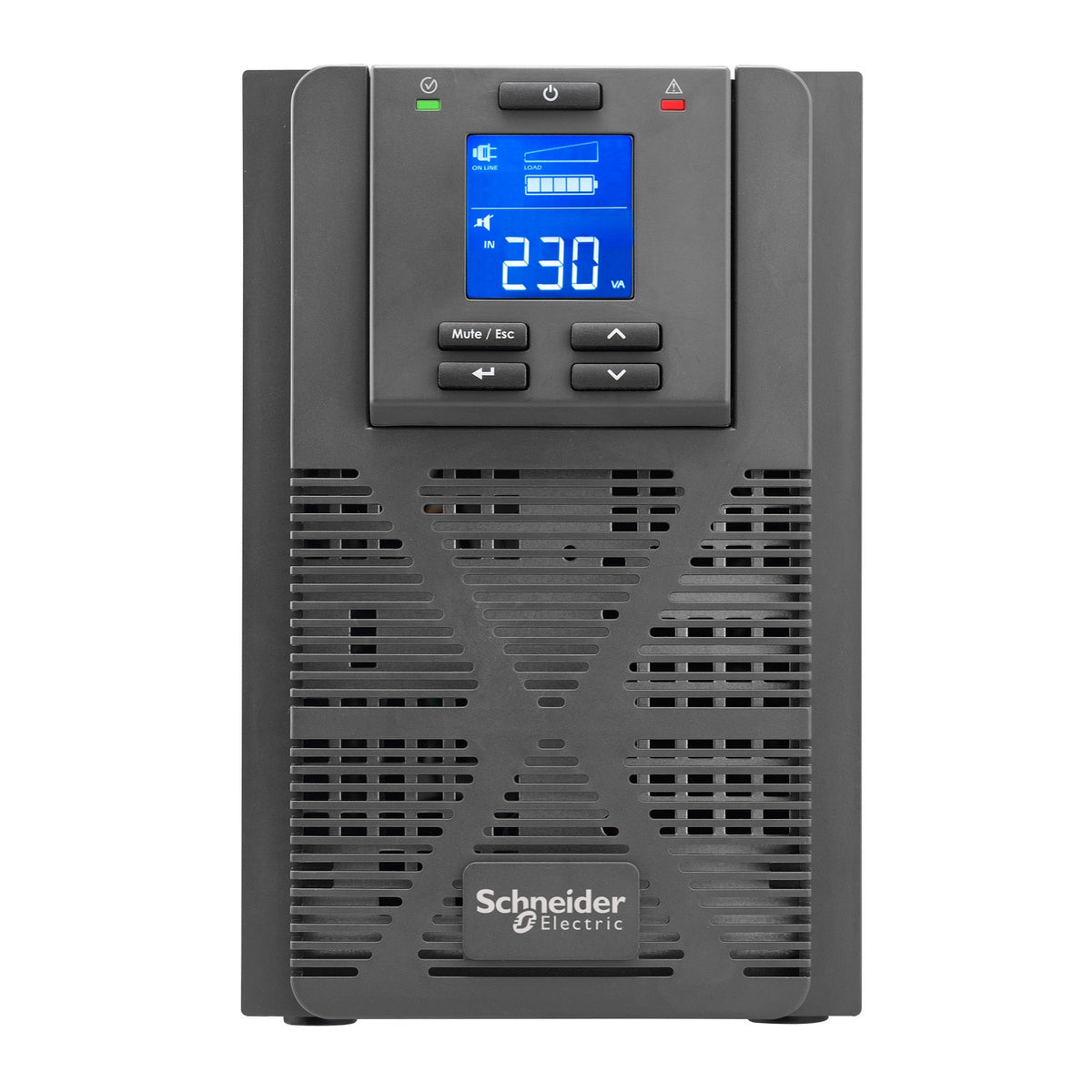

| SRVS1KI | UPS | Easy UPS 1 Ph On-Line, 1000VA, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD | Voltage: 230V; Power: 1000VA |
| SRVS1KRI | UPS | Easy UPS 1 Ph On-Line, 1000VA, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit | Voltage: 230V; Power: 1000VA |
| SRVS1KRILRK | UPS | APC Easy UPS On-Line, 1000VA/800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit | Voltage: 230V; Power: 1000VA, 800W |

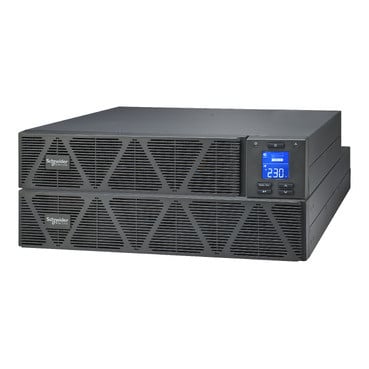

| SRVS2KRILRK | UPS | Easy UPS 1 Ph On-Line, 2000VA, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit | Voltage: 230V; Power: 2000VA |

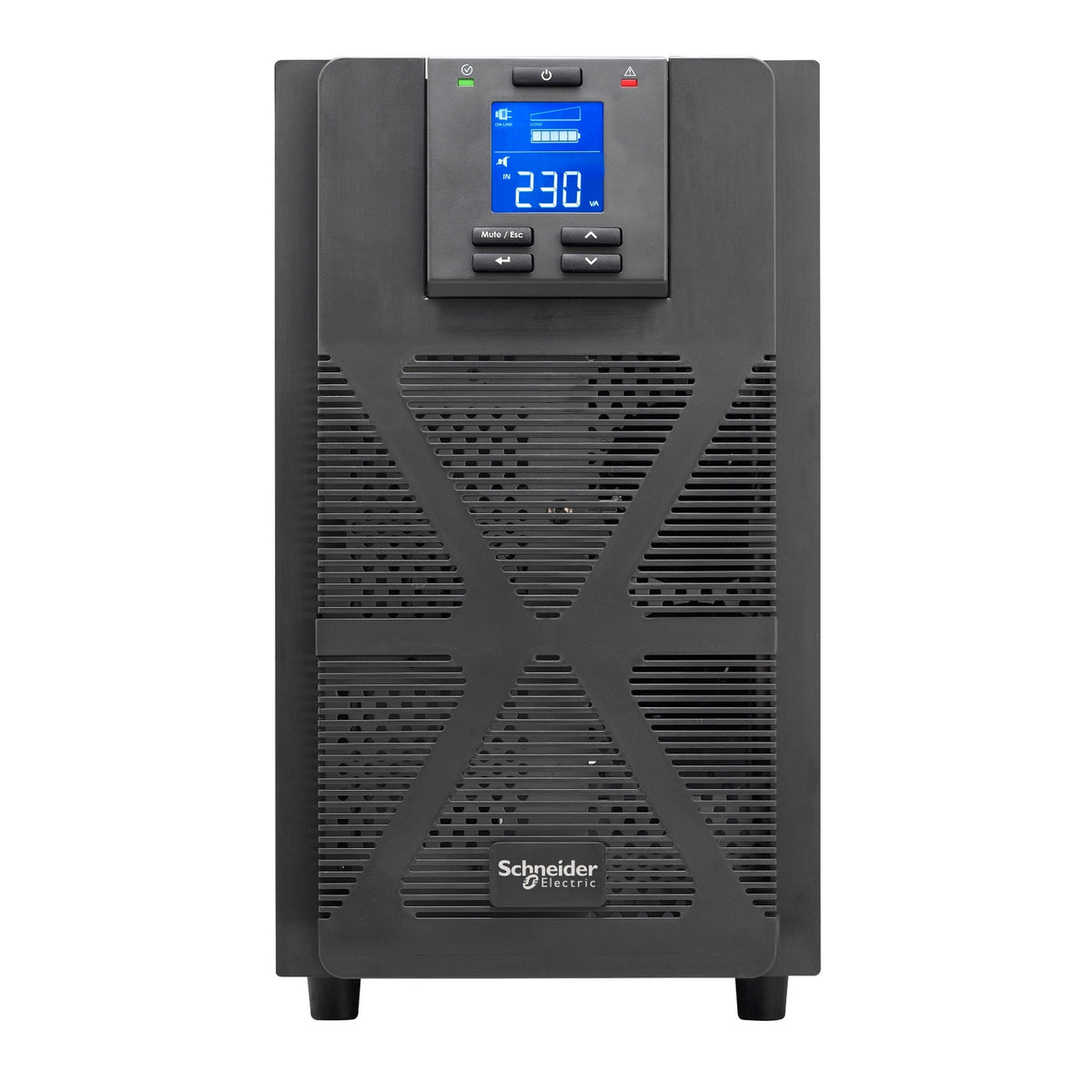

| SRVS3KI | UPS | Easy UPS 1 Ph On-Line, 3kVA, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD – Pure Sine wave | Voltage: 230V; Power: 3kVA |

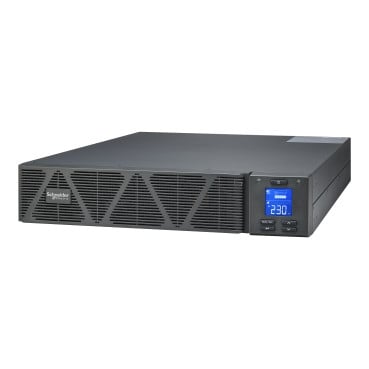

| SRVS3KRI | UPS | Easy UPS 1 Ph On-Line, 3kVA, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/O rail kit | Voltage: 230V; Power: 3kVA |
| SRVS3KRILRK | UPS | Easy UPS 1 Ph On-Line, 3kVA, Rackmount 4U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit | Voltage: 230V; Power: 3kVA |

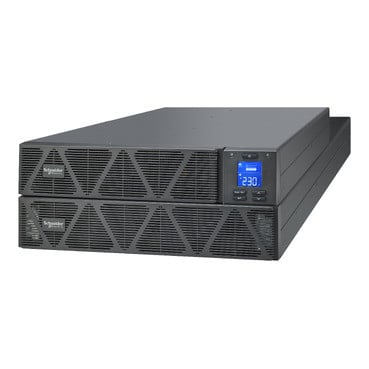

| SRVS6KRI | UPS | Easy UPS 1 Ph On-Line, 6kVA/6kW, Rackmount 4U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/O rail kit | Voltage: 230V; Poles: 1P+N; Power: 6kVA, 6kW |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
