Schneider Electric Zelio Relays Control & Monitoring Relays

Use the selected relay for the control function stated for that reference. Verify the supply voltage, contact arrangement and switching duty, then confirm socket or mounting requirements and terminal wiring.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings

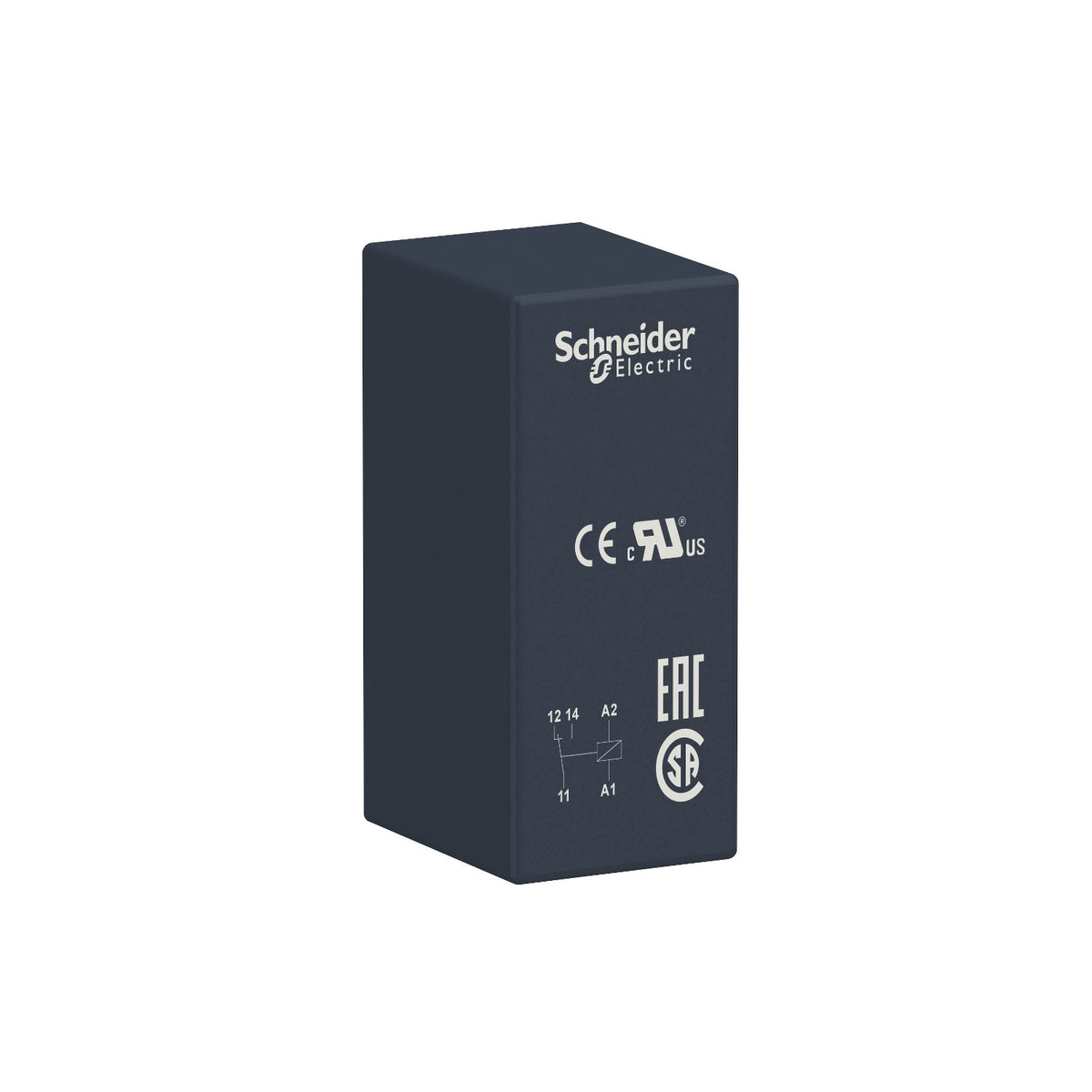

RSB1A120P7	Interface plug-in relay, 12 A, 1 CO, 230 V AC	Current: 12 A; Voltage: 230 V AC

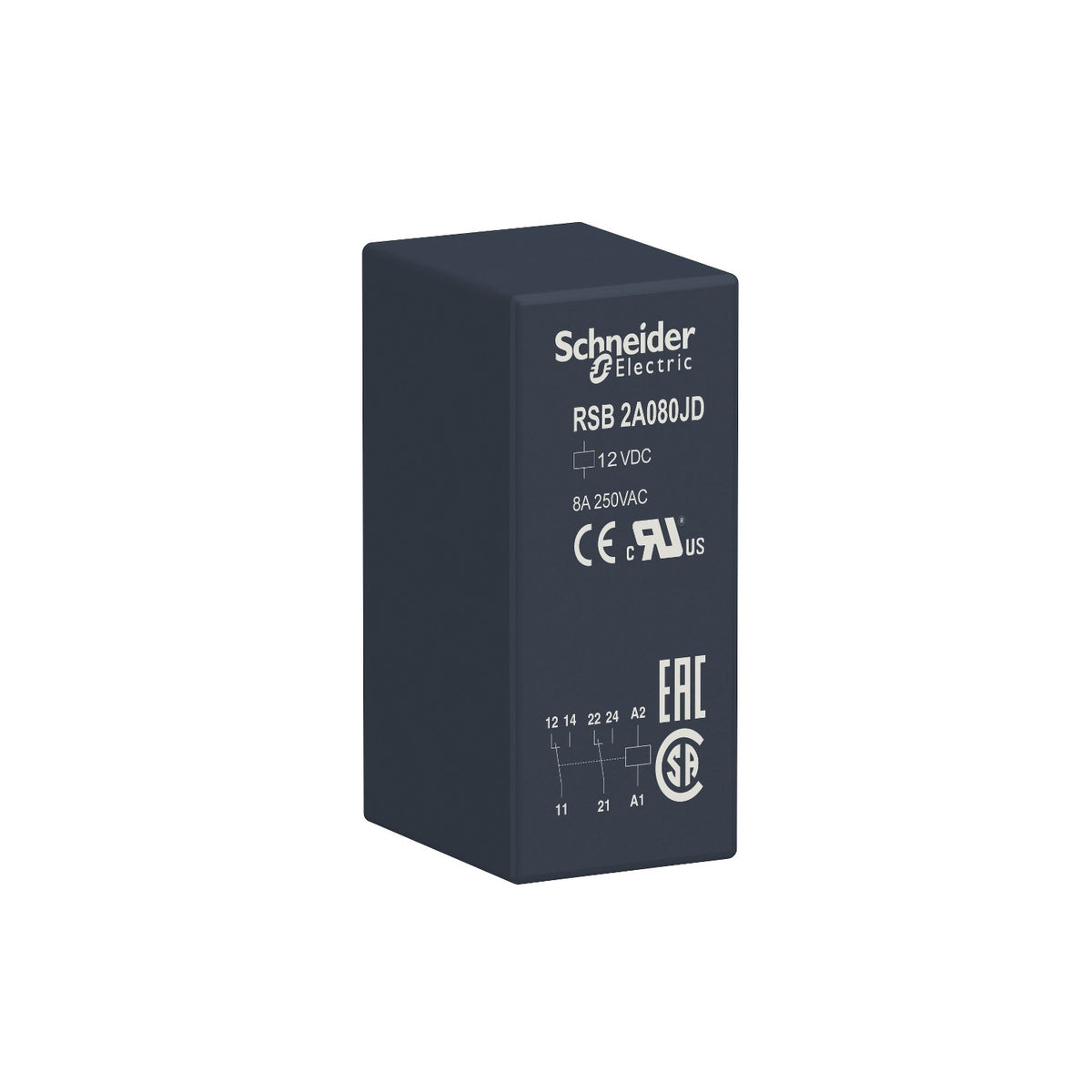

RSB2A080JD	Relay \| Interface plug-in relay, 8 A, 2 CO, 12 V DC	Current: 8 A; Voltage: 12 V DC
RXM2AB1B7	Miniature plug-in relay, 12 A, 2 CO, 24 V AC	Current: 12 A; Voltage: 24 V AC
RXM2AB1F7	Miniature plug-in relay, 12 A, 2 CO, 120 V AC	Current: 12 A; Voltage: 120 V AC
RXM3AB1F7	Miniature plug-in relay, 10 A, 3 CO, 120 V AC	Current: 10 A; Voltage: 120 V AC
RXM4AB1F7	Relay \| Miniature plug-in relay, 6 A, 4 CO, 120 V AC	Current: 6 A; Voltage: 120 V AC
RXM4AB1FD	Miniature plug-in relay, 6 A, 4 CO, 110 V DC	Current: 6 A; Voltage: 110 V DC
RXM4AB1JD	Miniature plug-in relay, 6 A, 4 CO, 12 V DC	Current: 6 A; Voltage: 12 V DC
RXM3AB1FD	Relay \| Miniature plug-in relay, 10 A, 3 CO, 110 V DC	Current: 10 A; Voltage: 110 V DC

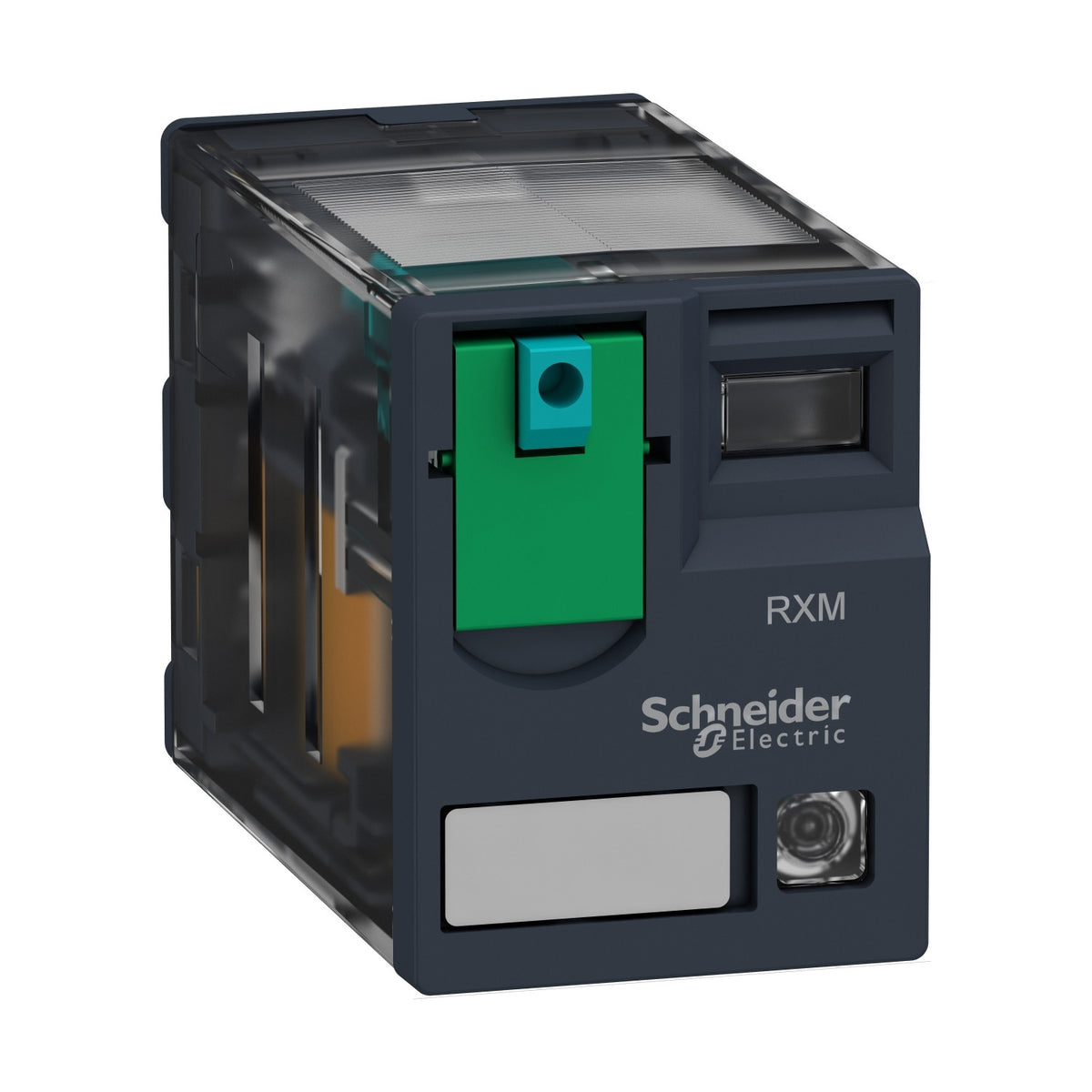

RXM4AB1ED	Relay \| Miniature plug-in relay, 6 A, 4 CO, 48 V DC	Current: 6 A; Voltage: 48 V DC

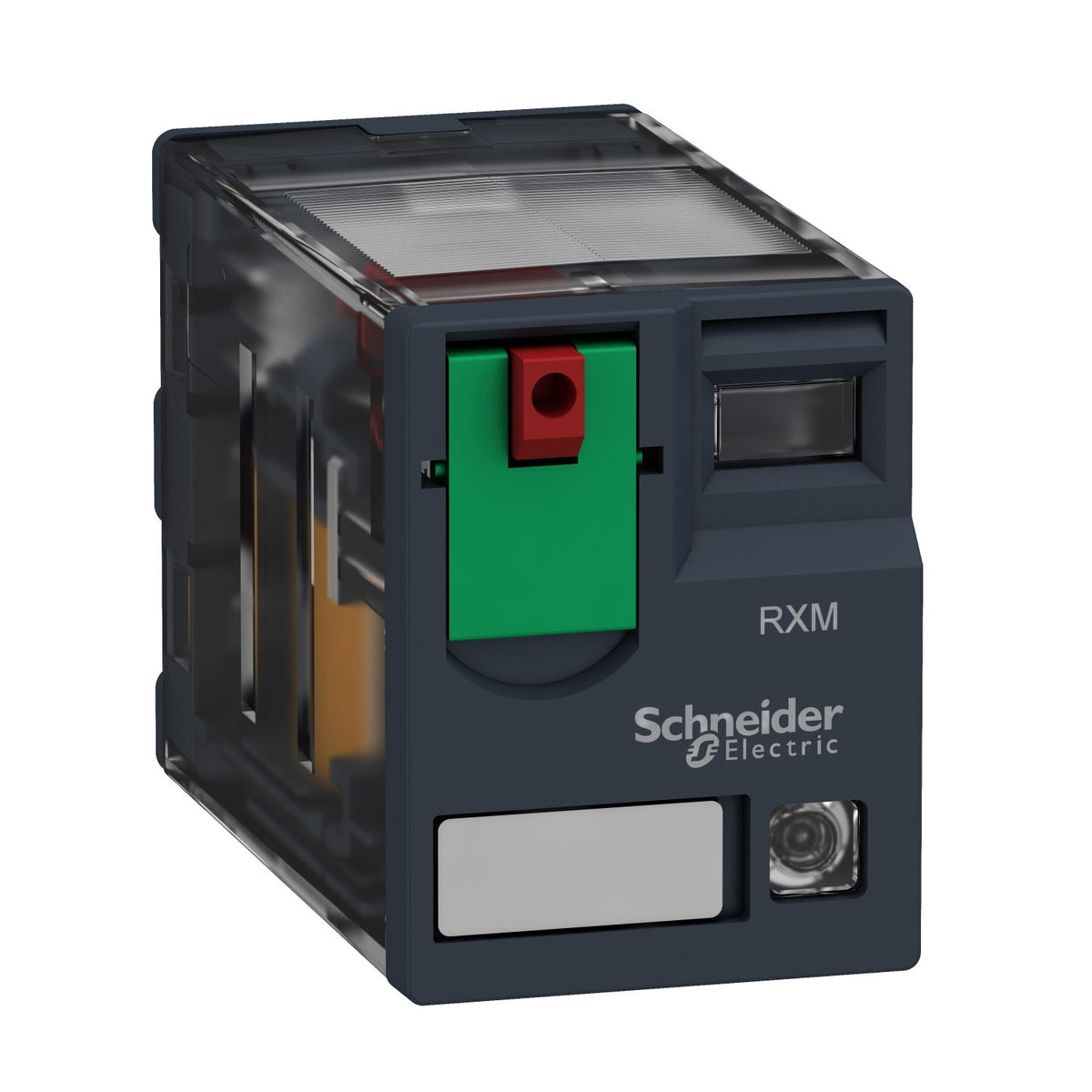

RXM4AB2P7	Relay \| Miniature plug-in relay, 6 A, 4 CO, LED, 230 V AC	Current: 6 A; Voltage: 230 V AC

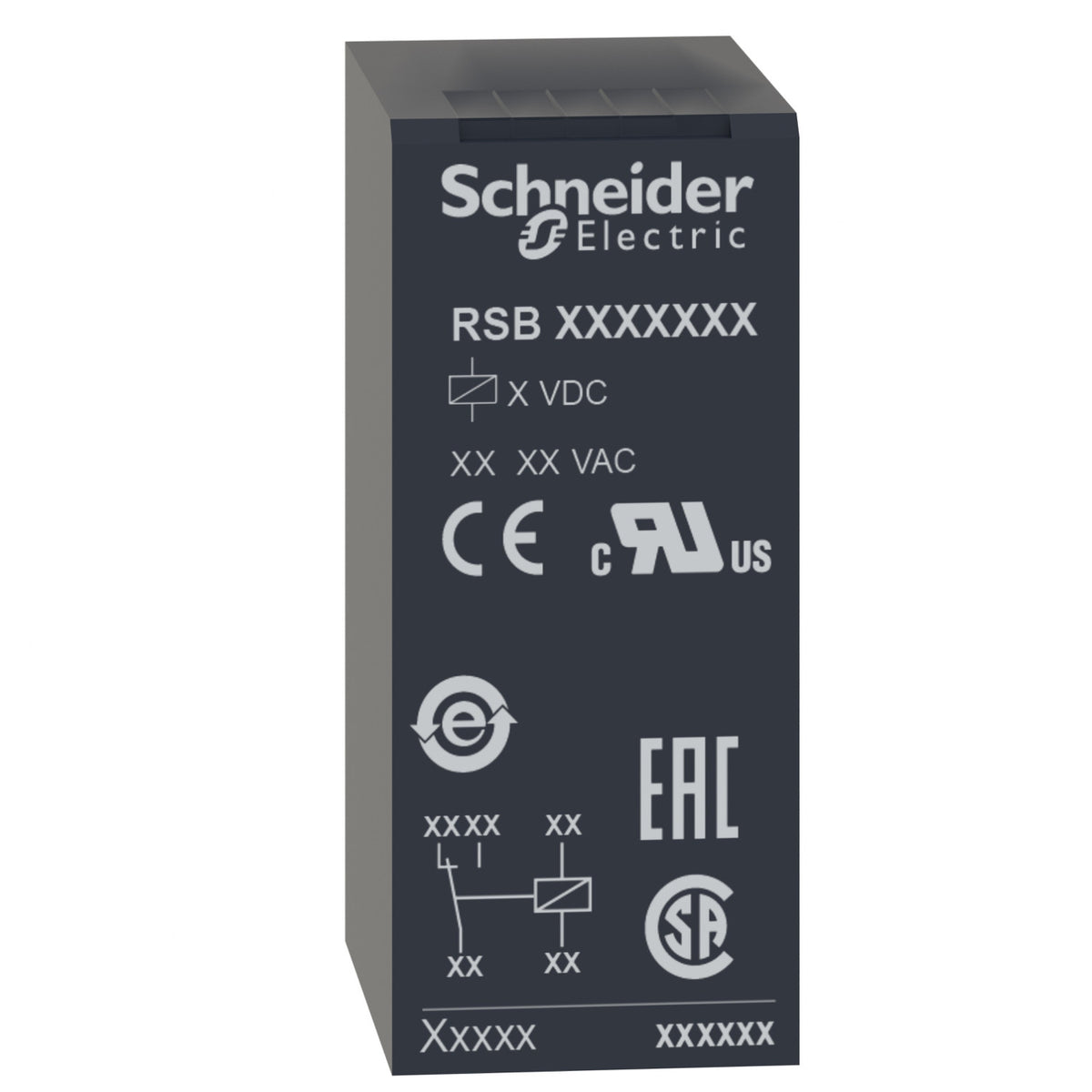

RSB1A120B7	Relay \| Interface plug-in relay, 12 A, 1 CO, 24 V AC	Current: 12 A; Voltage: 24 V AC

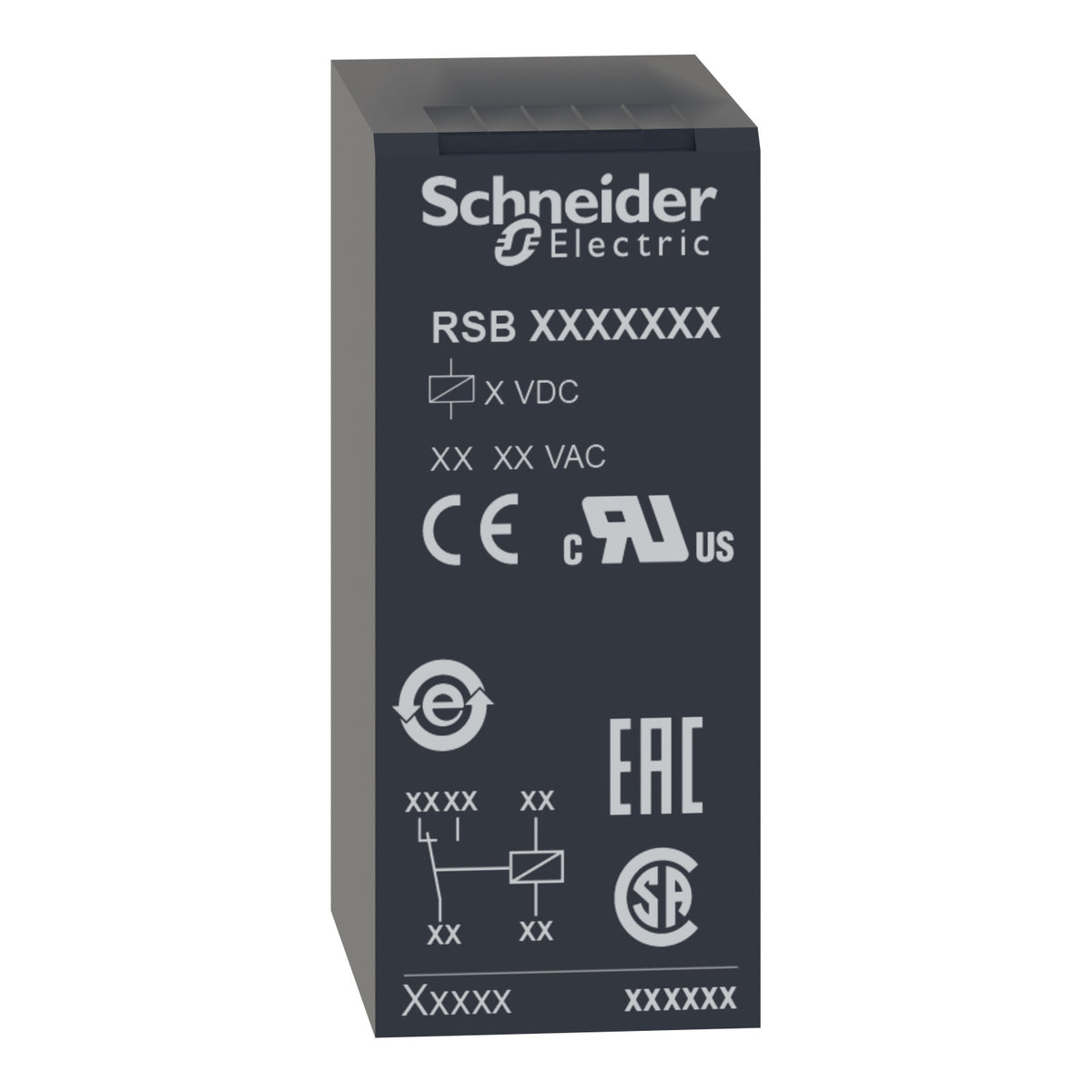

RSB1A120JD	Interface plug-in relay, 12 A, 1 CO, 12 V DC	Current: 12 A; Voltage: 12 V DC

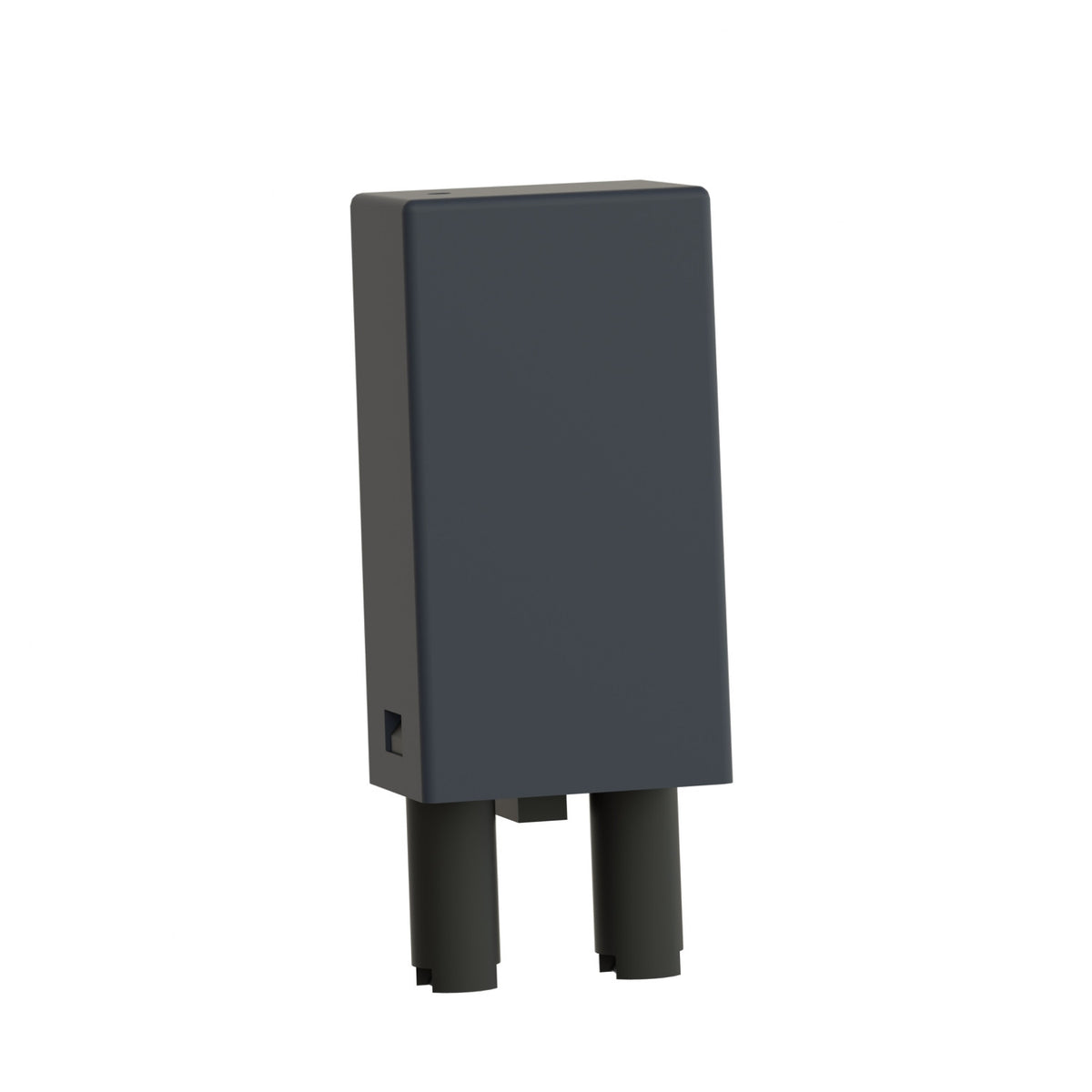

RXM021BN	Relay \| Varistor for RPZ/RXZ sockets, 24…60 V AC/DC	Voltage: 24..60 V AC/DC
RXM2AB1E7	Miniature plug-in relay, 12 A, 2 CO, 48 V AC	Current: 12 A; Voltage: 48 V AC
RXM3AB1E7	Relay \| Miniature plug-in relay, 10 A, 3 CO, 48 V AC	Current: 10 A; Voltage: 48 V AC

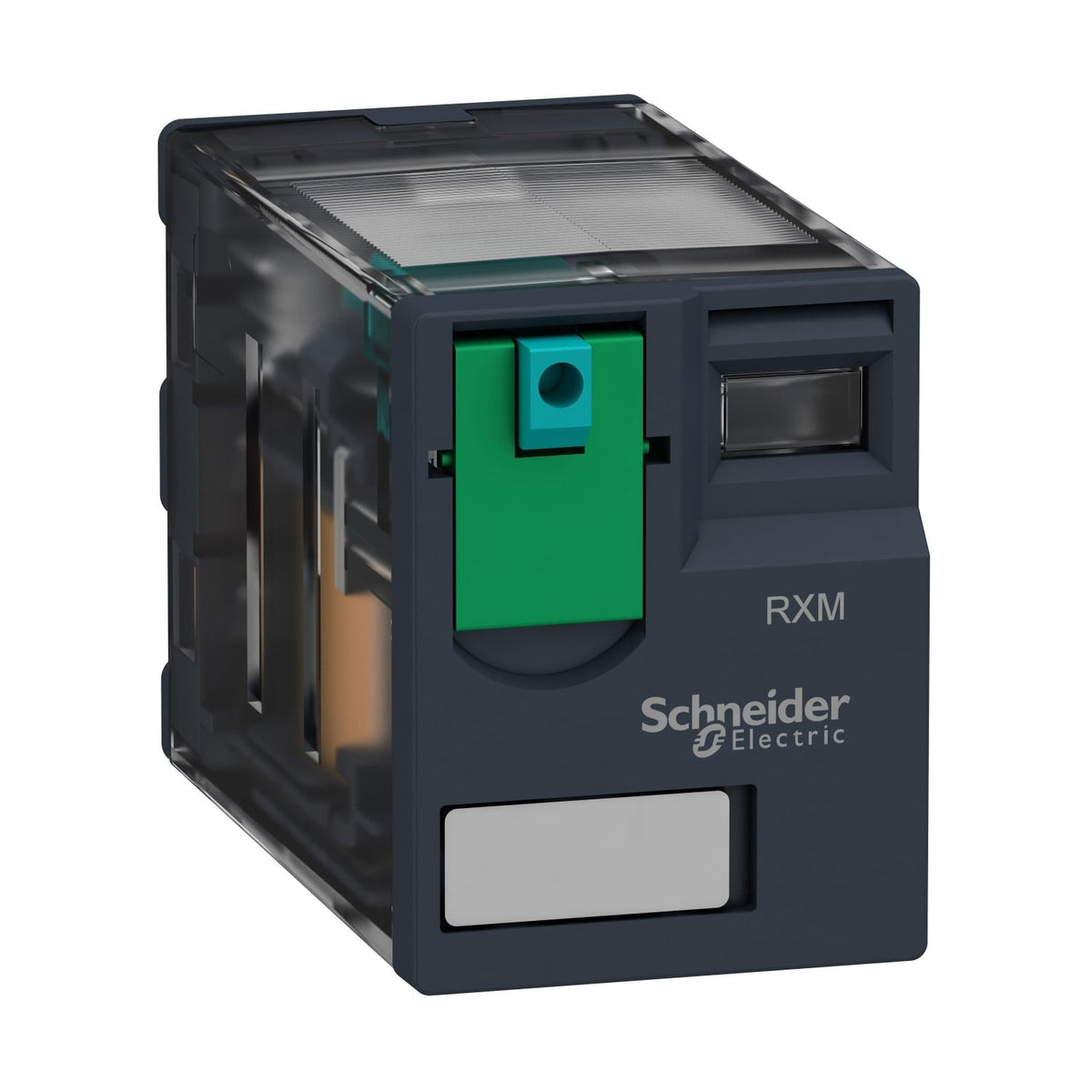

RXM3AB1JD	Miniature plug-in relay, 10 A, 3 CO, 12 V DC	Current: 10 A; Voltage: 12 V DC

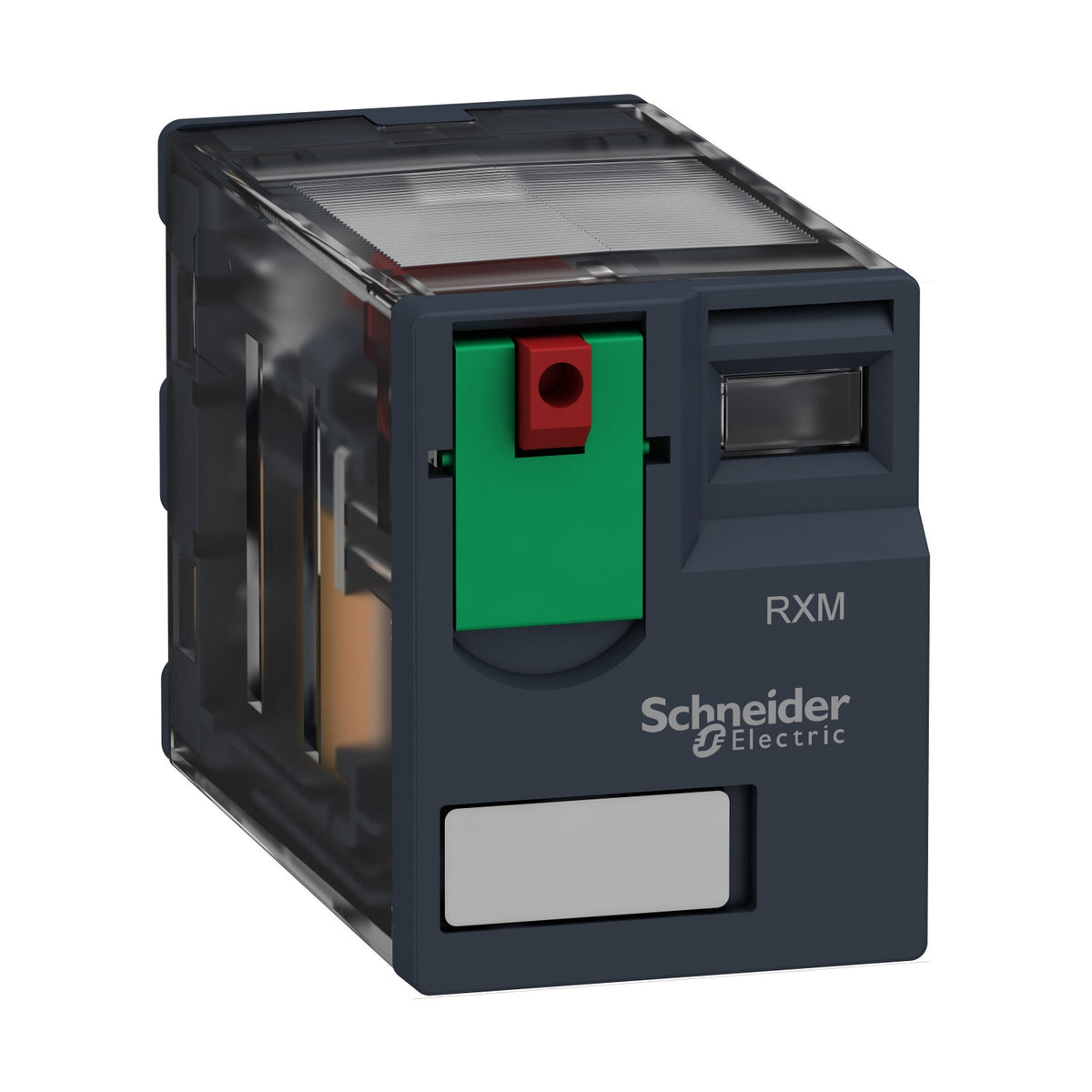

RXM4AB1E7	Miniature plug-in relay, 6 A, 4 CO, 48 V AC	Current: 6 A; Voltage: 48 V AC
RXM4AB2FD	Relay \| Miniature plug-in relay, 6 A, 4 CO, LED, 110 V DC	Current: 6 A; Voltage: 110 V DC
RSB1A160P7	Relay \| Interface plug-in relay, 16 A, 1 CO, 230 V AC	Current: 16 A; Voltage: 230 V AC

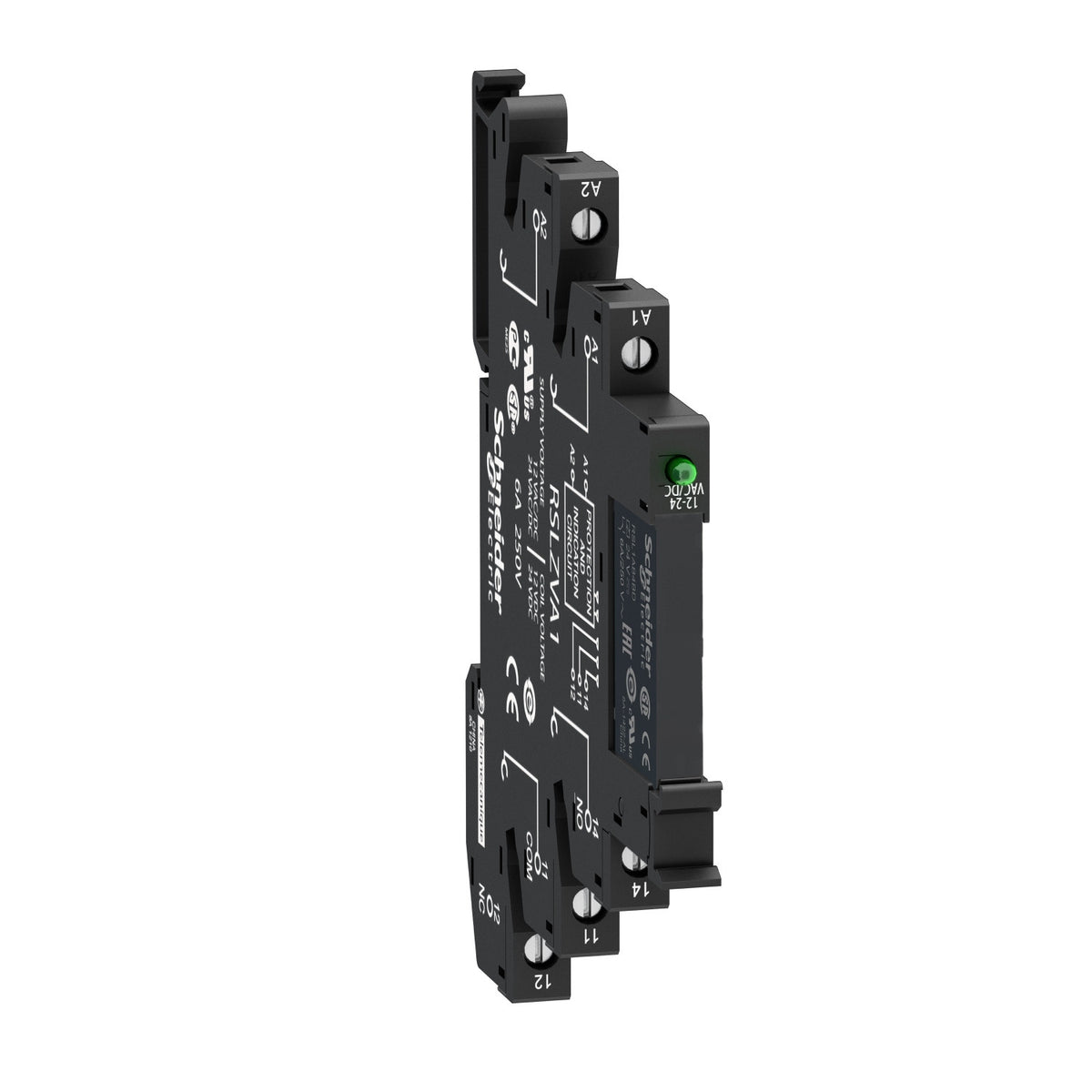

RSL1PVPU	Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, screw connector, 230 V AC	Current: 6 A; Voltage: 230 V AC

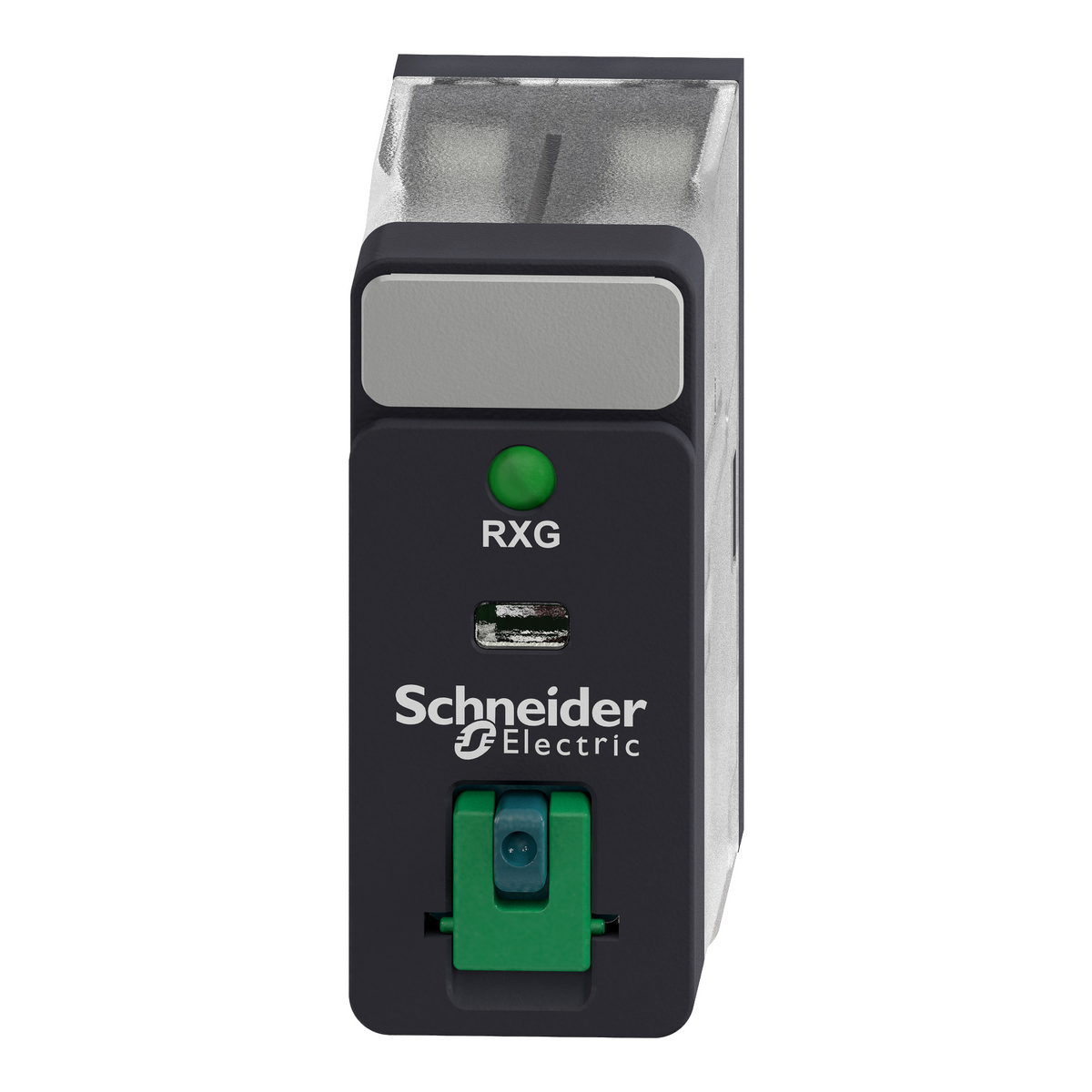

RXG22BD	Interface plug-in relay, 5 A, 2 CO, lockable test button, LED, 24 V DC	Current: 5 A; Voltage: 24 V DC

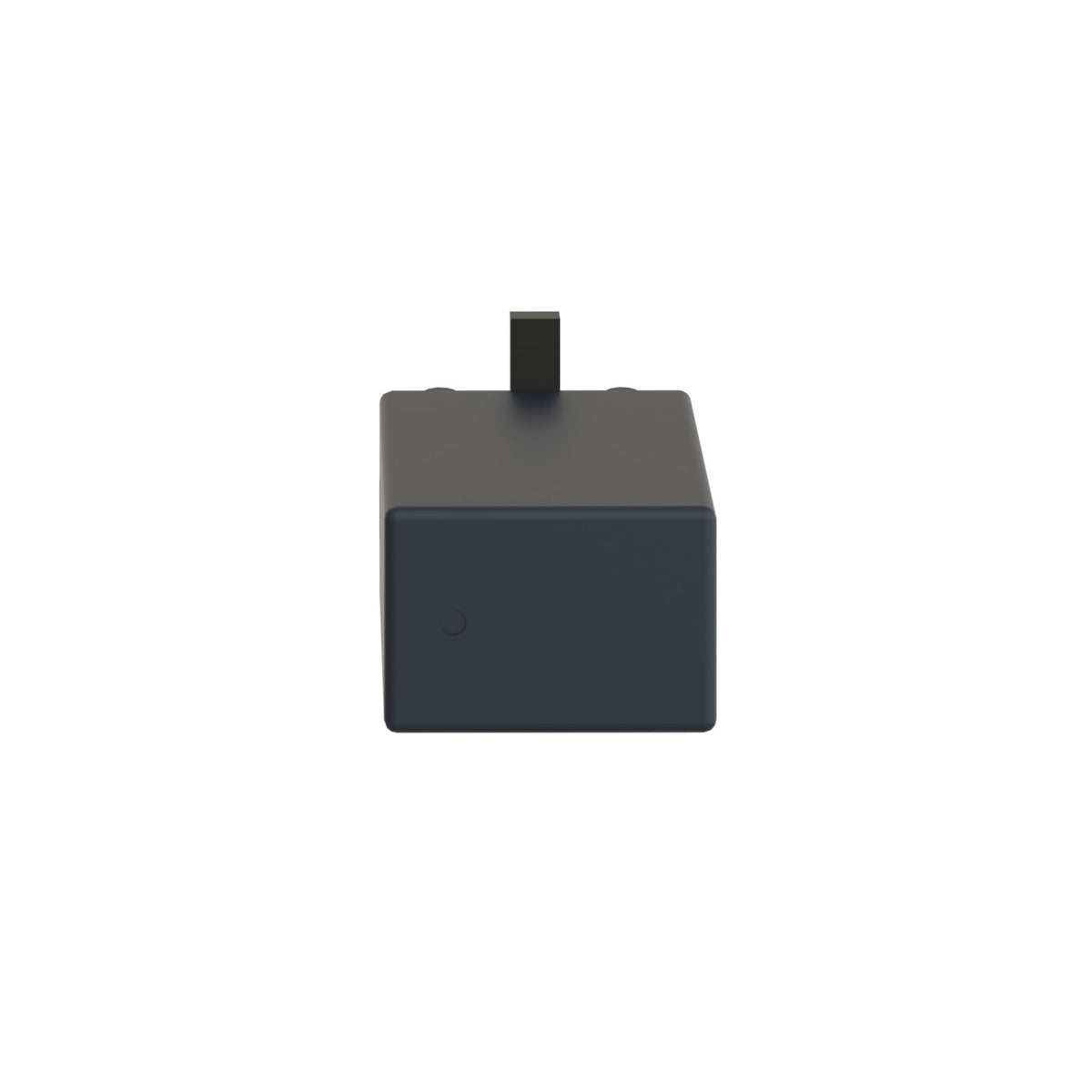

RXM040W	Relay \| Diode for RPZ/RXZ sockets, 6..250 V DC	Voltage: 6..250 V DC
RXM2AB1FD	Relay \| Miniature plug-in relay, 12 A, 2 CO, 110 V DC	Current: 12 A; Voltage: 110 V DC
RXM2AB1JD	Relay \| Miniature plug-in relay, 12 A, 2 CO, 12 V DC	Current: 12 A; Voltage: 12 V DC
RXM2AB2BD	Relay \| Miniature plug-in relay, 12 A, 2 CO, LED, 24 V DC	Current: 12 A; Voltage: 24 V DC
RXM2AB2P7	Miniature plug-in relay, 12 A, 2 CO, LED, 230 V AC	Current: 12 A; Voltage: 230 V AC

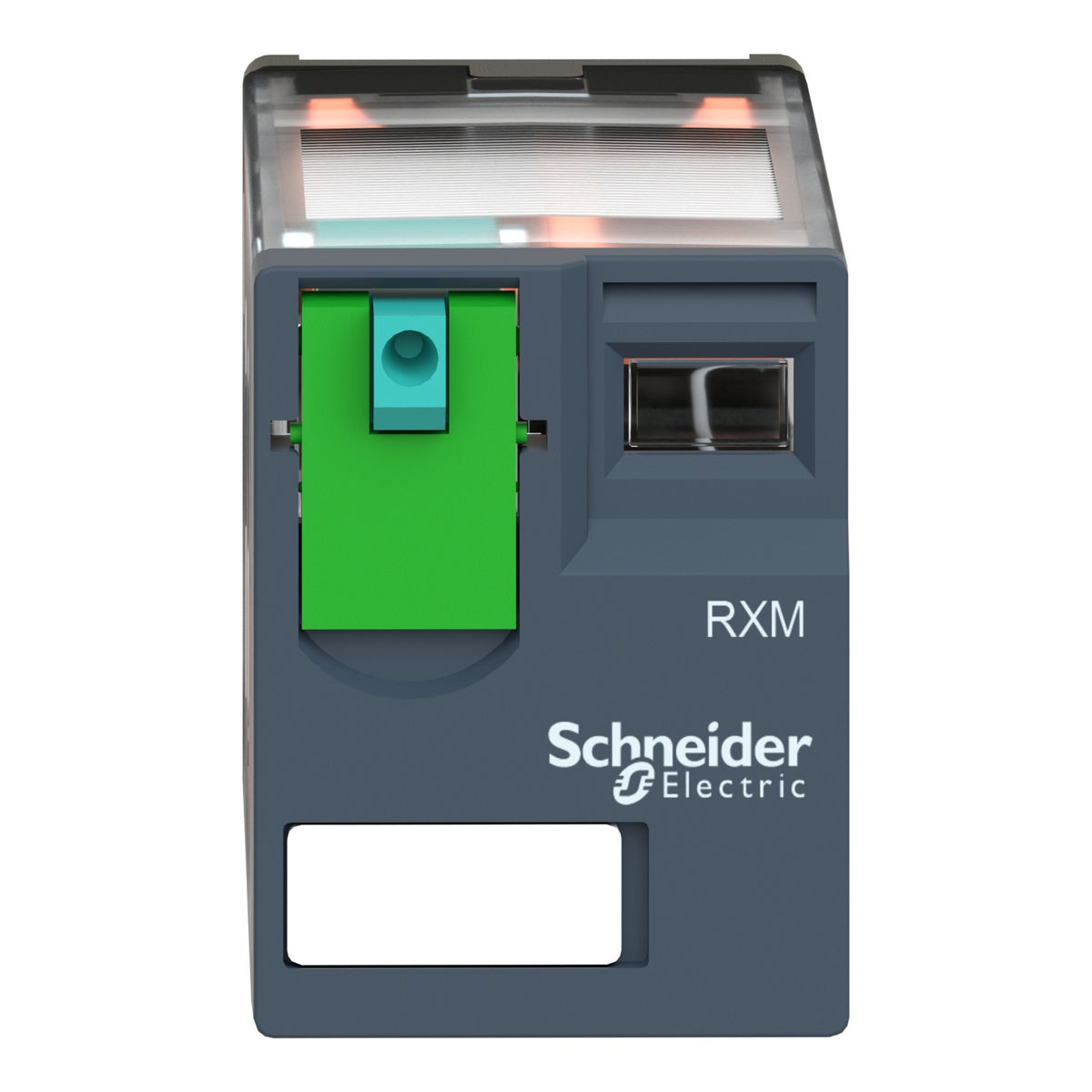

RXM3AB1ED	Relay \| Miniature plug-in relay, 10 A, 3 CO, 48 V DC	Current: 10 A; Voltage: 48 V DC

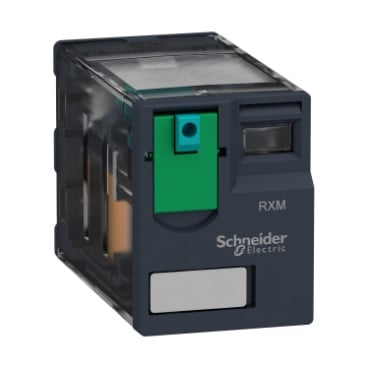

RXM4AB1MD	Relay \| Miniature plug-in relay, 6 A, 4 CO, 220 V DC	Current: 6 A; Voltage: 220 V DC
RXM4AB2BD	Relay \| Miniature plug-in relay, 6 A, 4 CO, LED, 24 V DC	Current: 6 A; Voltage: 24 V DC
RXM4AB2ED	Relay \| Miniature plug-in relay, 6 A, 4 CO, LED, 48 V DC	Current: 6 A; Voltage: 48 V DC

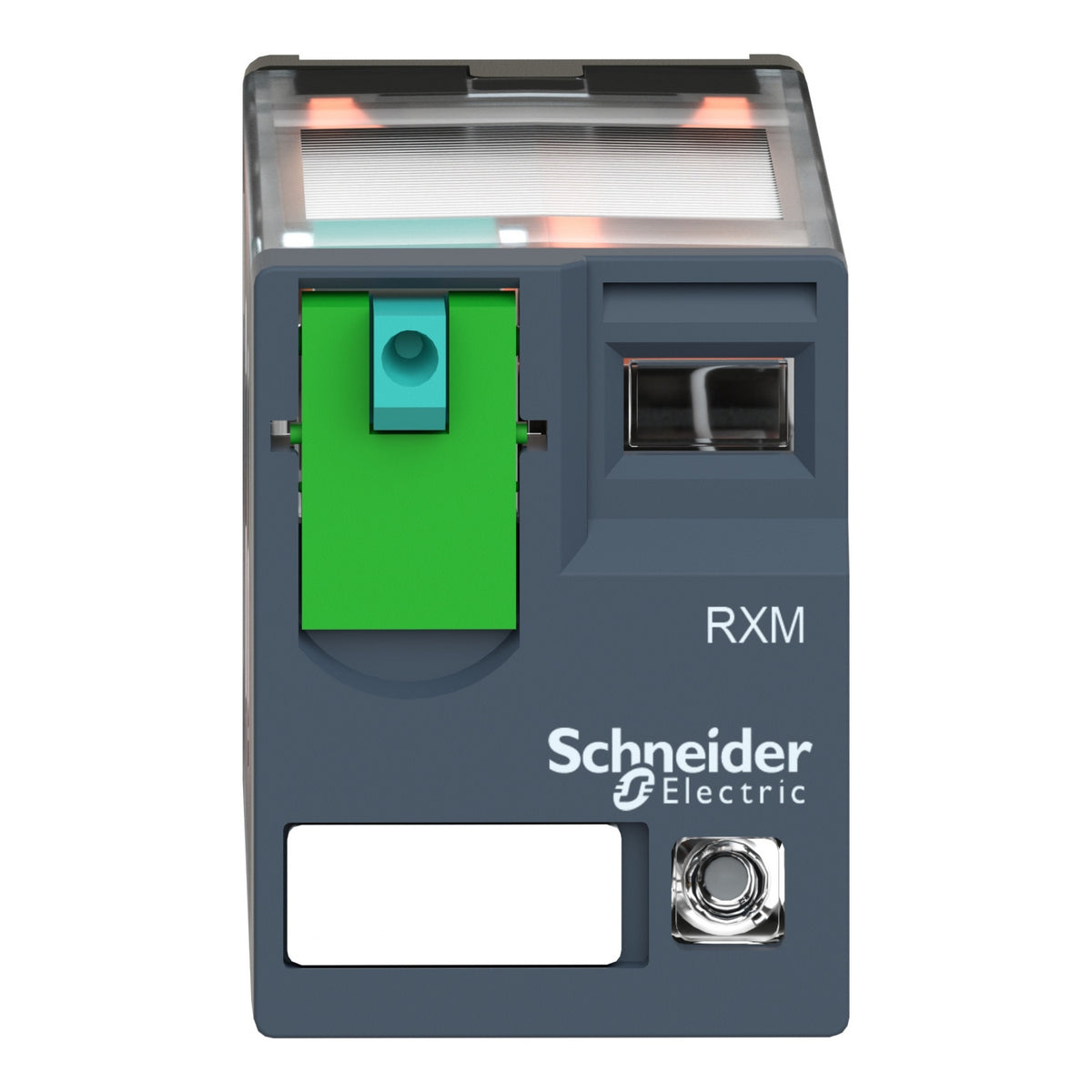

RXM4AB2JD	Relay \| Miniature plug-in relay, 6 A, 4 CO, LED, 12 V DC	Current: 6 A; Voltage: 12 V DC

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
