Schneider Electric

Schneider Electric ComPacT NSX Molded Case Circuit Breakers MCCB

Schneider Electric ComPacT NSX Molded Case Circuit Breakers MCCB

LE 150,072.61 EGP
LE 150,072.61 EGP
Sale Sold out
Taxes included.
Model and rating

Schneider Electric ComPacT NSX Molded Case Circuit Breakers MCCB

Select a molded case circuit breaker for the main incomer, outgoing feeder or distribution panel. The frame, rated current, number of protected poles, trip unit and breaking capacity must all suit the installation.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number Designation Electrical ratings

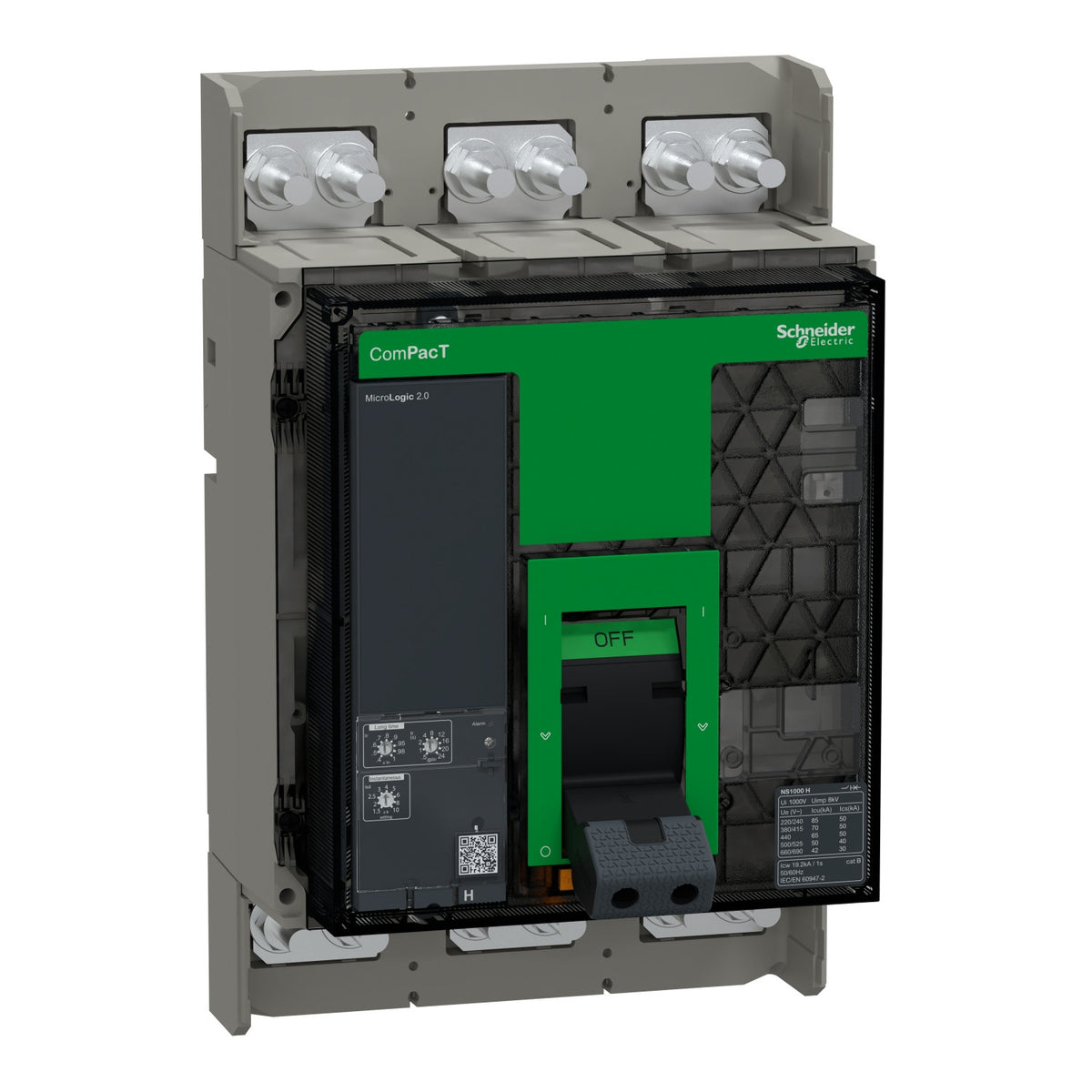

C100H320FM Circuit breaker, ComPacT NS1000H, 70kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A Current: 1000A; Voltage: 415VAC; Poles: 3P; Breaking capacity: 70kA
C100N320FM Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A Current: 1000A; Voltage: 415VAC; Poles: 3P; Breaking capacity: 50kA
LV430470 trip unit MicroLogic 2.2 for ComPact NSX 160/250 circuit breakers, electronic, rating 160A, 3 poles 3d Current: 160A; Poles: 3 poles

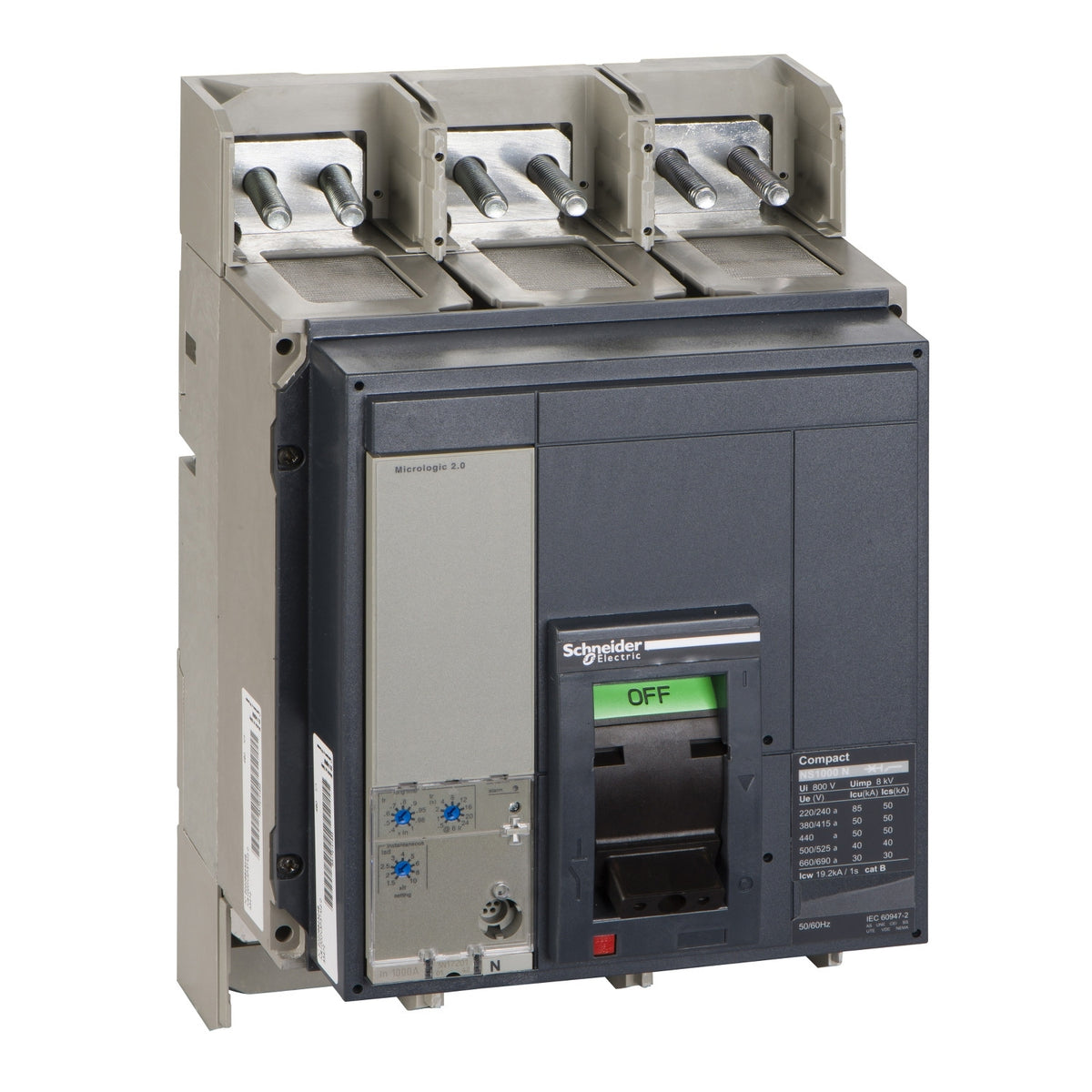

33472 Circuit breaker, ComPact NS1000N, 50kA/415VAC, Micrologic 2.0 trip unit, 1000A, fixed, 3 poles 3d Current: 1000A; Voltage: 415VAC; Poles: 3 poles; Breaking capacity: 50kA

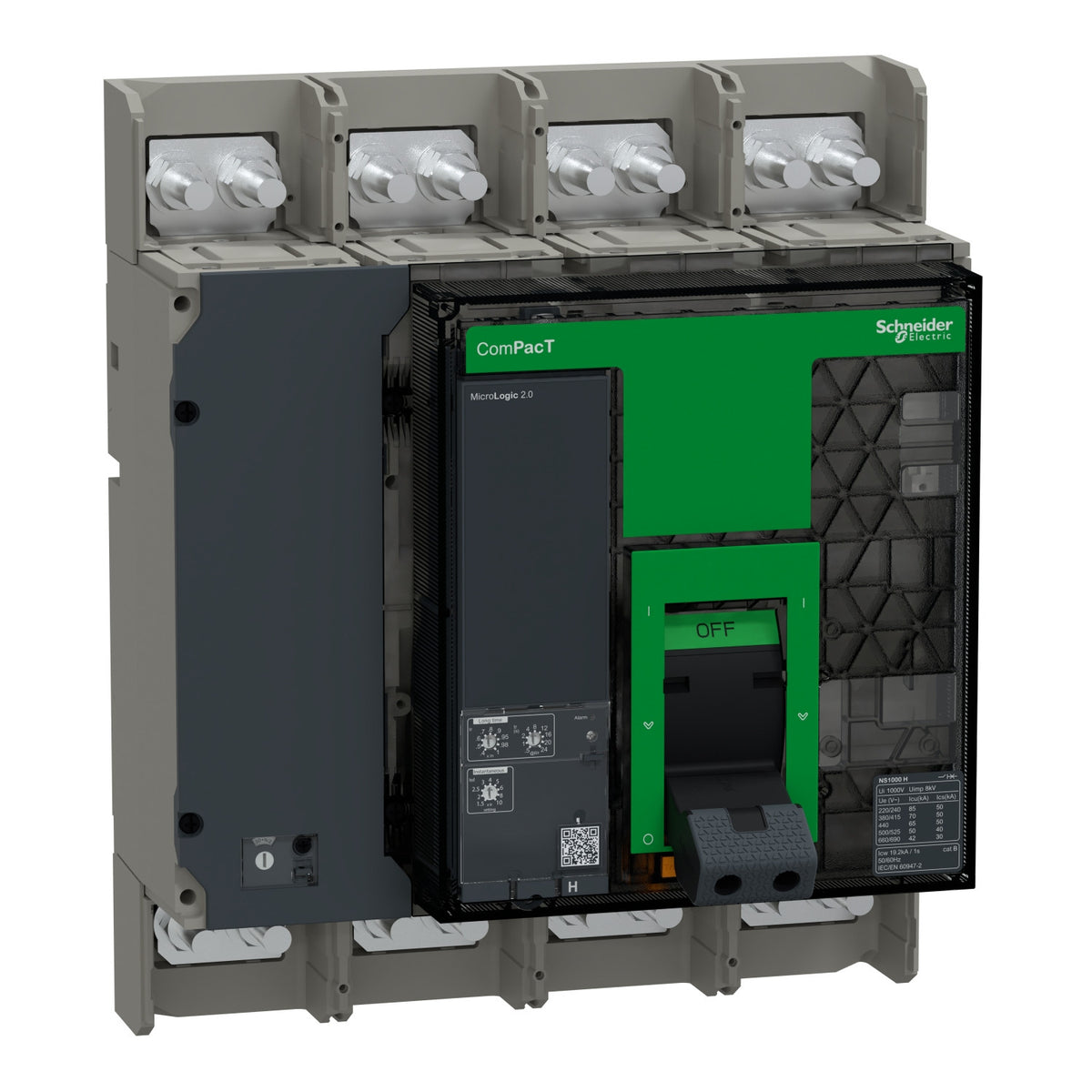

C100H420FM Circuit breaker, ComPacT NS1000H, 70kA at 415VAC, 4P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A Current: 1000A; Voltage: 415VAC; Poles: 4P; Breaking capacity: 70kA

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
