Schneider Electric TeSys K Motor Contactors

Switch motor or power circuits using the model with the correct utilization category, rated current and coil supply. AC-1, AC-3 and AC-3e ratings are not interchangeable; use the rating for the actual load.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings
LC1K0601M7	TeSys K contactor – 3P – AC-3 <= 440 V 6 A – 1 NC aux. – 220…230 V AC coil	Current: 6 A; Voltage: 440 V, 220..230 V AC; Poles: 3P; Contacts: 1 NC

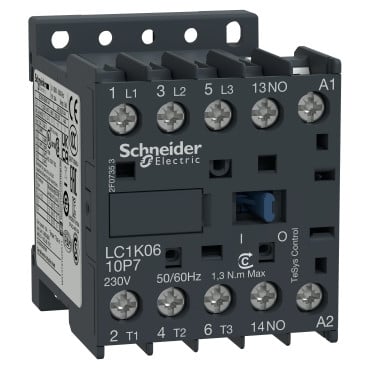

LC1K0610B7	Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 6A, 1 NO aux., 24VAC coil	Current: 6A; Voltage: 440V, 24VAC; Poles: 3P; Contacts: 1 NO
LC1K0901M7	TeSys K contactor – 3P – AC-3 <= 440 V 9 A – 1 NC aux. – 220…230 V AC coil	Current: 9 A; Voltage: 440 V, 220..230 V AC; Poles: 3P; Contacts: 1 NC
LC1K1210M7	TeSys K contactor – 3P – AC-3 <= 440 V 12 A – 1 NO aux. – 220…230 V AC coil	Current: 12 A; Voltage: 440 V, 220..230 V AC; Poles: 3P; Contacts: 1 NO
LC1K1601M7	TeSys K contactor – 3P – AC-3 <= 440 V 16 A – 1 NC aux. – 220…230 V AC coil	Current: 16 A; Voltage: 440 V, 220..230 V AC; Poles: 3P; Contacts: 1 NC
LC1K1610M7	TeSys K contactor – 3P – AC-3 <= 440 V 16 A – 1 NO aux. – 220…230 V AC coil	Current: 16 A; Voltage: 440 V, 220..230 V AC; Poles: 3P; Contacts: 1 NO
LP1K0601BD	TeSys K contactor – 3P – AC-3 <= 440 V 6 A – 1 NC aux. – 24 V DC coil	Current: 6 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NC
LP1K0610BD	TeSys K contactor – 3P – AC-3 <= 440 V 6 A – 1 NO aux. – 24 V DC coil	Current: 6 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NO
LP1K0910BD	TeSys K contactor – 3P – AC-3 <= 440 V 9 A – 1 NO aux. – 24 V DC coil	Current: 9 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NO

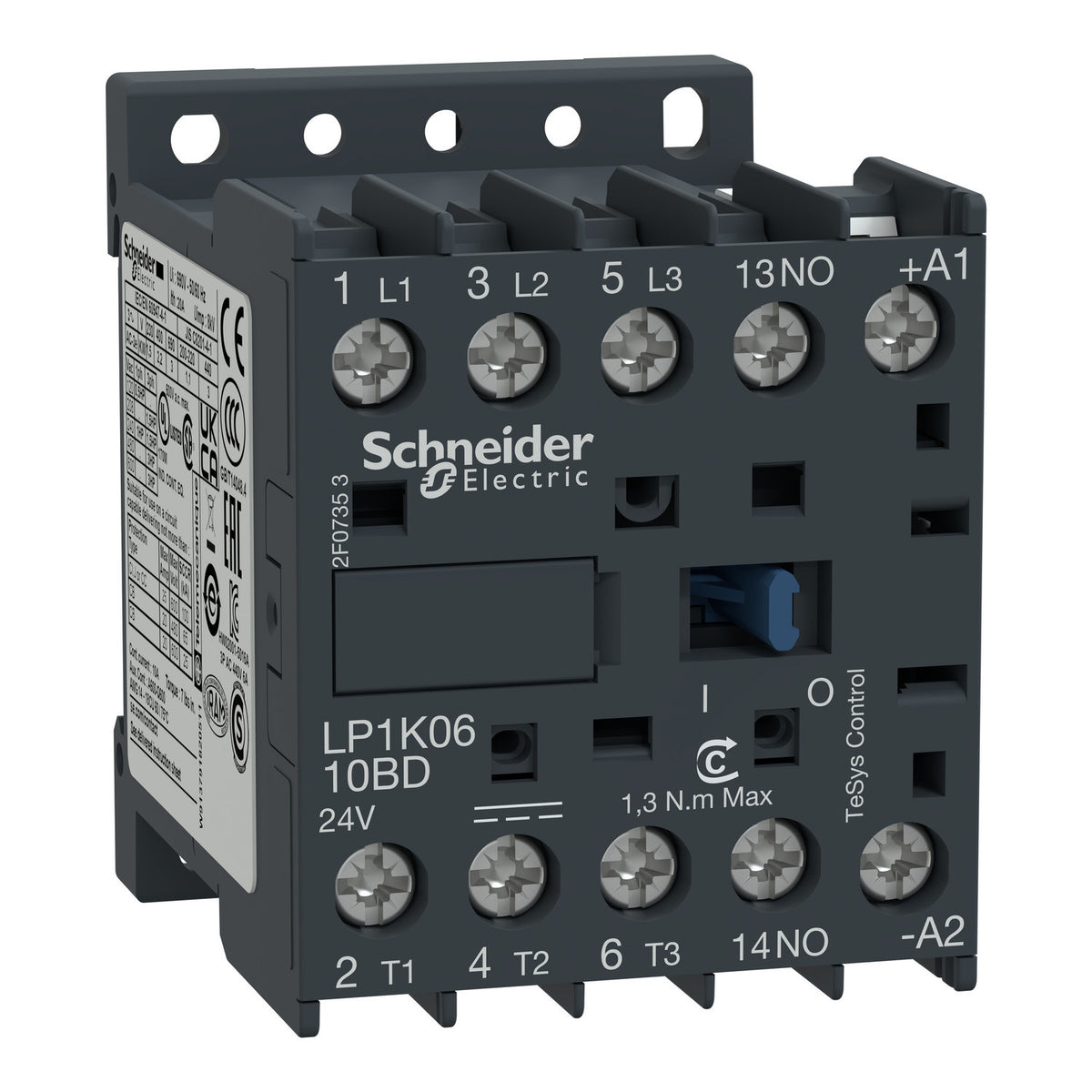

LP1K1210BD	TeSys K contactor – 3P – AC-3 <= 440 V 12 A – 1 NO aux. – 24 V DC coil	Current: 12 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NO
LP2K0910BD	TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 24 V DC coil	Current: 9 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NO
LC1K0610M7	TeSys K contactor – 3P – AC-3 <= 440 V 6 A – 1 NO aux. – 220…230 V AC coil	Current: 6 A; Voltage: 440 V, 220..230 V AC; Poles: 3P; Contacts: 1 NO
LC2K0910B7	TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 24 V AC coil	Current: 9 A; Voltage: 440 V, 24 V AC; Poles: 3P; Contacts: 1 NO

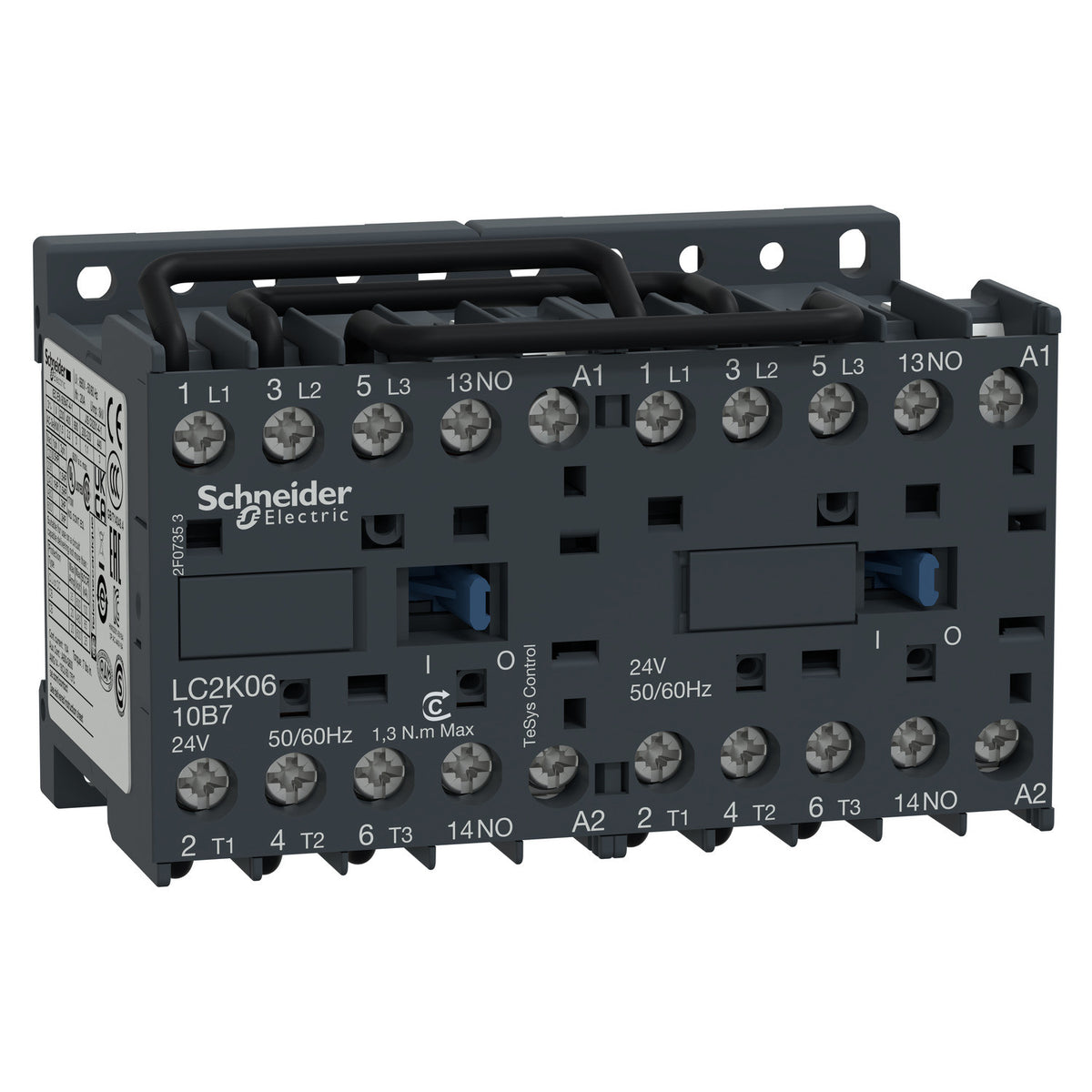

LC2K0910M7	TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 220…230 VAC coil	Current: 9 A; Voltage: 440 V, 220..230 VAC; Poles: 3P; Contacts: 1 NO
LP1K0901BD	TeSys K contactor – 3P – AC-3 <= 440 V 9 A – 1 NC aux. – 24 V DC coil	Current: 9 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NC
LP1K1201BD	TeSys K contactor – 3P – AC-3 <= 440 V 12 A – 1 NC aux. – 24 V DC coil	Current: 12 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 1 NC

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
