Schneider Electric TeSys F Motor Contactors
Switch motor or power circuits using the model with the correct utilization category, rated current and coil supply. AC-1, AC-3 and AC-3e ratings are not interchangeable; use the rating for the actual load.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

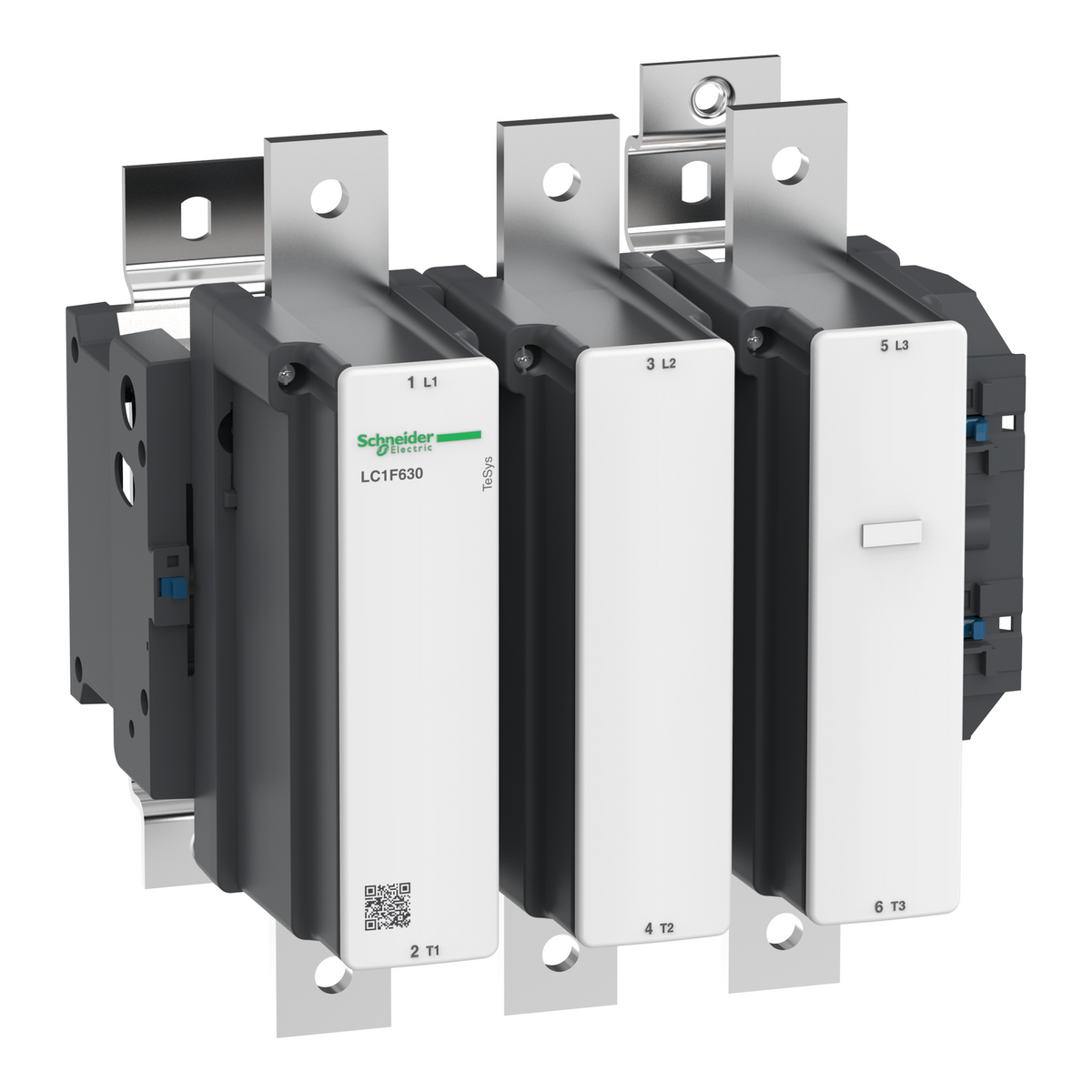

| LC1F630M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 630 A – coil 220 V AC | Current: 630 A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO |
| LC1F330M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 330 A – coil 220 V AC | Current: 330 A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO |
| LC1F400M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 400 A – coil 220 V AC | Current: 400 A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO |

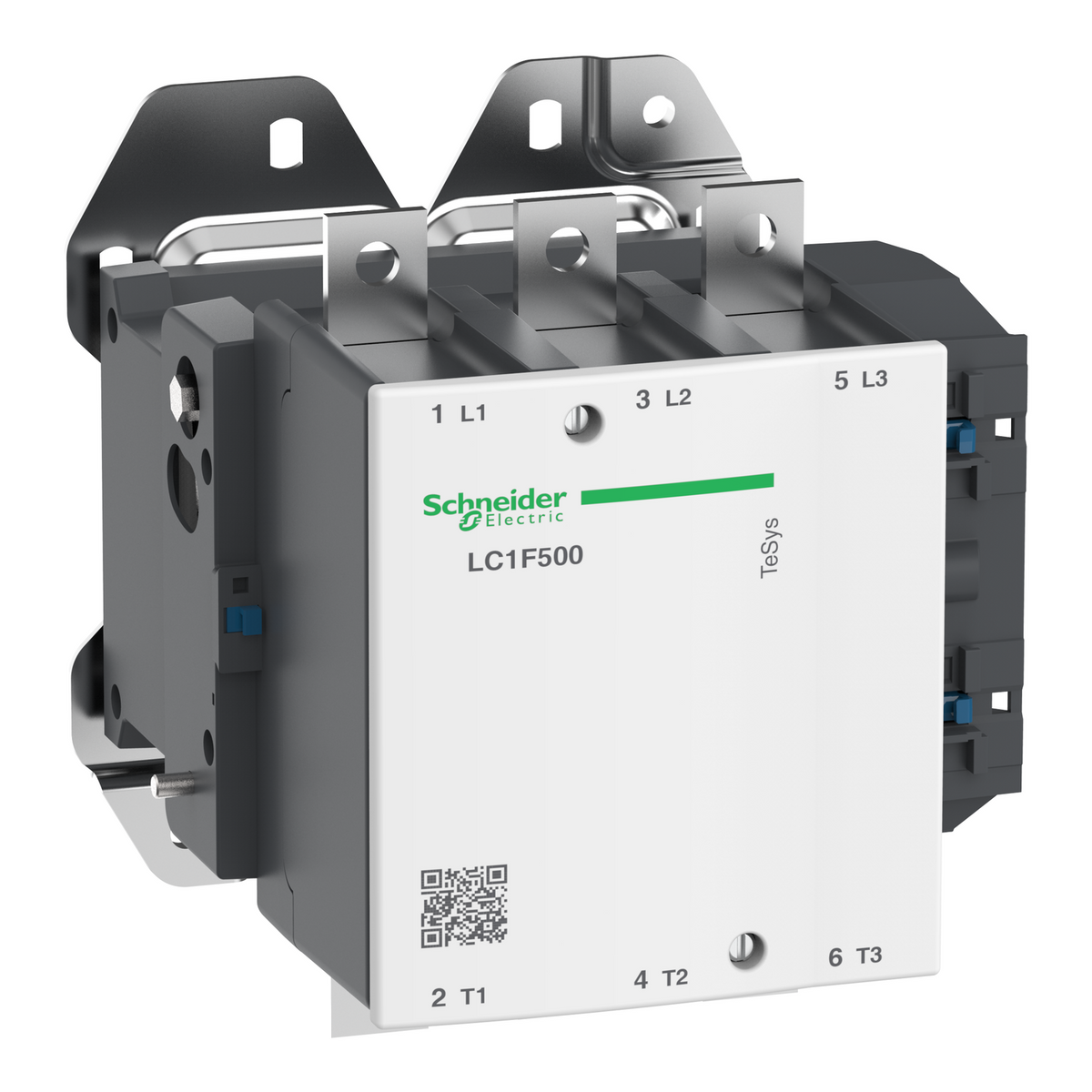

| LC1F500M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 500 A – coil 220 V AC | Current: 500 A; Voltage: 440 V, 220 V AC; Poles: 3P; Contacts: 3 NO |
| LC1F800MW | Contactor,TeSys F,3P (3 NO),AC-3,<= 440 V 800 A,coil 220-240V AC/220-230V DC | Current: 800 A; Voltage: 440 V, 220-240V AC, 220-230V DC; Poles: 3P; Contacts: 3 NO |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
