Schneider Electric TeSys Deca Motor Contactors
Schneider Electric TeSys Deca Motor Contactors
Couldn't load pickup availability
Schneider Electric TeSys Deca Motor Contactors
Switch motor or power circuits using the model with the correct utilization category, rated current and coil supply. AC-1, AC-3 and AC-3e ratings are not interchangeable; use the rating for the actual load.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

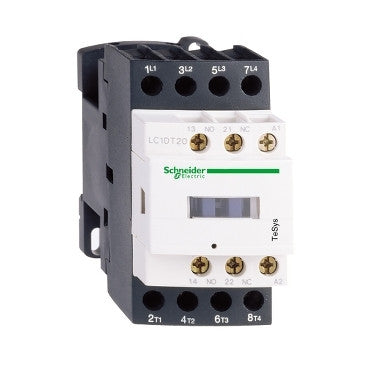

| LC1D128Q7 | TeSys Deca contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A – 380 V AC coil | Current: 25 A; Voltage: 440 V, 380 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |

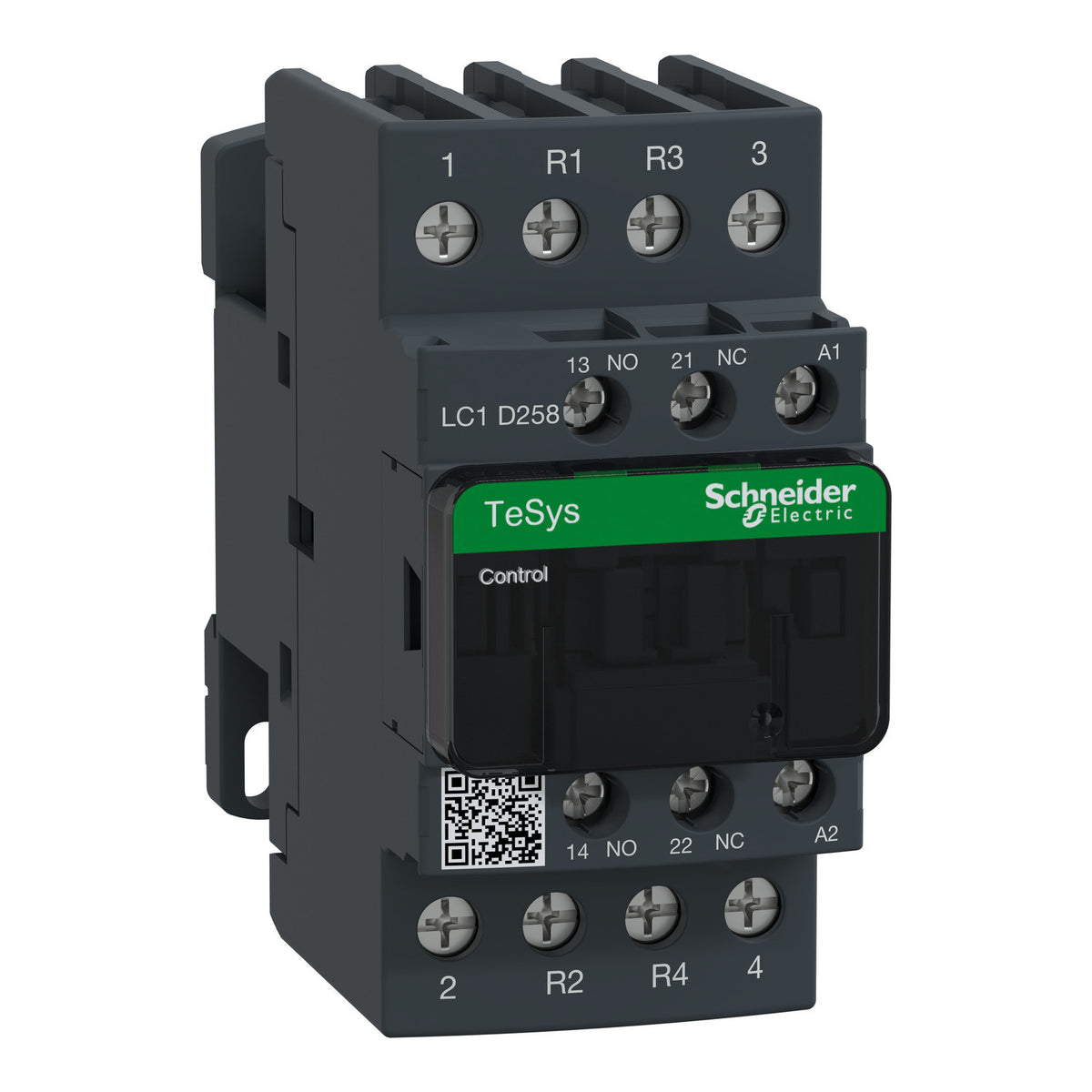

| LC1D258Q7 | Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 40A, 380V AC 50/60Hz coil, screw clamp terminal | Current: 40A; Voltage: 440V, 380V AC; Poles: 4P; Contacts: 2NO+2NC |

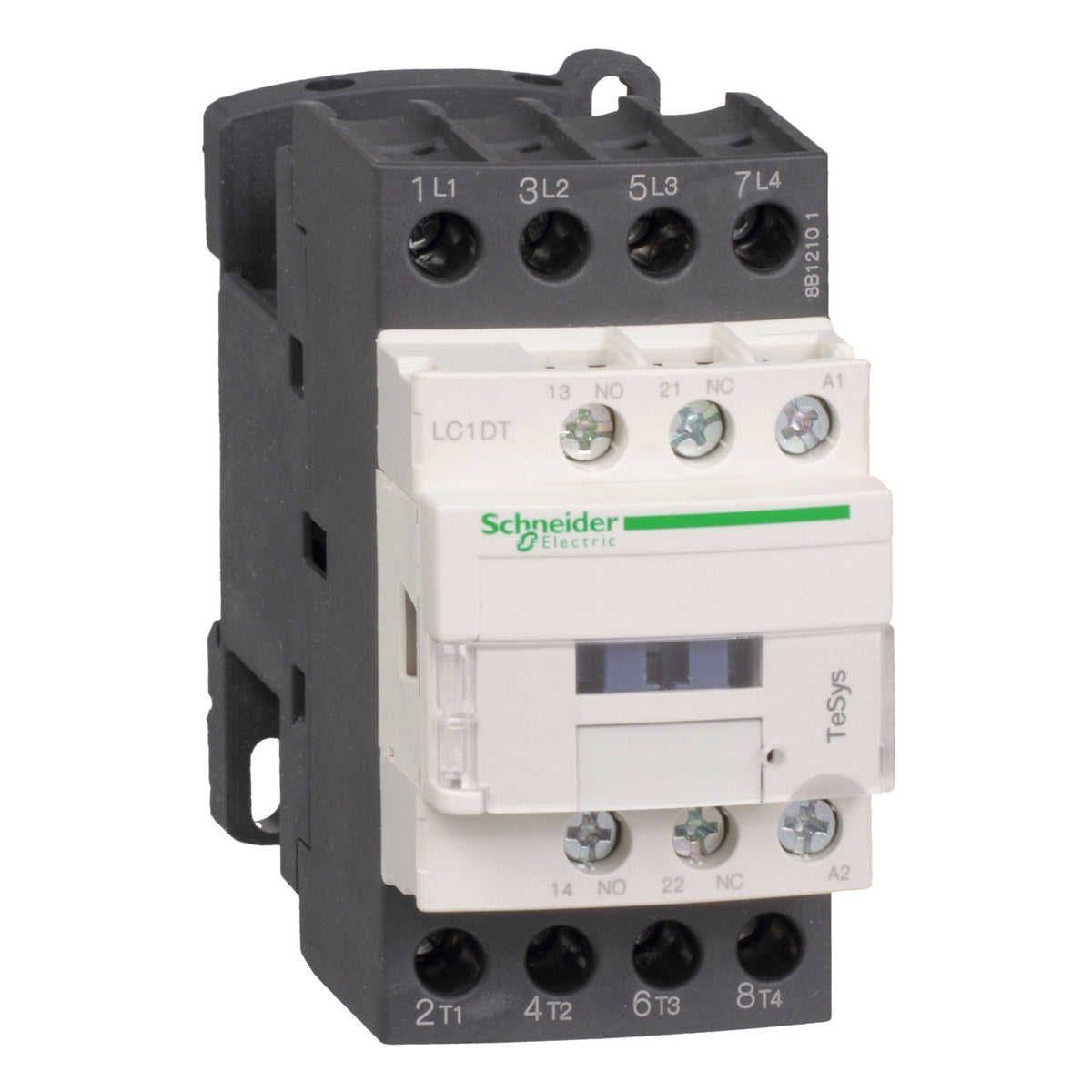

| LC1DT32Q7 | Contactor, TeSys Deca, 4P(4 NO), AC-1, <=440V, 32A, 380V AC 50/60Hz coil, screw clamp terminal | Current: 32A; Voltage: 440V, 380V AC; Poles: 4P; Contacts: 4 NO |

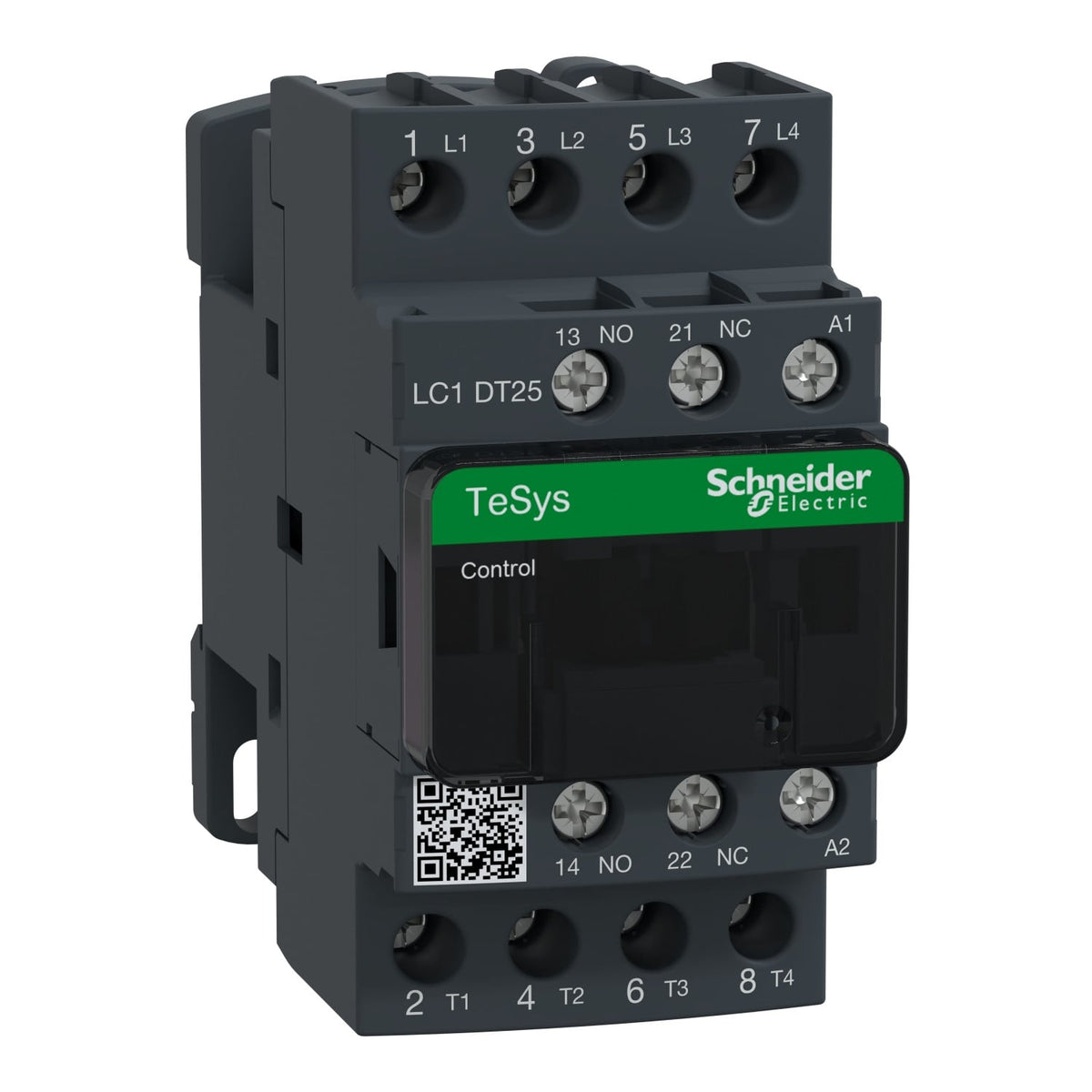

| LC1DT40B7 | IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 24VAC 50/60Hz coil, open style | Current: 40A; Voltage: 24VAC; Poles: 4 pole; Contacts: 4 NO |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
