Schneider Electric TeSys D Motor Contactors
Schneider Electric TeSys D Motor Contactors
Regular price
LE 2,046.33 EGP
Regular price
Sale price
LE 2,046.33 EGP
Taxes included.
Quantity
Couldn't load pickup availability
Schneider Electric TeSys D Motor Contactors
Switch motor or power circuits using the model with the correct utilization category, rated current and coil supply. AC-1, AC-3 and AC-3e ratings are not interchangeable; use the rating for the actual load.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

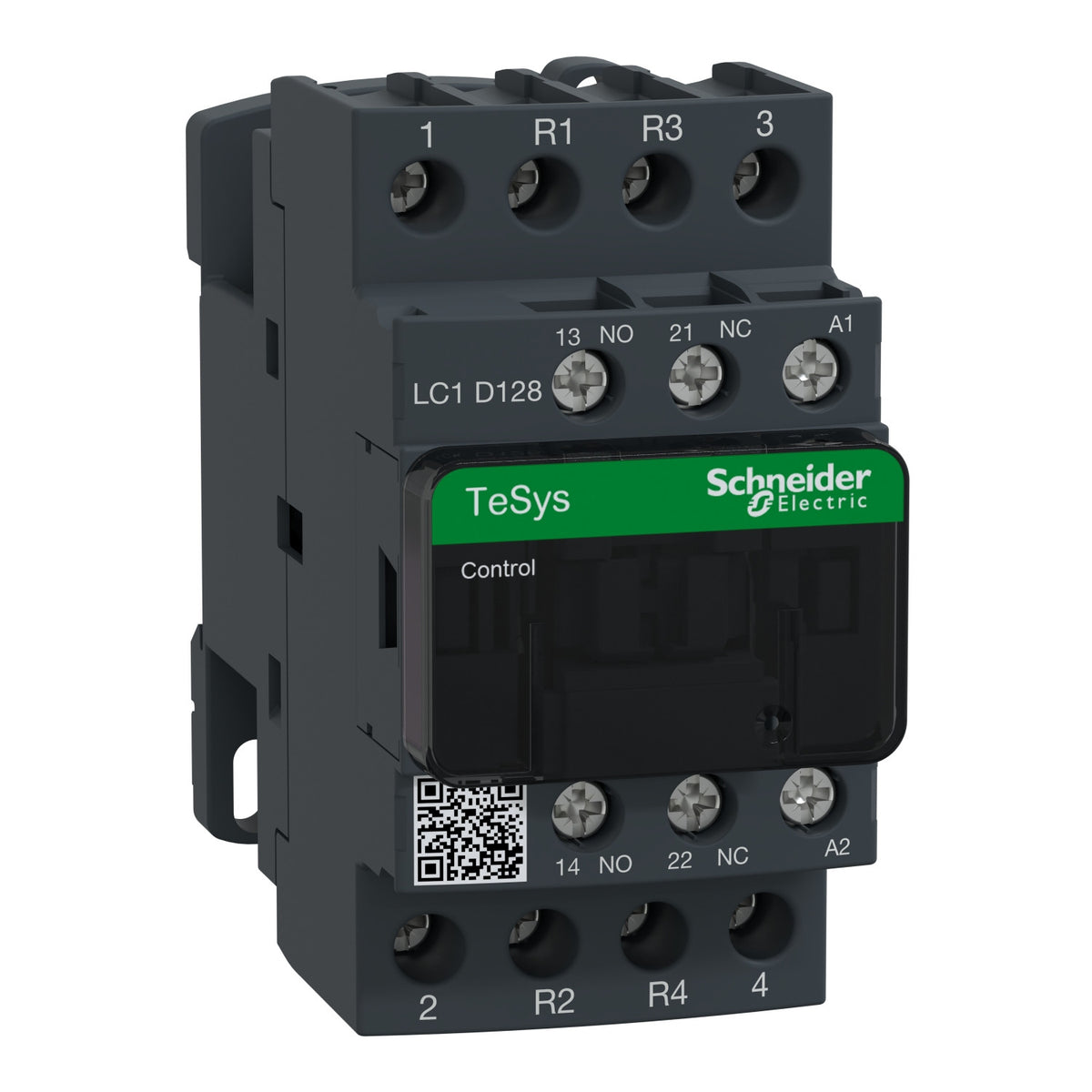

| LC1D128M7 | Contactor | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A – 220 V AC coil | Current: 25 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |
| LC1D80B7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A – 24 V AC 50/60 Hz coil | Current: 80 A; Voltage: 440 V, 24 V AC; Poles: 3P; Contacts: 3 NO |

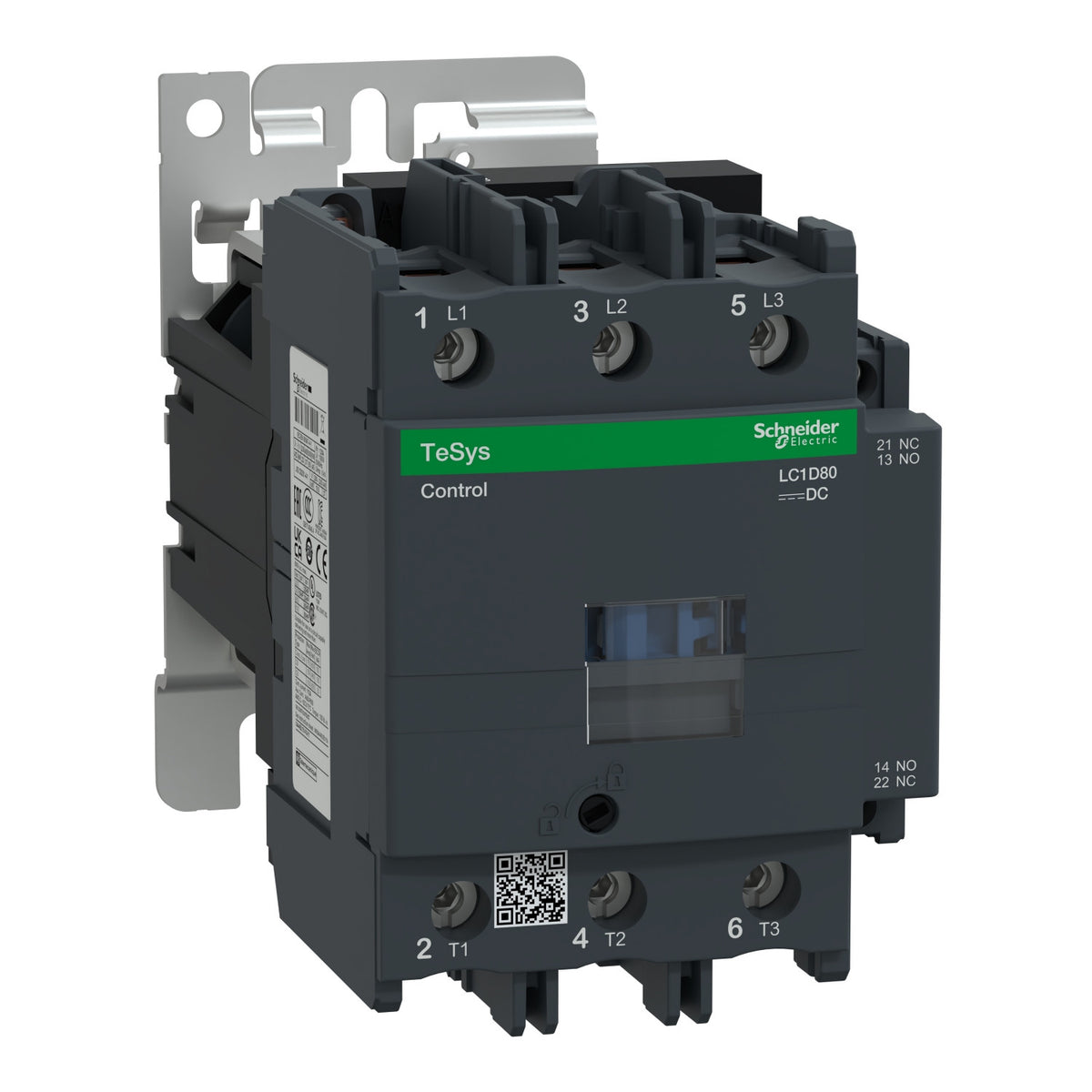

| LC1D80BD | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A – 24 V DC standard coil | Current: 80 A; Voltage: 440 V, 24 V DC; Poles: 3P; Contacts: 3 NO |
| LC1D80F7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A – 110 V AC 50/60 Hz coil | Current: 80 A; Voltage: 440 V, 110 V AC; Poles: 3P; Contacts: 3 NO |
| LC1D128B7 | Contactor | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A – 24 V AC coil | Current: 25 A; Voltage: 440 V, 24 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |
| LC1D128E7 | Contactor | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A – 48 V AC coil | Current: 25 A; Voltage: 440 V, 48 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |
| LC1D128F7 | Contactor | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 25 A – 110 V AC coil | Current: 25 A; Voltage: 440 V, 110 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |

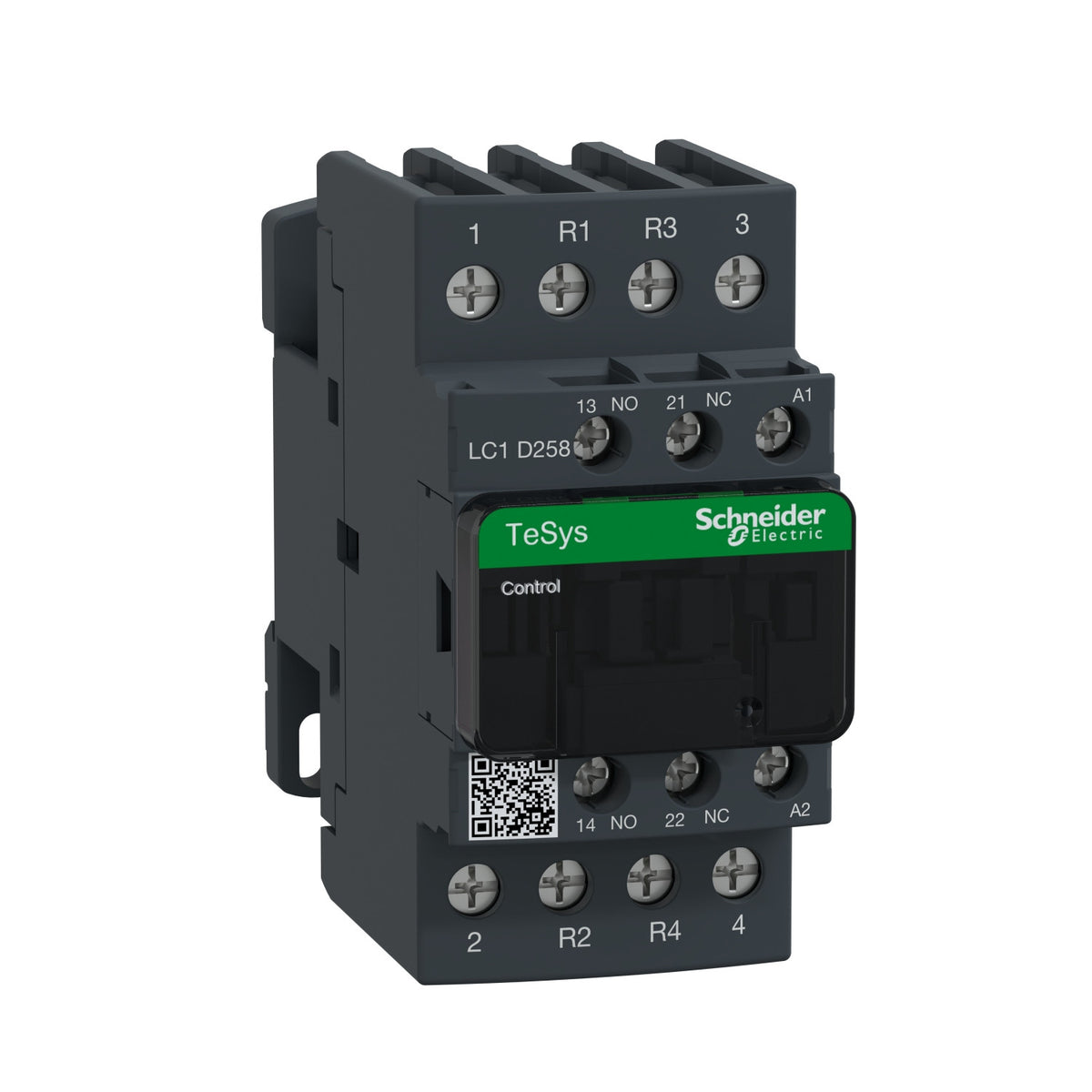

| LC1D258B7 | Contactor | TeSys D- 4P(2 NO + 2 NC) – AC-1 – <= 440 V 40 A – 24 V AC coil | Current: 40 A; Voltage: 440 V, 24 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |

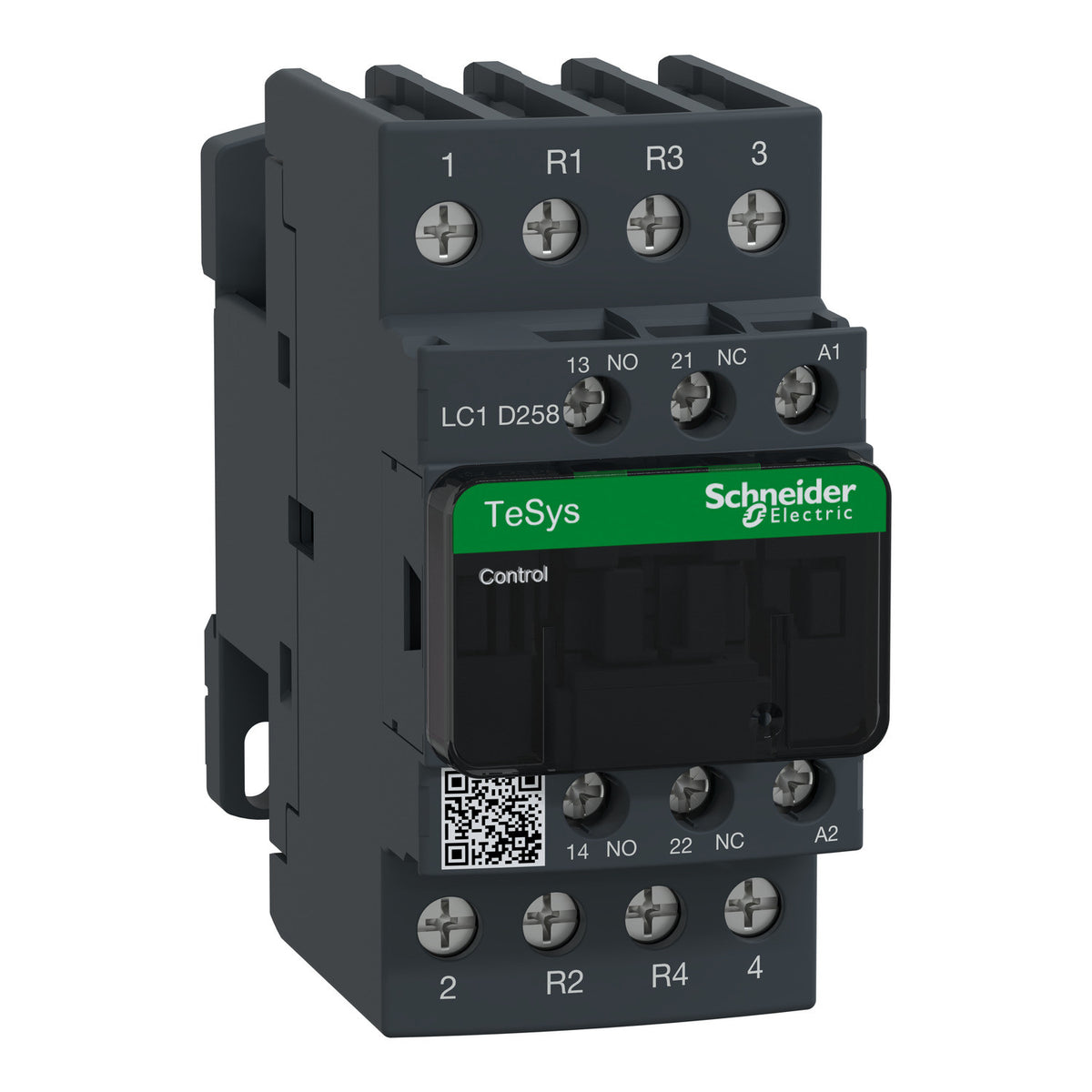

| LC1D258F7 | Contactor | TeSys D – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 40 A – 110 V AC coil | Current: 40 A; Voltage: 440 V, 110 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |

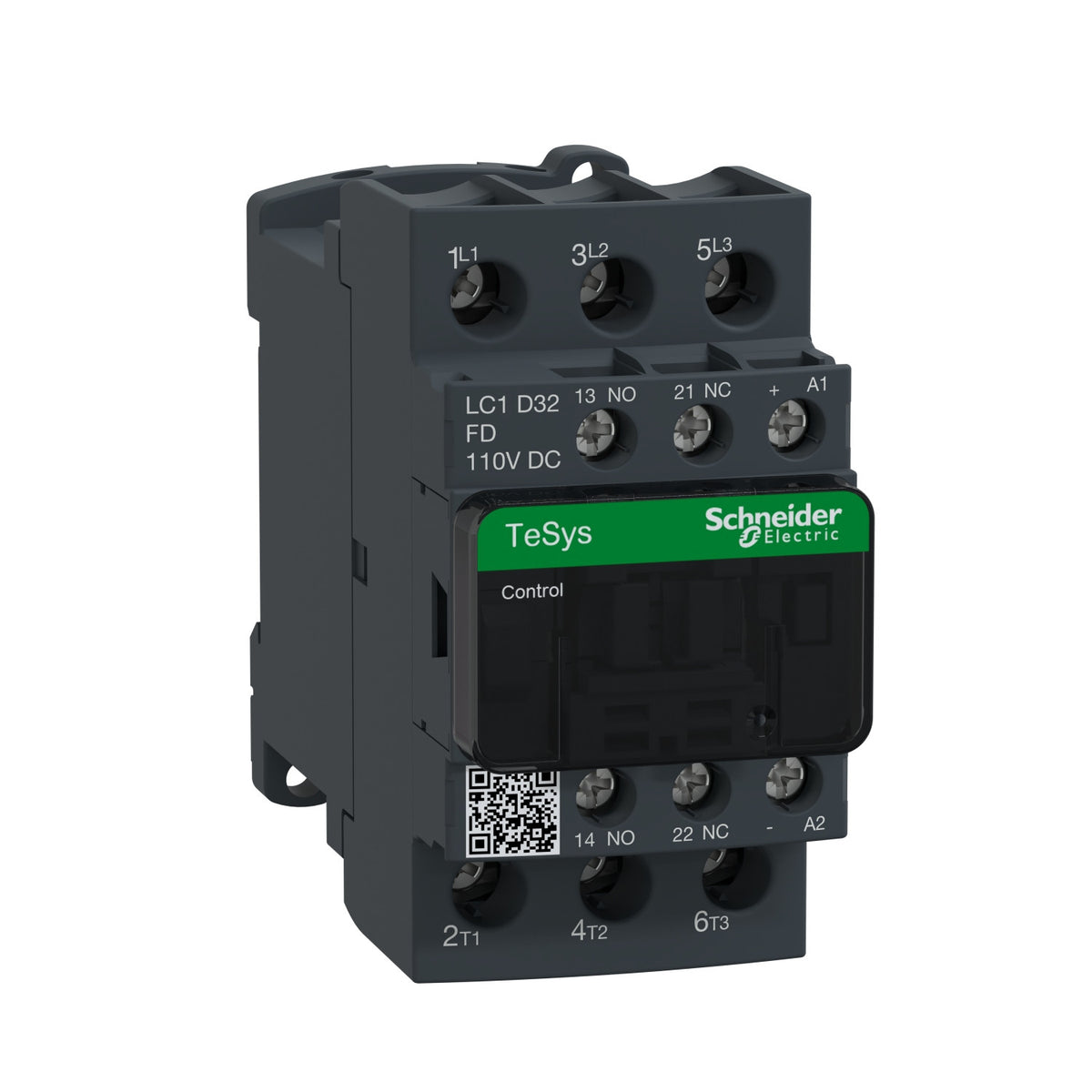

| LC1D32FD | Contactor | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 32 A – 110 V DC coil | Current: 32 A; Voltage: 440 V, 110 V DC; Poles: 3P; Contacts: 3 NO |
| LC1D40004P7 | Contactor | TeSys LC1-D – 4 poles – AC-1 440V 60 A – coil 230 V AC | Current: 60 A; Voltage: 440V, 230 V AC; Poles: 4 poles |
| LC1D65008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 80 A 220 V AC 50/60 Hz coil | Current: 80 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |

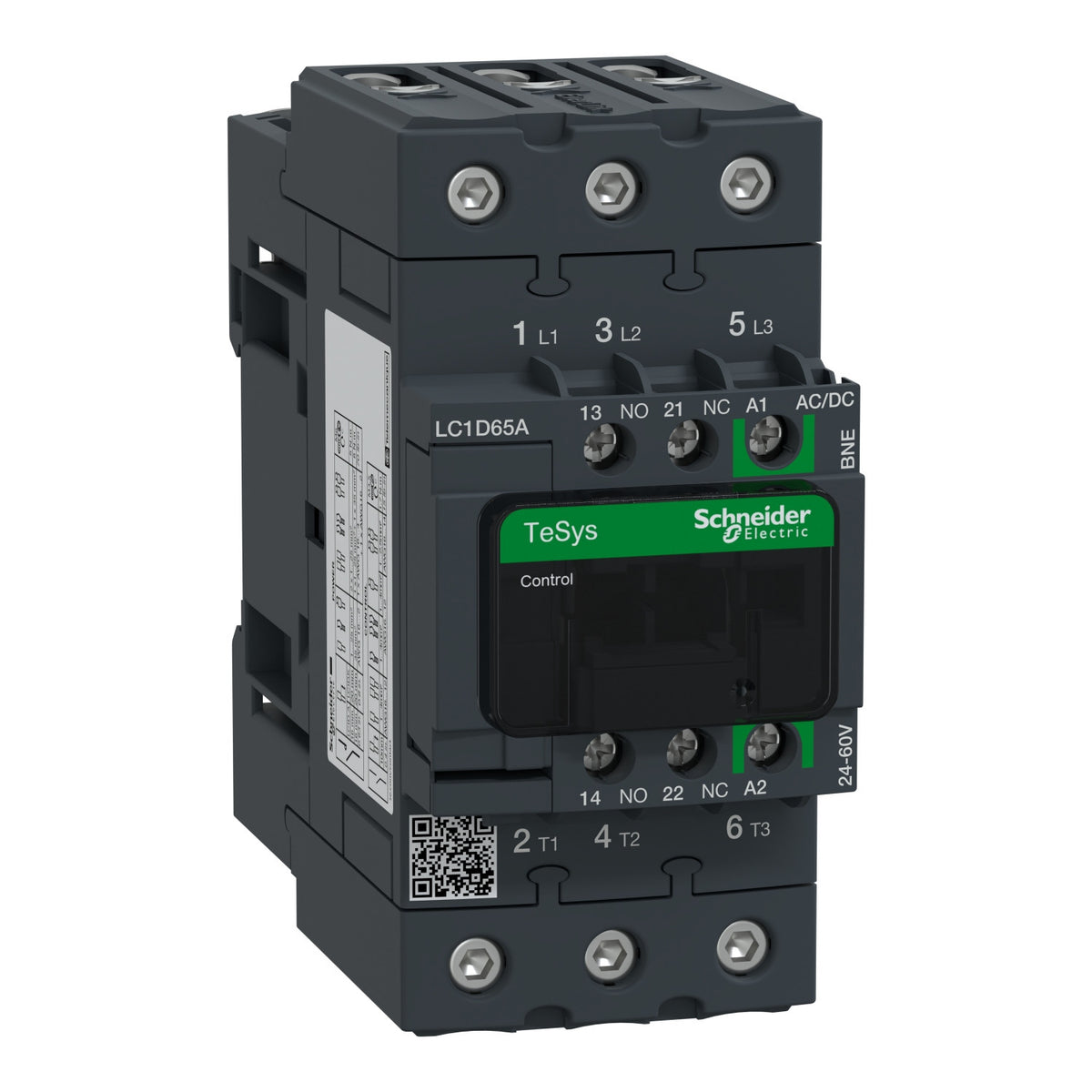

| LC1D65ABNE | TeSys D contactor 3P 65A AC-3 up to 440V coil 24-60V AC/DC coil EverLink | Current: 65A; Voltage: 440V, 24-60V AC/DC; Poles: 3P |

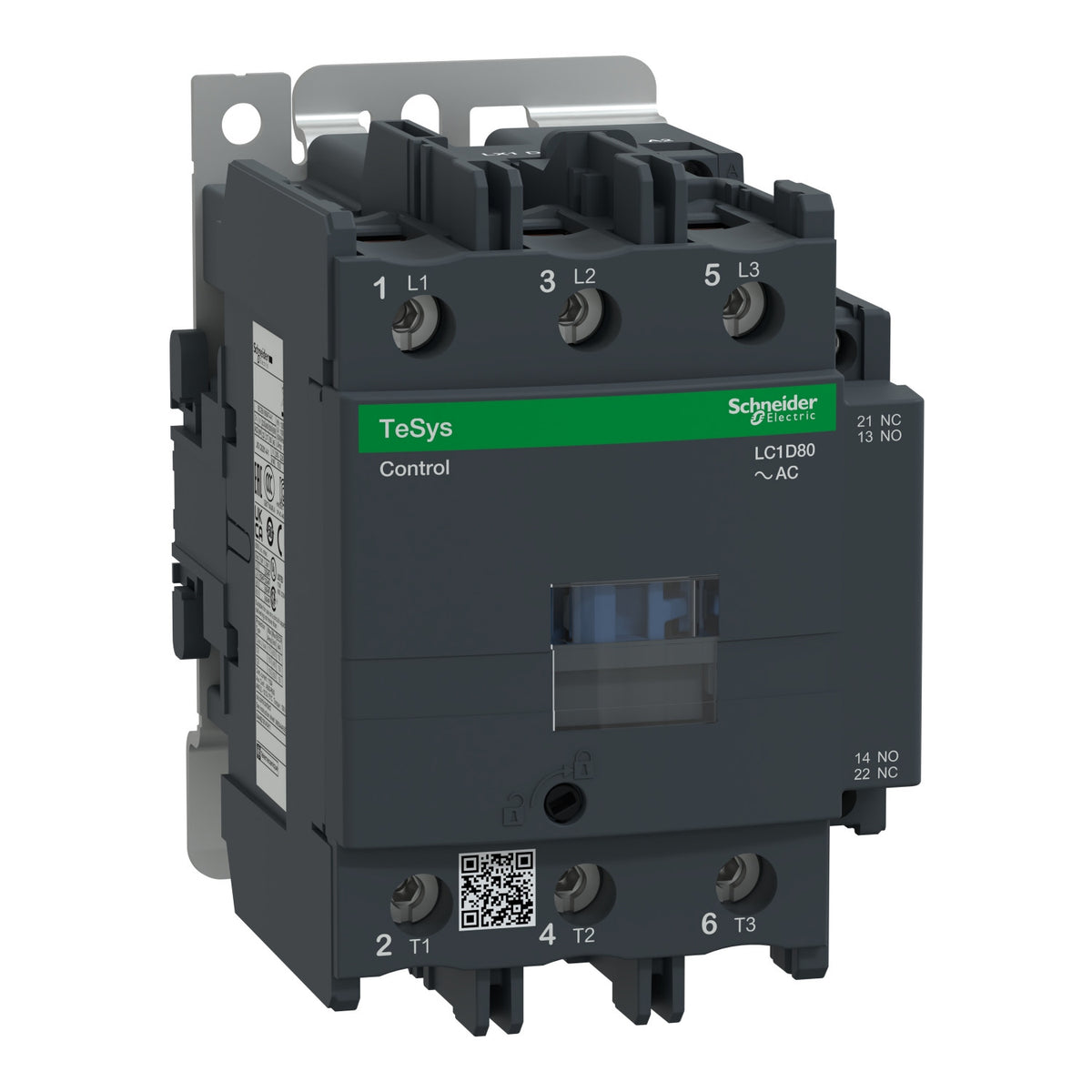

| LC1D80E7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A – 48 V AC 50/60 Hz coil | Current: 80 A; Voltage: 440 V, 48 V AC; Poles: 3P; Contacts: 3 NO |
| LC1D80Q7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A – 380 V AC 50/60 Hz coil | Current: 80 A; Voltage: 440 V, 380 V AC; Poles: 3P; Contacts: 3 NO |
| LC1D95P7 | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 95 A – 230 V AC 50/60 Hz coil | Current: 95 A; Voltage: 440 V, 230 V AC; Poles: 3P; Contacts: 3 NO |
| LC1DT20M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 20 A – 220 V AC 50/60 Hz coil | Current: 20 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 4 NO |

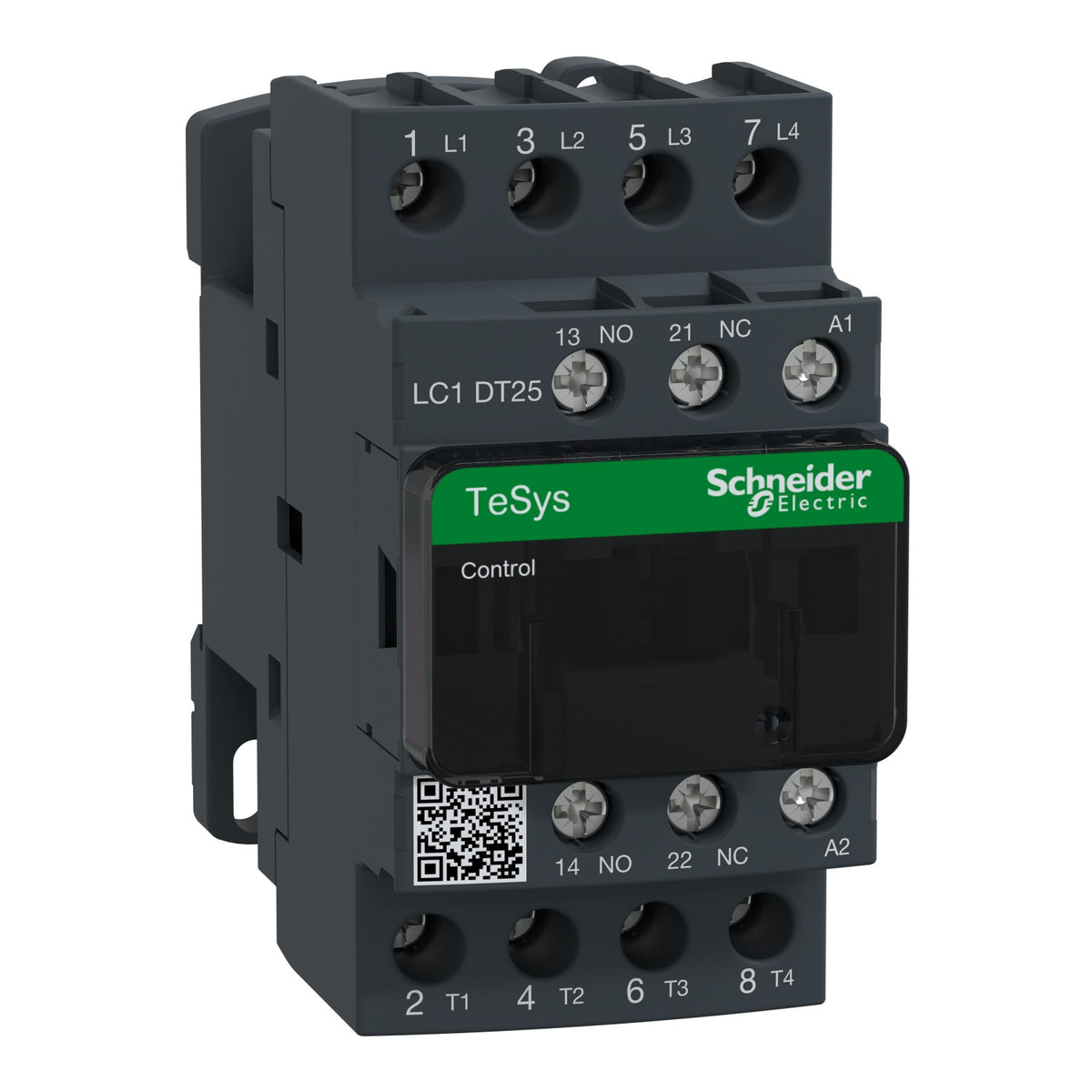

| LC1DT25B7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A – 24 V AC 50/60 Hz coil | Current: 25 A; Voltage: 440 V, 24 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT25E7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A – 48 V AC 50/60 Hz coil | Current: 25 A; Voltage: 440 V, 48 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT25F7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A – 110 V AC 50/60 Hz coil | Current: 25 A; Voltage: 440 V, 110 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT25M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 25 A – 220 V AC 50/60 Hz coil Schneider | Current: 25 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT32B7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 32 A – 24 V AC 50/60 Hz coil | Current: 32 A; Voltage: 440 V, 24 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT32E7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 32 A – 48 V AC 50/60 Hz coil | Current: 32 A; Voltage: 440 V, 48 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT32F7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 32 A – 110 V AC 50/60 Hz coil | Current: 32 A; Voltage: 440 V, 110 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT32M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 32 A – 220 V AC 50/60 Hz coil | Current: 32 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT40E7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 40 A – 48 V AC 50/60 Hz coil | Current: 40 A; Voltage: 440 V, 48 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT40F7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 40 A – 110 V AC 50/60 Hz coil | Current: 40 A; Voltage: 440 V, 110 V AC; Poles: 4P; Contacts: 4 NO |

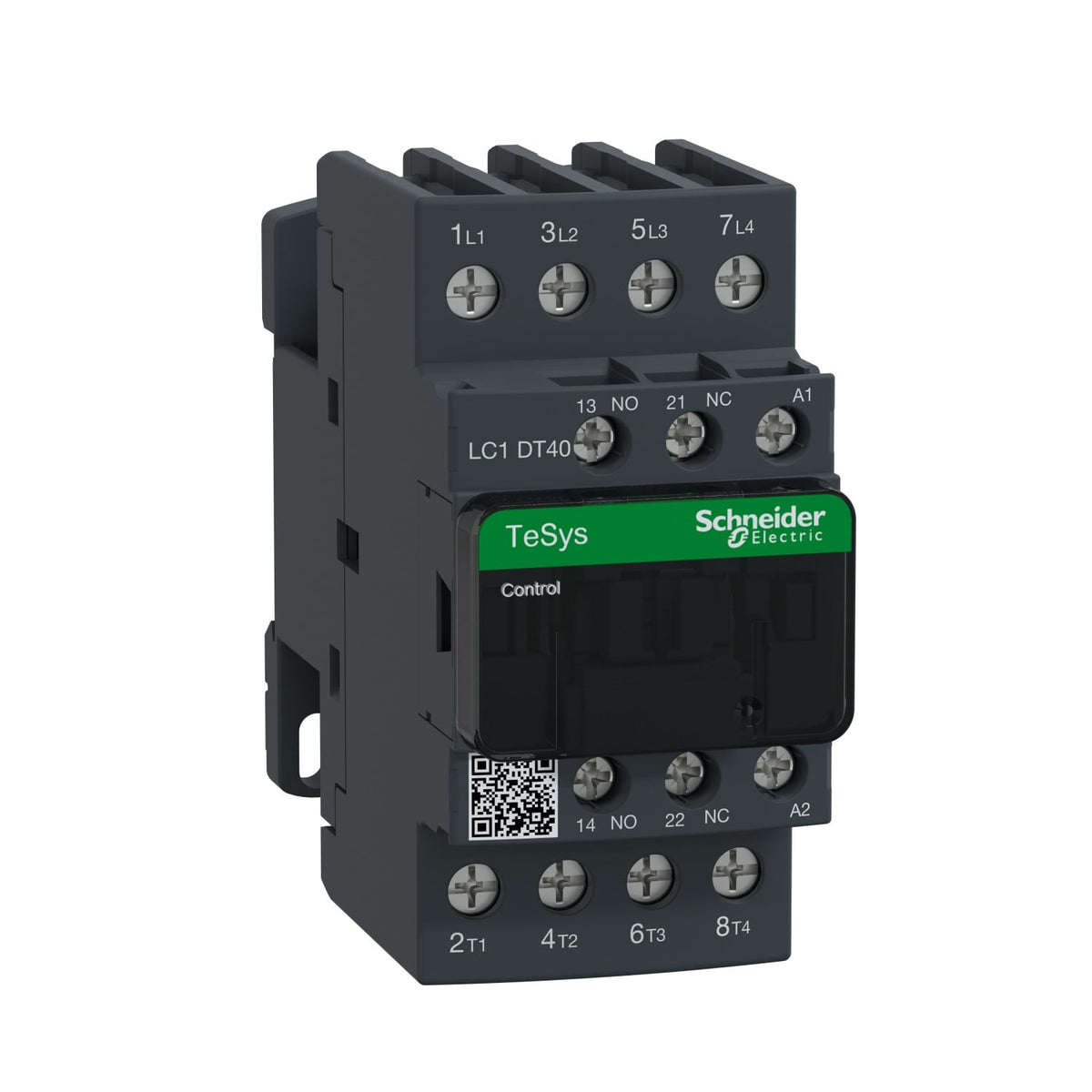

| LC1DT40M7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 40 A – 220 V AC 50/60 Hz coil | Current: 40 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 4 NO |
| LC1DT60AM7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 60 A – 220 V AC 50/60 Hz coil | Current: 60 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 4 NO |

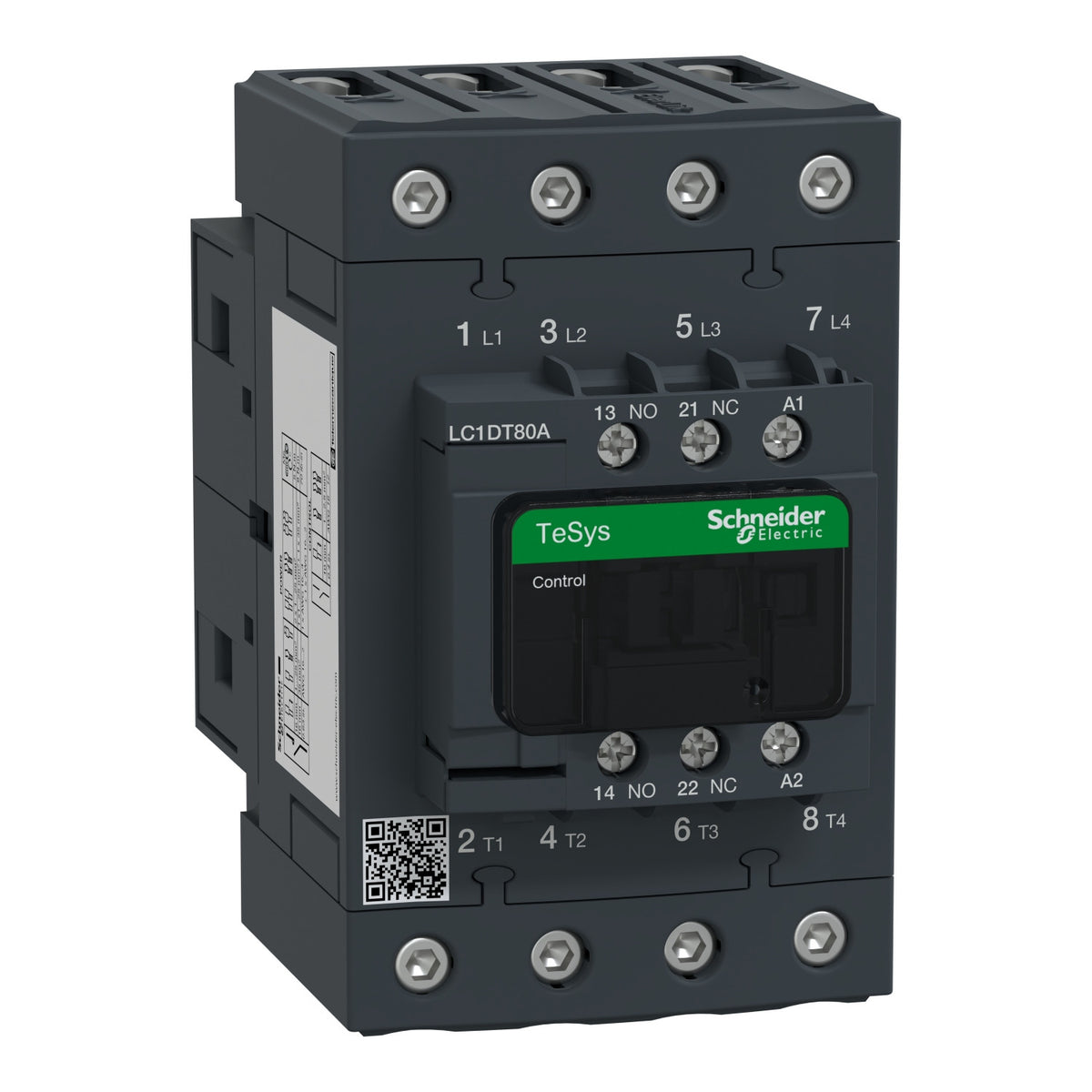

| LC1DT80AM7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 80 A – 220 V AC 50/60 Hz coil | Current: 80 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 4 NO |

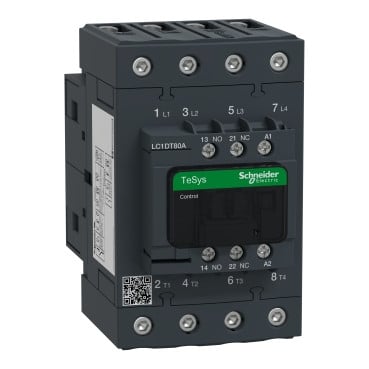

| LC1DT80B7 | Contactor | TeSys LC1D – contactor – 4P – AC-1 440V – 80A – 24Vac coil | Current: 80A; Voltage: 440V, 24Vac; Poles: 4P |
| LC1D258E7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 40 A – 48 V AC coil | Current: 40 A; Voltage: 440 V, 48 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |

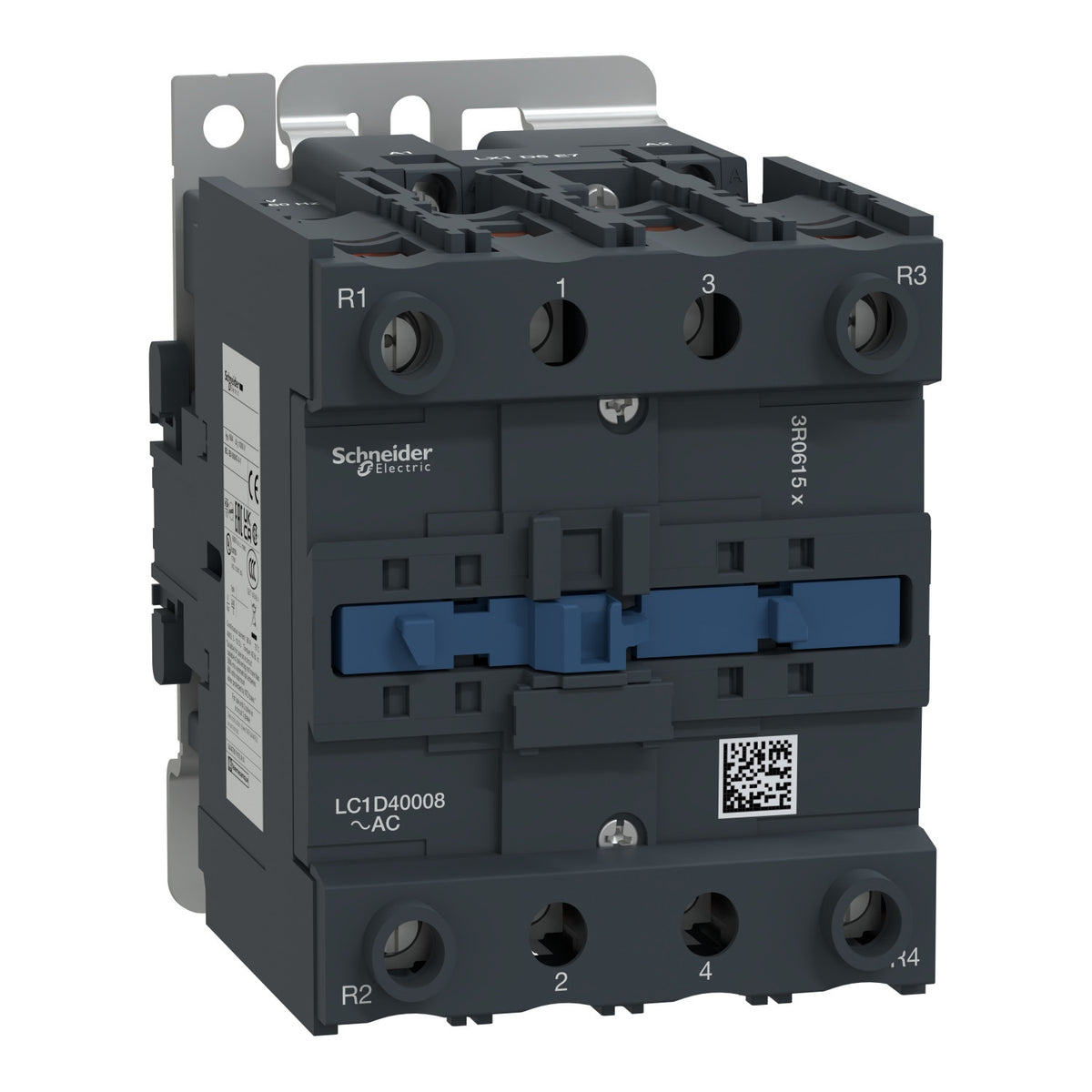

| LC1D40008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 60 A 220 V AC 50/60 Hz coil | Current: 60 A; Voltage: 440 V, 220 V AC; Poles: 4P; Contacts: 2 NO + 2 NC |
| LC1DT40P7 | TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 40 A – 230 V AC 50/60 Hz coil | Current: 40 A; Voltage: 440 V, 230 V AC; Poles: 4P; Contacts: 4 NO |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
