Schneider Electric Easy TeSys Control Motor Contactors

Switch motor or power circuits using the model with the correct utilization category, rated current and coil supply. AC-1, AC-3 and AC-3e ratings are not interchangeable; use the rating for the actual load.

Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.

Models and technical specifications

Part number	Designation	Electrical ratings

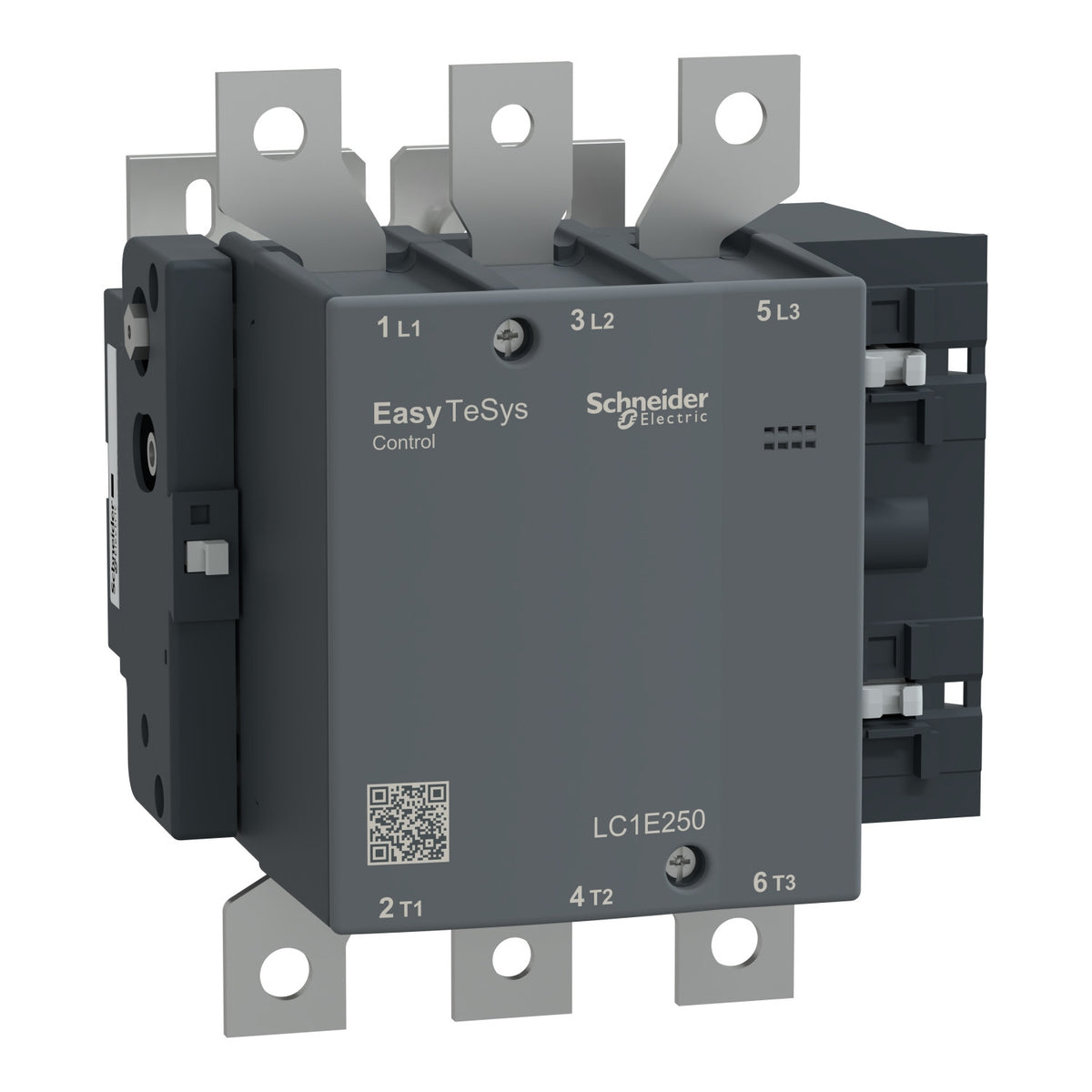

LC1E250M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,250A/190A,220V AC coil,50Hz	Current: 250A, 190A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO

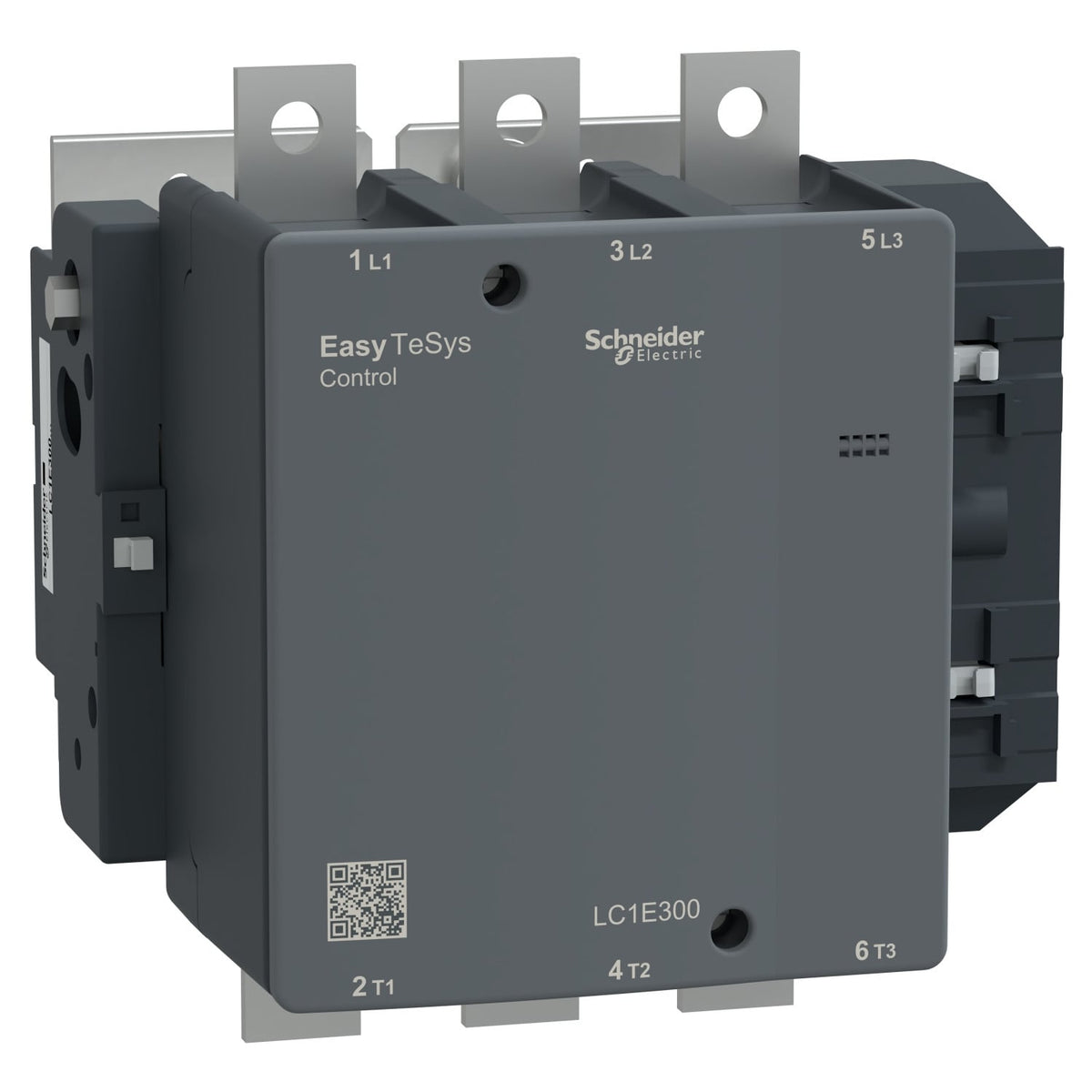

LC1E300M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,300A/265A,220V AC coil,50Hz	Current: 300A, 265A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO
LC1E2501M7	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,25A,220V AC coil,50/60Hz,1NC auxiliary contact	Current: 25A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC

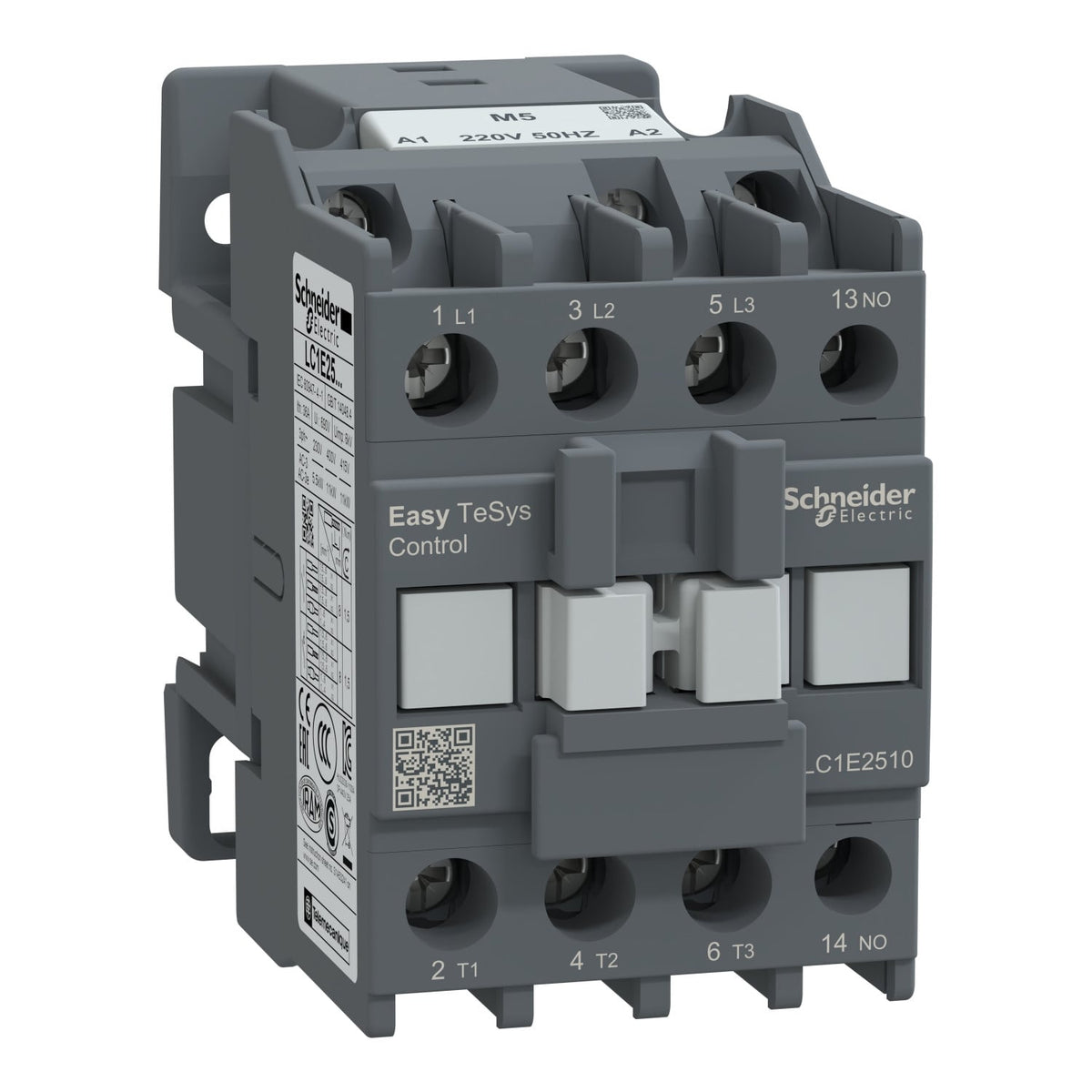

LC1E2510M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,25A,220V AC coil,50Hz,1NO auxiliary contact	Current: 25A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO
LC1E1210M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,12A,220V AC coil,50Hz,1NO auxiliary contact	Current: 12A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO
LC1E1801M7	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,18A,220V AC coil,50/60Hz,1NC auxiliary contact	Current: 18A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC

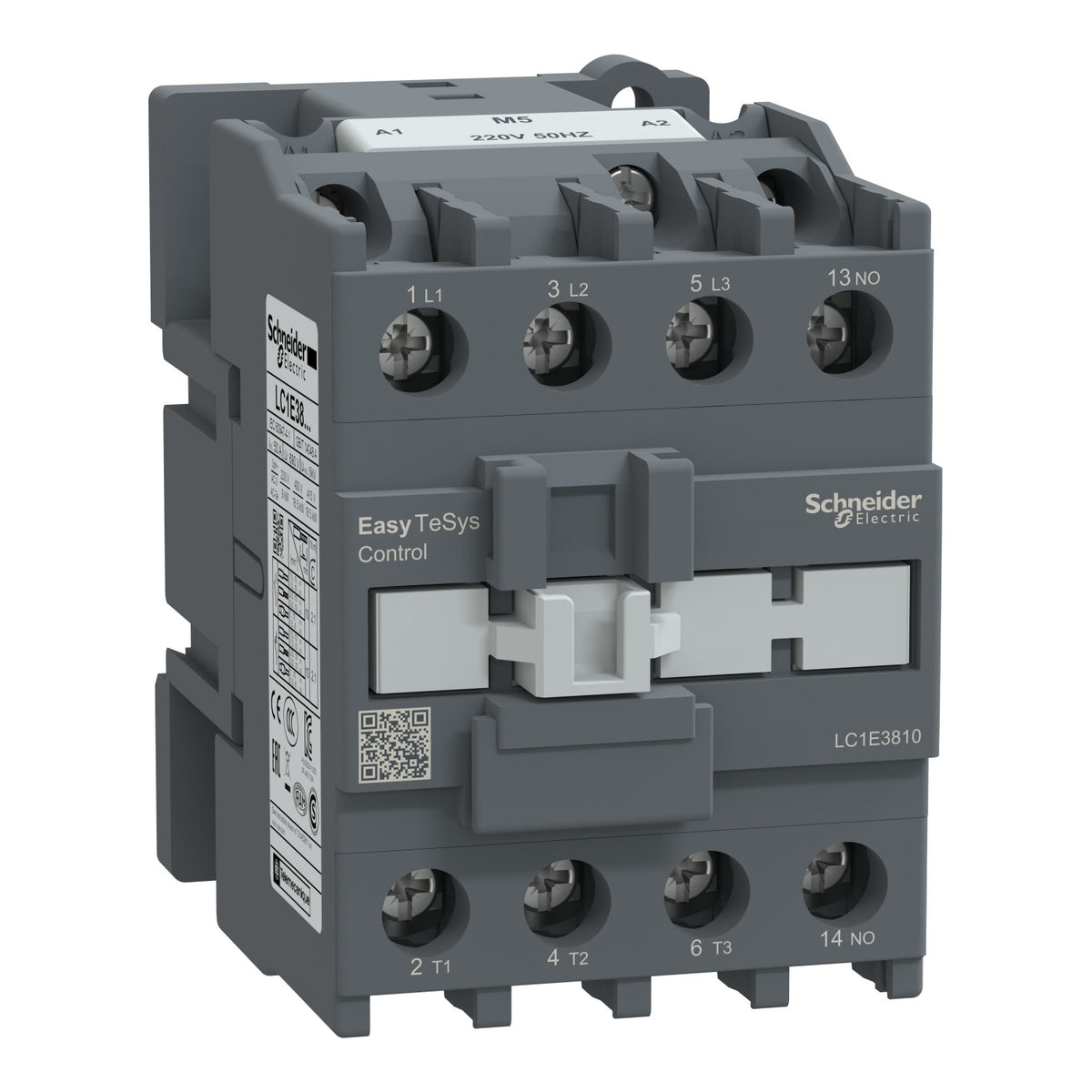

LC1E3810M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,38A,220V AC coil,50Hz,1NO auxiliary contact	Current: 38A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO

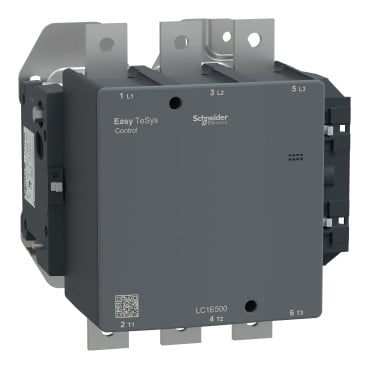

LC1E500M7	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,500A,220V AC coil	Current: 500A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO

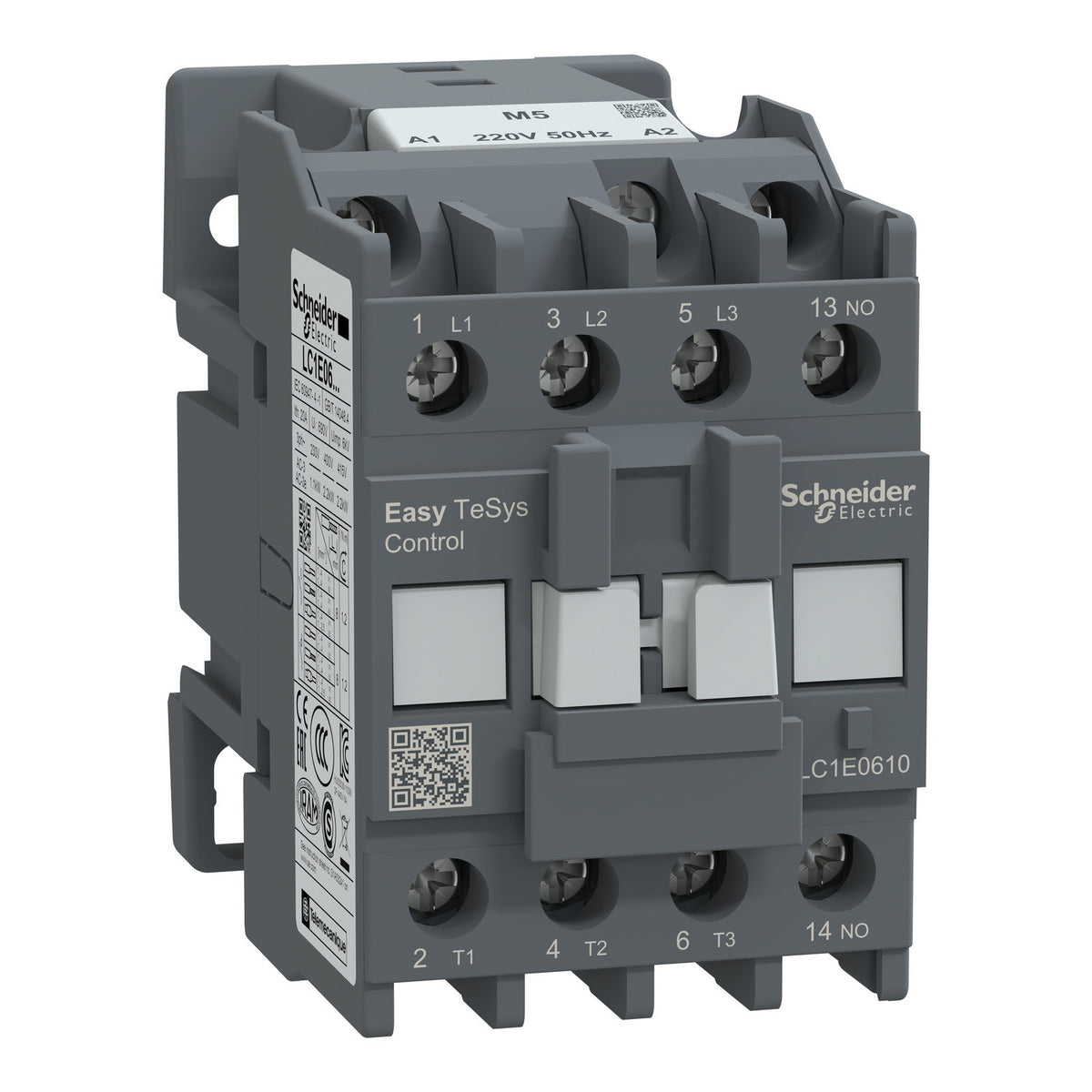

LC1E0610M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,6A,220V AC coil,50Hz,1NO auxiliary contact	Current: 6A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO
LC1E0901M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,9A,220V AC coil,50Hz,1NC auxiliary contact	Current: 9A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC
LC1E0901M7	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,9A,220V AC coil,50/60Hz,1NC auxiliary contact	Current: 9A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC
LC1E0910M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,9A,220V AC coil,50Hz,1NO auxiliary contact	Current: 9A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO
LC1E1201E7	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,12A,48V AC coil,50/60Hz,1NC auxiliary contact	Current: 12A; Voltage: 440V, 48V AC; Poles: 3P; Contacts: 3NO, 1NC
LC1E1201M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,12A,220V AC coil,50Hz,1NC auxiliary contact	Current: 12A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC
LC1E1201M7	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3e,<=440V,12A,220V AC coil,50/60Hz,1NC auxiliary contact	Current: 12A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NC
LC1E1810M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,18A,220V AC coil,50Hz,1NO auxiliary contact	Current: 18A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO, 1NO

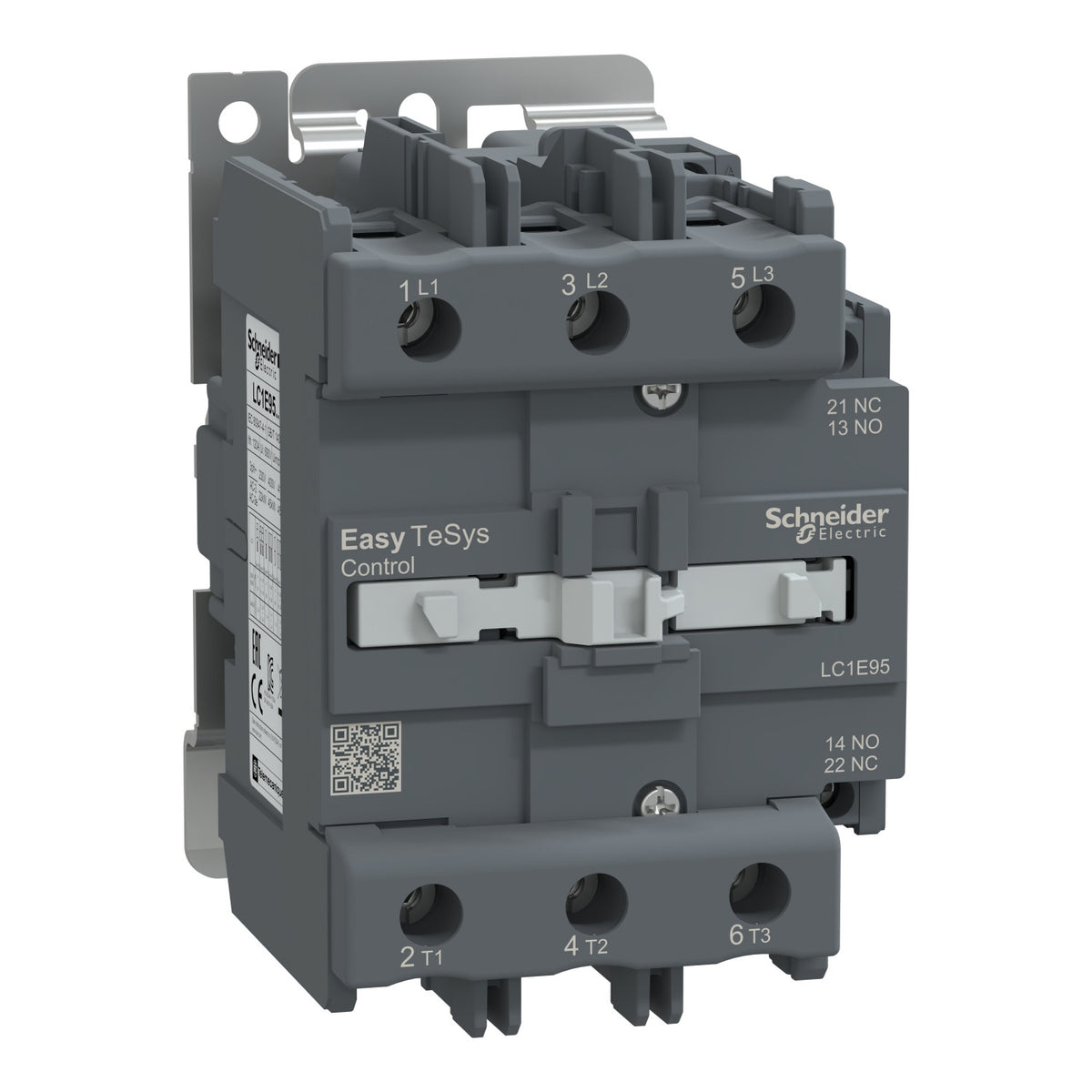

LC1E95M5	Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,95A,220V AC coil,50Hz	Current: 95A; Voltage: 440V, 220V AC; Poles: 3P; Contacts: 3NO

Selection and installation

Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
