Schneider Electric TeSys GV2 Motor Starter Comb Busbars
Distribute power between compatible motor-starter devices using the exact comb busbar. Match the device series, terminal pitch, number of tap-offs and current rating. Check end protection and installation clearances before energising.
Each model below has its own part number and electrical specification. Select the reference that matches the equipment schedule; the selected variant determines the price and availability.
Models and technical specifications
| Part number | Designation | Electrical ratings |
|---|---|---|

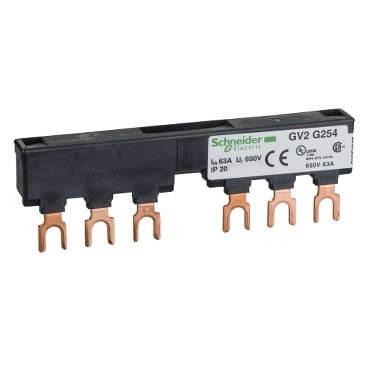

| GV2G254 | Linergy FT – Comb busbar – 63 A – 2 tap-offs – 54 mm pitch | Current: 63 A |

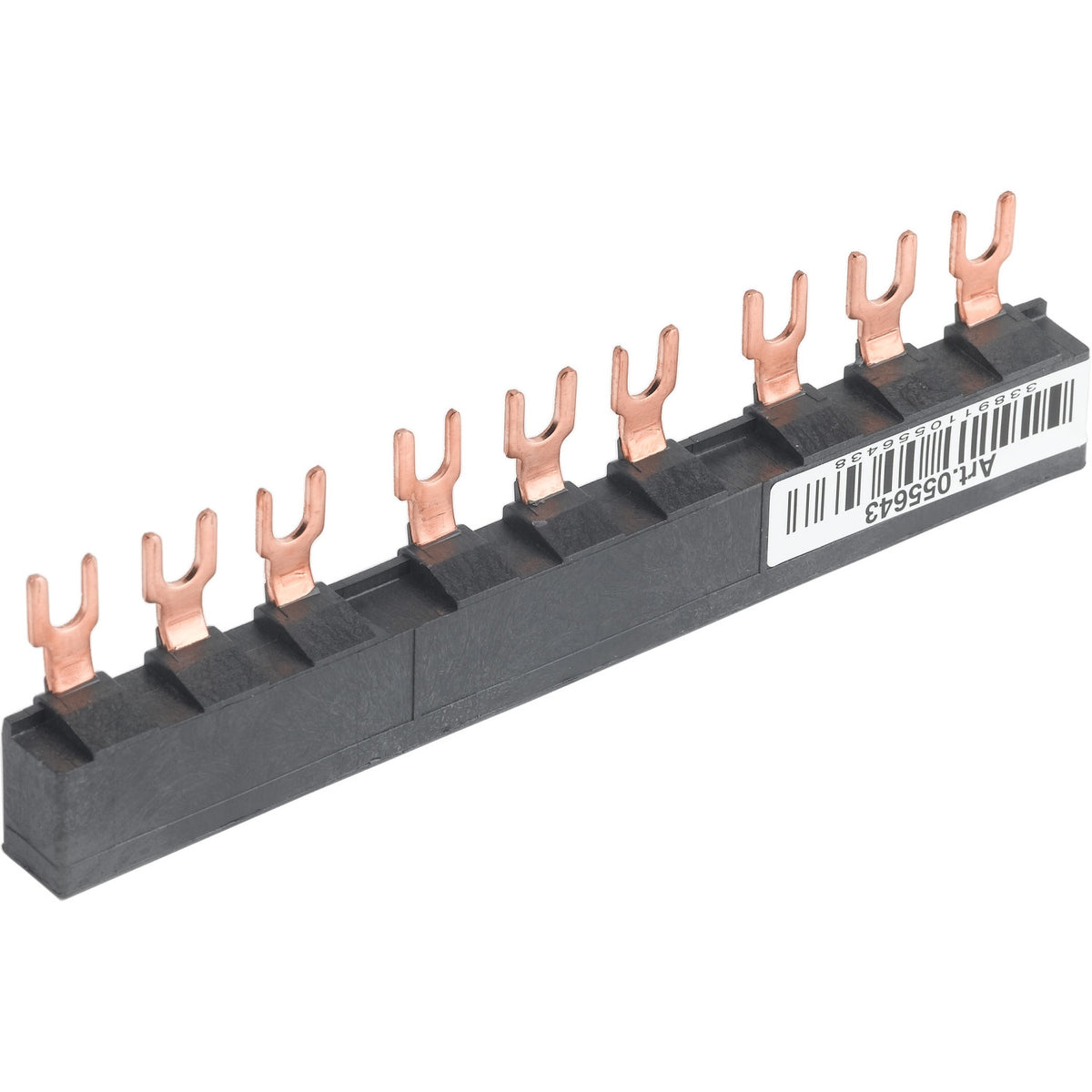

| GV2G345 | Linergy FT – Comb busbar – 63 A – 3 tap-offs – 45 mm pitch | Current: 63 A |

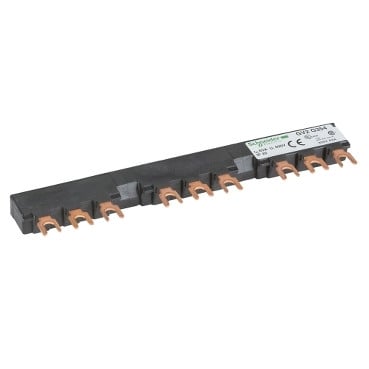

| GV2G354 | Linergy FT, Comb busbar, 63A, 3 tap-offs, 54mm pitch | Current: 63A |

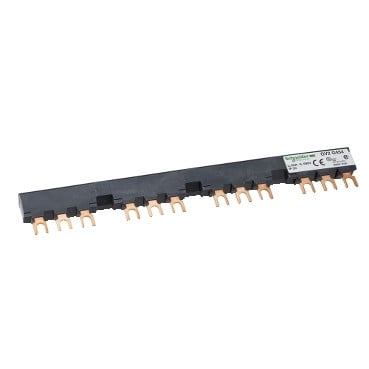

| GV2G454 | Linergy FT – Comb busbar – 63 A – 4 tap-offs – 54 mm pitch | Current: 63 A |

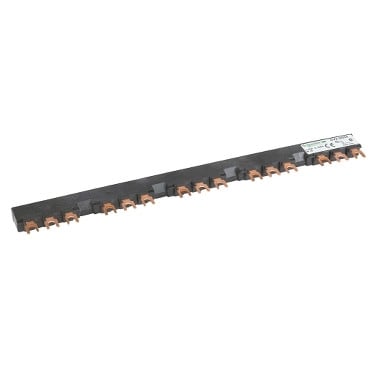

| GV2G554 | Linergy FT, Comb busbar, 63A, 5 tap-offs, 54mm pitch | Current: 63A |
Selection and installation
Use the exact part number when ordering replacement parts. Have a qualified electrical professional check the supply, load, protective coordination and manufacturer wiring instructions before commissioning. Accessories shown in application photographs are supplied only when explicitly included in the selected model designation.
