MEAN WELL NDR-480-48 48V 10A DIN Rail Power Supply

MEAN WELL NDR-480-48 — 48V din rail power supply

The MEAN WELL NDR-480-48 provides 48 V DC at a rated 10 A, with 480 W output. This NDR-480 model is designed for 48V DC industrial and communications equipment with a matching input rating. Compare this exact part number at Spark Egypt when selecting a replacement or specifying a new installation.

Technical specifications

Applications and selection

Use this model for 48V DC industrial and communications equipment with a matching input rating, after checking the equipment input specification. Its DIN rail format suits organised control cabinets and panel-building projects.

Size the supply from the total running load, starting current and cable voltage drop. Allow suitable capacity margin and apply the manufacturer’s temperature and input-voltage derating curves.

Installation notes

• Installation, mains wiring and protective earthing must follow the manufacturer’s instructions. Check the mechanical drawing and terminal arrangement before replacing an existing unit.

Common questions

Can I replace another 48V supply with this model? Match the output type, voltage, load current, mounting space and connections; a similar wattage or series name alone does not establish compatibility.

Can it power LED strips? Only use strips designed for 48V DC, within the available current and power after derating. Never connect a mains-voltage strip to the DC output.

Official MEAN WELL NDR-480 datasheet · MEAN WELL power supplies at Spark Egypt

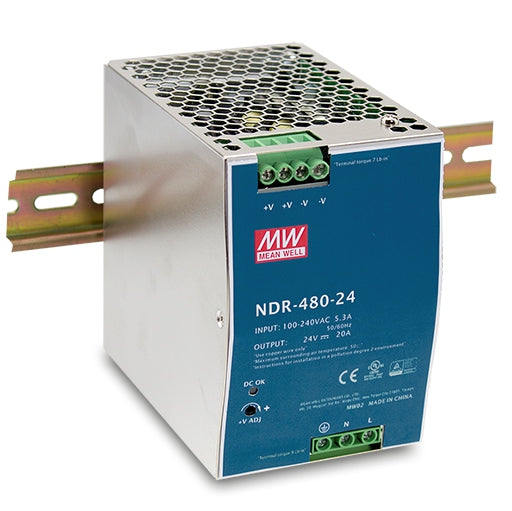

Official manufacturer image for the NDR-480 product family; the printed output or option label may differ from this part number.
