MEAN WELL ELG-150-C1400A 54–107V 1.4A LED Driver

MEAN WELL ELG-150-C1400A — 54–107V led driver

The MEAN WELL ELG-150-C1400A provides 54–107 V DC at a rated 1.4 A, with 149.8 W output at 200–305 VAC input. This ELG-150-C model is designed for constant-current LED luminaires with a matching forward-voltage range. Compare this exact part number at Spark Egypt when selecting a replacement or specifying a new installation.

Technical specifications

Applications and selection

Use this model for constant-current LED luminaires with a matching forward-voltage range, after checking the equipment input specification. Select the control suffix as well as output voltage and current when designing the lighting circuit.

Size the supply from the total running load, starting current and cable voltage drop. Allow suitable capacity margin and apply the manufacturer’s temperature and input-voltage derating curves.

Installation notes

• Rated power shown is for 200–305 VAC input; lower-input operation requires the derating shown in the datasheet. Protect cable joints and maintain the specified case temperature.
• This is a constant-current LED driver, not a 12V or 24V LED-strip supply. Match LED current and the complete series-string voltage.
• Installation, mains wiring and protective earthing must follow the manufacturer’s instructions. Check the mechanical drawing and terminal arrangement before replacing an existing unit.

Common questions

Can I replace another 54–107V supply with this model? Match the output type, voltage, load current, mounting space and connections; a similar wattage or series name alone does not establish compatibility.

Can it power LED strips? No: use a matching constant-current LED load within the specified voltage window.

Official MEAN WELL ELG-150-C datasheet · MEAN WELL power supplies at Spark Egypt

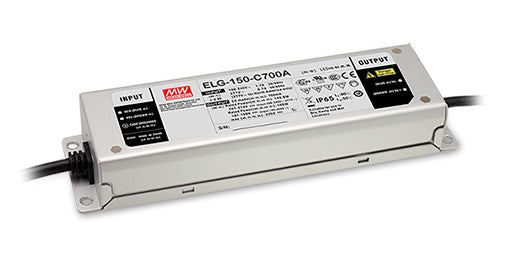

Official manufacturer image for the ELG-150-C product family; the printed output or option label may differ from this part number.
