Lovato HR Plug-In Industrial Relays | 8, 11 & 14 Pin, AC/DC Coils

Lovato HR plug-in relays interface control signals with suitable switching loads in automation and machine panels. HR602, HR604 and HR703 references differ in pin layout, number of changeover contacts, current rating and coil supply. The socket must match the exact relay family and terminal layout.

Features and applications

• HR602: 8-pin, 2 changeover, 7A listed range
• HR604: 14-pin, 4 changeover, 5A listed range
• HR703: 11-pin, 3 changeover, 10A listed range
• 230V AC, 24V AC and 24V DC coil variants

Models and specifications

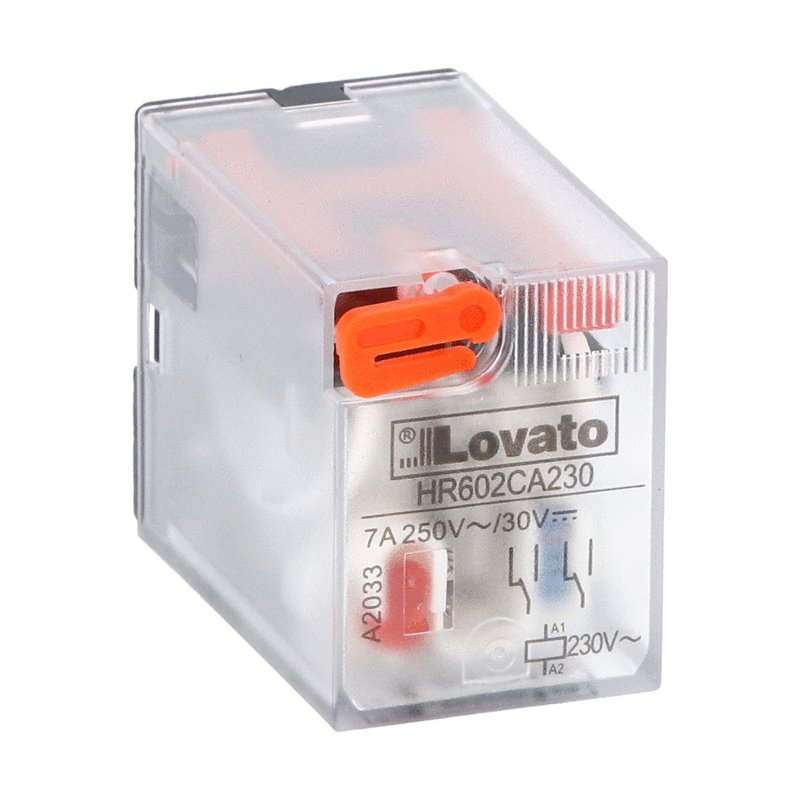

HR602CA230

8 pin / 2CO / 230V AC / HR602CA230

Type of product

Industrial relays

Type of contacts

2 C/O

Relay control voltage

230VAC

IEC Conventional free air thermal current Ith [A]

7

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR602CA230

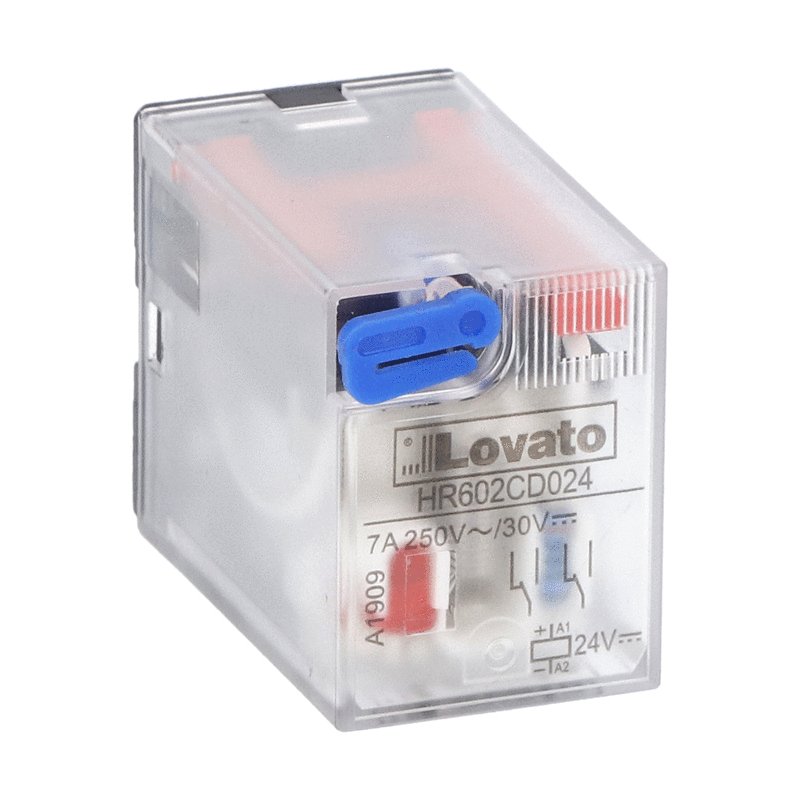

HR602CD024

8 pin / 2CO / 24V DC / HR602CD024

Type of product

Industrial relays

Type of contacts

2 C/O

Relay control voltage

24VDC

IEC Conventional free air thermal current Ith [A]

7

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR602CD024

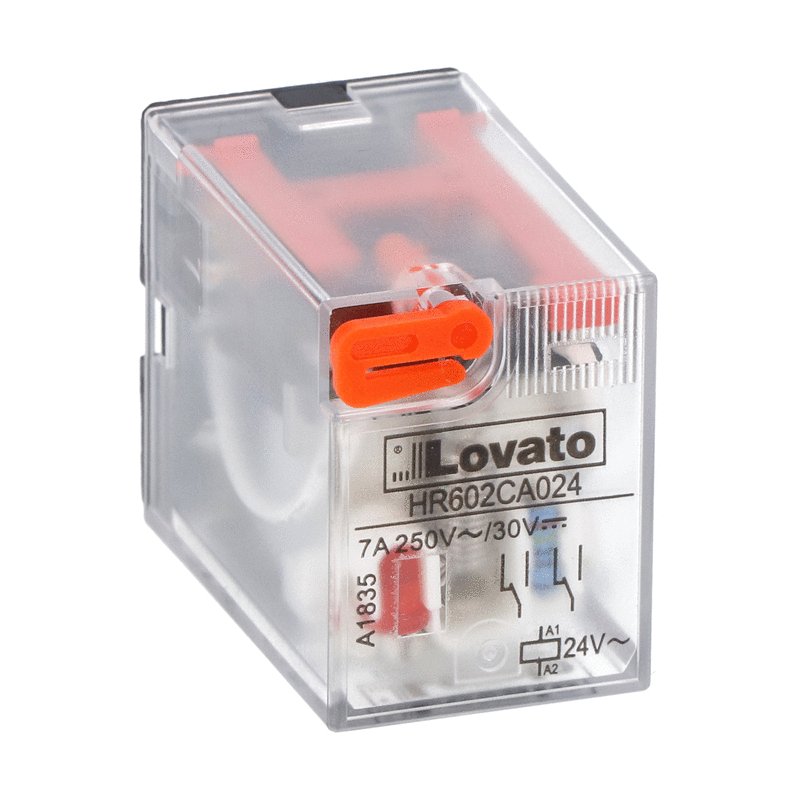

HR602CA024

8 pin / 2CO / 24V AC / HR602CA024

Type of product

Industrial relays

Type of contacts

2 C/O

Relay control voltage

24VAC

IEC Conventional free air thermal current Ith [A]

7

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR602CA024

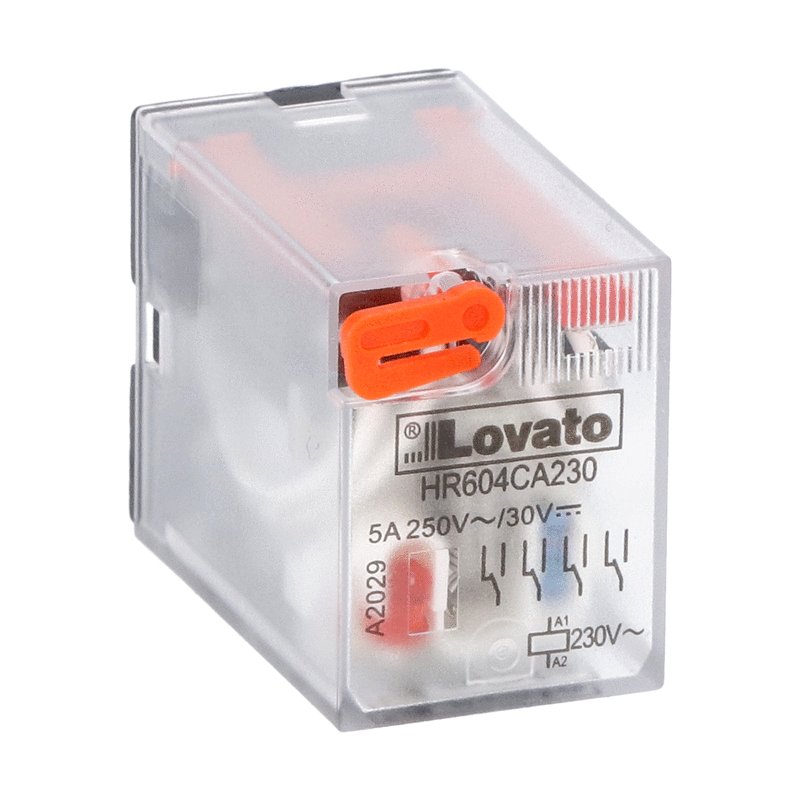

HR604CA230

14 pin / 4CO / 230V AC / HR604CA230

Type of product

Industrial relays

Type of contacts

4 C/O

Relay control voltage

230VAC

IEC Conventional free air thermal current Ith [A]

5

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR604CA230

HR604CD024

14 pin / 4CO / 24V DC / HR604CD024

Type of product

Industrial relays

Type of contacts

4 C/O

Relay control voltage

24VDC

IEC Conventional free air thermal current Ith [A]

5

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR604CD024

HR604CA024

14 pin / 4CO / 24V AC / HR604CA024

Type of product

Industrial relays

Type of contacts

4 C/O

Relay control voltage

24VAC

IEC Conventional free air thermal current Ith [A]

5

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR604CA024

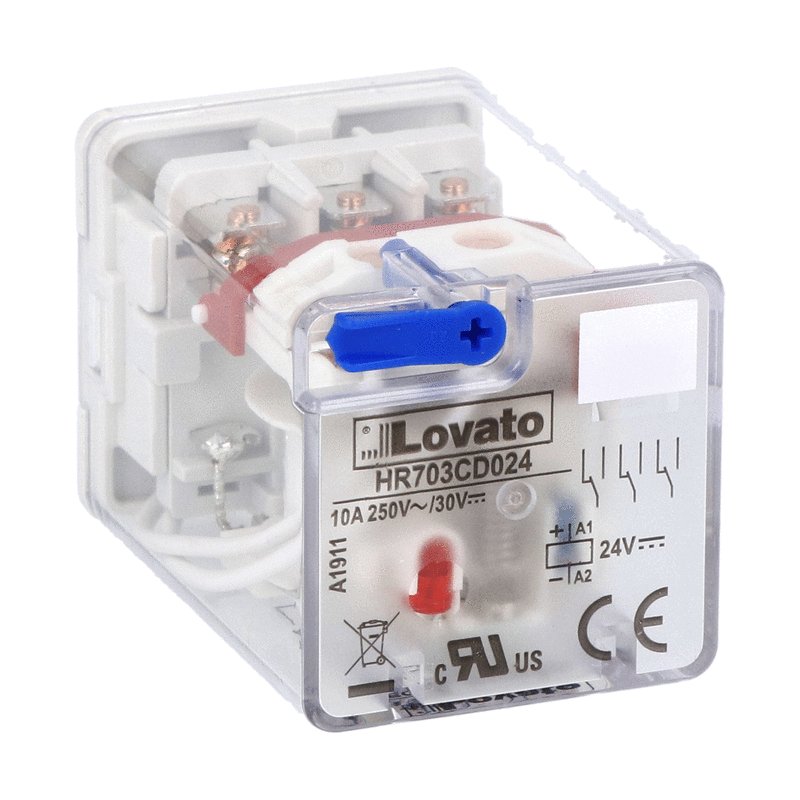

HR703CD024

11 pin / 3CO / 24V DC / HR703CD024

Type of product

Industrial relays

Type of contacts

3 C/O

Relay control voltage

24VDC

IEC Conventional free air thermal current Ith [A]

10

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR703CD024

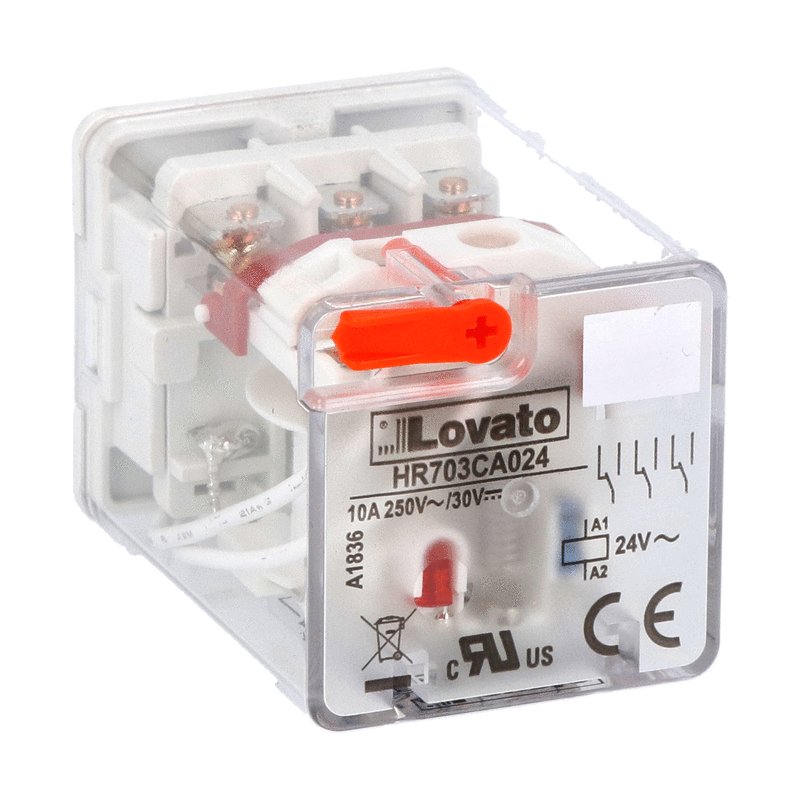

HR703CA024

11 pin / 3CO / 24V AC / HR703CA024

Type of product

Industrial relays

Type of contacts

3 C/O

Relay control voltage

24VAC

IEC Conventional free air thermal current Ith [A]

10

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR703CA024

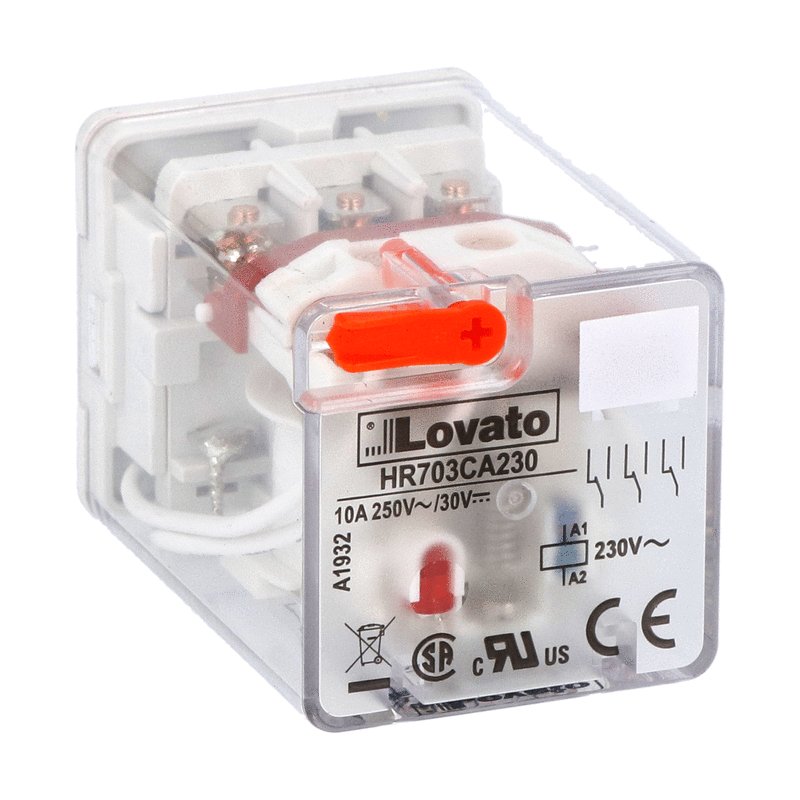

HR703CA230

11 pin / 3CO / 230V AC / HR703CA230

Type of product

Industrial relays

Type of contacts

3 C/O

Relay control voltage

230VAC

IEC Conventional free air thermal current Ith [A]

10

LED state indicator

Yes

Mechanical actuator

Yes

Manufacturer data for HR703CA230

Selection and installation

Choose coil voltage and AC/DC type independently of the contact load rating. Matching sockets are supplied separately.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
