Lovato SM Motor Protection Circuit Breakers | Adjustable MPCB 0.63-100A

Lovato SM manual motor protection circuit breakers combine adjustable thermal motor protection with magnetic short-circuit tripping. SM1P push-button models and SM1R, SM2R and SM3R rotary-handle models cover different motor currents and panel requirements. Breaking capacity is specific to the selected model and supply voltage, rather than a single rating for the whole range.

Features and applications

• Adjustable current range shown for each order code
• Push-button or rotary operation according to family
• Model-specific short-circuit breaking capacity at 400V
• Optional auxiliary contacts must match the SM frame

Models and specifications

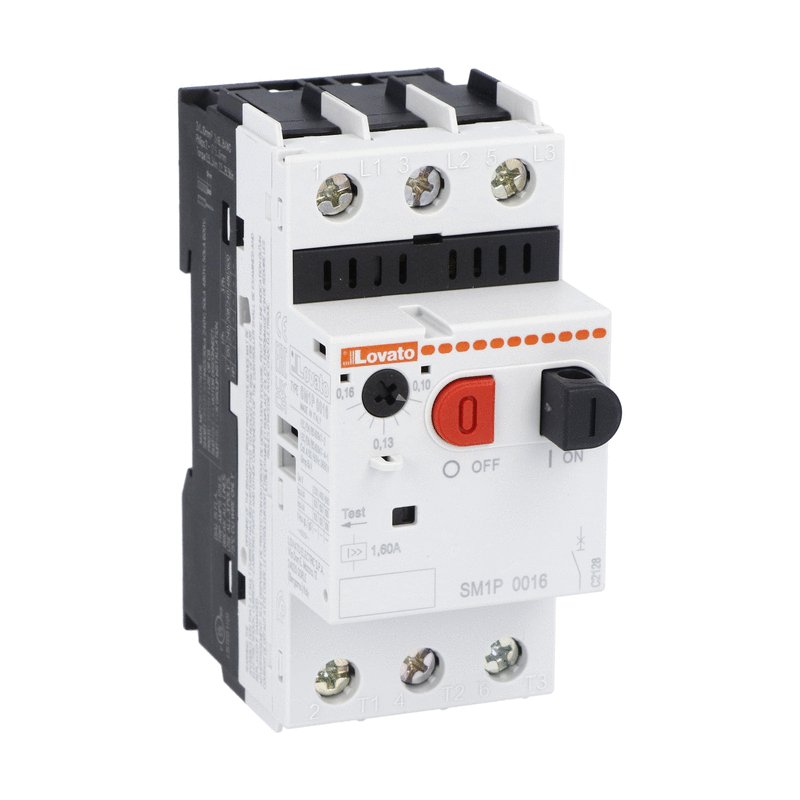

SM1P0100

0.63-1A / SM1P0100

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

0.63…1

Rated current In [A]

1

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

100

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P0100

SM1P0160

1-1.6A / SM1P0160

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

1…1.6

Rated current In [A]

1.6

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

100

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P0160

SM1P0250

1.6-2.5A / SM1P0250

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

1.6…2.5

Rated current In [A]

2.5

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

100

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P0250

SM1P0400

2.5-4A / SM1P0400

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

2.5…4

Rated current In [A]

4

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

100

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P0400

SM1P0650

4-6.5A / SM1P0650

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

4…6.5

Rated current In [A]

6.5

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

100

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P0650

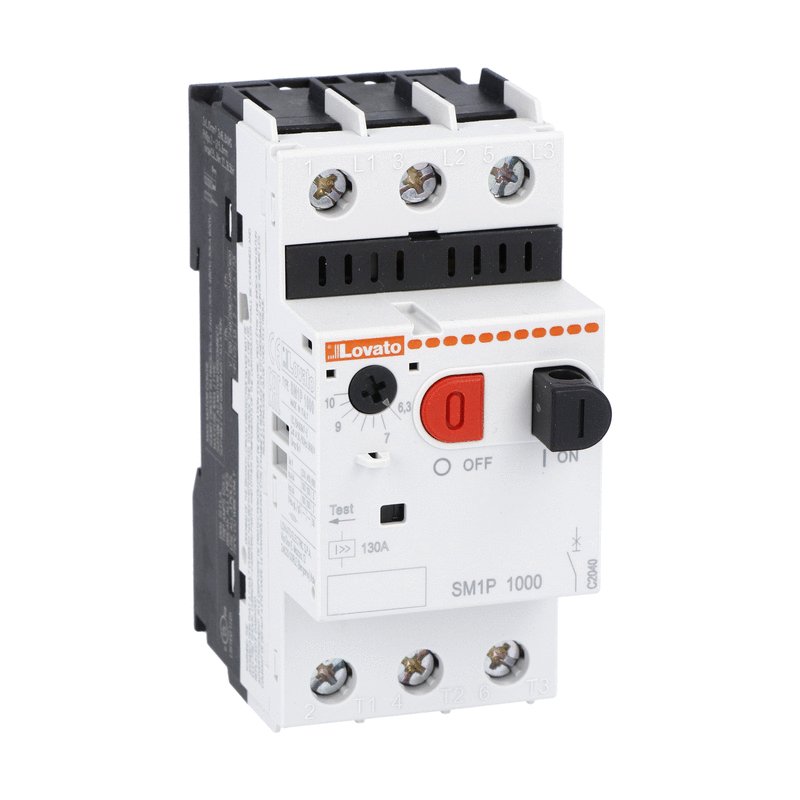

SM1P1000

6.3-10A / SM1P1000

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

6.3…10

Rated current In [A]

10

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

100

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P1000

SM1P1400

9-14A / SM1P1400

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

9...14

Rated current In [A]

14

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

25

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P1400

SM1P1800

13-18A / SM1P1800

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

13…18

Rated current In [A]

18

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

25

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P1800

SM1P2300

17-23A / SM1P2300

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

17…23

Rated current In [A]

23

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

15

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P2300

SM1P2500

20-25A / SM1P2500

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

20…25

Rated current In [A]

25

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

15

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P2500

SM1P3200

24-32A / SM1P3200

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

24…32

Rated current In [A]

32

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

10

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P3200

SM1P4000

30-40A / SM1P4000

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

30…40

Rated current In [A]

40

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

10

Type of protection

Magnetic and thermal

Type of control

Push button

Certified UL Type E

No

Manufacturer data for SM1P4000

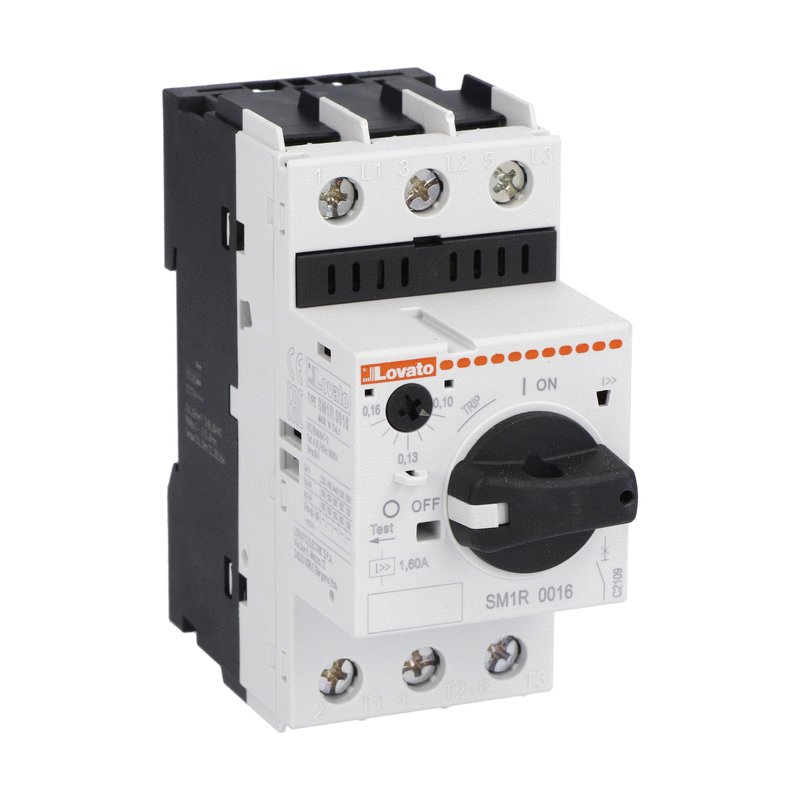

SM1R3200

24-32A / SM1R3200

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

24…32

Rated current In [A]

32

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

50

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

No

Manufacturer data for SM1R3200

SM1R4000

30-40A / SM1R4000

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

30…40

Rated current In [A]

40

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

20

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

No

Manufacturer data for SM1R4000

SM2R5000

35-50A / SM2R5000

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

34…50

Rated current In [A]

50

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

50

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

Yes

Manufacturer data for SM2R5000

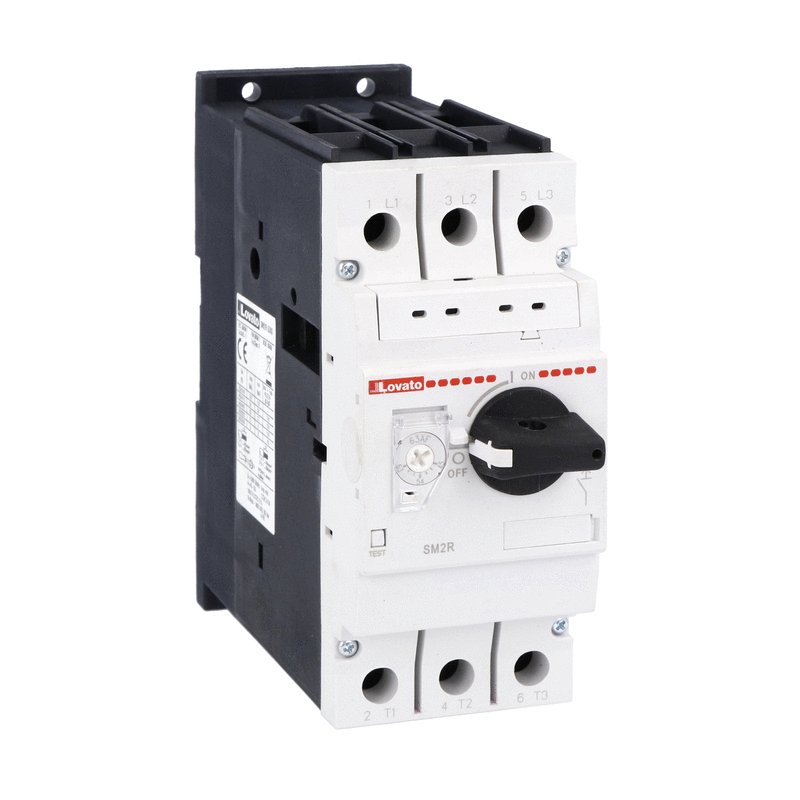

SM2R6300

46-63A / SM2R6300

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

45…63

Rated current In [A]

63

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

50

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

Yes

Manufacturer data for SM2R6300

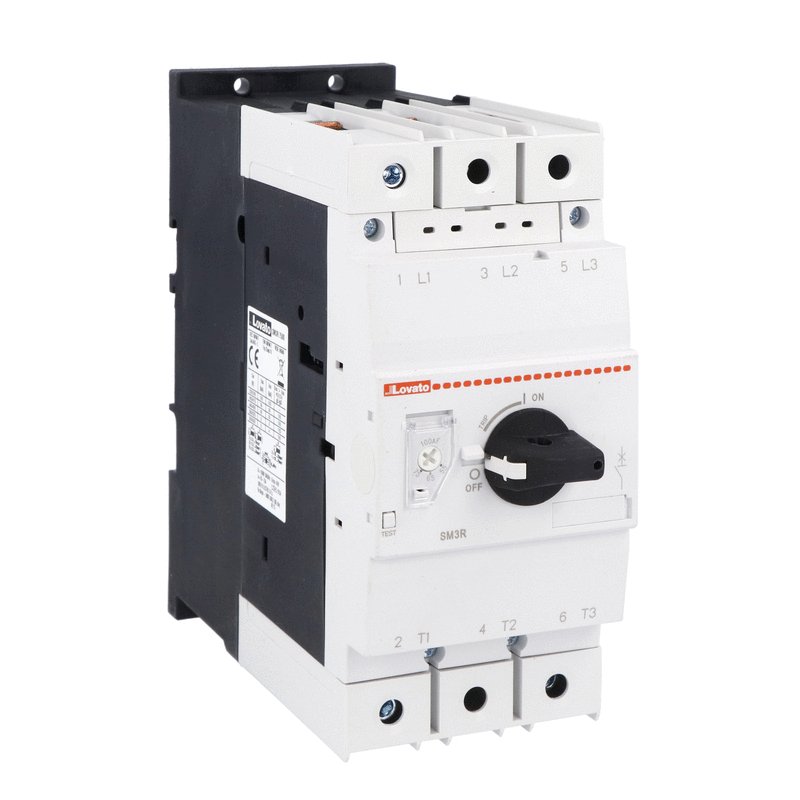

SM3R7500

55-75A / SM3R7500

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

55…75

Rated current In [A]

75

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

50

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

Yes

Manufacturer data for SM3R7500

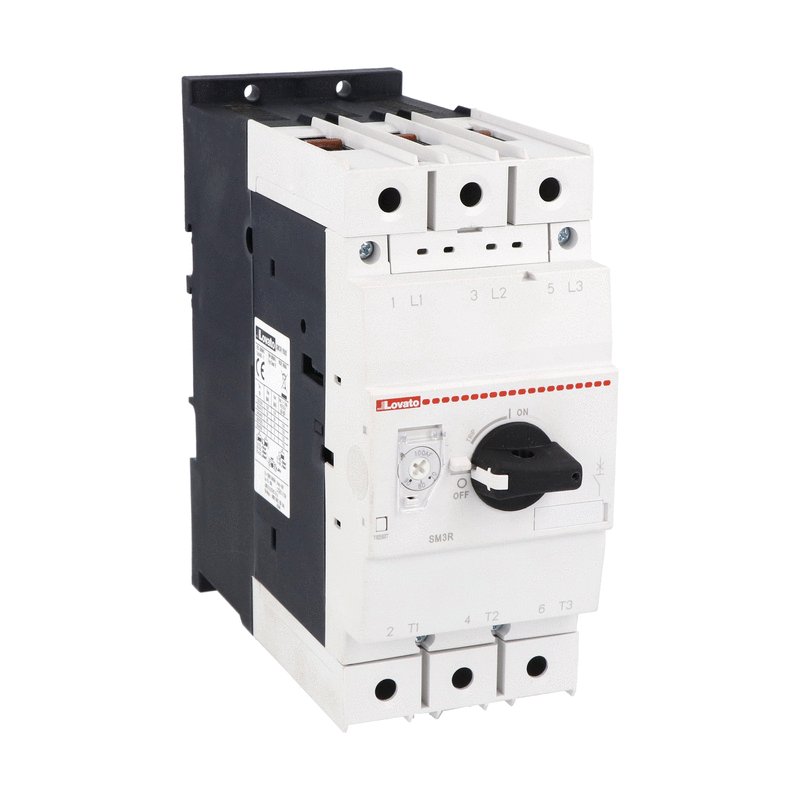

SM3R9000

70-90A / SM3R9000

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

70…90

Rated current In [A]

90

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

50

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

Yes

Manufacturer data for SM3R9000

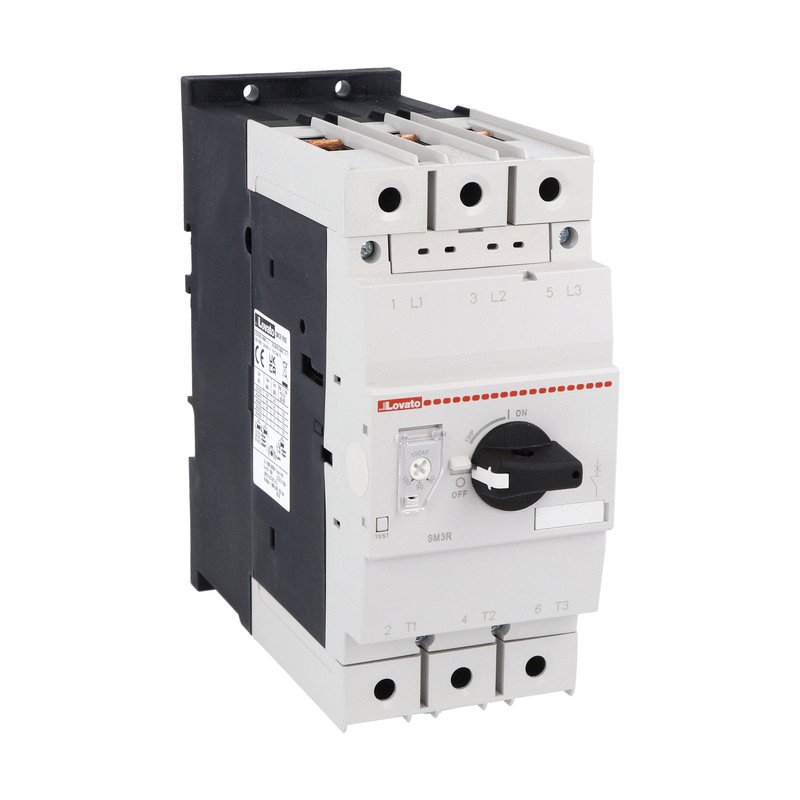

SM3R9900

80-100A / SM3R9900

Type of product

Motor protection circuit breaker

Thermal trip adjustment range [A]

80…100

Rated current In [A]

100

Short-circuit current breaking capacity (Icu) at AC 400V [kA]

50

Type of protection

Magnetic and thermal

Type of control

Rotary knob

Certified UL Type E

Yes

Manufacturer data for SM3R9900

Selection and installation

Set the thermal adjustment to the motor nameplate current and check the prospective fault current, starting duty and coordination requirements.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
