Lovato DM Current Transformers

Lovato DM current transformers convert primary AC current to a 5A secondary signal for compatible meters and protection or monitoring equipment. The available models differ in ratio, cable or busbar aperture, burden and accuracy class. The same current ratio can be offered with different physical openings, so select both electrical and mechanical requirements.

Features and applications

5A secondary current
Listed primary ratings from 50A to 1600A
Round cable and rectangular busbar openings
Burden and accuracy depend on model

Models and specifications

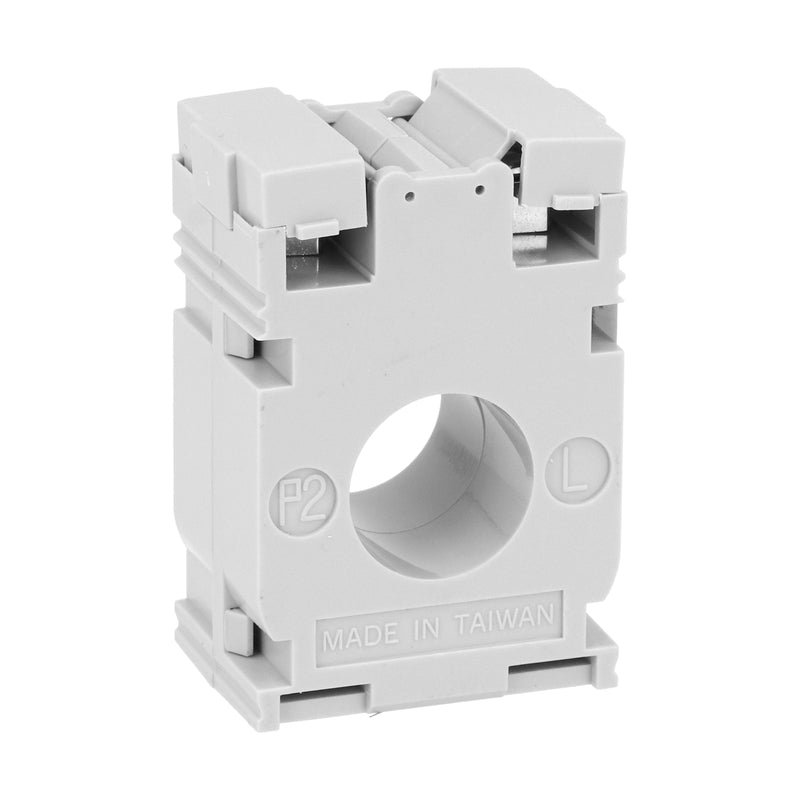

DM0T0050

50/5A / DM0T0050

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 50

Manufacturer data for DM0T0050

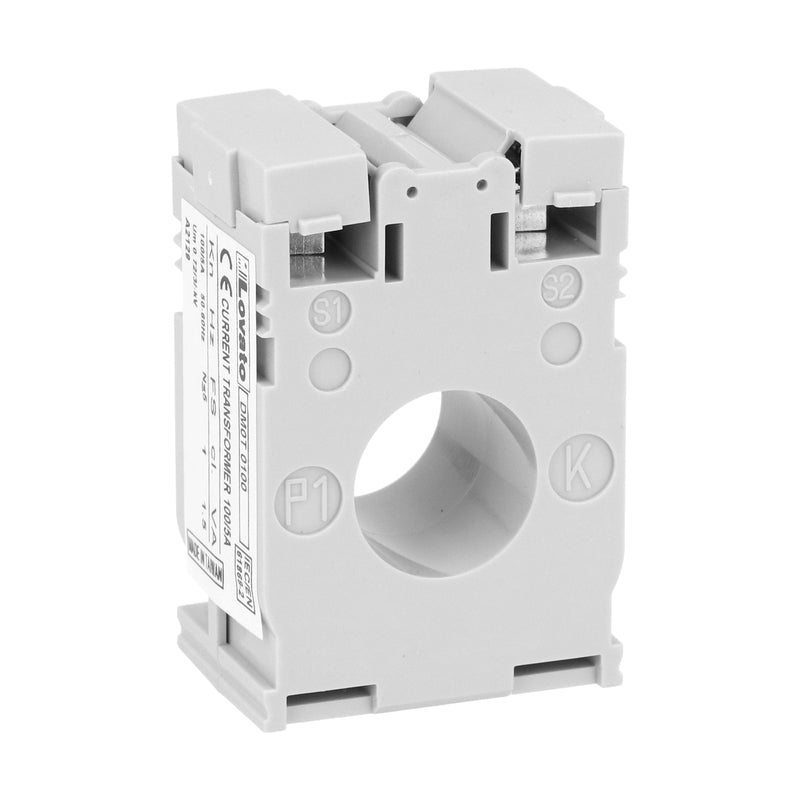

DM0T0100

100/5A / DM0T0100

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 100

Manufacturer data for DM0T0100

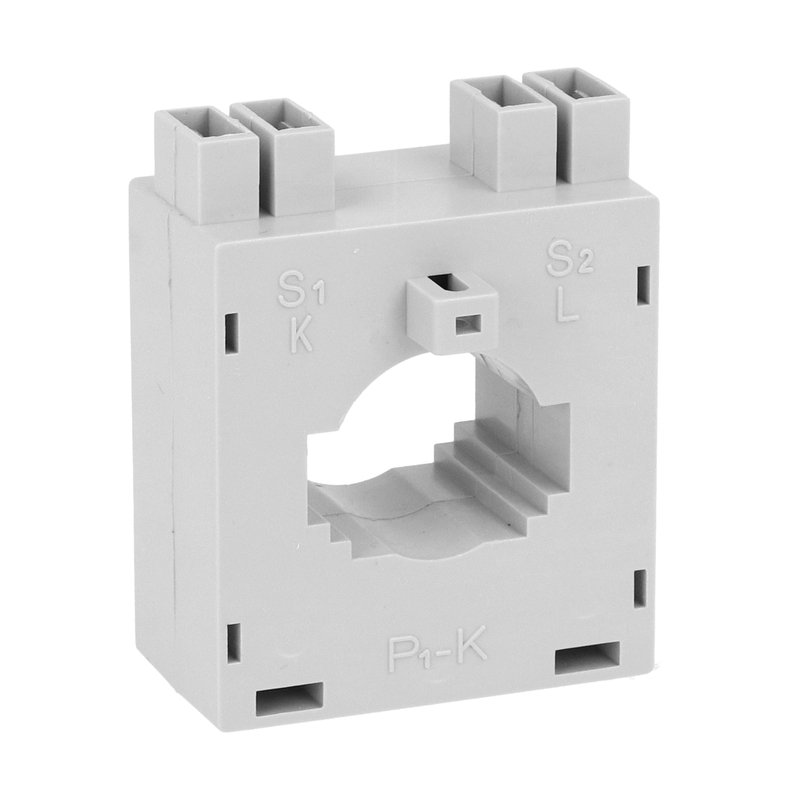

DM2T0100

100/5A / DM2T0100

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 100

Manufacturer data for DM2T0100

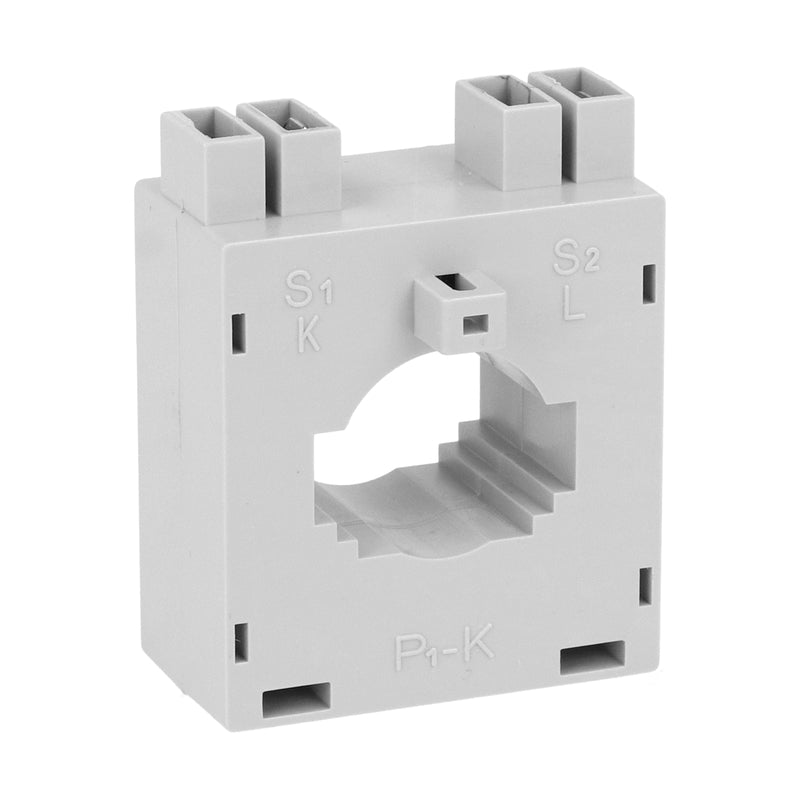

DM2T0150

150/5A / DM2T0150

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 150

Manufacturer data for DM2T0150

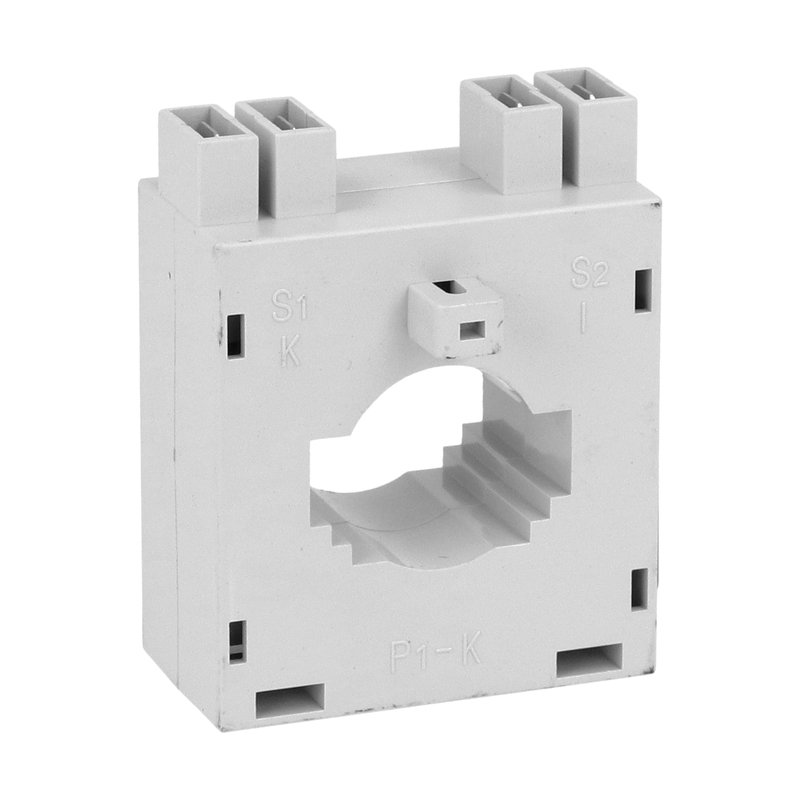

DM2T0200

200/5A / DM2T0200

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 200

Manufacturer data for DM2T0200

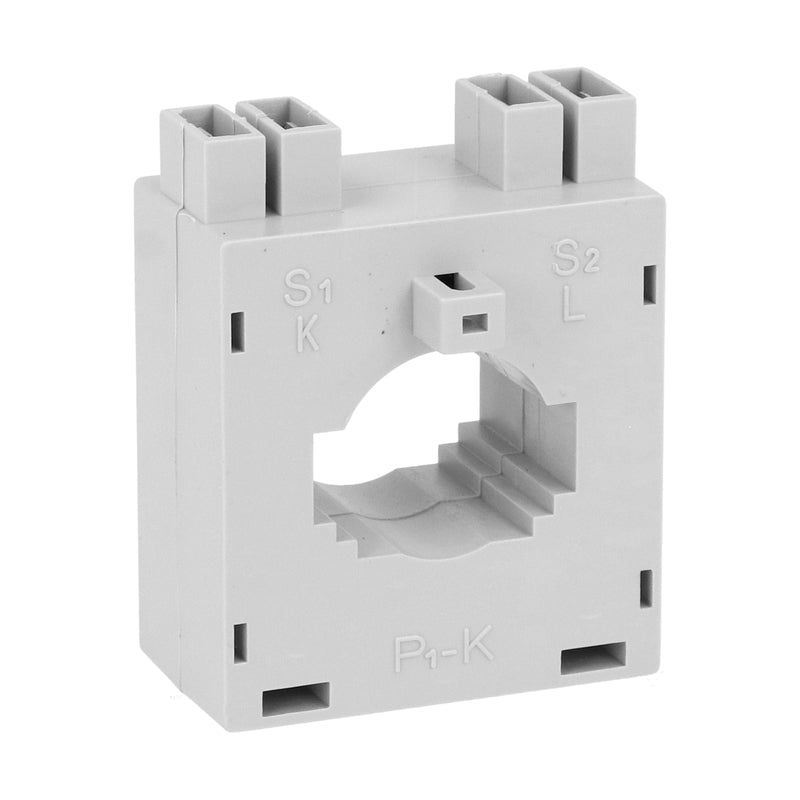

DM2T0250

250/5A / DM2T0250

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 250

Manufacturer data for DM2T0250

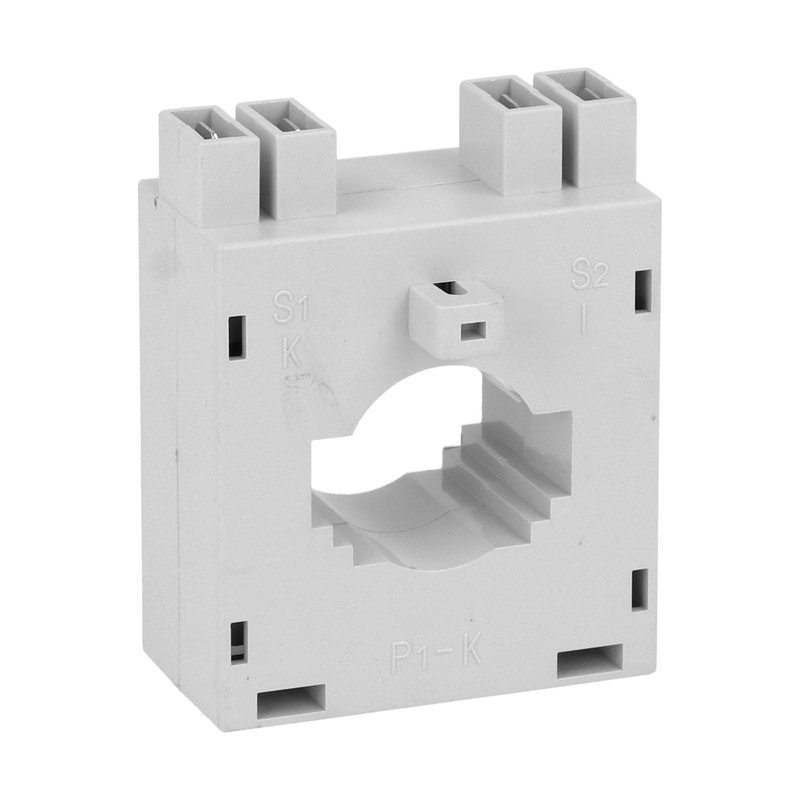

DM2T0400

400/5A / DM2T0400

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 400

Manufacturer data for DM2T0400

DM3T0250

250/5A / DM3T0250

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 250

Manufacturer data for DM3T0250

DM3T0400

400/5A / DM3T0400

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 400

Manufacturer data for DM3T0400

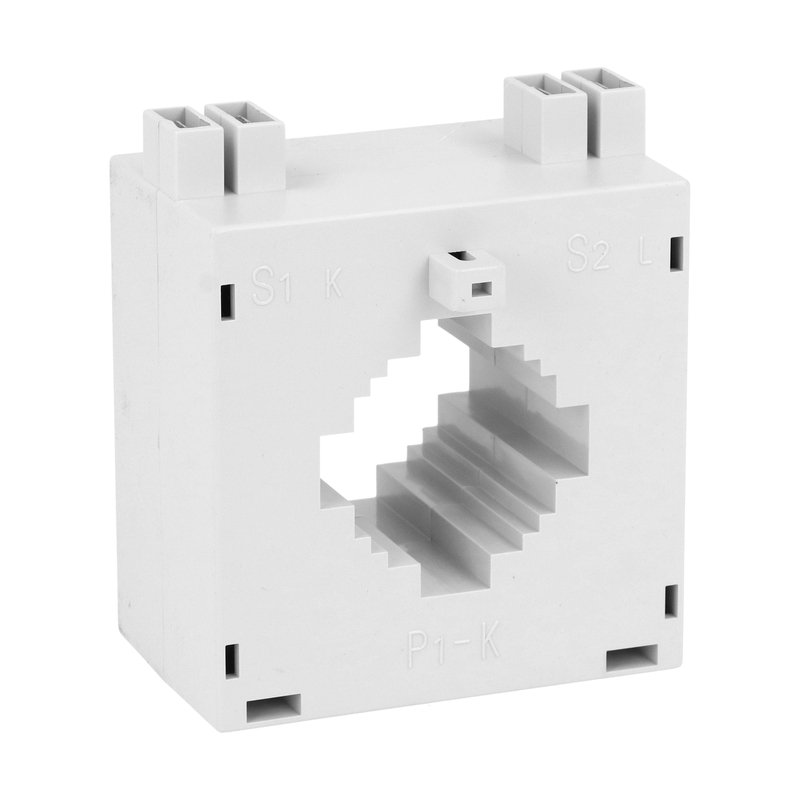

DM3T0600

600/5A / DM3T0600

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 600

Manufacturer data for DM3T0600

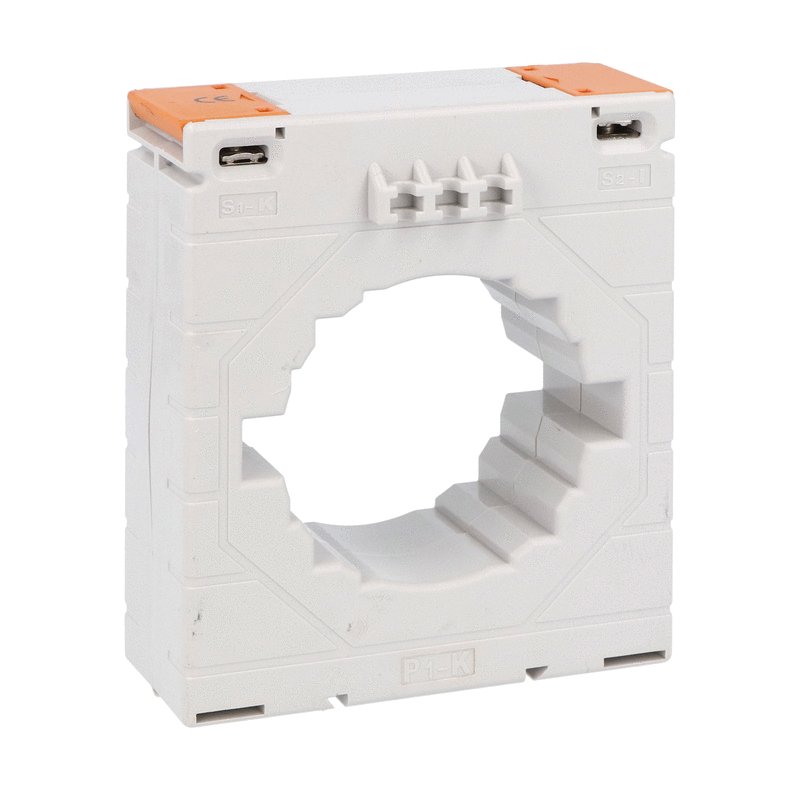

DM35T0800

800/5A / DM35T0800

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 800

Manufacturer data for DM35T0800

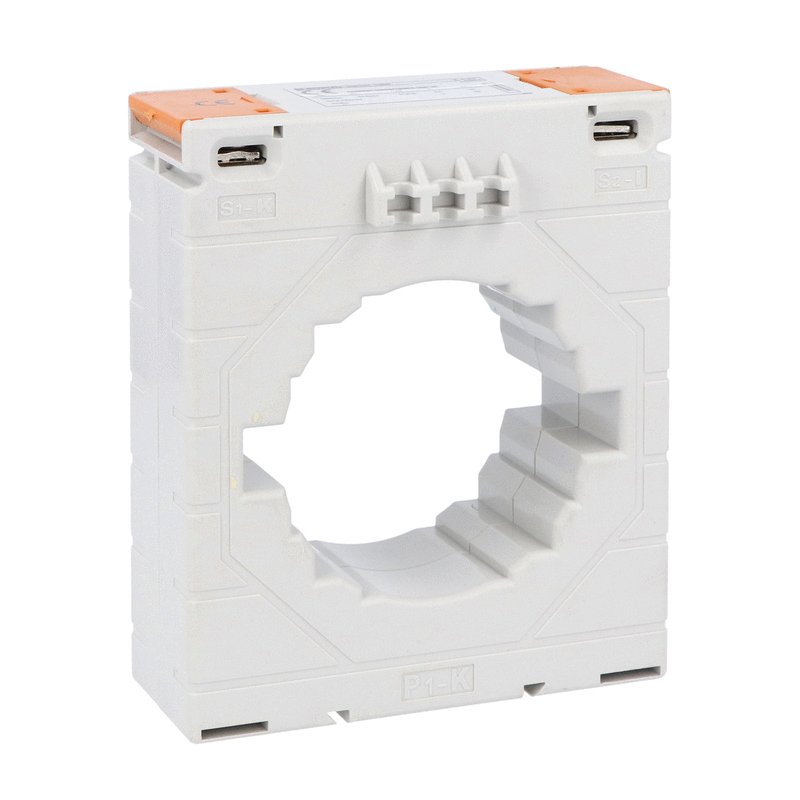

DM35T1000

1000/5A / DM35T1000

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 1000

Manufacturer data for DM35T1000

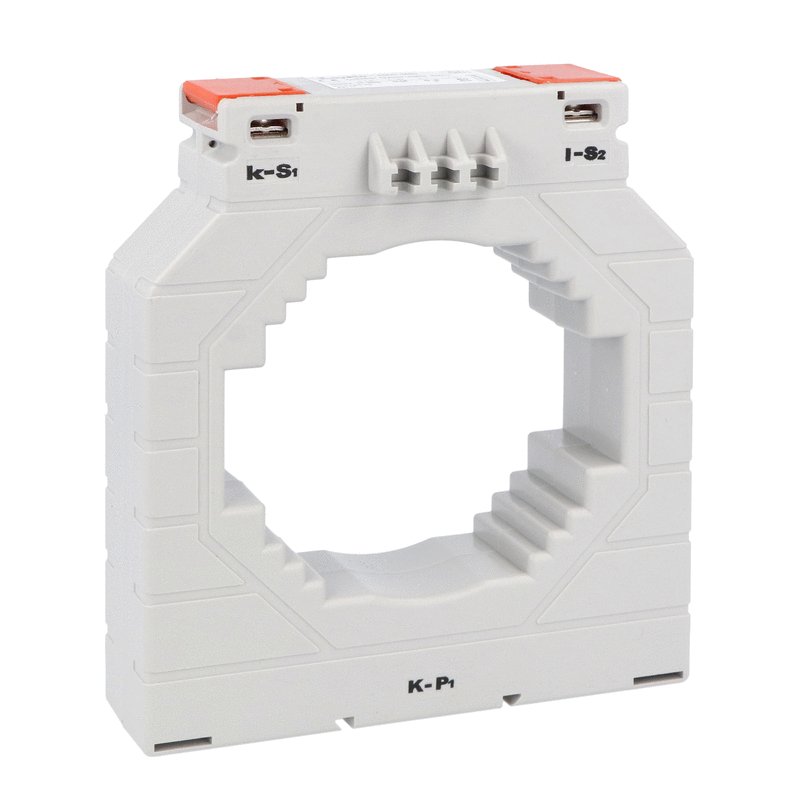

DM4T1600

1600/5A / DM4T1600

Type of product: Current transformers
Type of CT: Solid-core
Primary current Ipn (/5) [A]: 1600

Manufacturer data for DM4T1600

Selection and installation

Match CT ratio, aperture, meter burden and accuracy. Never leave the secondary open while primary current is flowing.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
