Lovato

Lovato BFK Capacitor Contactors | 12.5-50 kvar at 400V, 230V AC Coil

LE 3,063.01 EGP

Sale Sold out

Taxes included.

Model BFK1210A230 BFK1810A230 BFK3200A230 BFK3800A230 BFK5000A230 BFK8000A230

Lovato BFK capacitor-switching contactors are selected for capacitor-bank stages in power-factor correction panels. Unlike ordinary motor-duty selection, these models are sized by their capacitor switching rating in kvar at the stated network voltage. The listed A230 models use a 230V AC control coil.

Features and applications

Listed ratings from 12.5 to 50 kvar at 400V
Capacitor switching application
230V AC coil variants
Coordinate with the bank controller and protection

Models and specifications

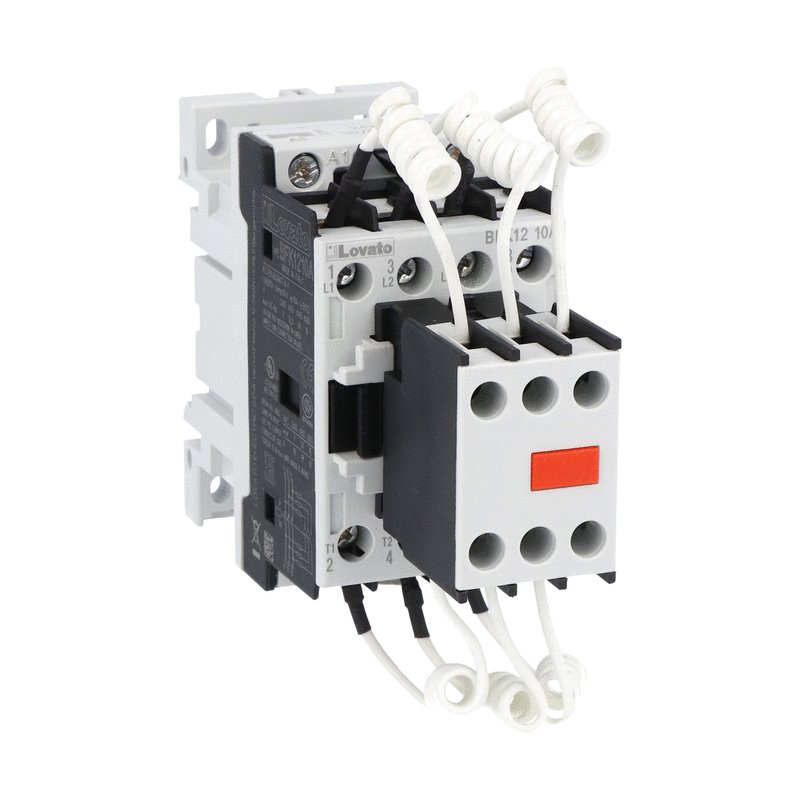

BFK1210A230

Type of product: Contactors for power factor correction with AC control circuit
Number of poles: 3
Type of coil: AC coil 50/60Hz
Rated coil voltage [V]: 230
IEC operational power 400V [kvar]: 12.5
Type of built-in auxiliary contacts: 1NO
Type of mounting: Screw / DIN rail 35mm

Manufacturer data for BFK1210A230

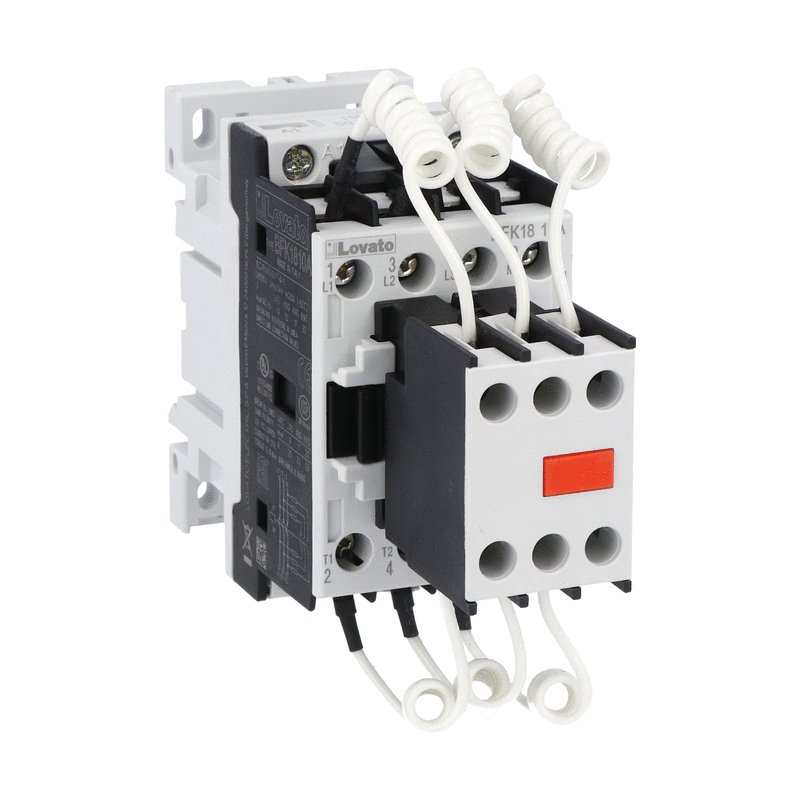

BFK1810A230

Type of product: Contactors for power factor correction with AC control circuit
Number of poles: 3
Type of coil: AC coil 50/60Hz
Rated coil voltage [V]: 230
IEC operational power 400V [kvar]: 15
Type of built-in auxiliary contacts: 1NO
Type of mounting: Screw / DIN rail 35mm

Manufacturer data for BFK1810A230

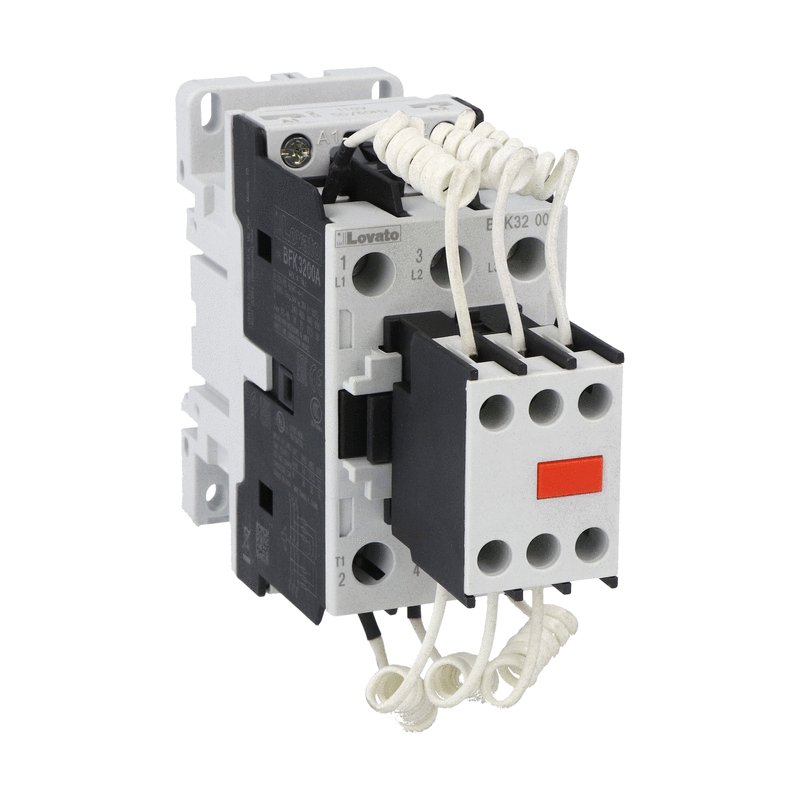

BFK3200A230

Type of product: Contactors for power factor correction with AC control circuit
Number of poles: 3
Type of coil: AC coil 50/60Hz
Rated coil voltage [V]: 230
IEC operational power 400V [kvar]: 25
Type of mounting: Screw / DIN rail 35mm

Manufacturer data for BFK3200A230

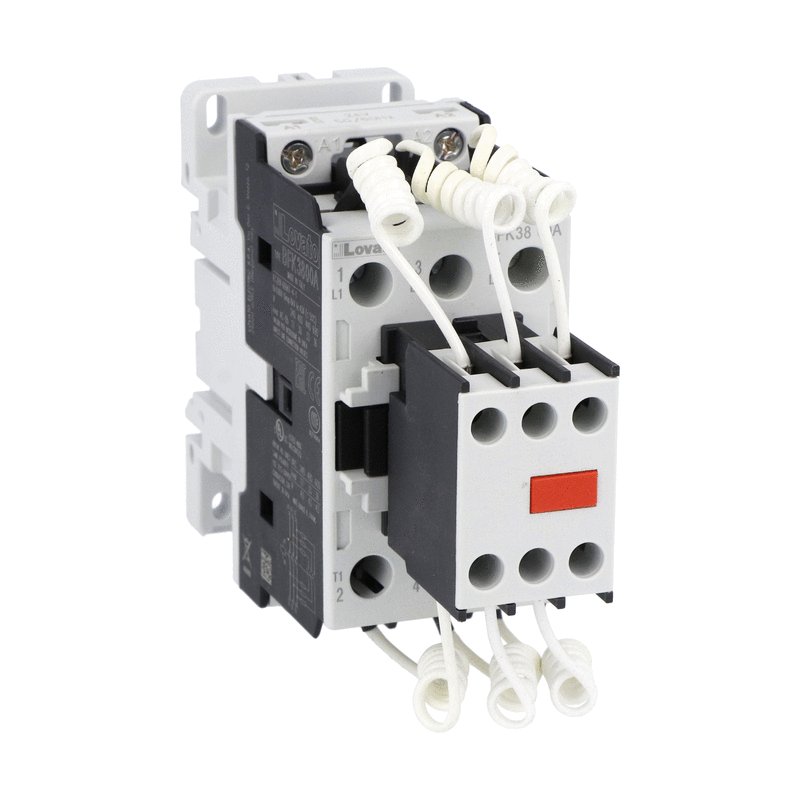

BFK3800A230

Type of product: Contactors for power factor correction with AC control circuit
Number of poles: 3
Type of coil: AC coil 50/60Hz
Rated coil voltage [V]: 230
IEC operational power 400V [kvar]: 30
Type of mounting: Screw / DIN rail 35mm

Manufacturer data for BFK3800A230

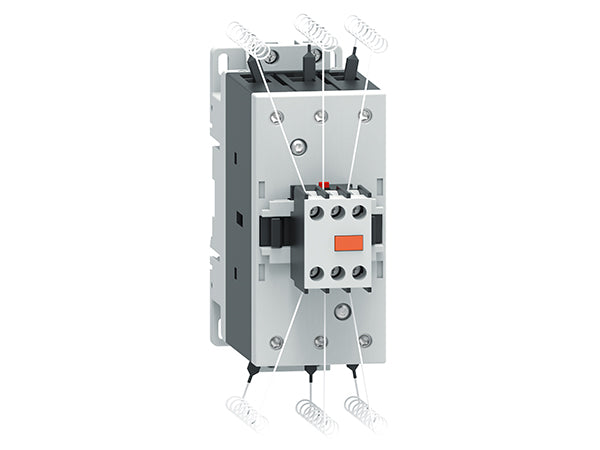

BFK5000A230

Type of product: Contactors for power factor correction with AC control circuit
Number of poles: 3
Type of coil: AC coil 50/60Hz
Rated coil voltage [V]: 230
IEC operational power 400V [kvar]: 40
Type of mounting: Screw / DIN rail 35mm

Manufacturer data for BFK5000A230

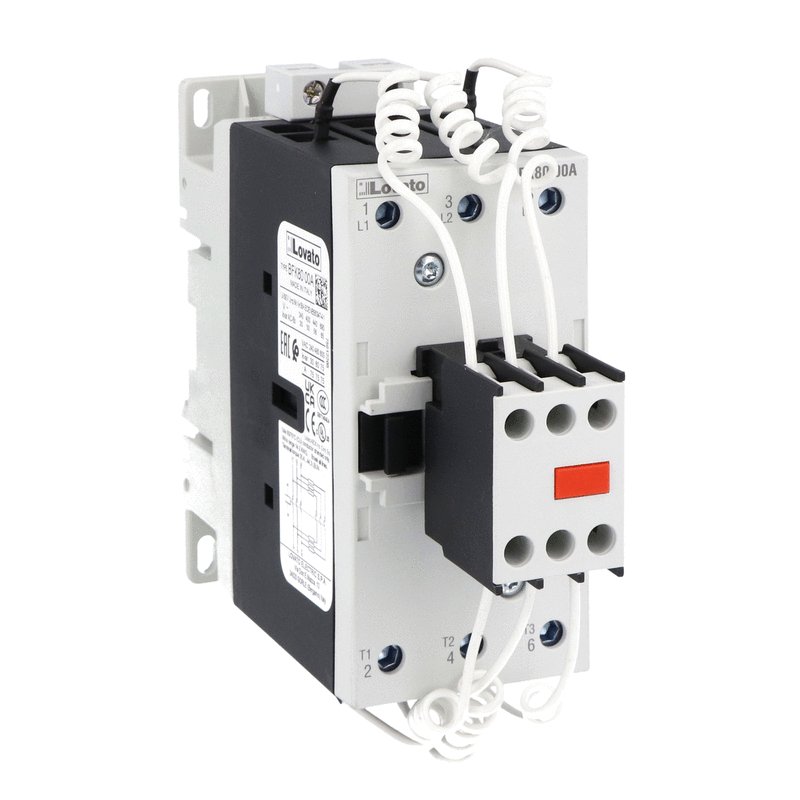

BFK8000A230

Type of product: Contactors for power factor correction with AC control circuit
Number of poles: 3
Type of coil: AC coil 50/60Hz
Rated coil voltage [V]: 230
IEC operational power 400V [kvar]: 50
Type of mounting: Screw / DIN rail 35mm

Manufacturer data for BFK8000A230

Selection and installation

Confirm capacitor kvar, network voltage, duty and switching frequency for the exact model.

Available from Spark in Egypt for control-panel assembly, maintenance and electrical projects, with delivery to Cairo, Giza, Alexandria and other governorates. Match the order code, electrical ratings and compatible equipment before ordering.
