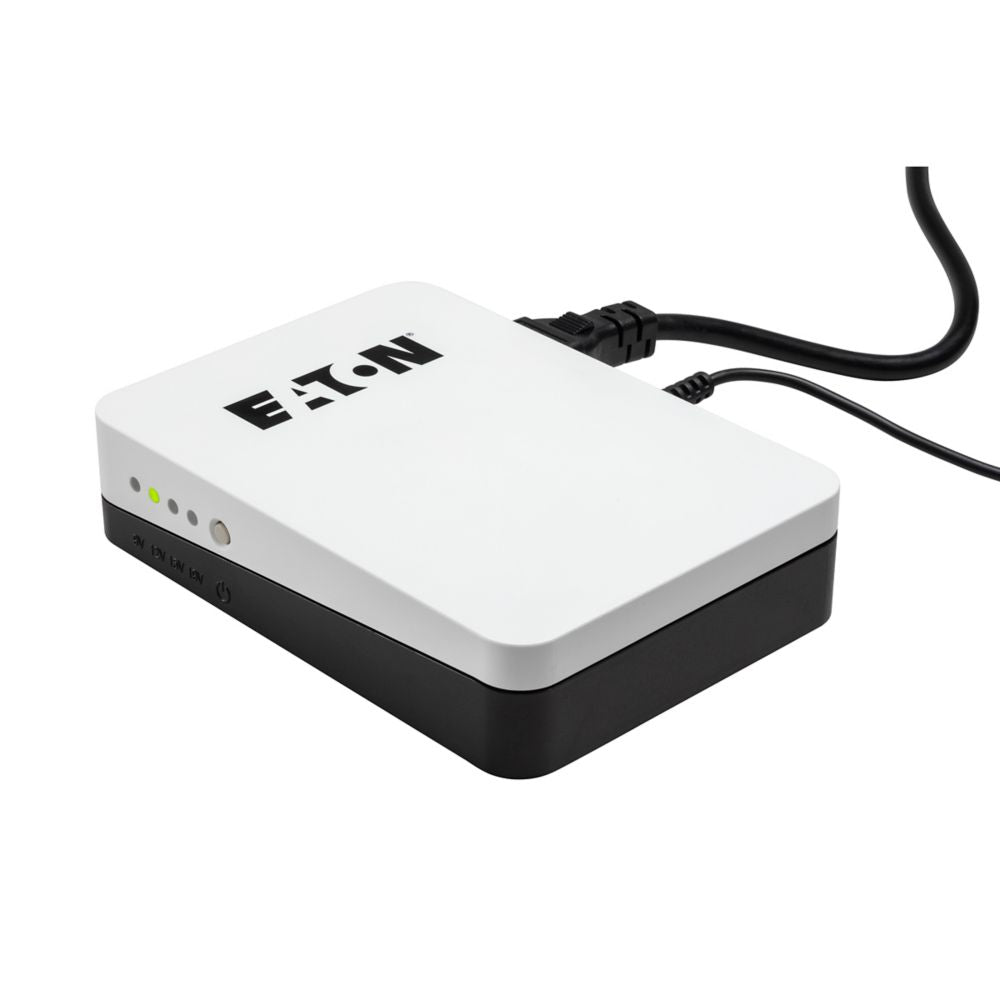

Eaton 3SM36 36W Mini DC UPS for Routers

Eaton 3SM36 — 36W DC backup power

The Eaton 3SM36 is a dc battery backup UPS for compatible routers, fibre ONT devices and low-power DC network equipment. Its selectable DC output supports compatible 9V, 12V, 15V or 19V equipment within the specified current limits. Compare this exact Eaton model at Spark Egypt when planning backup power for your installation.

Technical specifications

Applications and operation

Designed for compatible routers, fibre ONT devices and low-power DC network equipment. Standby backup supplies supported equipment from the battery when incoming mains power fails. Select the appropriate backed-up outlet or DC output for the device.

Compatibility and installation

• Select the exact DC voltage and check connector size, polarity and maximum current before connection.
• Four supplied barrel adapters provide connector choices, not four independent simultaneous outputs.
• This is a DC mini UPS; it does not provide a 230V AC socket.

Battery runtime and sizing

Runtime depends on the connected watt load, battery charge, age and temperature. Use Eaton’s model-specific runtime data for the intended load; the VA rating alone does not establish runtime. Confirm any optional battery pack, network card or mounting accessory against this exact model before ordering.

Common questions

Which load should I compare? Check the device’s DC voltage, current and connector polarity. The maximum is 27W at 9V and 36W at 12V or 15V, with approximately 36W at 19V.

Is a fixed backup time guaranteed? No. Battery runtime varies with the actual load and battery condition.

Official Eaton 3SM36 specifications and resources · Eaton UPS at Spark Egypt
