ABB AD1CO-R-15m Analogue Daily Time Switch 24h 16A 1CO with Power Reserve | 2CSM208151R1000
ABB AD1CO-R-15m Analogue Daily Time Switch 24h 16A 1CO with Power Reserve | 2CSM208151R1000
Couldn't load pickup availability

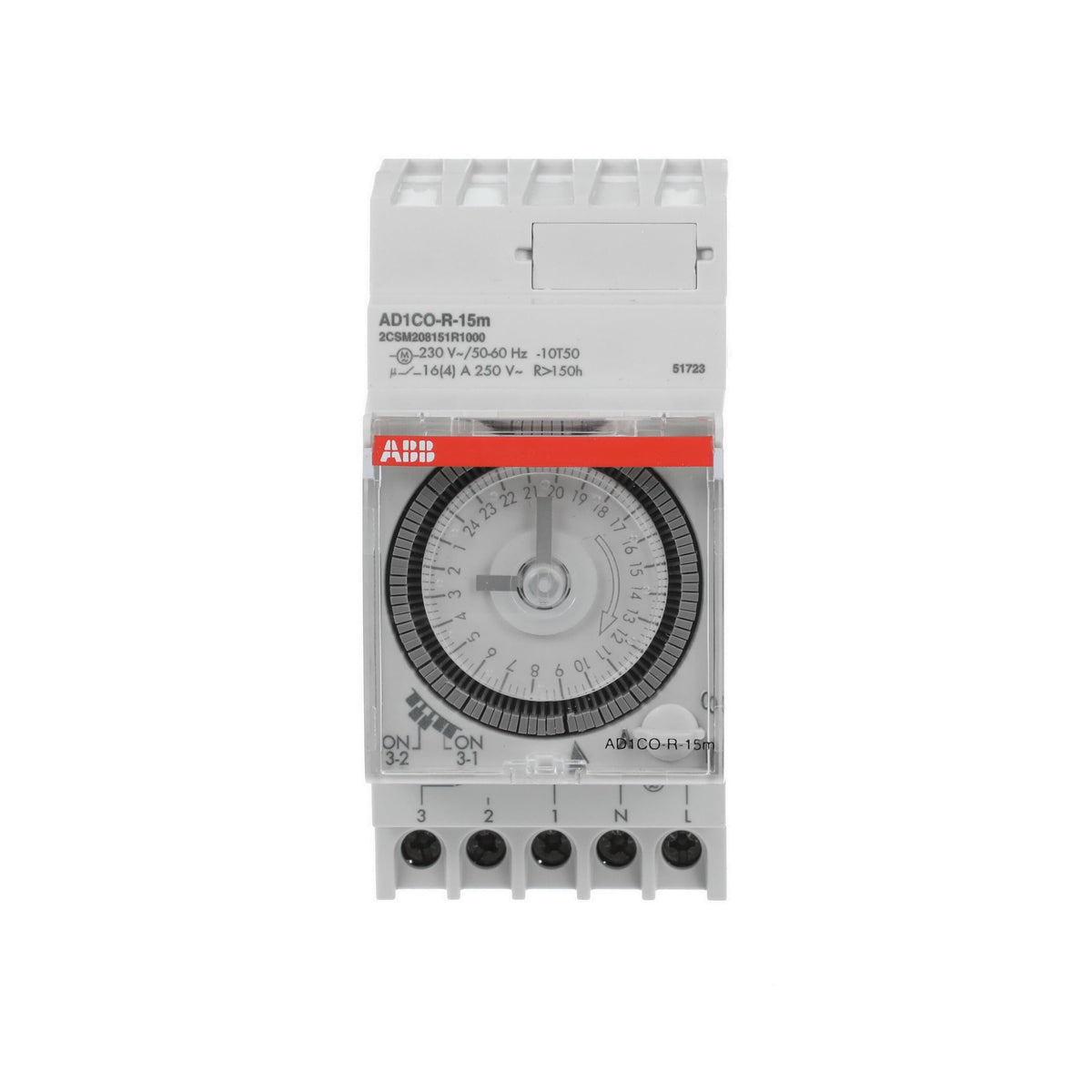

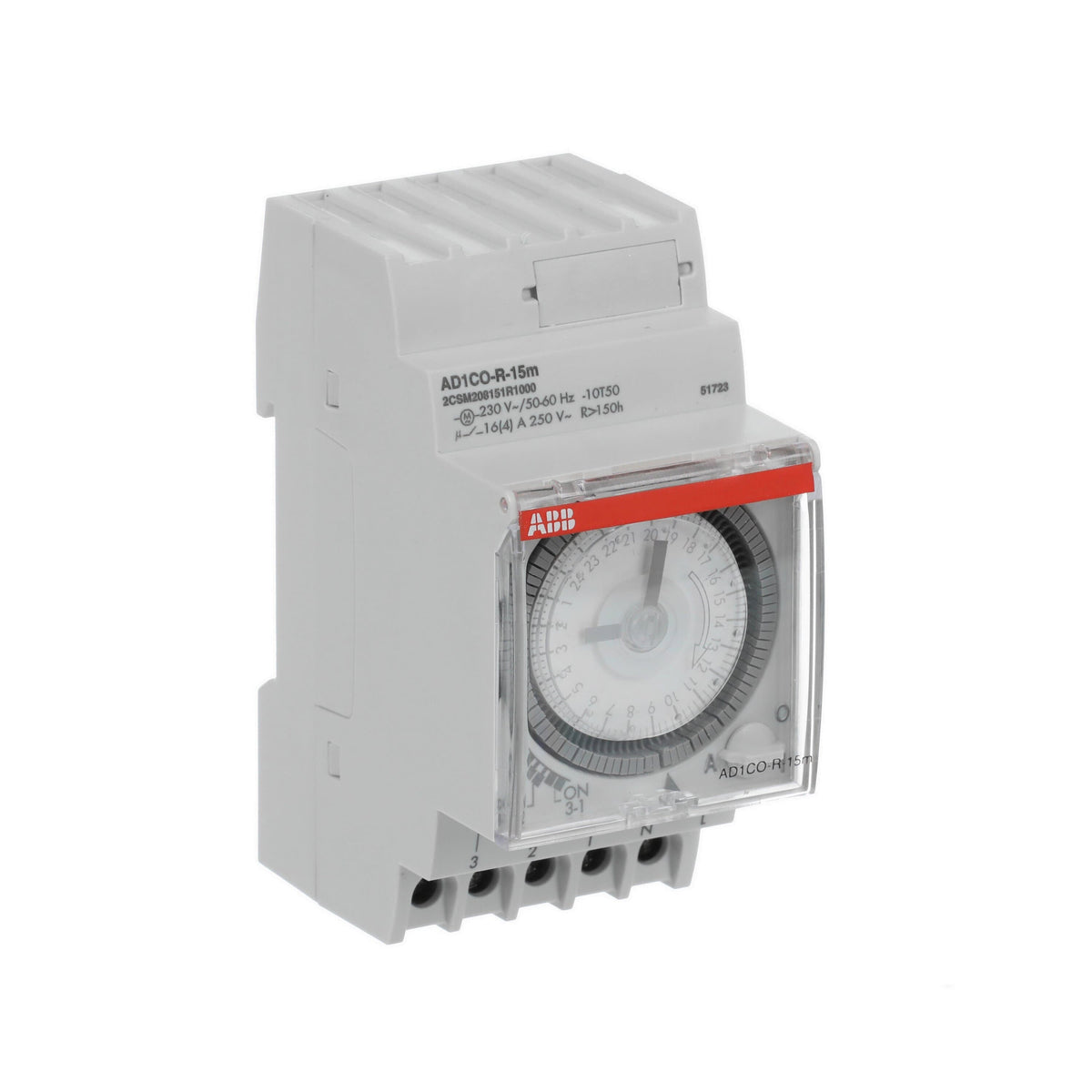

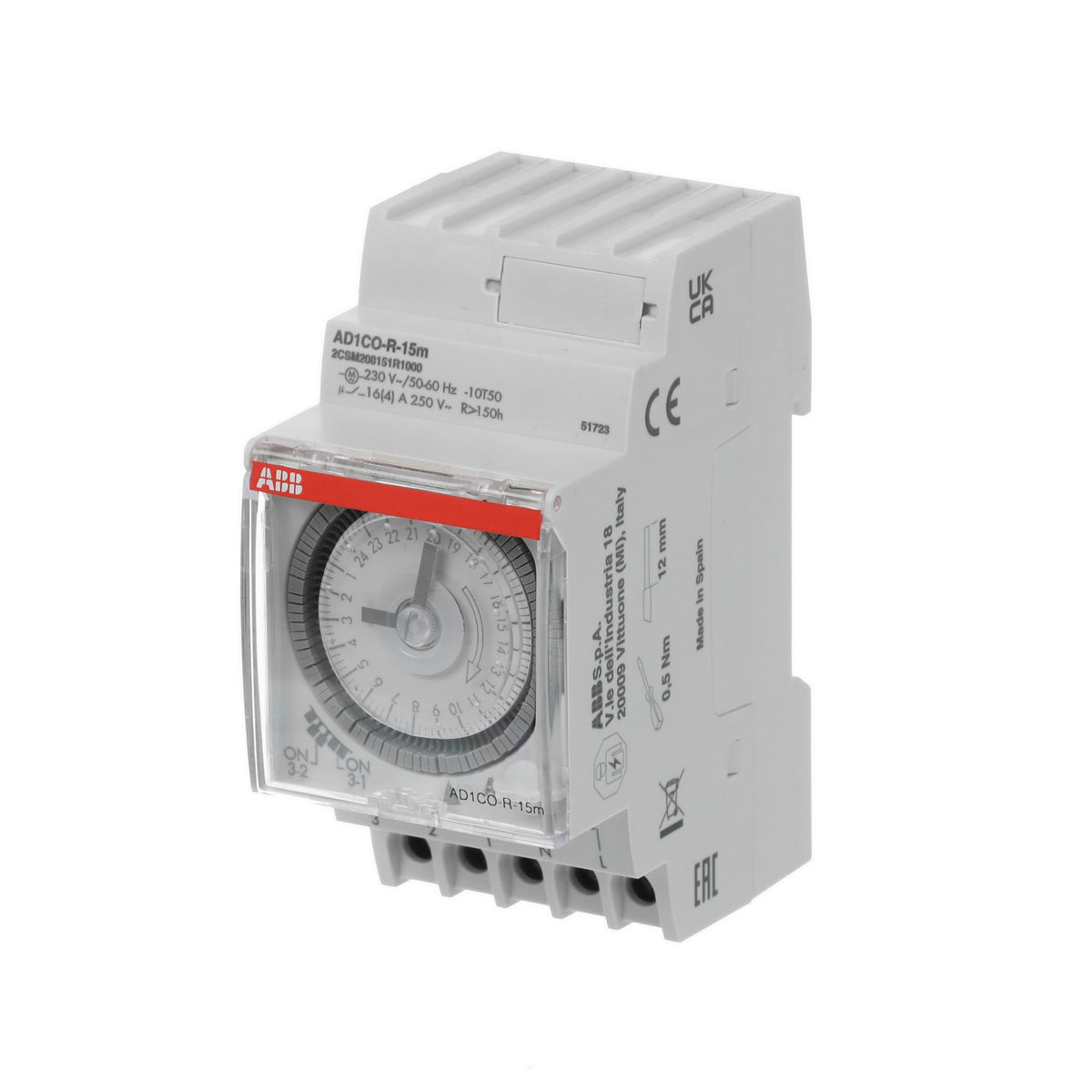

The ABB AD1CO-R-15m (2CSM208151R1000) is a daily analogue time switch for DIN-rail distribution boards. Push the captive segments on the 24-hour dial to set exactly when a load turns on and off, in 15-minute steps, and the switch repeats the programme every day automatically.
Its changeover (CO) contact switches up to 16 A resistive load directly, or drives the coil of a modular contactor for bigger loads. A built-in power reserve keeps the clock running during power cuts, so you do not need to reset the time after every outage.
Key features
- 24-hour daily programme with 15-minute switching steps
- Captive segments – nothing to lose, easy to set by hand
- Changeover (CO) output contact rated 16 A resistive
- Power reserve keeps time during power cuts
- Manual override selector on the front
- Compact 2.5-module DIN-rail housing
- Accuracy ± 1 s per day
Technical specifications
| Brand | ABB |
|---|---|
| Model | AD1CO-R-15m |
| ABB order code | 2CSM208151R1000 |
| Device type | Analogue time switch (mechanical dial) |
| Programme | Daily – 24 hours |
| Minimum switching interval | 15 minutes (96 segments per day) |
| Channels / contact | 1 channel – changeover (CO, 1NO/1NC) |
| Switching capacity | 16 A resistive (cos φ = 1), 4 A inductive (cos φ = 0.6) at 250 V AC |
| Supply voltage | 230 V AC (195–253 V), 50/60 Hz |
| Power reserve | Yes – keeps time during power cuts |
| Accuracy | ± 1 s/day |
| Manual override | Selector switch on the front |
| Width | 2.5 modules (44 mm) |
| Dimensions (W × H × D) | 44 mm × 66 mm × 88 mm |
| Weight | 116 g |
| Protection | IP20 |
| Operating temperature | -10 to +50 °C |
| Mounting | 35 mm DIN rail |
| Standard | EN 60730-2-7 |
Typical applications
- Street, façade, garden and sign lighting
- Water heaters (on before you wake up, off at night)
- Water pumps, irrigation and fountains
- Ventilation, extract fans and HVAC schedules
- Shop windows, advertising boards and building common areas
Frequently asked questions
How do I program the ABB AD1CO-R-15m?
Set the dial to the current time, then push down the segments for every 15-minute period you want the load ON. Put the selector on automatic and the programme repeats every day.
Can it switch a water heater or a big load directly?
It can switch up to 16 A resistive load directly. For bigger loads, motors or three-phase circuits, use it to control the coil of a modular contactor such as the ABB ESB range.
What happens during a power cut?
The built-in power reserve keeps the clock running, so the programme stays in time once the power comes back.
What does CO mean?
CO is a changeover contact (1NO + 1NC): one side closes when the programme is ON, the other when it is OFF.
Buy ABB AD1CO-R-15m in Egypt
Spark Egypt supplies the original ABB AD1CO-R-15m (2CSM208151R1000) time switch with a VAT tax invoice for electrical contractors, panel builders, facility managers and home owners. Delivery is available to Cairo, Giza, New Cairo, 6th of October, Sheikh Zayed, the New Administrative Capital, Alexandria, the Delta, the Canal cities and Upper Egypt. Ask our technical team about matching contactors for heaters, pumps and lighting circuits.
