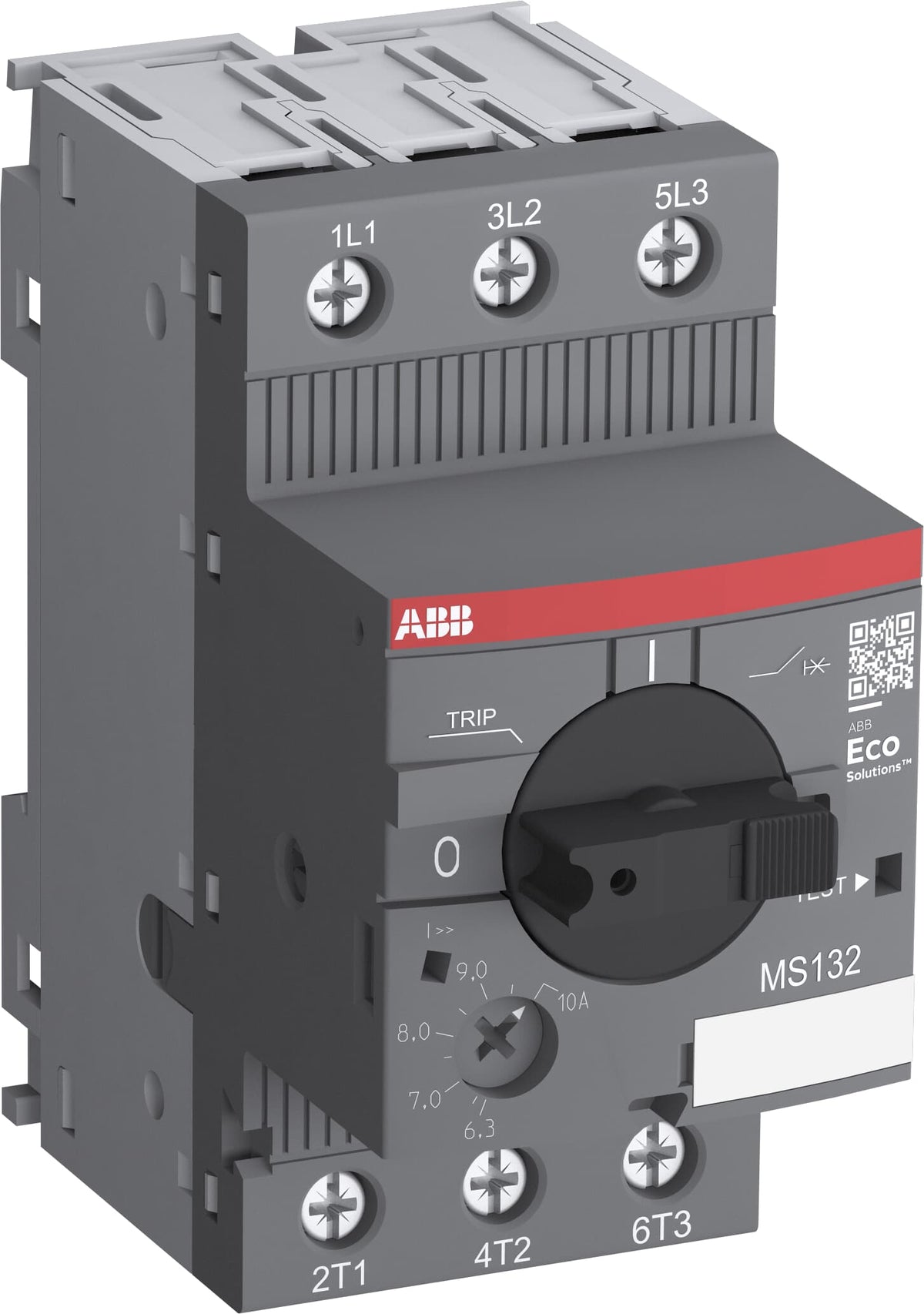

ABB 1SAM350000R1008 | MS132-4.0 Manual Motor Starter, 2.5-4.0A Current Range

ABB MS132-4.0 manual motor starter - 2.5 to 4.0 A

ABB 1SAM350000R1008 is an ABB MS132-4.0 manual motor starter for motor protection, local motor switching and low-voltage control panel assembly. The ABB part number 1SAM350000R1008 is selected for motors with full-load current in the 2.5 to 4.0 A range, making it suitable for pumps, fans, compressors, HVAC systems, conveyors, small machines and factory maintenance panels.

The MS132 frame adds high short-circuit performance in a compact 45 mm body, making it a strong choice for industrial control panels and motor feeders. As a manual motor protector, ABB 1SAM350000R1008 combines overload protection, short-circuit protection, phase-failure protection, a disconnecting function, temperature compensation, a trip-free mechanism and a clear rotary operating handle.

The MS132-4.0 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 4.00 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 VAC and trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and terminal spacers are available as accessory.

Why engineers choose ABB 1SAM350000R1008

• Correct ABB part number and SKU: 1SAM350000R1008.
• Current range: 2.5 to 4.0 A for accurate motor full-load-current matching.
• Used as an MPCB, manual motor starter and motor protection circuit breaker in electrical panels.
• Suitable for panel builders, contractors, maintenance teams and procurement engineers in Egypt.
• Compatible with ABB manual motor starter accessories such as auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, busbars and locking devices where applicable.

Technical specifications

Order ABB 1SAM350000R1008 / MS132-4.0 from Spark for clear product identification, professional electrical supply, motor protection and control panel projects.
